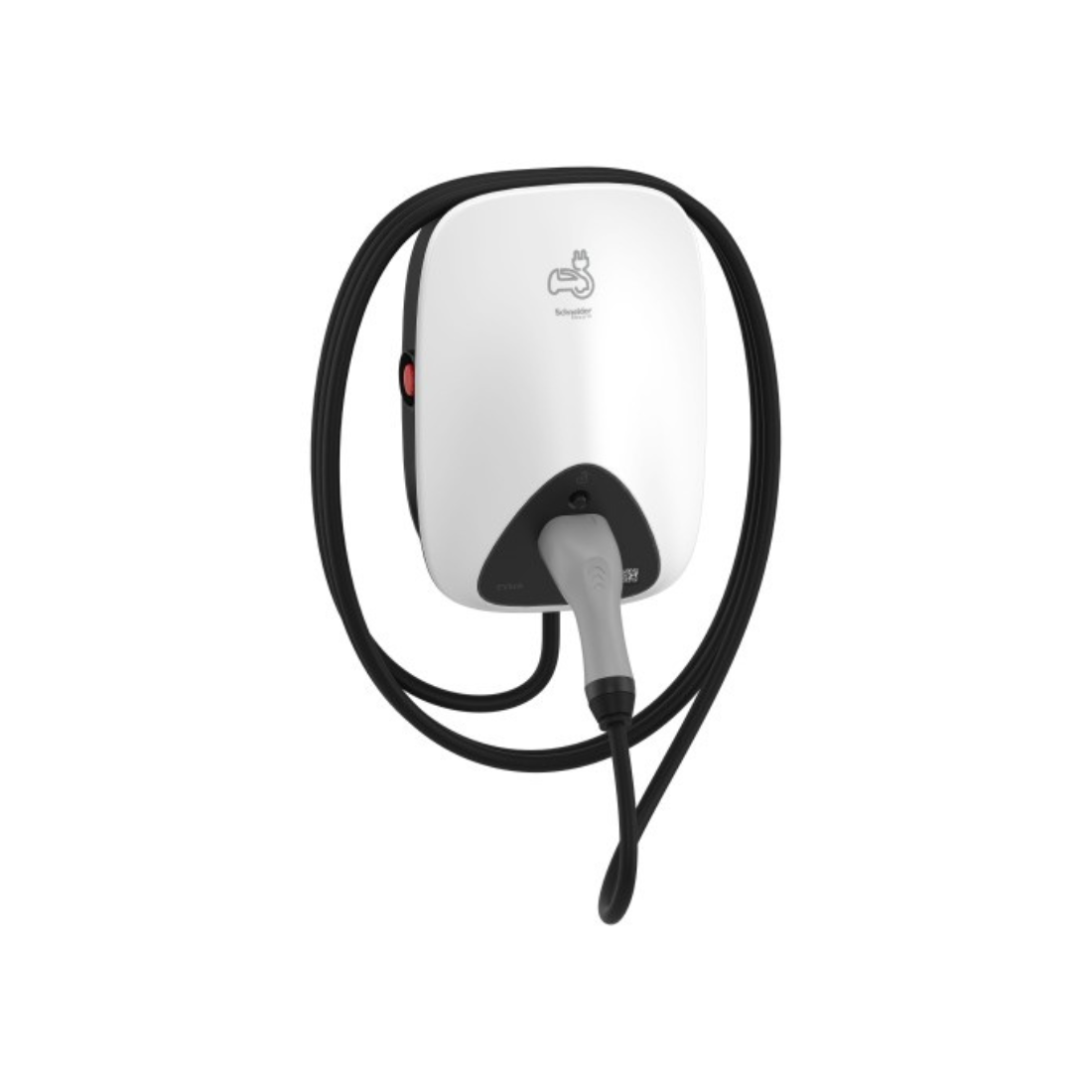

Schneider Electric EVH4S07NC Charging Station EVlink Home, 1P+N, attached cable 5m, 7.4kW, 32A, with RDC-DD
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Due to UAE National Day holidays, all outside Dubai deliveries will be processed only after Wednesday.
Brand : Schneider Electric
Type : Charging Station
Description
Schneider Electric EVH4S07NC Charging Station is an electric vehicle (EV) charging station designed to provide charging capabilities for electric vehicles. 1P+N is the Charging station type, which is a single-phase (1P) charging station with a neutral (N) wire. This type of charging station is commonly used for residential charging. It comes with an attached cable that is 5 meters long. This cable is used to connect the charging station to the electric vehicle.
The charging station has a power rating of 7.4 kilowatts (kW). This indicates the maximum power output it can deliver to the electric vehicle. The charging station is capable of delivering a maximum current of 32 amperes (A). Current is a measure of the flow of electric charge and determines the rate at which the vehicle's battery is charged.
Features
- Effortless and fast charging
- Reliable & secure
- Minimizing the risk of electrical hazards
- Any direct current leakage is promptly detected and disconnected
| Brand | Schneider Electric |
| Item Name | Charging Station |
| Model | EVH4S07NC |
| Rated Supply Voltage | 230 V AC 50 Hz +/- 10 % |
| Ambient Air Temperature For Storage | -40-85 °C |
| Color | White (RAL 9003) |
| Control Type | Red 1 Emergency Stop |
| Function | 1 push-Button |
| Depth | 148mm |
| Height | 409mm |
| IK Degree Of Protection | IK10 conforming to IEC 62262 |
| IP Degree Of Protection | IP55 conforming to EN/IEC 60529 |
| Mounting Type | Wall-Mounted |
| Operating Altitude | 0...2000 m |
| Poles Description | 1P + N |
| Certifications | CE, UKCA |
| Component Type | Charging Station |
| Protection Type | Earth-Leakage Protection |
| Range | EVlink |
| Relative Humidity | 5-95 % |
| Socket Number | 1 |
| Width | 282 mm |
| Offer Type | Basic |
| Number Of Inputs | 1 |
| Output Type Attached Cable | T2 Bottom And Top Centre Of Enclosure 5 m |
| Nominal Output Power | 7.4 kW 32 A 230 V |
| Input Type | Auxiliary For Dynamic Energy Management |
| Maximum Supply Current | 32 A |
| Ambient Air Temperature For Operation | -30-50 °C |
| Standards | EN 61851, IEC 61851-1, EN 61000-6-1, EN 61000-6-3 |
| Local Signalling | Red, Green & Blue 1 LED; Function: Status Indication |
| Earthing System | TT, TN-S |
| Net Weight | 4.5 kg |
