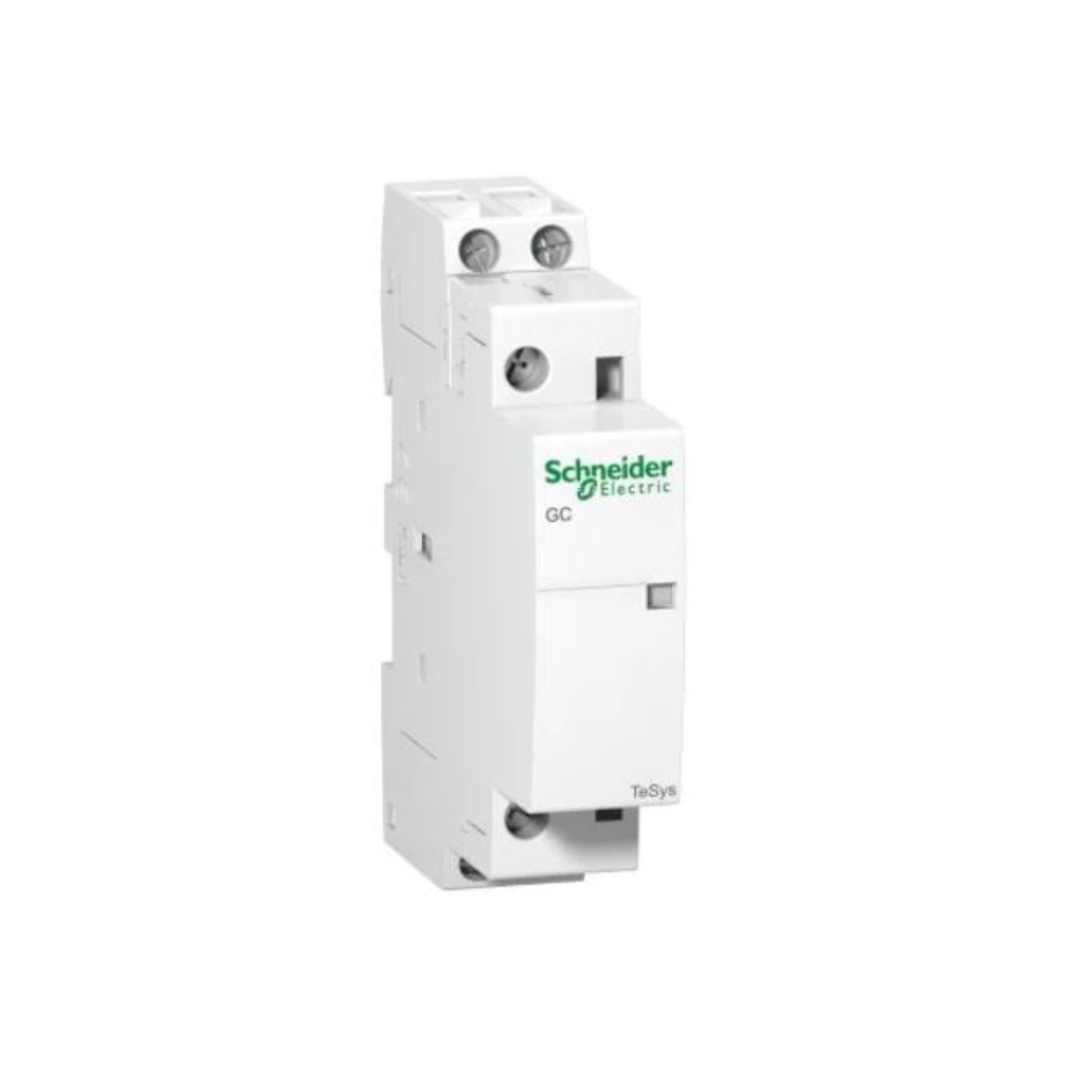

Schneider Electric TeSys GC Modular Contactor 16A 2 NO 220-240V AC Coil GC1620M5
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Modular Contactor
Description
Schneider Electric GC1620M5 TeSys GC Modular Contactor is an electrical switching device that is commonly used in industrial and commercial applications to control the flow of electricity to various loads. It's designed to handle higher currents and is often used in situations where a regular relay might not be sufficient. 16A is the maximum current that the contactor can handle.
2 NO stands for "2 Normally Open" contacts. It means that there are two sets of contacts in the contactor that are normally open (i.e., not conducting current) when the contactor is not energized. When the contactor is energized, these contacts will close, allowing current to flow through them. 220-240V AC Coil is the voltage required to energize the coil of the contactor. It is designed to operate with an input voltage of 220-240 volts AC (alternating current). This is the voltage that will cause the contactor to switch its contacts.
So, in summary, Schneider Electric GC1620M5 TeSys GC Modular Contactor is rated for a maximum current of 16 amperes, has two normally open contacts, and requires an input voltage of 220-240 volts AC to activate its coil and close the contacts. This type of contactor is commonly used in various electrical applications for controlling circuits.
Features
- 16A 2P Modular Contactor 220V Coil
- Used to control electrical loads
| Brand | Schneider Electric |
| Item Name | Modular Contactor |
| Model | GC1620M5 |
| Color | White |
| Conventional Free Air Thermal Current | 16 A (at 50 °C) for power circuit |
| Control Circuit Voltage | 220...240 V AC 50 Hz |
| Rated Operational Voltage | <= 250 V AC |
| Rated Insulation Voltage | 500 V conforming to IEC 61095, 500 V conforming to VDE 0110 |
| Rated Impulse Withstand Voltage | 4 kV |
| Ambient Air Temperature For Operation | -5-50 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Associated Fuse Rating | 16 A gL at <= 440 V for power circuit |
| Average Impedance | 2.5 mOhm - Ith 16 A 50 Hz for power circuit |
| Compatibility Code | Modular Standard Contactor |
| Connections - Terminals | control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 6-6 mm²solid without cable end, power circuit: screw clamp terminals 2 cable(s) 4-4 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 2.5-2.5 mm²flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 2.5-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1.5-1.5 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²solid without cable end, power circuit: screw clamp terminals 1 cable(s) 6-6 mm²flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 4-4 mm²flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 6-6 mm²flexible with cable end |
| Contactor Application | Motor Control, Heating, Lighting |
| Control Circuit Type | AC at 50 Hz |
| Control Circuit Voltage Limits | drop-out: 0.2...0.75 Uc at 50 Hz (at <50 °C), operational: 0.85...1.1 Uc at 50 Hz (at <50 °C) |
| Control Type | Remote Control |
| Depth | 62.5 mm |
| Heat Dissipation | 1.3-1.3 W at 50/60 Hz |
| Height | 81 mm |
| Hold-in Power Consumption in VA | 3.8-3.8 VA 50 Hz (at 20 °C) |
| Inrush Power in VA | 15-15 VA 50 Hz (at 20 °C) |
| Insulation Resistance | > 10 MOhm for Signalling Circuit |
| IP Degree Of Protection | IP40 conforming to VDE 0106 (in enclosure), IP20 conforming to VDE 0106 |
| Irms Rated Making Capacity | 40 A at 400 V AC for power circuit conforming to IEC 61095 |
| Maximum Operating Rate | 300 cyc/h 50 °C |
| Mechanical Durability | 1000000 cycles |
| Mechanical Robustness | Shocks contactor open: 10 Gn for 11 ms, shocks contactor closed: 15 Gn for 11 ms, vibrations contactor open: 2 Gn, 5...300 Hz, vibrations contactor closed: 3 Gn, 5...300 Hz |
| Mounting Mode | Clip-On |
| Mounting Support | DIN Rail |
| Operating Altitude | <= 3000 m |
| Operating Position | 30°/vertical |
| Operating Time | 10...25 ms opening, 10...30 ms closing |
| Pole Contact Composition | 2 NO |
| Poles Description | 2P |
| Power Dissipation Per Pole | 0.65 W |
| Protective Treatment | TC |
| Range | TeSys |
| Rated Breaking Capacity | 40 A at 400 V for power circuit conforming to IEC 61095 |
| Rated Operational Voltage Limits | <= 250 V AC |
| Standards | IEC 61095, IEC 60947-5 |
| Tightening Torque | control circuit: 0.8 N.m - on screw clamp terminals, power circuit: 0.8 N.m - on screw clamp terminals |
| Utilisation Category | AC-7A, AC-7B |
| Total number of 18 mm modules | 1 |
| Width | 17.5 mm |
| Rated Short-time Withstand Current | 128 A 40 °C - 10 s for power circuit, 40 A 40 °C - 30 s for power circuit |
| Electrical Durability | AC-7A: 100000 cycles, AC-7B: 100000 cycles |
| Weight | 116.0 g |
