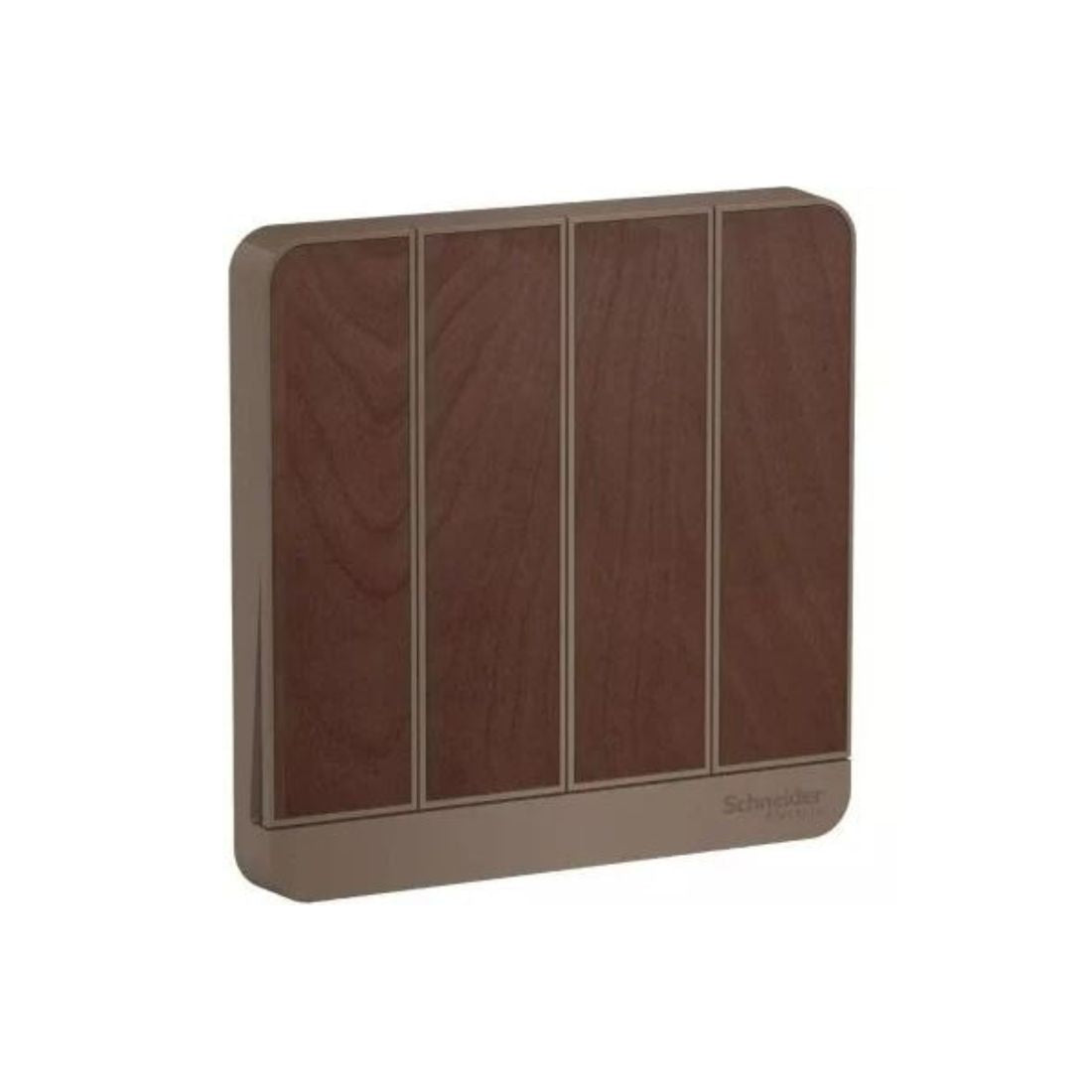

Schneider Electric 1 Pole 2 Way Switch 16AX 250V 4G E8334L2_WD - Wood

Schneider Electric 1 Pole 2 Way Switch 16AX 250V 4G E8334L2_WD - Wood

Regular price AED 122.00
(Price Inclusive of VAT)
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric

    Schneider Electric E8334L2_WD 1-Pole 2-Way Switch also known as a single-pole double-throw (SPDT) switch, is a type of electrical switch used to control the flow of electricity in a circuit. A 1-pole switch can control a single electrical circuit. The switch has two positions or settings, typically labeled as "on" and "off." 16AX is the current rating or amperage of the switch.

    250V is the voltage rating of the switch. It is designed to work with electrical systems that have a voltage of up to 250 volts. 4G is the switch that has four gang terminals or connections. These terminals are used to connect the switch to the electrical wiring in the home or building. The switch can control multiple lights or devices if wired accordingly.

    Overall, the Schneider Electric E8334L2_WD 1-Pole 2-Way Switch is designed for use in electrical systems to control a single circuit from two different locations, such as a hallway light controlled by switches at both ends of the hallway. The 16AX rating ensures it can handle a moderate amount of current, and the 250V rating means it's suitable for typical household or commercial electrical systems. The wood cover gives it a specific appearance.

    • Screwless Design
    • Removable Faceplate without exposure to the electrical mechanism
    • Premium Quality Materials
    • A single-pole double-throw (SPDT) switch



    Brand : Schneider Electric

    Item Name : 2 Way Switch

    Model : E8334L2_WD

    Color : Wood

    Load Type : Inductive, Incandescent Lamp, Fluorescent Lamp, Resistive

    Rated Current : 16 AX at 250 V AC 50/60 Hz

    Package1 Length*Width*Height : 8.6 cm x 8.6 cm x 3.4 cm

    Clamping Connection Capacity : 3 x 2.5 mm² For Solid Cable(s), 3 x 2.5 mm² For Stranded Cable(s), 4 x 1.5 mm² For Solid Cables), 4 x 1.5 mm² For Stranded Cable(s)

    Depth : 34.2mm

    Device Application : Control

    Device Mounting : Flush, Surface

    Height : 86mm

    Environmental Characteristic : UV Resistant

    IP Degree Of Protection : IP20

    Material : Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator

    Number Of Gangs : 4 Gangs

    Operating Altitude : 2000 m

    Number Of Rocker : 4

    Range : AvatarOn

    Relative Humidity : 0-95 %

    Switch Function : 1-Pole 2-Way

    Width : 86 mm

    Local Signalling : With Light Indicator, LED

    Connections - Terminals : Brass Terminal

    Standards : BS EN 60669-1, MS IEC 60669-1, IEC 60669-1, SS 227-1

    Environmental Characteristic : UV Resistant

    Weight : 140.0g

    Quantity : 1 Pcs
