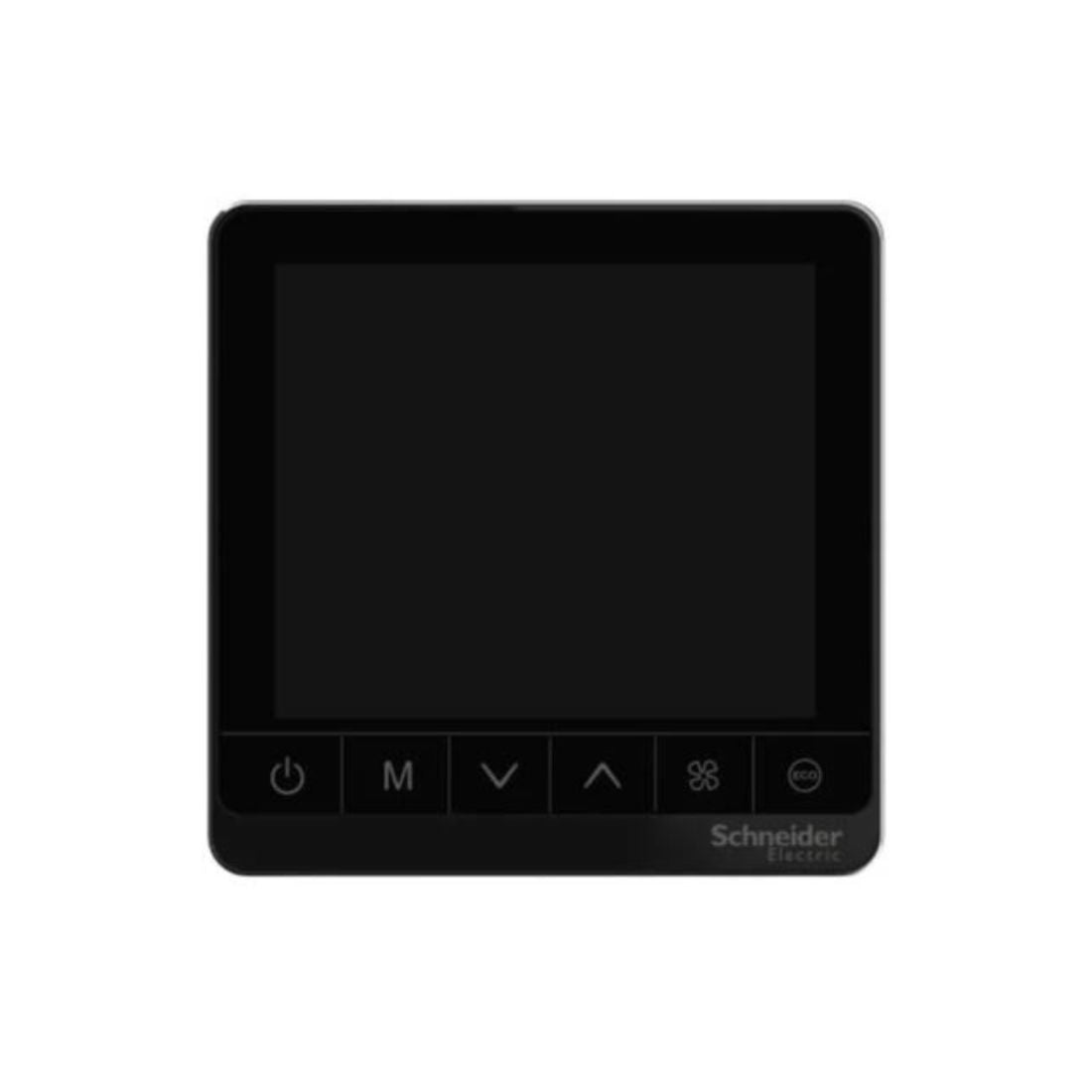

Schneider Electric SpaceLogic Thermostat Standalone Touchscreen External Sensor 4P 3 Fan 240V TC907-3A4DPSAB - Black
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Thermostat
Description
Schneider Electric TC907-3A4DPSAB Thermostat is a device that regulates the temperature of a system so that it maintains a desired setpoint temperature. It is designed to work with a fan coil system. The thermostat operates independently and doesn't require a connection to a central control system.
Fan Coil Proportional is the type of control system. A proportional control system modulates the output based on the difference between the desired setpoint and the actual temperature. The thermostat has a touchscreen interface, it interacts with it by touching the screen rather than using physical buttons or switches.
Schneider Electric Thermostat can be connected to an external sensor. This could be used for things like measuring the temperature in a different location from where the thermostat is mounted. A 4-pipe system is a type of HVAC system that uses both hot and cold water to control the temperature. It can control three different fan speeds. 240V is the voltage at which the thermostat operates.
In summary, Schneider Electric TC907-3A4DPSAB Thermostat is designed for use with a fan coil system. It has a touchscreen interface, the ability to connect to an external sensor, and is designed for a 240-volt system. It can control three fan speeds and is black in color.
Features
- Control the temperature of a system
- Fan Coil Proportional control system
- Standalone
- Touchscreen
- It has the capability to connect to an external sensor
- Capable of controlling three different fan speeds
| Brand | Schneider Electric |
| Item Name | Thermostat |
| Model | TC907-3A4DPSAB |
| Color | Black |
| Rated Supply Voltage | 90...240 V AC 50/60 Hz |
| Ambient Air Temperature For Operation | 0-50 °C |
| Connections - Terminals | Screw Terminal (back) - 2 cable(s) 1.5-1.5 mm², Screw Terminal (back) - 1 cable(s) 2.5-2.5 mm² |
| Control Type | Touch screen, for thermostat, pulse width modulation, for actuator, 3 speed control relay, for fan |
| Device Application | Fan |
| Depth | 40 mm |
| Display Type | Backlit LCD Screen |
| Function Available | Setpoint adjustment, fan control, mode selection, economizer, disable functions, alarm, low-temperature protection |
| Information Displayed Ambient Room Temperature | 0 to 50 °C, time, day, temperature alarm, communication status ok, current program |
| IP Degree of Protection | IP20 |
| Height | 86mm |
| Market Segment | Small Buildings, Hotel, Healthcare, residential |
| Max Power Consumption | 1 W |
| Measurement Accuracy | Temperature +/- 1 °C |
| Network Frequency | 50 Hz, 60 Hz |
| Output Voltage | 240 V AC 5 A for relay, 240 V AC 2 A for load |
| Pollution Degree | 2 |
| Certifications | CE |
| Relative Humidity | 5-95 % |
| Sensor Type | 100 kOhm NTC thermistor, optional NTC external sensor |
| Temperature Setting Range | 5-35 °C |
| Specific Application | 4-Pipe System |
| Width | 86 mm |
| Range | SpaceLogic |
| Number of Inputs | 1 Card Reader |
| Standards | EN/IEC 60730-1, EN/IEC 60730-2-9 |
