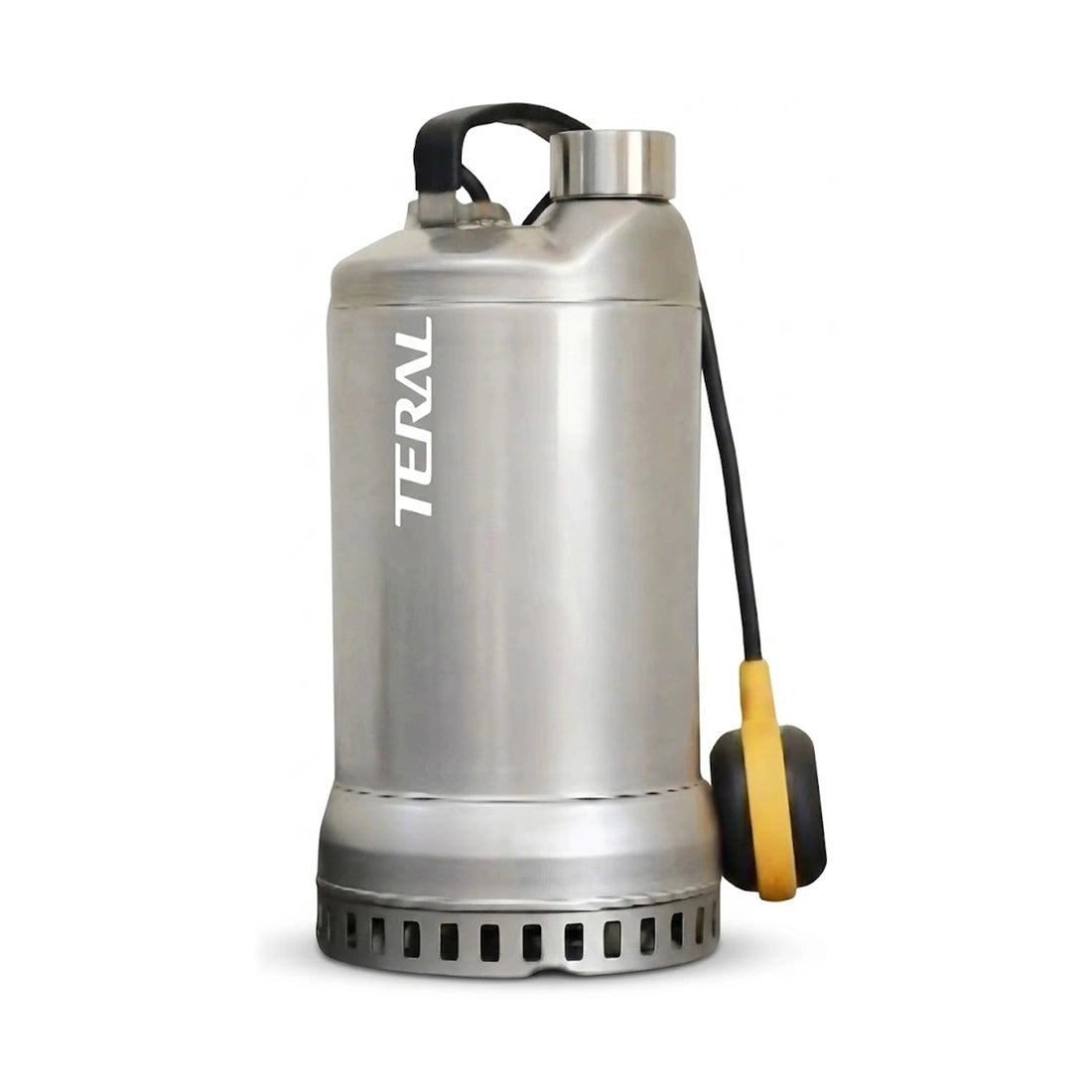

Teral 1HP Single Phase Submersible Drainage Water Pump DRAINO100MA
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Teral
Type : Submersible Drainage Pump
Description
The Teral DRAINO100MA is a high-performance submersible drainage pump engineered for efficient handling of drainage water, grey water, and wastewater applications. Designed with a durable stainless steel body and corrosion-resistant internals, this pump delivers reliable operation and long-lasting performance in residential, commercial, agricultural, and industrial environments.
Its lightweight and compact construction makes it suitable for portable use, while the robust design also supports permanent installation. Equipped with a dry-type 2-pole motor, IP68 protection, Class F insulation, thermal protector, and an inbuilt float switch, the DRAINO100MA ensures safe, efficient, and dependable operation.
Applications
- Basement water removal
- Wastewater drainage
- Water transfer
- Sump and effluent handling
- Dewatering applications
- Fish pond and fountain circulation
Operating Limits
- pH Range: 6.5 to 8.5
- Solid Passage: 8 mm
- Liquid Temperature: 0°C to 50°C
| Brand | Teral |
| Model | DRAINO100MA |
| Pump Type | Submersible Drainage Water Pump |
| Power | 1 HP |
| Power Output (P2) | 0.75 kW |
| Phase | Single Phase |
| Voltage | 220V |
| Frequency | 50Hz |
| Motor Type | Dry-type 2 Pole |
| Protection Class | IP68 |
| Insulation Class | Class F |
| Speed | 2900 rpm |
| Discharge Size | Rp 1 1/2" |
| Standard Head | 11.2 m |
| Standard Flow Rate | 100 LPM |
| Maximum Head | 14 m |
| Maximum Flow Rate | 325 LPM |
| Maximum Flow Capacity | Up to 420 LPM |
| Solid Passage | 8 mm |
| Liquid Temperature | 0°C to 50°C |
| pH Range | 6.5 to 8.5 |
| Cable Length | 10 m |
| Float Switch | Inbuilt |
| Thermal Protector | Yes |
| Body Material | Stainless Steel |
| Applications | Drainage, Dewatering, Wastewater Handling, Water Transfer |
