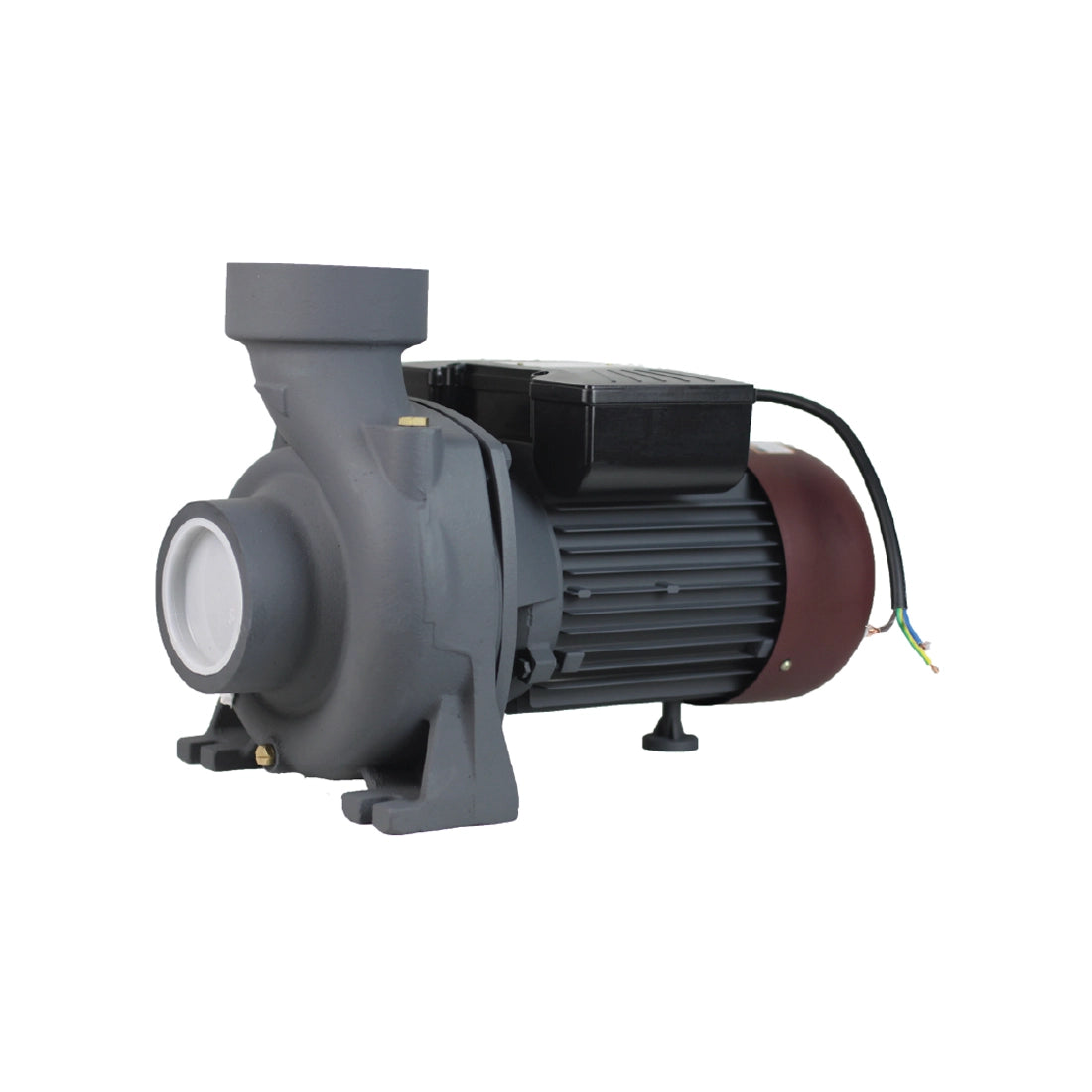

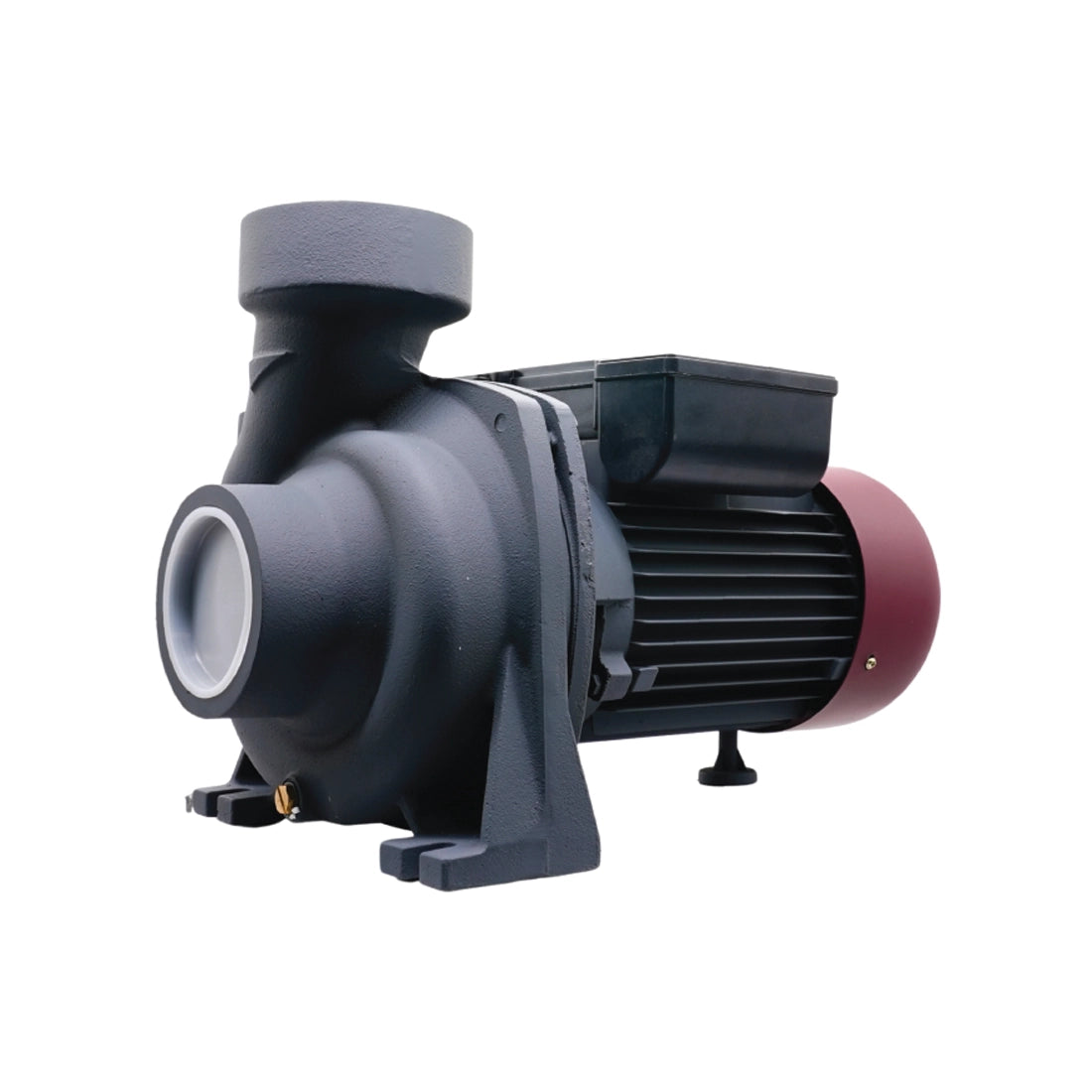

Techno Pumps 3HP Three Phase Centrifugal Water Pump TECH-CP30T
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Techno Pumps
Type : Centrifugal Water Pump
Description
The Techno Pumps 3HP Three Phase Centrifugal Water Pump TECH-CP30T is a high-capacity, heavy-duty water pump engineered for efficient water transfer, irrigation, and pressure boosting applications. Designed for agricultural, commercial, industrial, and large-scale water distribution systems, this pump delivers exceptional flow performance and reliable operation under continuous-duty conditions.
Powered by a robust 3HP (2.2kW) three-phase TEFC induction motor, the TECH-CP30T offers an impressive maximum flow rate of 1100 LPM and a maximum head of 18 meters, making it ideal for high-volume water movement. The motor features 100% copper windings, anti-heat ball bearings, and a built-in thermal overload protector to ensure long-lasting durability, energy efficiency, and dependable performance.
Designed specifically for pumping clean water free from abrasive particles and chemically aggressive liquids, the pump provides a maximum suction lift of 8 meters and can handle liquid temperatures ranging from 0°C to 90°C. Its IP54 protection rating and Class F insulation ensure reliable operation and protection in demanding environments.
With large 3" x 3" inlet and outlet connections, the TECH-CP30T is perfectly suited for irrigation systems, storage tank filling, water circulation, lawn sprinklers, automobile washing, garden water supply, and commercial water transfer applications. For optimum performance and service life, the pump should be installed in a sheltered location protected from direct exposure to adverse weather conditions.
| Brand | Techno Pumps |
| Model | TECH-CP30T |
| Pump Type | Centrifugal Water Pump |
| Power | 3HP (2.2kW) |
| Phase | Three Phase |
| Frequency | 50Hz |
| Speed | 2900 RPM |

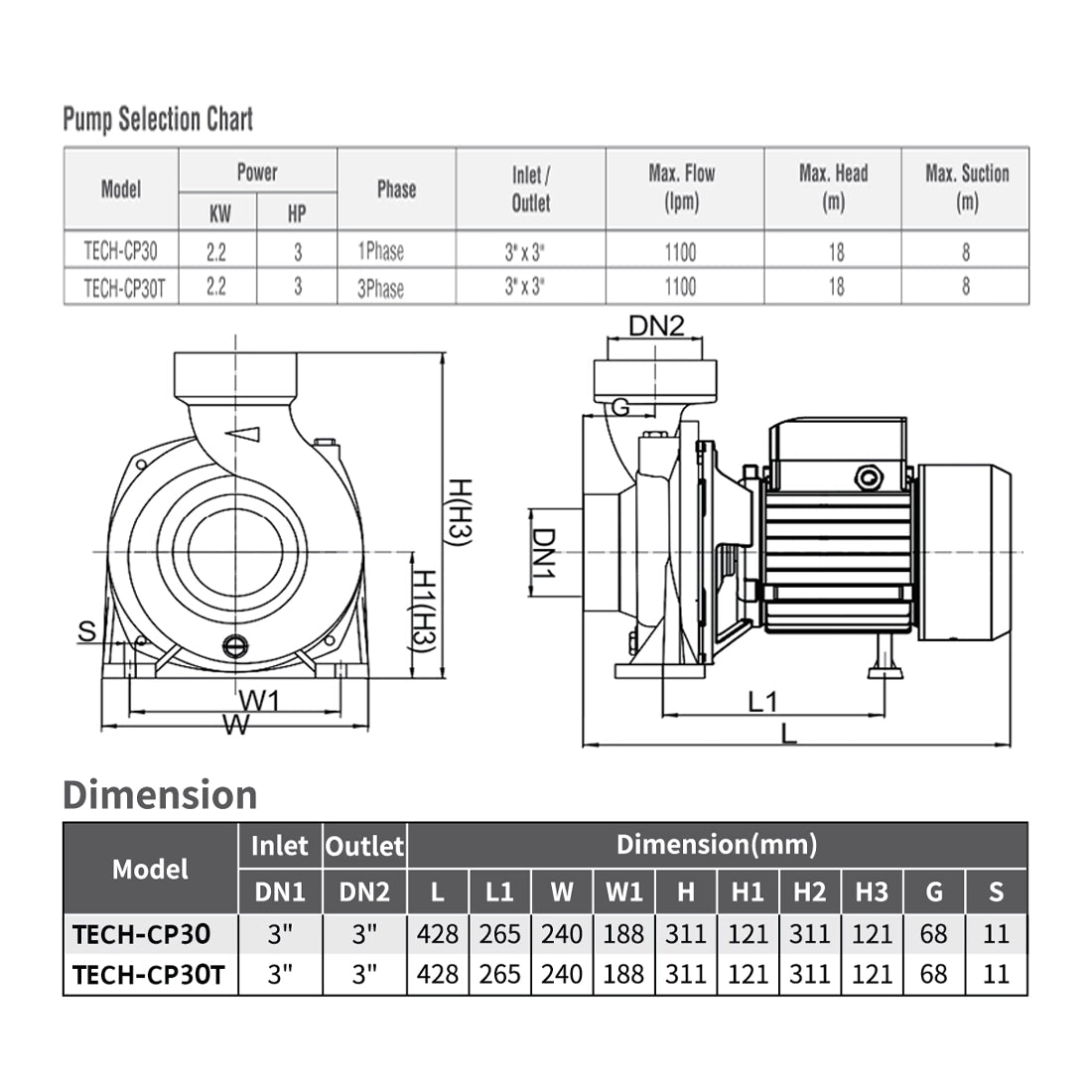

| Inlet / Outlet Size | 3" x 3" |

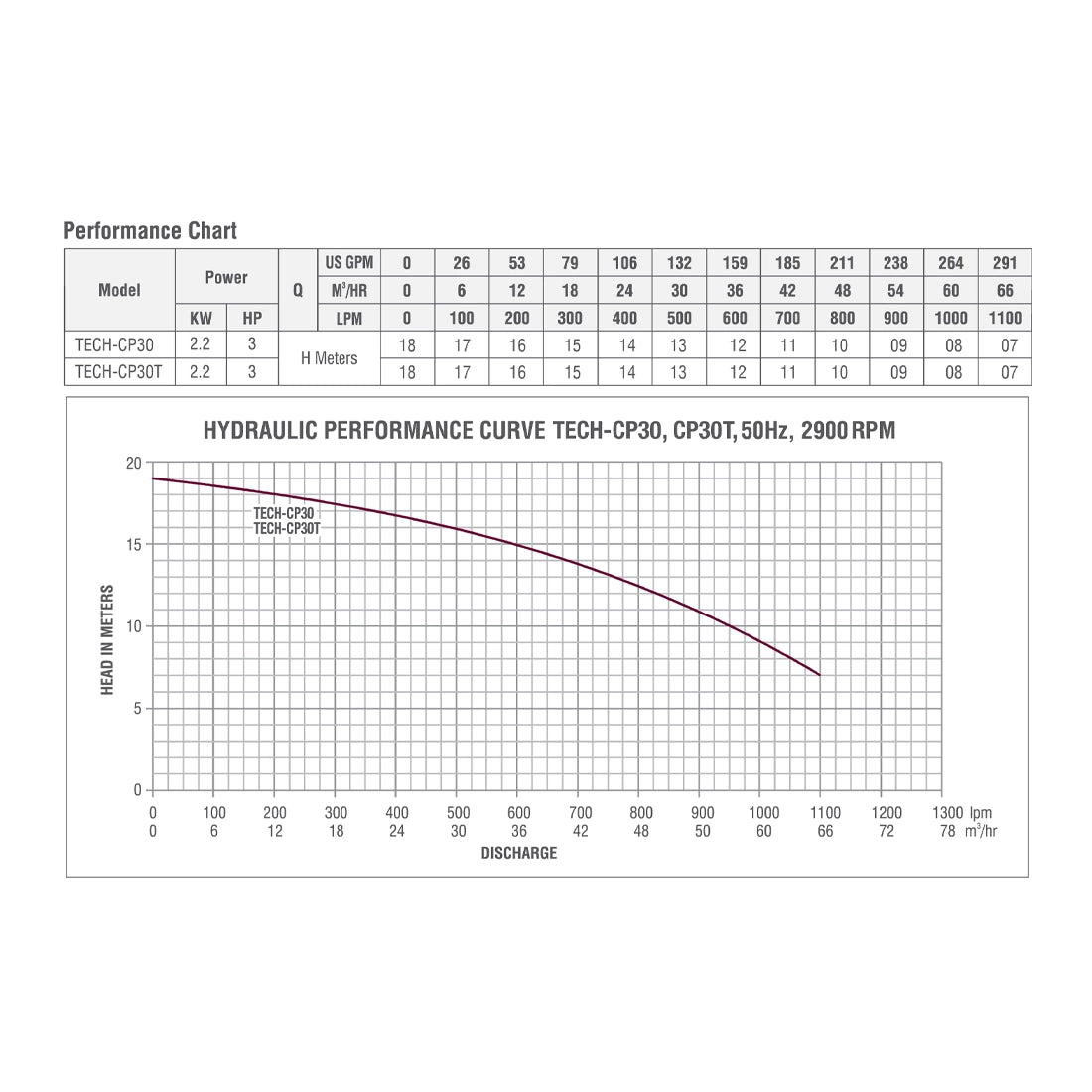

| Maximum Flow Rate | 1100 LPM |
| Maximum Head | 18m |
| Maximum Suction Lift | 8m |
| Liquid Temperature | 0°C to 90°C |
| Ambient Temperature | Up to 40°C |
| Maximum Working Pressure | 10 Bar |
| Motor Type | TEFC Induction Motor |
| Insulation Class | Class F |
| Protection Class | IP54 |
| Motor Winding | 100% Copper |
| Protection Features | Thermal Overload Protector |
| Bearing Type | Anti-Heat Ball Bearing |
| Suitable For | Clean Water Applications |
