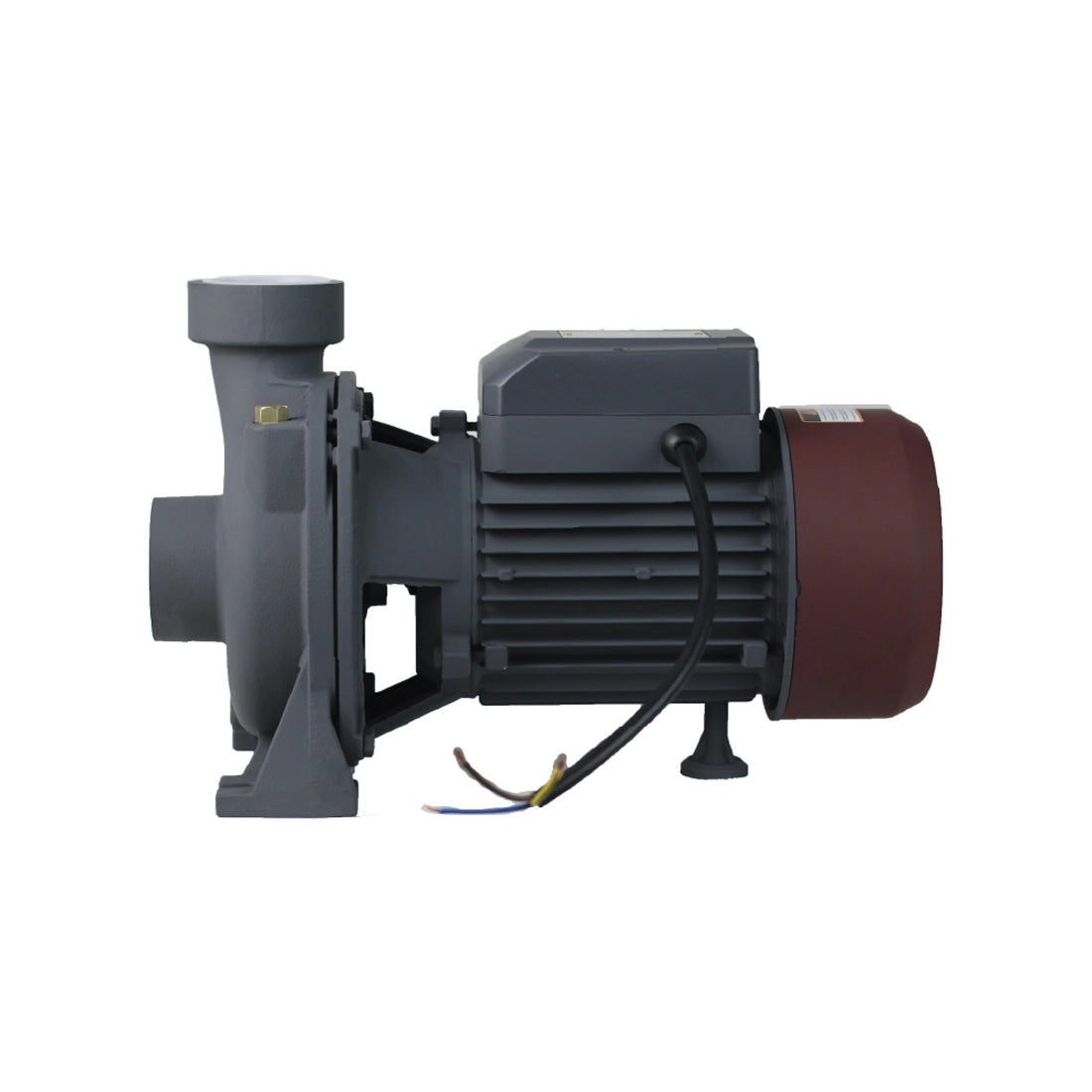

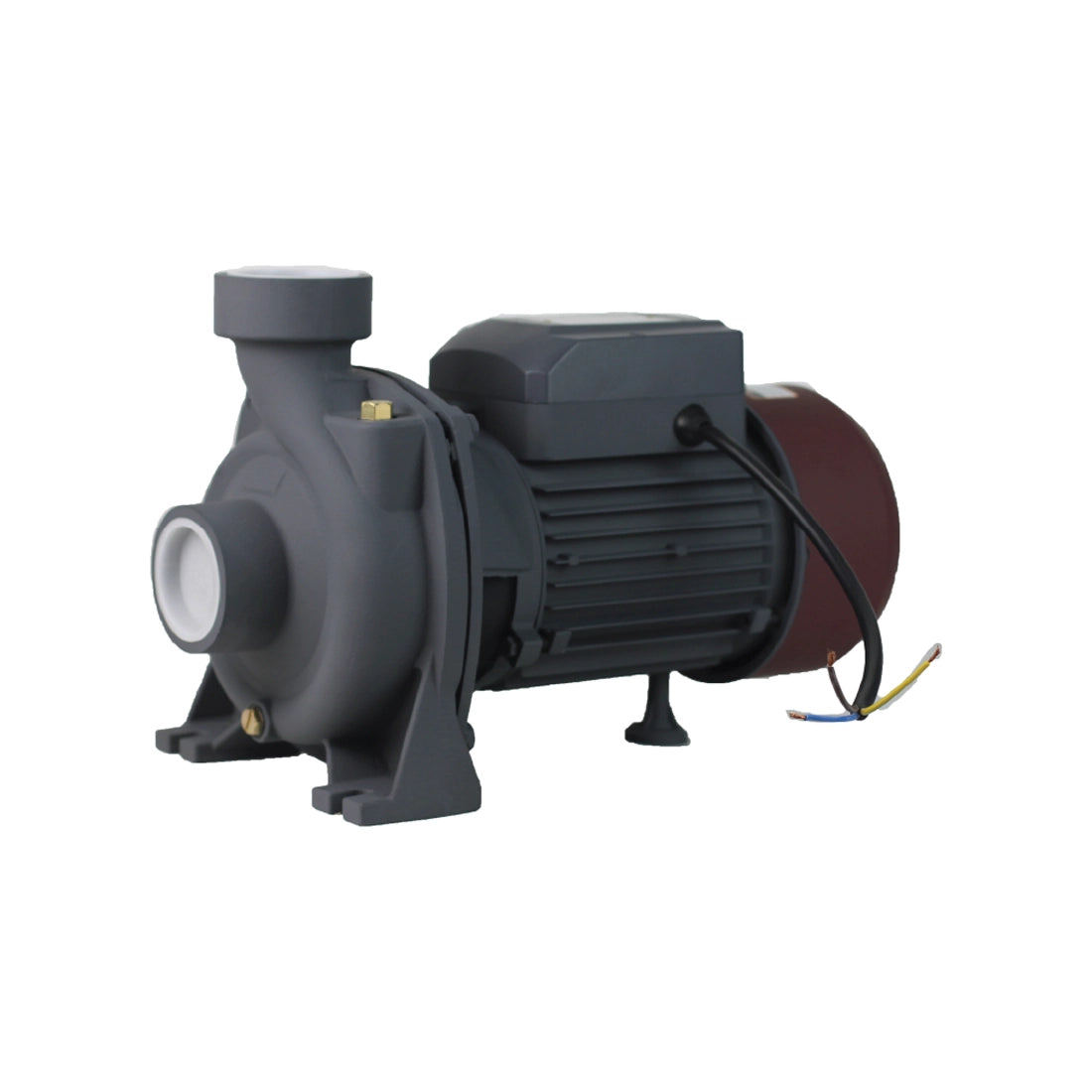

Techno Pumps 3HP Centrifugal Water Pump TECH-CP30A
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Techno Pumps
Type : Centrifugal Water Pump
Description
The Techno Pumps 3HP Centrifugal Water Pump TECH-CP30A is a high-performance, heavy-duty water pump engineered for demanding water transfer, irrigation, and pressure boosting applications. Designed for residential, agricultural, industrial, and commercial use, this pump delivers exceptional water flow and pressure while maintaining reliable and energy-efficient operation.
Powered by a robust 3HP (2.2kW) single-phase TEFC induction motor, the TECH-CP30A delivers a maximum flow rate of 500 LPM and a maximum head of 32 meters, making it ideal for large-scale irrigation systems, water distribution networks, storage tank filling, and high-volume water transfer applications. The motor is equipped with 100% copper windings, anti-heat ball bearings, and a built-in thermal overload protector to ensure long-lasting performance and enhanced motor protection.
Designed for pumping clean water free from abrasive particles and chemically aggressive liquids, the pump provides a maximum suction lift of 8 meters and supports liquid temperatures ranging from 0°C to 90°C. With its IP54 protection rating and Class F insulation, the TECH-CP30A is built to withstand demanding operating environments while delivering consistent performance.
Featuring durable 2" x 2" inlet and outlet connections, this centrifugal pump offers excellent flow capacity and dependable operation for continuous-duty applications. For optimum performance and service life, the pump should be installed in a sheltered location protected from direct exposure to adverse weather conditions.
| Brand | Techno Pumps |
| Model | TECH-CP30A |
| Pump Type | Centrifugal Water Pump |
| Power | 3HP (2.2kW) |
| Phase | Single Phase |
| Frequency | 50Hz |
| Speed | 2900 RPM |
| Inlet / Outlet Size | 2" x 2" |
| Maximum Flow Rate | 500 LPM |
| Maximum Head | 32m |
| Maximum Suction Lift | 8m |
| Liquid Temperature | 0°C to 90°C |
| Ambient Temperature | Up to 40°C |
| Maximum Working Pressure | 10 Bar |
| Motor Type | TEFC Induction Motor |
| Insulation Class | Class F |
| Protection Class | IP54 |
| Motor Winding | 100% Copper |
| Protection Features | Thermal Overload Protector |
| Bearing Type | Anti-Heat Ball Bearing |
| Suitable For | Clean Water Applications |
