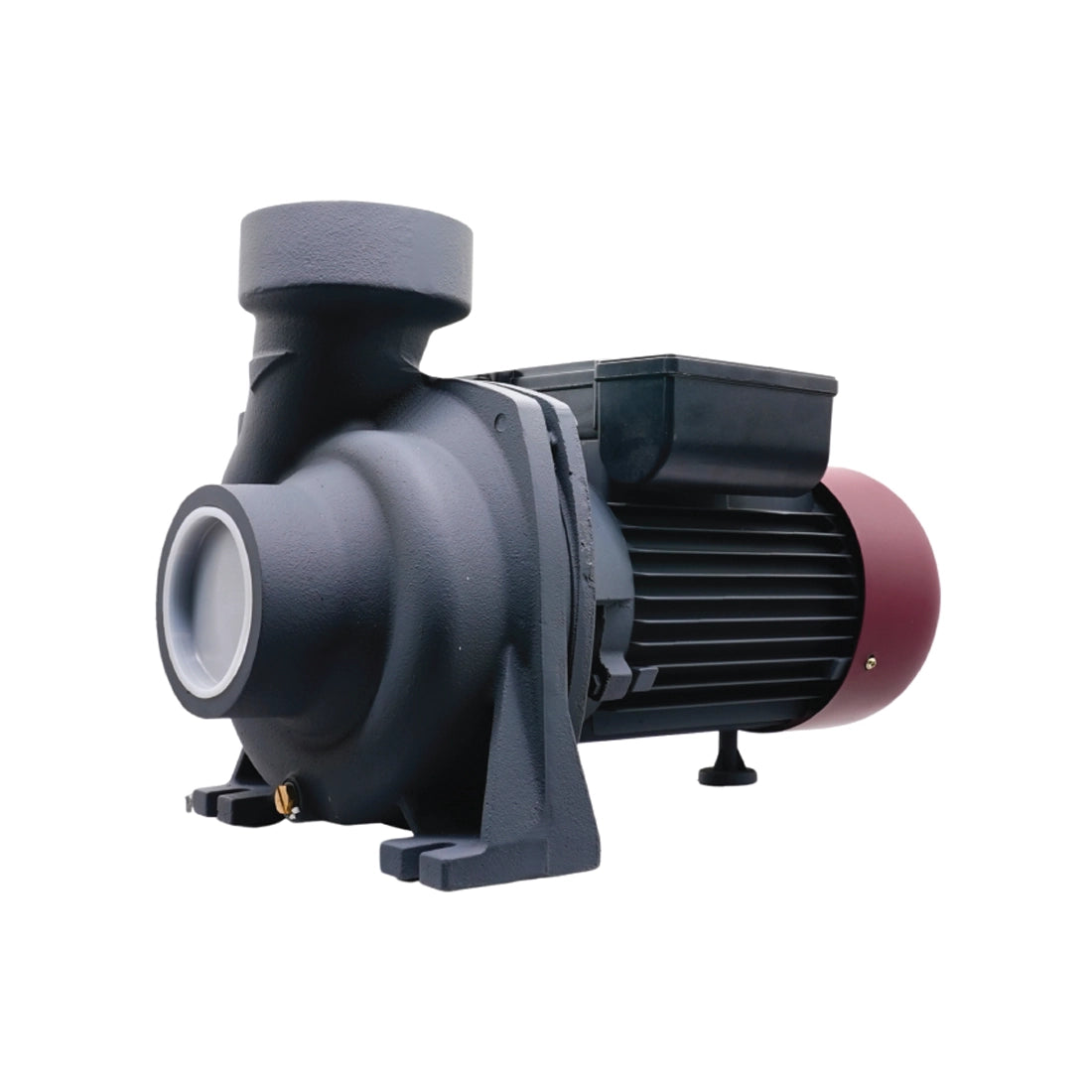

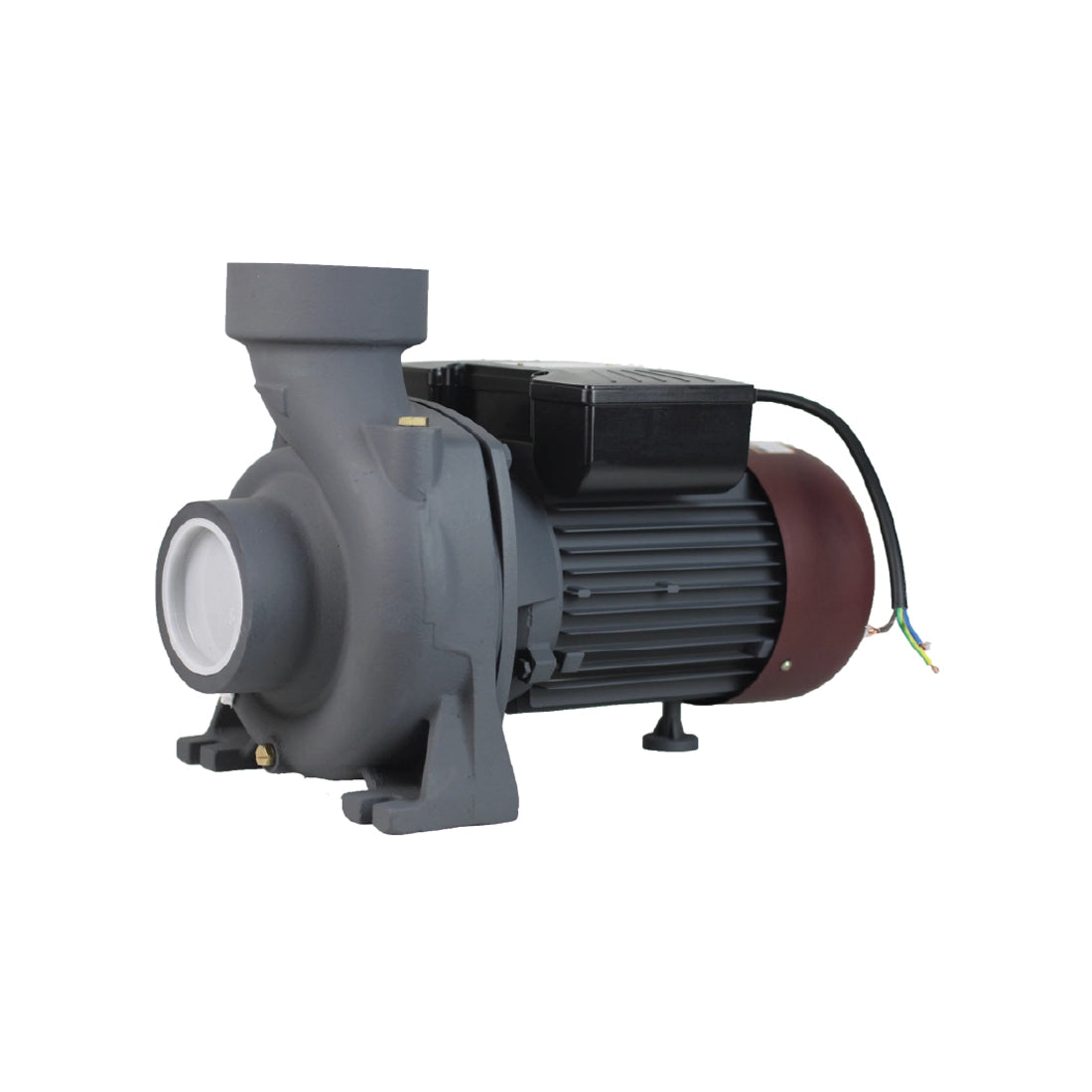

Techno Pumps 3HP Centrifugal Water Pump TECH-CP30
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Techno Pumps
Type : Centrifugal Water Pump
Description
The Techno Pumps 3HP Centrifugal Water Pump TECH-CP30 is a high-capacity water transfer pump designed for applications requiring exceptional flow performance and reliable operation. Ideal for domestic water supply, agricultural irrigation, lawn sprinklers, automobile washing, garden watering, and pressure boosting systems, this pump delivers efficient water movement for a wide range of residential, commercial, and agricultural applications.
Powered by a robust 3HP (2.2kW) single-phase TEFC induction motor, the TECH-CP30 provides an impressive maximum flow rate of 1100 LPM and a maximum head of 18 meters, making it an excellent choice for high-volume water transfer tasks. The motor is equipped with 100% copper windings, anti-heat ball bearings, and a built-in thermal overload protector to ensure dependable performance, enhanced efficiency, and extended service life.
Designed specifically for pumping clean water free from abrasive particles and chemically aggressive liquids, the pump offers a maximum suction lift of 8 meters and operates with liquid temperatures ranging from 0°C to 90°C. Its IP54 protection rating and Class F insulation provide reliable protection against dust and moisture, ensuring long-lasting durability under demanding conditions.
Featuring large 3" x 3" inlet and outlet connections, the TECH-CP30 is capable of handling substantial water volumes efficiently, making it ideal for irrigation networks, water circulation systems, storage tank filling, and bulk water transfer applications. For optimum performance and longevity, the pump should be installed in a sheltered environment protected from direct exposure to adverse weather conditions.
| Brand | Techno Pumps |
| Model | TECH-CP30 |
| Pump Type | Centrifugal Water Pump |
| Power | 3HP (2.2kW) |
| Phase | Single Phase |
| Frequency | 50Hz |
| Speed | 2900 RPM |
| Inlet / Outlet Size | 3" x 3" |
| Maximum Flow Rate | 1100 LPM |
| Maximum Head | 18m |
| Maximum Suction Lift | 8m |
| Liquid Temperature | 0°C to 90°C |
| Ambient Temperature | Up to 40°C |
| Maximum Working Pressure | 10 Bar |
| Motor Type | TEFC Induction Motor |
| Insulation Class | Class F |
| Protection Class | IP54 |
| Motor Winding | 100% Copper |
| Protection Features | Thermal Overload Protector |
| Bearing Type | Anti-Heat Ball Bearing |
| Suitable For | Clean Water Applications |
