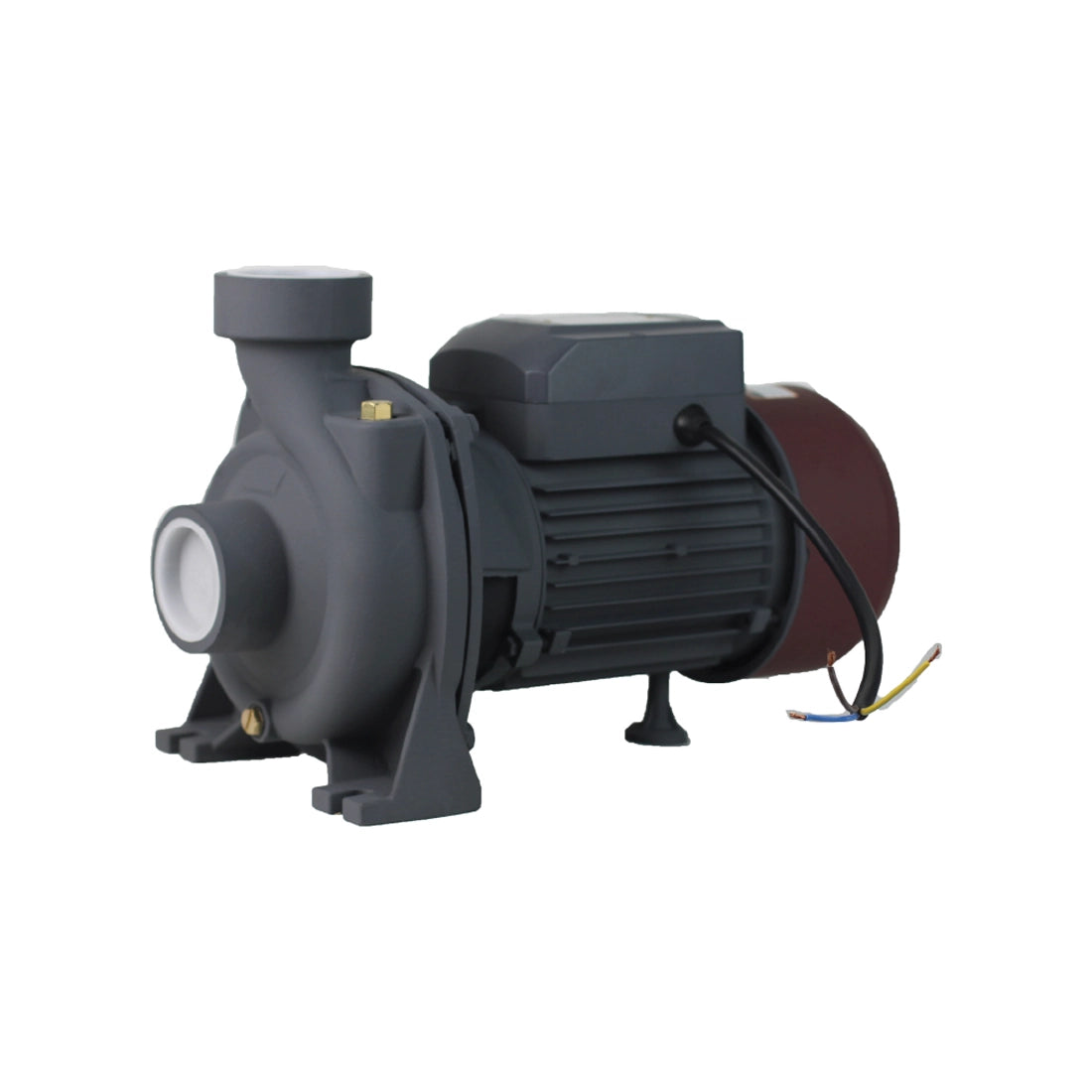

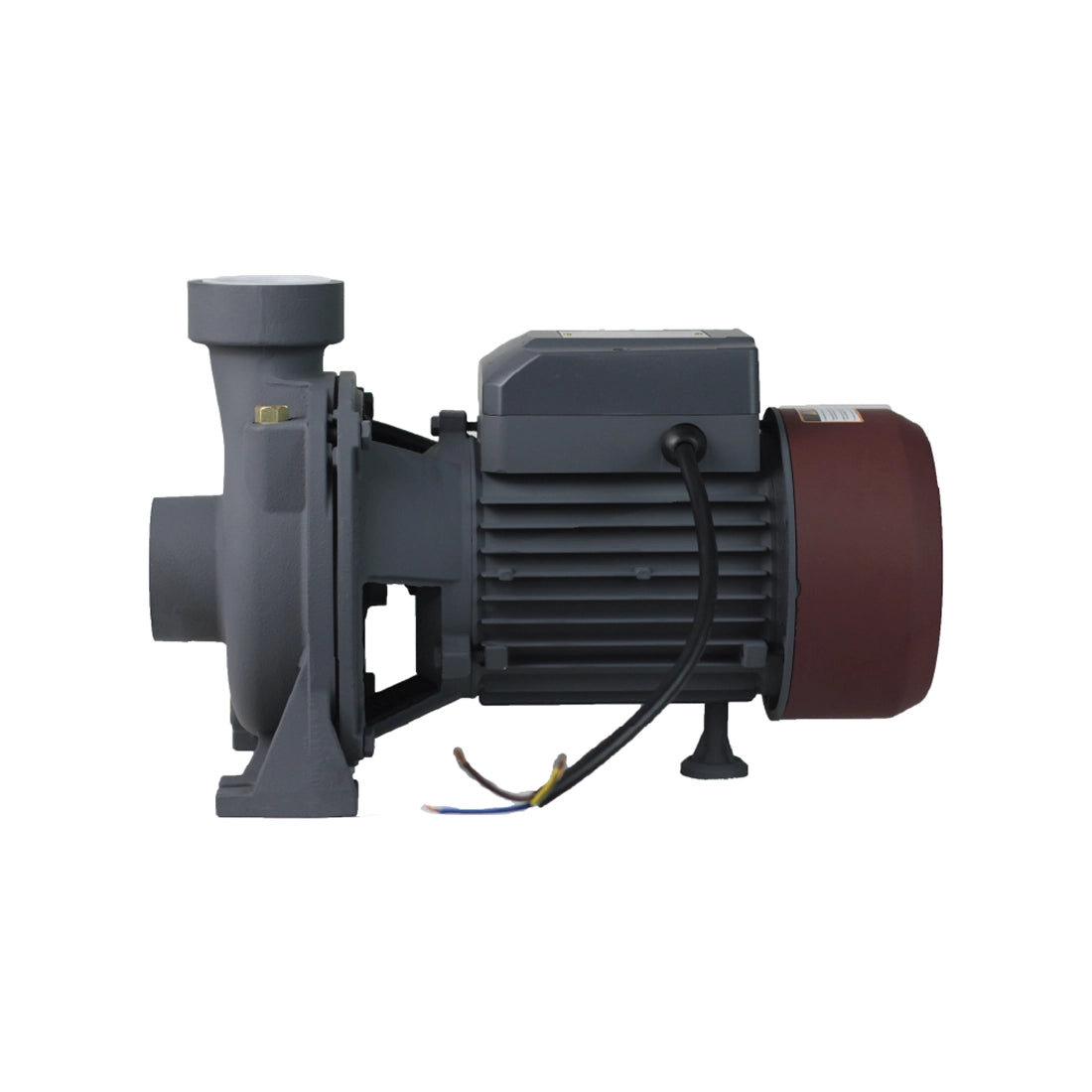

Techno Pumps 2HP Three Phase Centrifugal Water Pump TECH-CP20AT
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Techno Pumps
Type : Centrifugal Water Pump
Description
The Techno Pumps 2HP Three Phase Centrifugal Water Pump TECH-CP20AT is a high-efficiency water transfer solution designed for agricultural, commercial, industrial, and large-scale water distribution applications. Built for continuous-duty performance, this centrifugal pump delivers high flow capacity and dependable operation, making it ideal for irrigation systems, water circulation, pressure boosting, and bulk water transfer tasks.
Powered by a durable 2HP (1.5kW) three-phase TEFC induction motor, the TECH-CP20AT provides a maximum flow rate of 500 LPM and a maximum head of 23 meters, ensuring efficient water delivery across a wide range of applications. The motor features 100% copper windings, anti-heat ball bearings, and a thermal overload protector, offering superior reliability, energy efficiency, and extended service life.
Designed specifically for pumping clean water free from abrasive particles and chemically aggressive liquids, the pump delivers a maximum suction lift of 8 meters and can handle liquid temperatures from 0°C to 90°C. With its Class F insulation and IP54 protection rating, the TECH-CP20AT is engineered to perform reliably in demanding operating environments.
Featuring large 2" x 2" inlet and outlet connections, this pump is capable of handling high-volume water transfer while maintaining low maintenance requirements and economical operation. For optimal performance and durability, the pump should be installed in a protected location away from direct exposure to adverse weather conditions.
| Brand | Techno Pumps |
| Model | TECH-CP20AT |
| Pump Type | Centrifugal Water Pump |
| Power | 2HP (1.5kW) |
| Phase | Three Phase |
| Frequency | 50Hz |
| Speed | 2900 RPM |
| Inlet / Outlet Size | 2" x 2" |
| Maximum Flow Rate | 500 LPM |
| Maximum Head | 23m |
| Maximum Suction Lift | 8m |
| Liquid Temperature | 0°C to 90°C |
| Ambient Temperature | Up to 40°C |
| Maximum Working Pressure | 10 Bar |
| Motor Type | TEFC Induction Motor |
| Insulation Class | Class F |
| Protection Class | IP54 |
| Motor Winding | 100% Copper |
| Protection Features | Thermal Overload Protector |
| Bearing Type | Anti-Heat Ball Bearing |
| Suitable For | Clean Water Applications |
