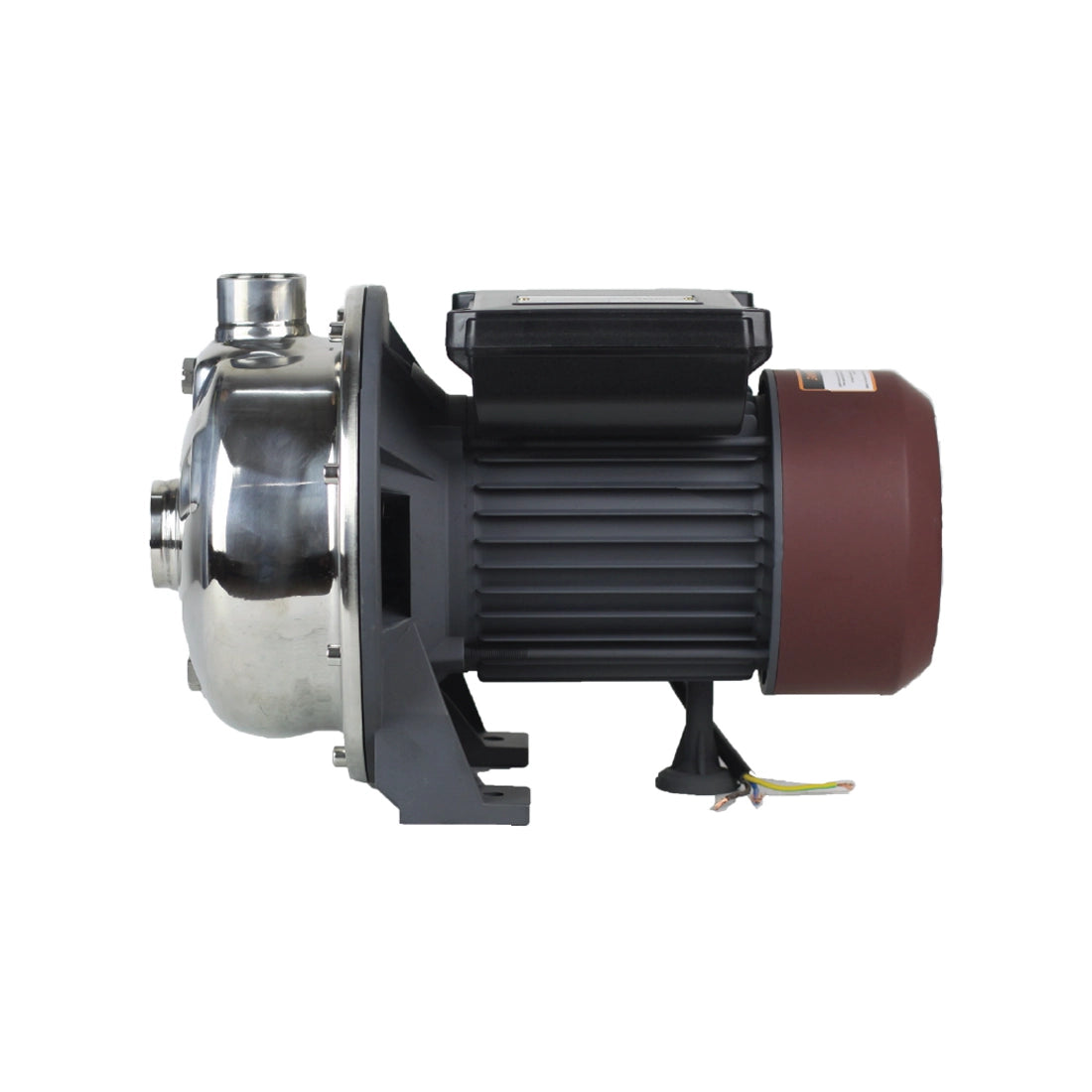

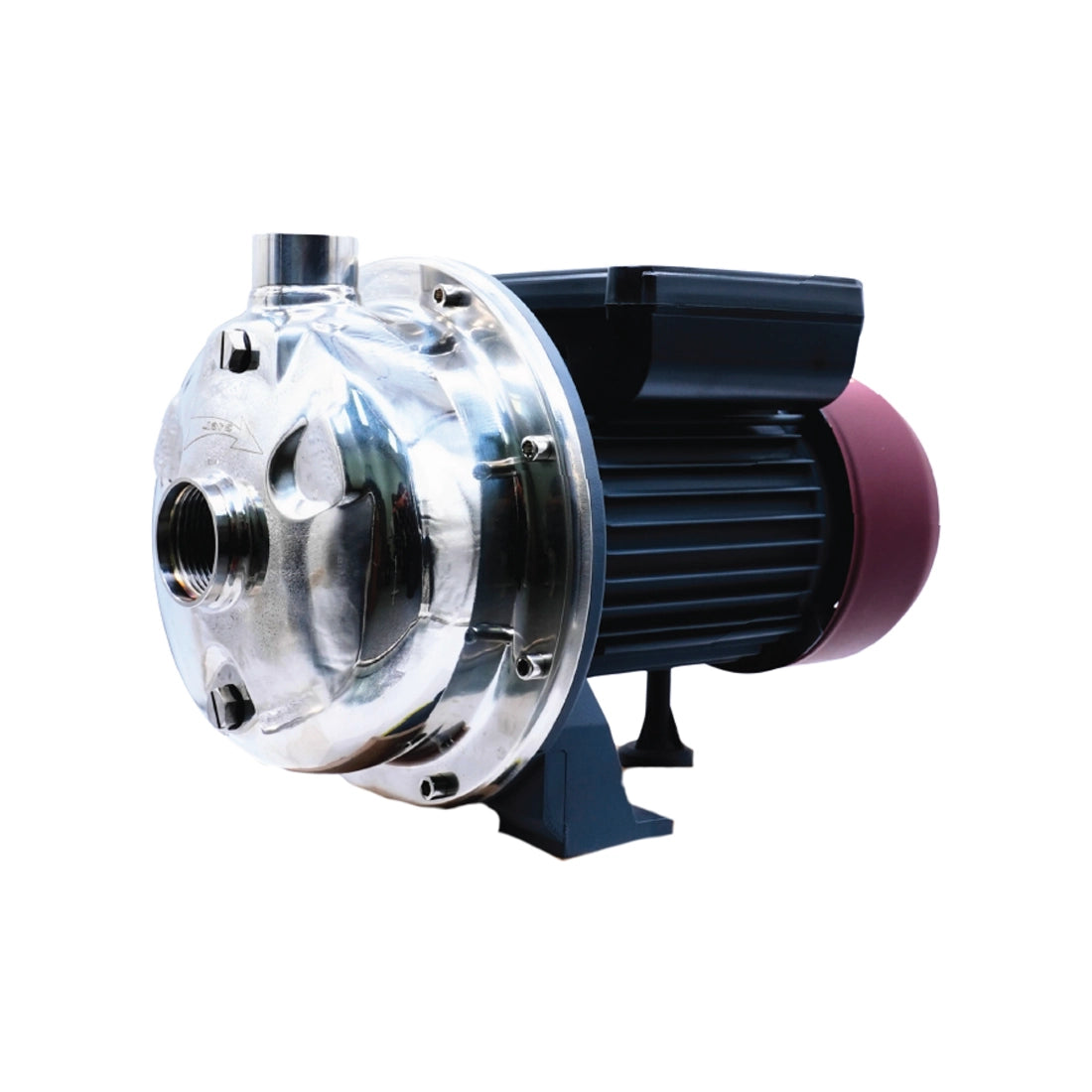

Techno Pumps 1HP Stainlees Steel Centrifugal Water Pump TECH-SSCP100
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Techno Pumps
Type : Centrifugal Water Pump
Description
The Techno Pumps 1HP Stainless Steel Centrifugal Water Pump TECH-SSCP100 is a premium-quality water pump designed for handling clean, non-abrasive liquids that are compatible with Stainless Steel 316. Engineered for reliability, corrosion resistance, and high performance, this pump is ideal for water supply systems, pressure boosting, RO plants, pure water treatment systems, washing systems, sprinkler applications, and chemical processing industries.
Powered by a 1HP (0.75kW) single-phase motor, the TECH-SSCP100 delivers a maximum flow rate of 7 m³/h and a maximum head of 22 meters, ensuring efficient water transfer and pressure performance. The pump features a compact and attractive design while operating with low noise levels, making it suitable for both commercial and industrial environments.
Constructed with SS316 pump body, impeller, and pump cover, along with a friction-welded SS316 shaft and premium SIC/VITON/SS316 mechanical seal, the TECH-SSCP100 provides excellent resistance to corrosion and wear. The motor incorporates 100% copper windings, anti-heat ball bearings, and a thermal overload protector for enhanced durability and dependable operation.
With an IP55 protection rating, Class F insulation, and a TEFC continuous-duty motor design, this stainless steel centrifugal pump is built to deliver long-lasting performance in demanding applications while maintaining ease of maintenance and efficient operation.
| Brand | Techno Pumps |
| Model | TECH-SSCP100 |
| Pump Type | Stainless Steel Centrifugal Water Pump |
| Power | 1HP (0.75kW) |
| Voltage | 220–240V, 50Hz |
| Phase | Single Phase |
| Speed | 2900 RPM |
| Inlet Size | 1.25" |
| Outlet Size | 1" |
| Maximum Flow Rate | 7 m³/h |
| Maximum Head | 22m |
| Maximum Suction Lift | 8m |
| Maximum Working Pressure | 6 Bar |
| Liquid Temperature | Up to 90°C |
| Ambient Temperature | Up to 40°C |
| Pump Body Material | SS316 Stainless Steel |
| Impeller Material | SS316 Stainless Steel |
| Pump Cover Material | SS316 Stainless Steel |
| Shaft Material | Friction Welded SS316 |
| Mechanical Seal | SIC / VITON / SS316 |
| Bearing Type | High Load Bearing |
| Motor Type | TEFC 2-Pole Induction Motor |
| Insulation Class | Class F |
| Protection Class | IP55 |
| Motor Winding | 100% Copper |
| Suitable For | Water Supply, RO Plants, Water Treatment, Chemical Industries, Sprinkling Systems |
