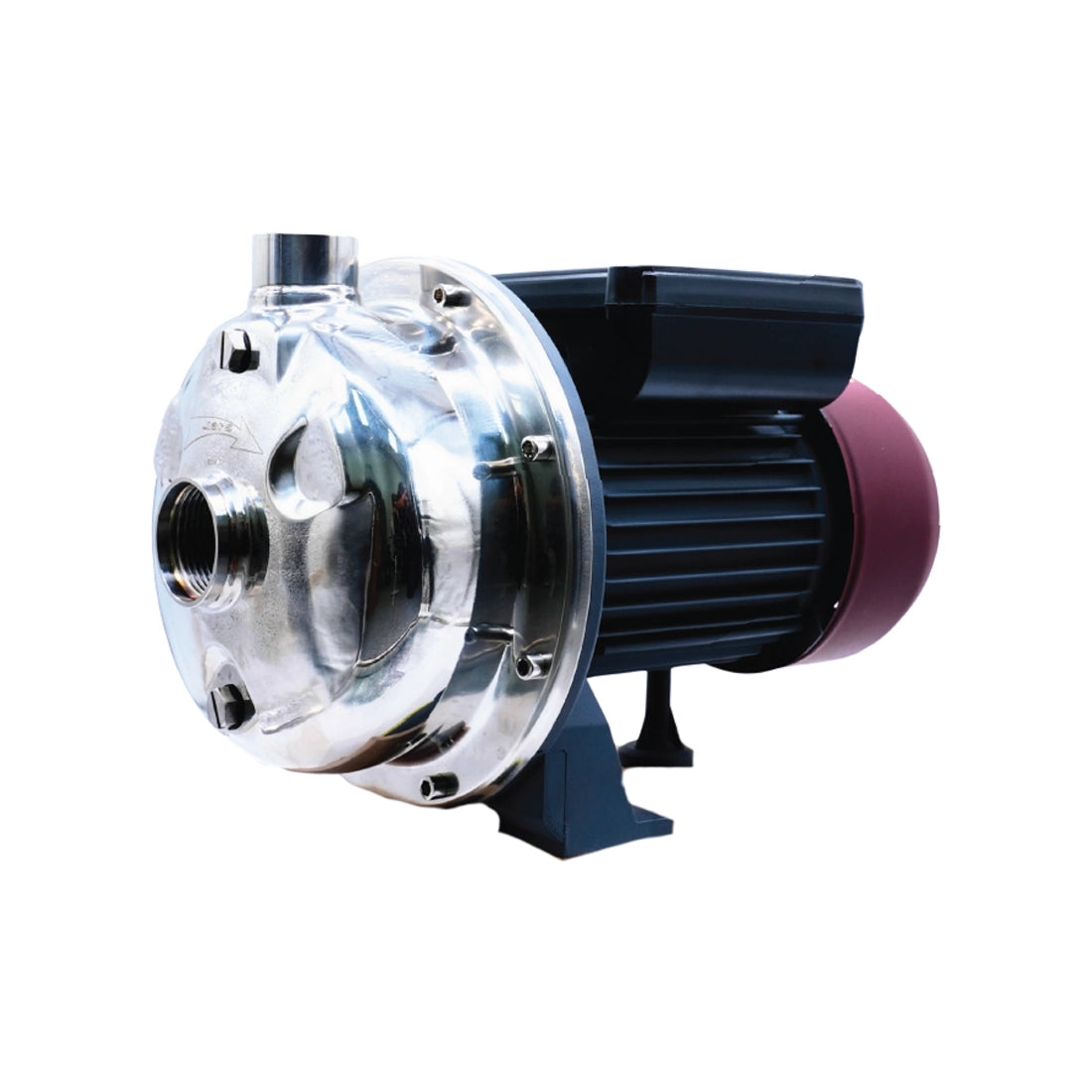

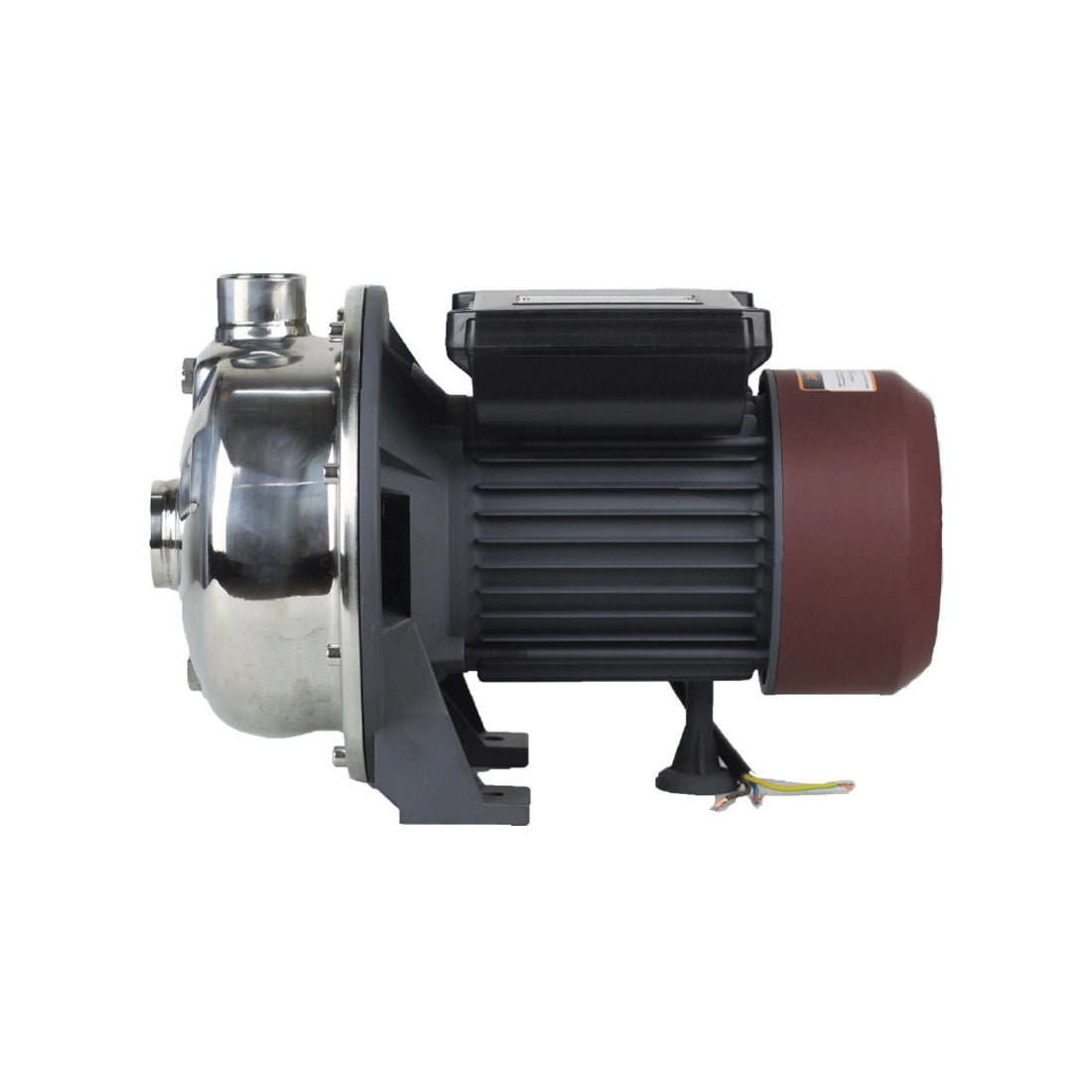

Techno Pumps 1.5HP Stainlees Steel Centrifugal Water Pump TECH-SSCP150
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Techno Pumps
Type : Centrifugal Water Pump
Description
The Techno Pumps 1.5HP Stainless Steel Centrifugal Water Pump TECH-SSCP150 is a high-performance pump engineered for transferring clean, non-abrasive liquids compatible with Stainless Steel 316. Designed for reliability, corrosion resistance, and efficient operation, this pump is ideal for water supply systems, pressure boosting, RO plants, pure water treatment systems, washing applications, sprinkler systems, and chemical processing industries.
Powered by a 1.5HP (1.1kW) single-phase motor, the TECH-SSCP150 delivers a maximum flow rate of 8 m³/h and a maximum head of 24 meters, making it suitable for demanding water transfer and pressure applications. Its compact design, low-noise operation, and robust construction ensure dependable performance while minimizing maintenance requirements.
Manufactured using premium SS316 stainless steel components, including the pump body, impeller, and pump cover, the TECH-SSCP150 offers excellent resistance to corrosion and wear. The friction-welded SS316 shaft, high-load bearings, and SIC/VITON/SS316 mechanical seal provide long-lasting durability and leak-free operation in challenging environments.
The pump is equipped with a TEFC continuous-duty motor, Class F insulation, IP55 protection, anti-heat ball bearings, and 100% copper windings for enhanced efficiency and motor life. A built-in thermal overload protector further safeguards the motor against overheating, ensuring reliable and safe operation.
| Brand | Techno Pumps |
| Model | TECH-SSCP150 |
| Pump Type | Stainless Steel Centrifugal Water Pump |
| Power | 1.5HP (1.1kW) |
| Voltage | 220–240V, 50Hz |
| Phase | Single Phase |
| Speed | 2900 RPM |
| Inlet Size | 1.25" |
| Outlet Size | 1" |
| Maximum Flow Rate | 8 m³/h |
| Maximum Head | 24m |
| Maximum Suction Lift | 8m |
| Maximum Working Pressure | 6 Bar |
| Liquid Temperature | Up to 90°C |
| Ambient Temperature | Up to 40°C |
| Pump Body Material | SS316 Stainless Steel |
| Impeller Material | SS316 Stainless Steel |
| Pump Cover Material | SS316 Stainless Steel |
| Shaft Material | Friction Welded SS316 |
| Mechanical Seal | SIC / VITON / SS316 |
| Bearing Type | High Load Bearing |
| Motor Type | TEFC 2-Pole Induction Motor |
| Insulation Class | Class F |
| Protection Class | IP55 |
| Motor Winding | 100% Copper |
| Suitable For | Water Supply, RO Plants, Water Treatment, Chemical Industries, Sprinkler Systems |
