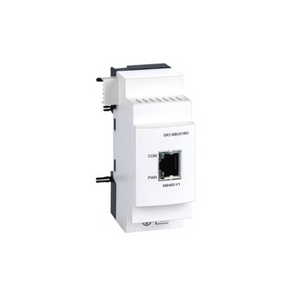

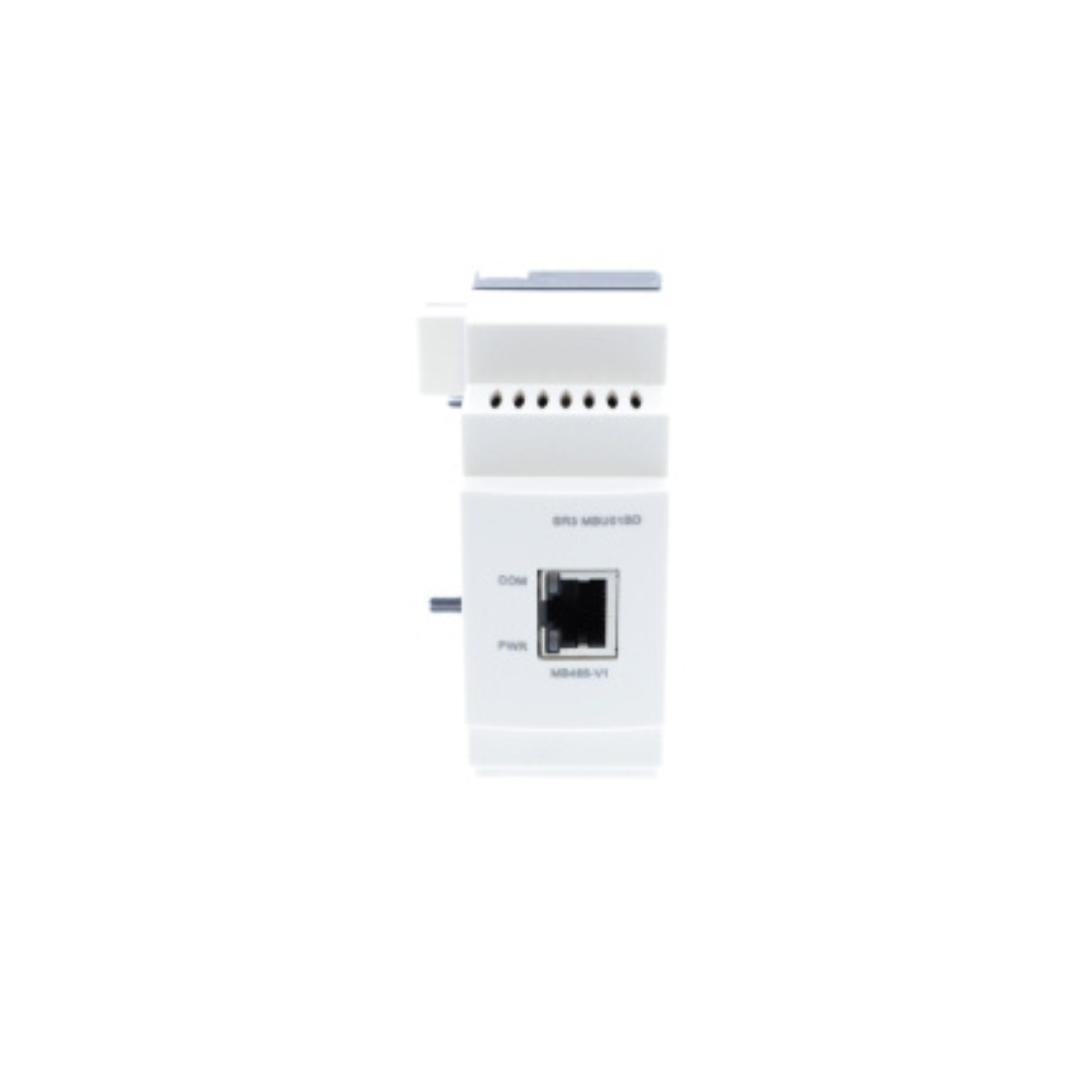

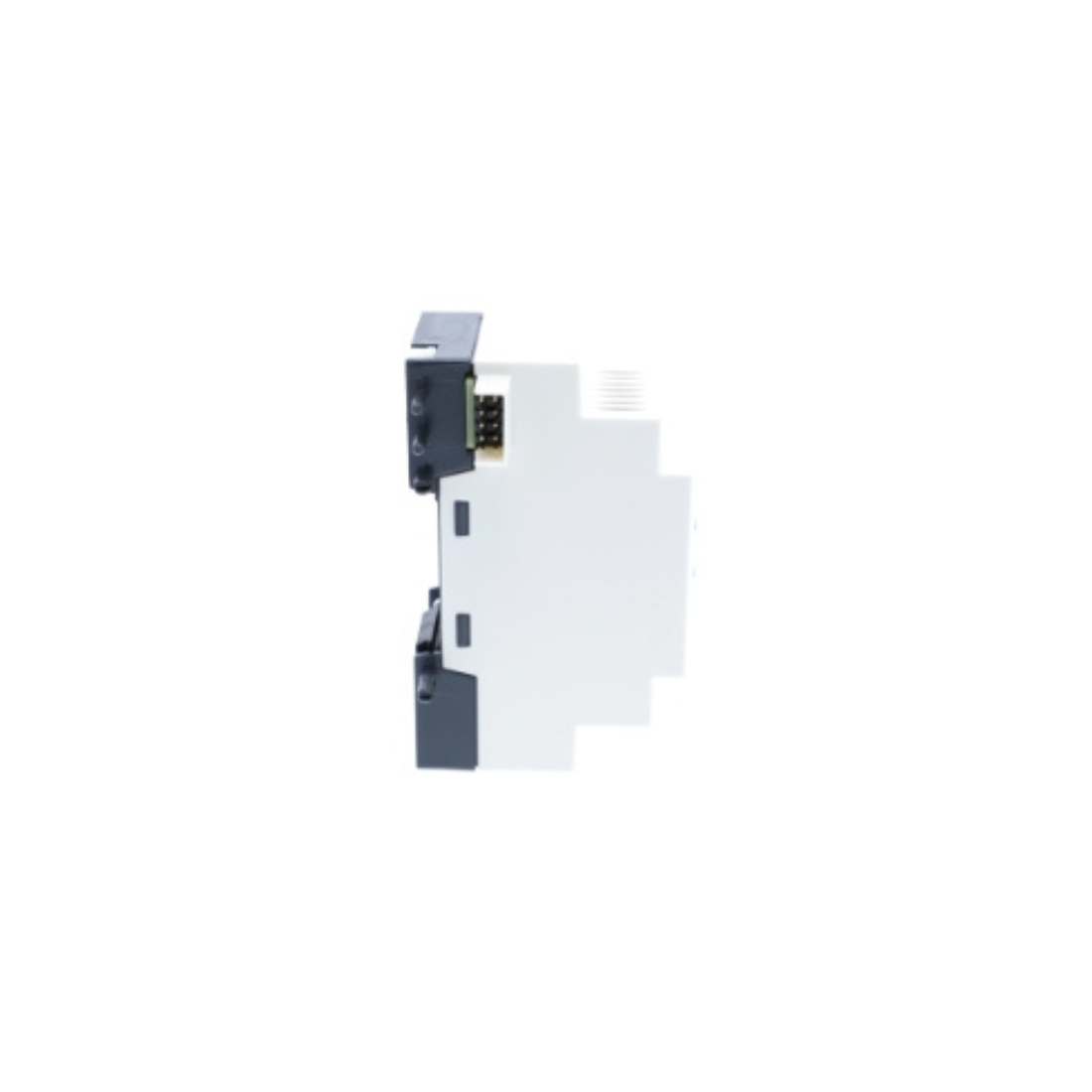

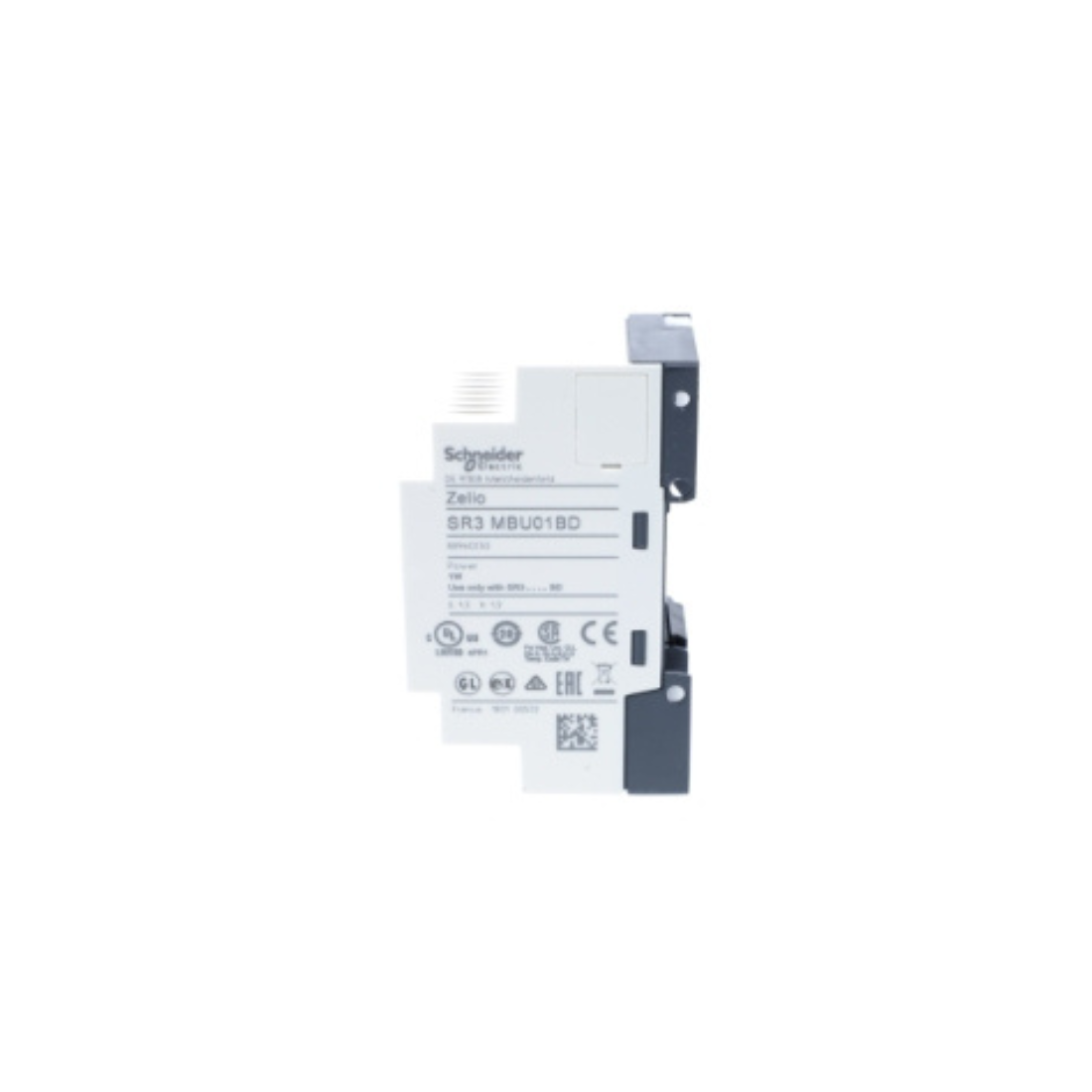

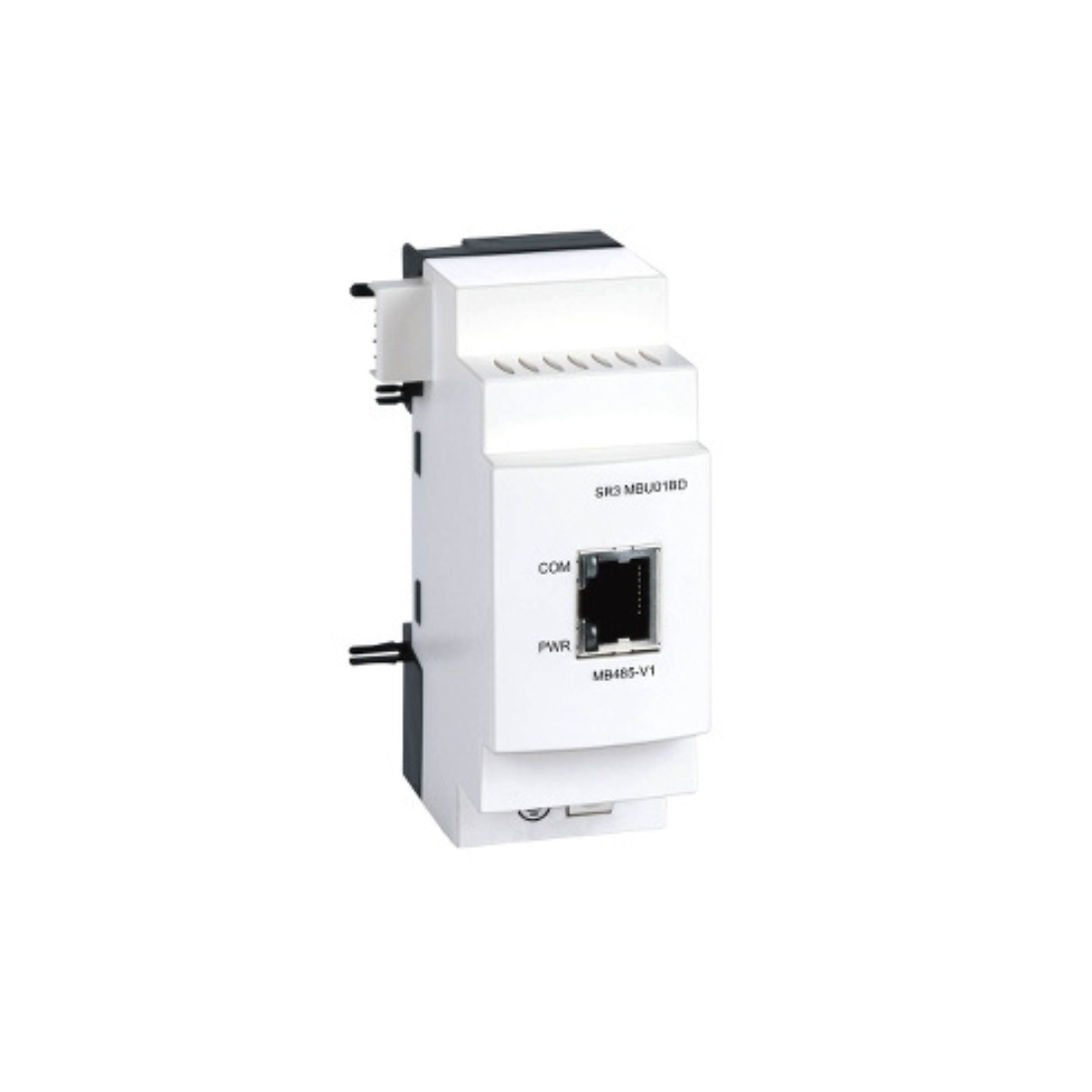

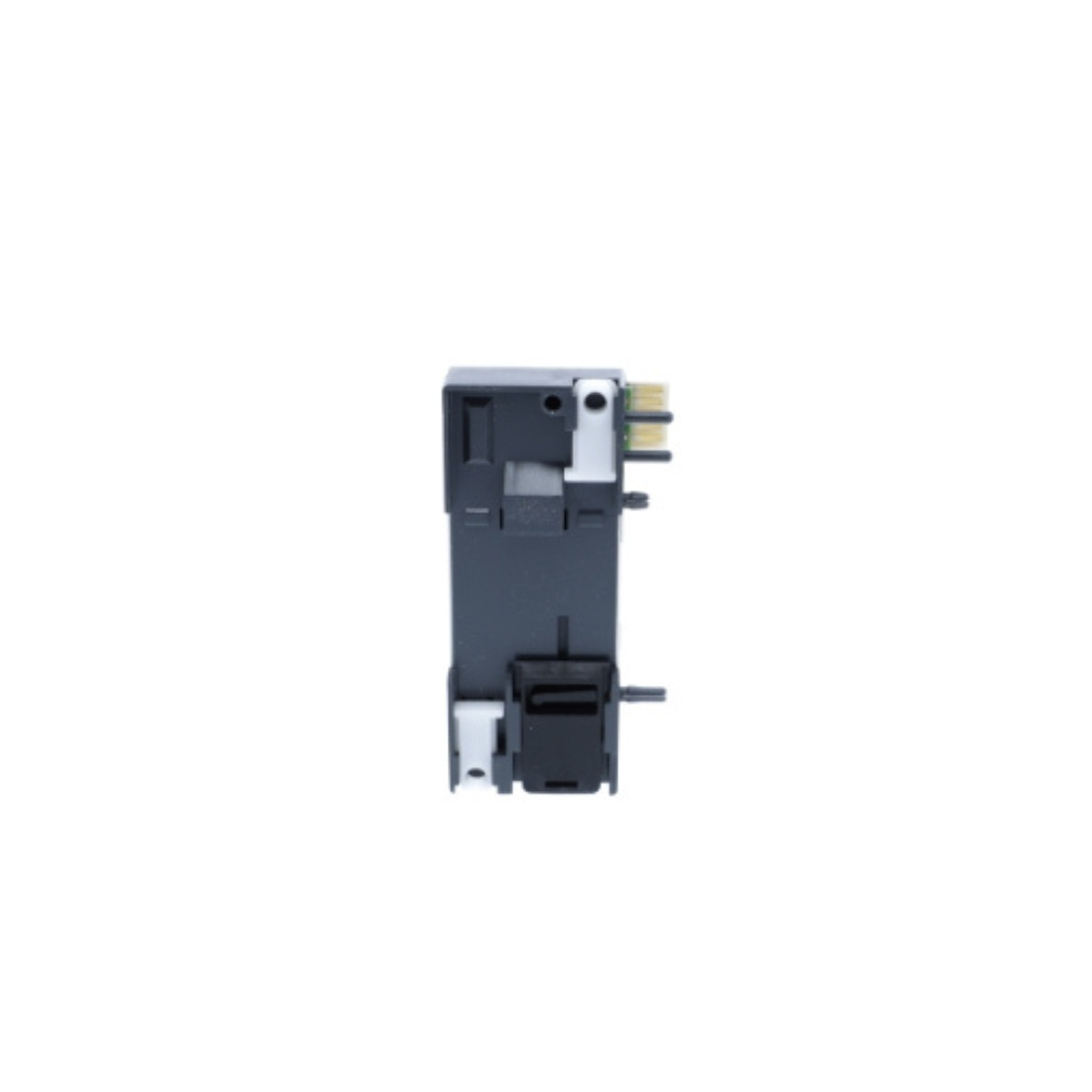

Schneider Electric Zelio Logic SR2 SR3 Communication Module Modbus Slave 24V DC Smart Relay SR3MBU01BD
Schneider Electric Zelio Logic SR2 SR3 Communication Module Modbus Slave 24V DC Smart Relay SR3MBU01BD
Schneider Electric Zelio Logic SR2 SR3 Communication Module Modbus Slave 24V DC Smart Relay SR3MBU01BD
Schneider Electric Zelio Logic SR2 SR3 Communication Module Modbus Slave 24V DC Smart Relay SR3MBU01BD
Schneider Electric Zelio Logic SR2 SR3 Communication Module Modbus Slave 24V DC Smart Relay SR3MBU01BD
Schneider Electric Zelio Logic SR2 SR3 Communication Module Modbus Slave 24V DC Smart Relay SR3MBU01BD
Schneider Electric Zelio Logic SR2 SR3 Communication Module Modbus Slave 24V DC Smart Relay SR3MBU01BD
Schneider Electric Zelio Logic SR2 SR3 Communication Module Modbus Slave 24V DC Smart Relay SR3MBU01BD
Schneider Electric Zelio Logic SR2 SR3 Communication Module Modbus Slave 24V DC Smart Relay SR3MBU01BD
Schneider Electric Zelio Logic SR2 SR3 Communication Module Modbus Slave 24V DC Smart Relay SR3MBU01BD
Schneider Electric Zelio Logic SR2 SR3 Communication Module Modbus Slave 24V DC Smart Relay SR3MBU01BD

Schneider Electric Zelio Logic SR2 SR3 Communication Module Modbus Slave 24V DC Smart Relay SR3MBU01BD

Regular price AED 472.50
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Communication Module
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric SR3MBU01BD Modbus Network Slave Communication Module is part of the Zelio Logic range, a range of smart relays for simple automation systems with 10 to 40 I/O. The Modbus slave communication module is suitable for smart relays. It is a communication module with a 2 or 4-wire wiring mode. It is equipped with an RJ45 plug for electrical connection. It has protection classes IP20 and IP40. Certified by GOST, C-Tick, UL, GL and CSA. Complies with EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-3, EN/IEC 61000-4-4 Level 3, EN/IEC 61000-4-2 Level 3, EN/IEC 61000-4 - Standards 5 and EN/IEC 60068-2-6 FC.

    Schneider Electric SR3MBU01BD Modbus Network Slave Communication Module is compatible with all 24V SR3 BxxxBD powered modules. Easy to select, install, and program, Zelio Logic is suitable for all applications. It offers flexibility to choose between 2 series, compact or modular, expandable, and 2 programming languages ​​(FBD or LADDER). Zelio Logic is easy to use and represents a real alternative to solutions based on hardwired logic or specific cards.

    Features
    • It is a communication module with a 2 or 4-wire wiring mode.
    • IP20 and IP40 protection classes
    • Equipped with an RJ45 plug for electrical connection.
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Modbus Slave Communication Module

    Model : SR3MBU01BD

    Ambient Air Temperature For Storage : -40-70 °C

    Connections - Terminals : Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) semi-solid, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) solid, screw terminals, 2 x 0.25...2 x 1.5 mm² (AWG 23...AWG 16) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end

    IP Degree Of Protection : IP20 (terminal block) conforming to IEC 60529, IP40 (front panel) conforming to IEC 60529

    Operating Altitude : 2000m

    Pollution Degree : 2 conforming to EN/IEC 61131-2

    Certifications : GOST, CSA, GL, C-Tick, UL

    Range Of Product : Zelio Logic

    Relative Humidity : 95-95 % without condensation or dripping water

    Tightening Torque : 0.5 N.m

    Maximum Altitude Transport : 3048 m

    Disturbance Radiated/Conducted : Class B conforming to EN 55022-11 group 1

    Transmission Rate : 1200 bauds, 9600 bauds, 38400 bauds, 19200 bauds, 57600 bauds, 28800 bauds, 2400 bauds, 4800 bauds

    Number Of Addresses : 1-247

    Transmission Frame : RTU, ASCII

    Programming Language : FBD, ladder

    Wiring Mode : 2 or 4 wires

    Communication Port Support : RS485

    Parity : No, odd, even

    Ambient Air Temperature For Operation : -20-40 °C conforming to IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2

    Standards : EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-3, EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-5, EN/IEC 60068-2-6 Fc

    Local Signalling : 1 LED for communication, 1 LED for power ON

    Compatibility : All modules with 24 V supply SR3 B...BD

    Environmental Characteristic : EMC directive conforming to EN/IEC 61000-6-2, EMC directive conforming to EN/IEC 61000-6-3, EMC directive conforming to EN/IEC 61000-6-4, EMC directive conforming to EN/IEC 61131-2 zone B, low voltage directive conforming to EN/IEC 61131-2

    Electrical Connection : 1 connector RJ45

    Communication Port Protocol : Modbus

    Weight : 0.11 kg
