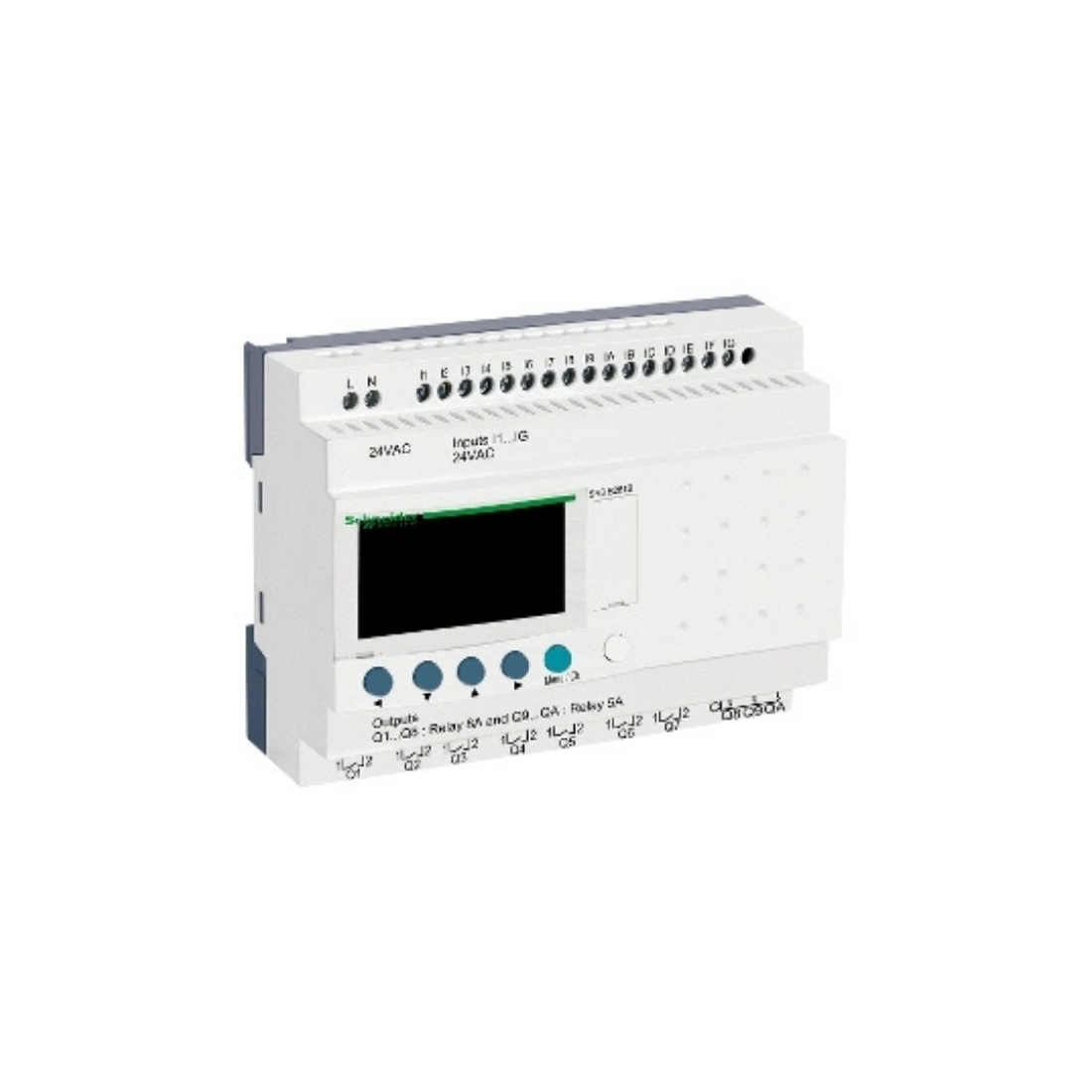

Schneider Electric Zelio Logic Modular Smart Relay 24 I/O 24V AC Clock Display SR3B261B

Name: Schneider Electric Zelio Logic Modular Smart Relay 24 I/O 24V AC Clock Display SR3B261B
Brand: Schneider Electric
Price: 1137.15 AED
Availability: InStock

AED 1,137.15

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Modular Smart Relay

Description

Schneider Electric SR3B261B Zelio Logic Modular Smart Relay is a range of smart relays for simple automation systems with 10 to 40 I/O. The compact smart relay offers a real alternative to solutions based on hardwired logic or specific cards. It comes with a screen and a clock. Checks program memory at each power-up and from 0 to 240 with ladder programming number or control scheme lines.

Zelio Logic is easy to use and represents a real alternative to solutions based on hardwired logic or special cards. It offers 10 normally open contact relay outputs and 16 discrete inputs. It is a smart relay with a nominal supply voltage of 24V, a maximum supply current of 280mA (without extension), and a power consumption of 7.5VA without extension. It is a product with protection classes IP20 and IP40. It weighs 0.4 kg.

Schneider Electric SR3B261B Zelio Logic Modular Smart Relay complies with EN/IEC 61000-4-5, EN/IEC 61000-4-11, EN/IEC 61000-4-2 Level 3, EN/IEC 61000-4-6 Level 3, EN/IEC 60068-2 - 6 Fc, EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-4 Level 3, EN/IEC 61000-4-3 and EN/IEC 61000-4-12. Easy to select, install, and program, Zelio Logic is suitable for all applications. It offers the flexibility to choose between 2 series, compact or modular, expandable, and 2 programming languages (FBD or LADDER). Zelio Logic is easy to use and offers a real alternative to solutions based on hardwired logic or specific cards.

Features

It comes with a screen and a clock.
Easy to use and offers a real alternative to solutions based on hardwired logic or specific cards.
It offers 10 normally open contact relay outputs and 16 discrete inputs.

Specifications

Brand : Schneider Electric

Item Name : Modular Smart Relay

Model : SR3B261B

Ambient Air Temperature For Storage : -40-70 °C

Connections - Terminals : Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid, screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end

IP Degree Of Protection : IP20 (terminal block) conforming to IEC 60529, IP40 (front panel) conforming to IEC 60529

Mechanical Durability : 10000000 cycles for relay output

Supply Voltage Limits : 20.4-28.8 V

Tightening Torque : 0.5 N.m

Contacts Type And Composition : NO for relay output

Supply frequency 50/60 Hz

Number Or Control Scheme Lines : 0-500 with FBD programming, 0-240 with ladder programming

Clock Drift : 12 min/year at 0-55 °C, 6 s/month at 25-25 °C

Immunity To Microbreaks : 10 ms repeated 20 times

Power consumption in VA : 10 VA with extensions, 7.5 VA without extension

Discrete Input Current : 4.4 mA

Current State 1 Guaranteed : >= 2 mA (discrete input)

Voltage State 1 Guaranteed : >= 14 V for discrete input

Maximum Supply Current : 280 mA (without extension), 415 mA (with extensions)

Switching Capacity in mA : >= 10 mA at 12 V (relay output)

Maximum Altitude Transport : 3048 m

Cycle Time : 6-90 ms

Checks : Program memory on each power up

Disturbance Radiated/conducted : Class B conforming to EN 55022-11 group 1

Discrete Input Frequency : 47...53 Hz, 57...63 Hz

Output Thermal Current : 5 A for 2 outputs for relay output, 8 A for 8 outputs for relay output

Discrete Input Voltage : 24 V AC

Backup Time : 10 years at 25 °C

Clock : With

Local Display : With

Voltage State 0 Guaranteed : <= 5 V for discrete input

Current State 0 Guaranteed : <= 0.5 mA (discrete input)

Isolation Voltage : 1780 V

Operating Rate in Hz : 0.1 Hz (at Ie) for relay output, 10 Hz (no load) for relay output

Discrete Input Number : 16

Ambient Air Temperature For Operation : -20-40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2

Standards : EN/IEC 61000-4-5, EN/IEC 61000-4-11, EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-6 level 3, EN/IEC 60068-2-6 Fc, EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-3, EN/IEC 61000-4-12

Environmental Characteristic : EMC directive conforming to EN/IEC 61000-6-2, EMC directive conforming to EN/IEC 61000-6-3, EMC directive conforming to EN/IEC 61000-6-4, EMC directive conforming to EN/IEC 61131-2 zone B, low voltage directive conforming to EN/IEC 61131-2

Input Impedance : 4.6 kOhm for discrete input

Electrical Durability : AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1, AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to EN/IEC 60947-5-1, DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1, DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to EN/IEC 60947-5-1

Weight : 0.4 kg
