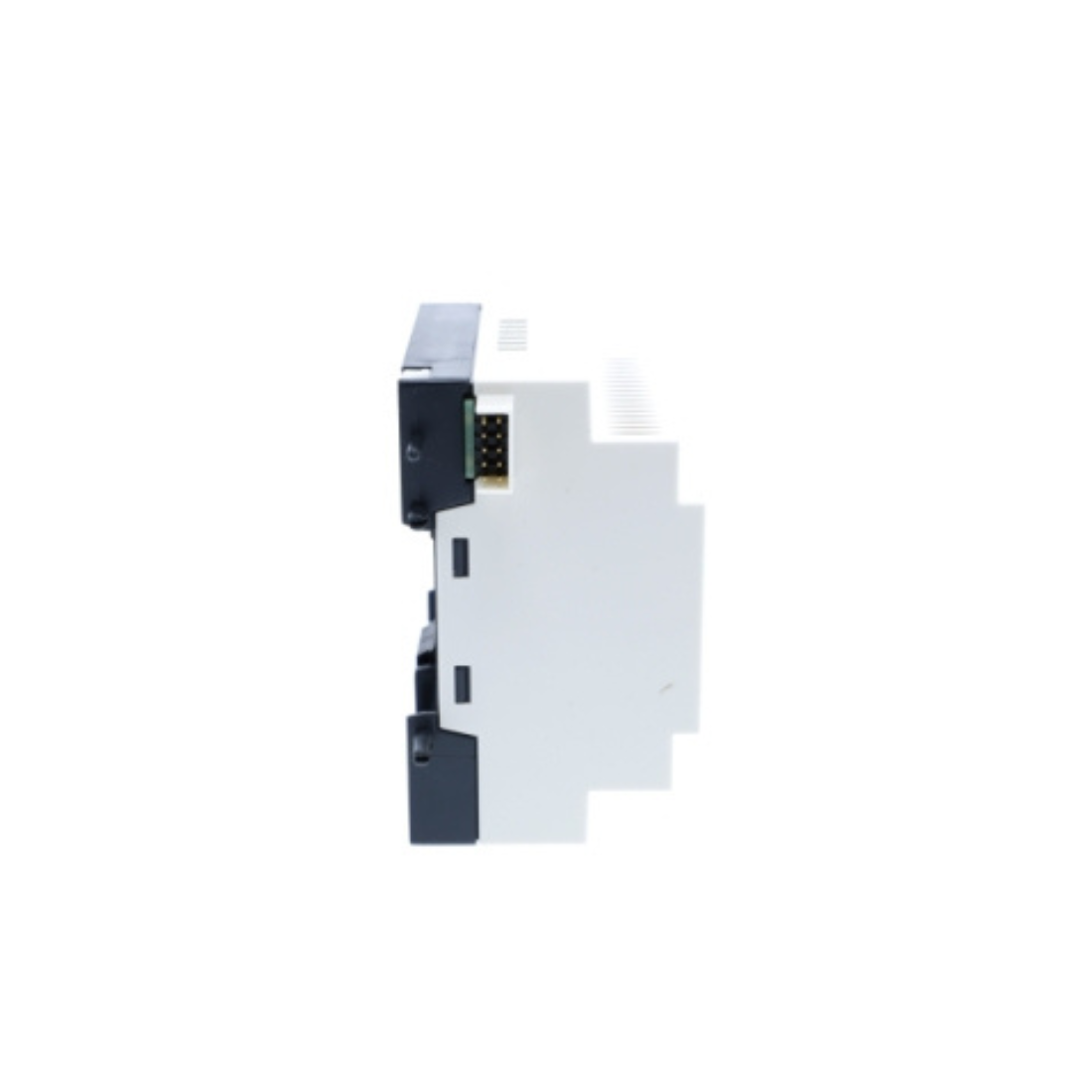

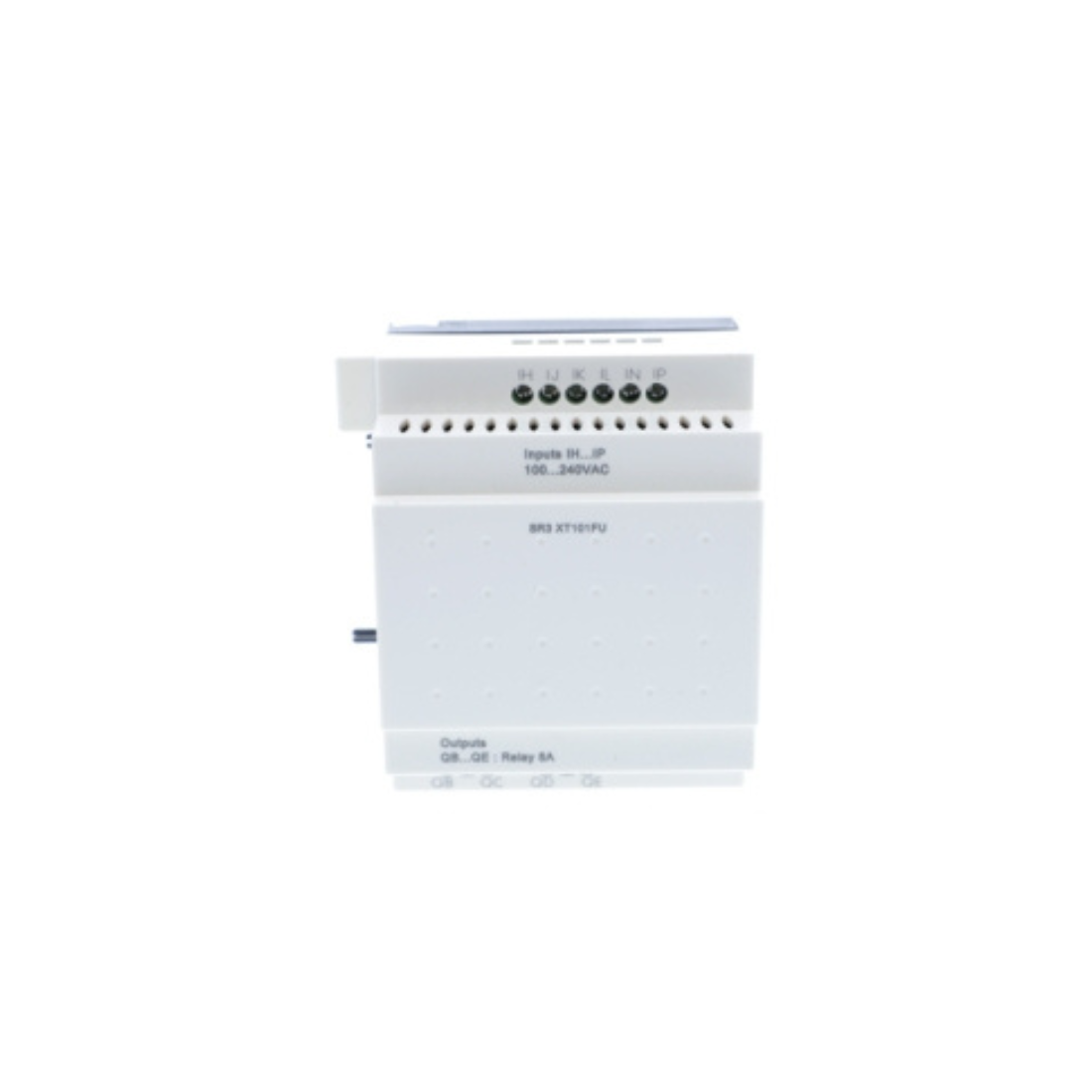

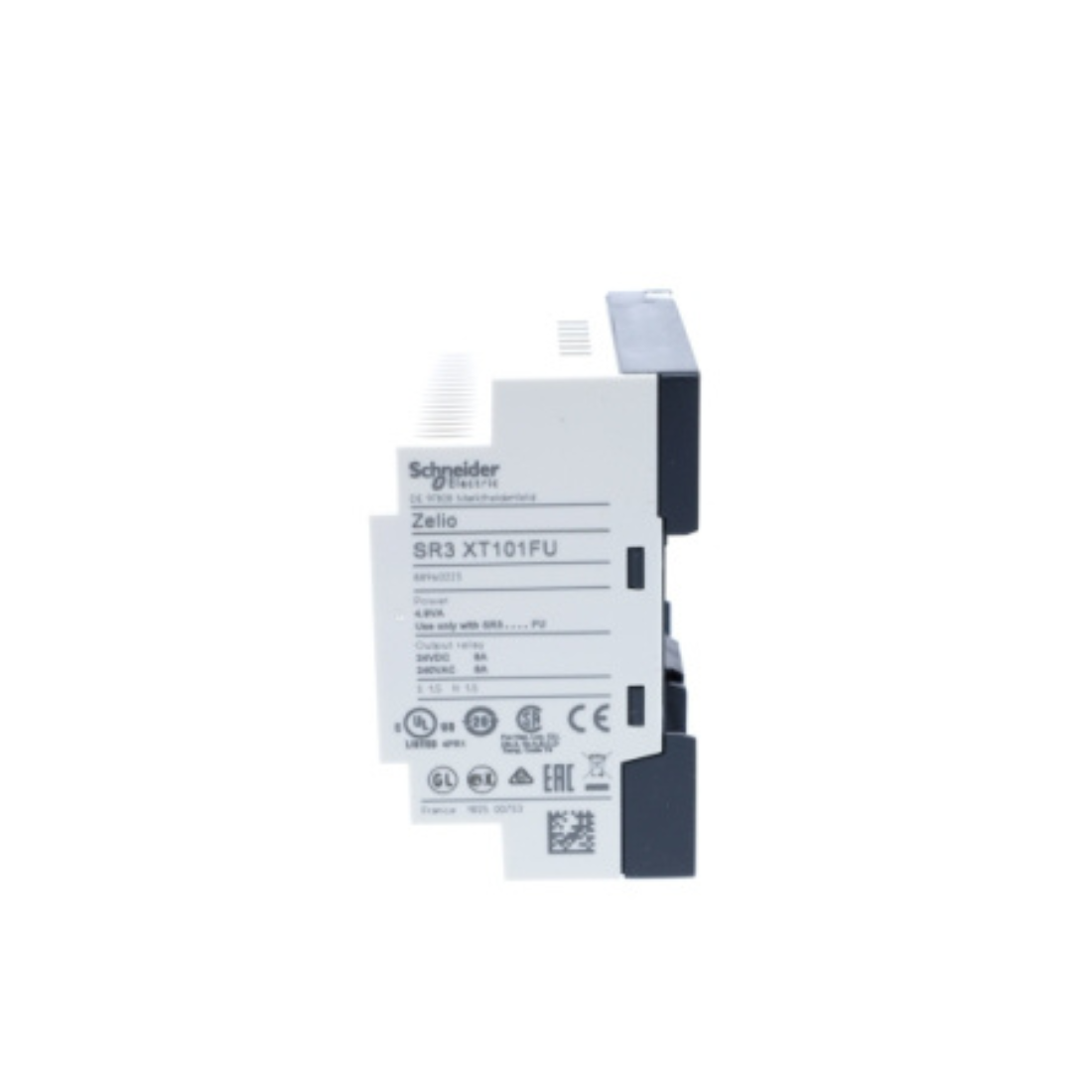

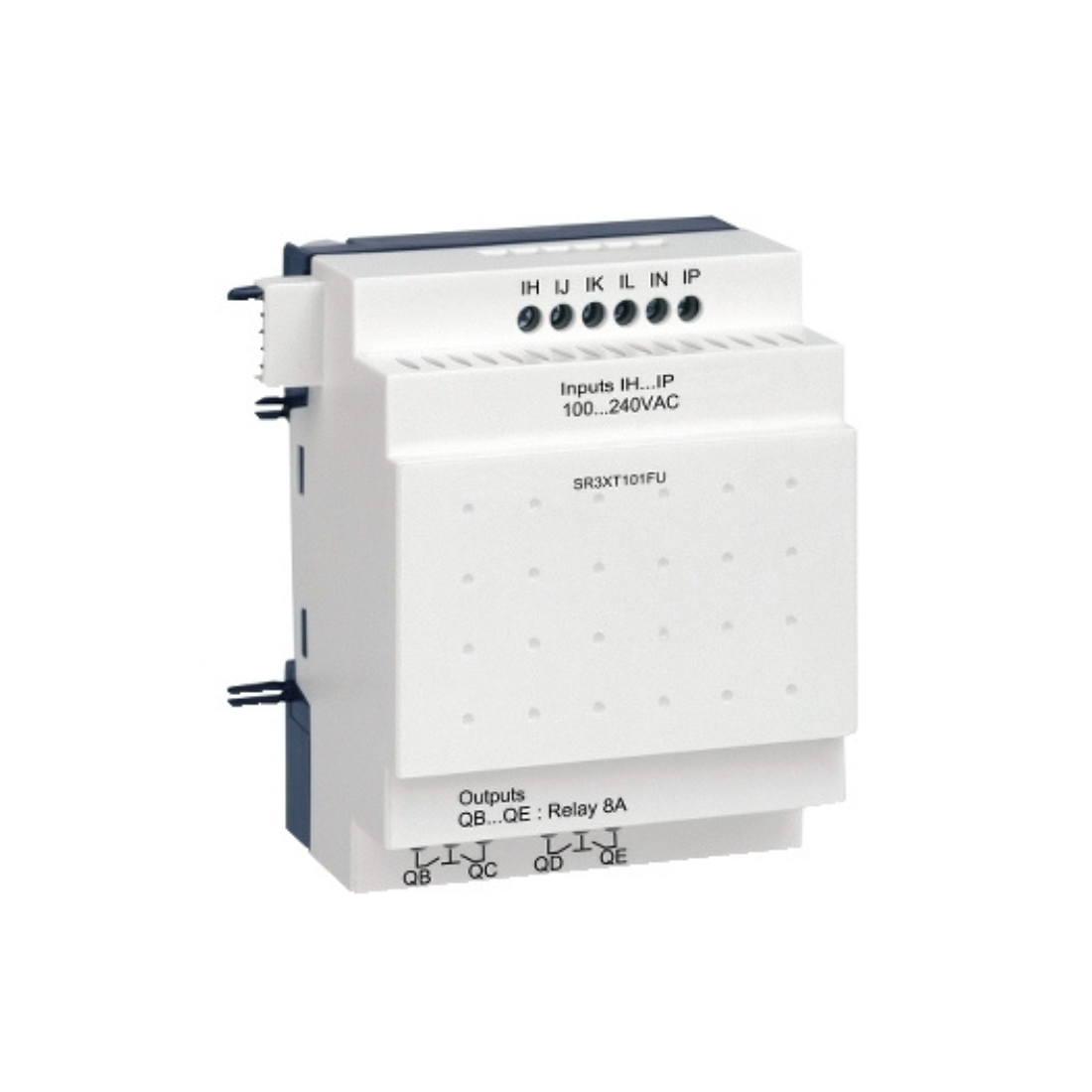

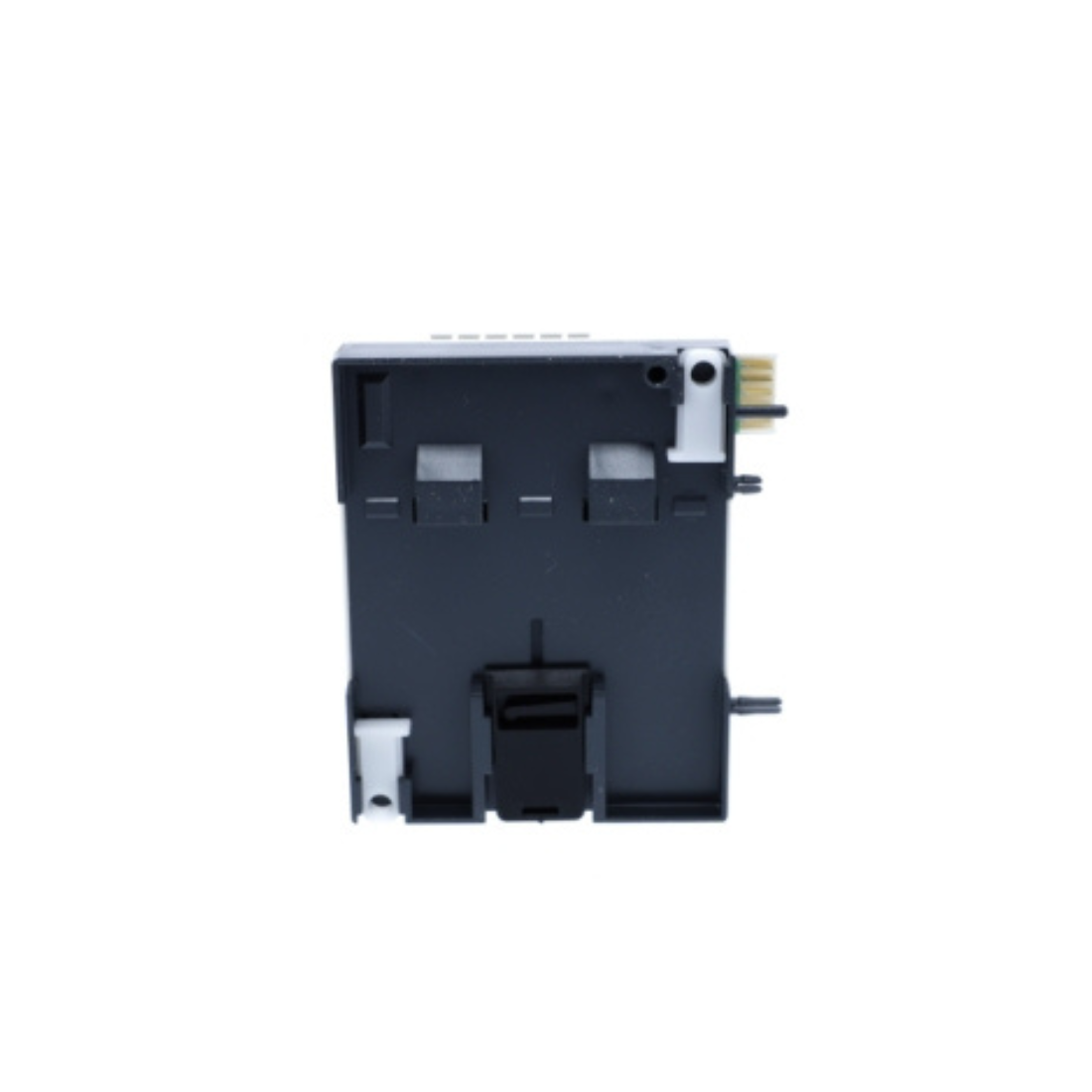

Schneider Electric Zelio Logic Discrete I/O Extension Module 10 I/O 100-240V AC for Zelio Logic SR3XT101FU
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Discrete I/O Extension Module
Description
Schneider Electric SR3XT101FU Discrete Input Or Output Extension Module is part of the Zelio Logic range, a range of smart relays for simple automation systems with 10 to 40 I/O. The discrete I/O expansion module offers 6 inputs and 4 relay outputs. It is an expansion module with a nominal supply voltage of 100 to 240 VAC and a discrete input current of 0.6 mA. Provides normally open contacts for relay output, checks program memory at each power up and 120 with ladder programming numbers or control scheme lines.
Schneider Electric SR3XT101FU Zelio Logic Discrete Input Or Output Extension Module is equipped with a screw terminal for electrical connection. Offers long mechanical life, mechanical durability is approximately 10 million cycles for relay output, and 10 years of backup time at 25°C. It has protection classes IP20 and IP40. It complies with EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-12, EN/IEC 61000-4-3, EN/IEC 61000-4-2 Level 3, EN/IEC 61000-4- 5, standards EN/IEC 61000-4-6 Level 3, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-11 and EN/IEC 61000-4-4 Level 3.
Easy to select, install, and program, Zelio Logic is suitable for all applications. It offers the flexibility to choose between 2 series, compact or modular, expandable, and 2 programming languages (FBD or LADDER). Zelio Logic is easy to use and offers a real alternative to solutions based on hardwired logic or specific cards.
Features
- Offers 6 inputs and 4 relay outputs.
- It is an expansion module with a nominal supply voltage of 100 to 240 VAC and a discrete input current of 0.6 mA.
- IP20 and IP40 Protection
| Brand | Schneider Electric |
| Item Name | Discrete I/O Extension Module |
| Model | SR3XT101FU |
| Connections - Terminals | Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid, screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid |
| IP Degree Of Protection | IP20 (terminal block) conforming to IEC 60529, IP40 (front panel) conforming to IEC 60529 |
| Mechanical Durability | 10000000 cycles for relay output |
| Supply Voltage Limits | 85-264 V |
| Tightening Torque | 0.5 N.m |
| Contacts Type And Composition | NO for relay output |
| Supply Frequency | 50/60 Hz |
| Number Or Control Scheme Lines | 120-120 with ladder programming |
| Clock Drift | 12 min/year at 0-55 °C |
| Discrete Input Current | 0.6 mA |
| Current State 1 Guaranteed | >= 0.17 mA (discrete input) |
| Voltage State 1 Guaranteed | >= 79 V for discrete input |
| Switching Capacity in mA | >= 10 mA at 12 V (relay output) |
| Maximum Altitude Transport | 3048 m |
| Cycle Time | 6-90 ms |
| Discrete Input Frequency | 47...53 Hz, 57...63 Hz |
| Checks | Program Memory on each power up |
| Disturbance Radiated/Conducted | Class B conforming to EN 55022-11 group 1 |
| Output Thermal Current | 8 A for all 4 outputs for relay output |
| Backup Time | 10 years at 25 °C |
| Discrete Input Voltage | 100...240 V AC |
| Voltage State 0 Guaranteed | <= 40 V for discrete input |
| Operating Rate in Hz | 0.1 Hz (at Ie) for relay output, 10 Hz (no load) for relay output |
| Current State 0 Guaranteed | <= 0.5 mA (discrete input) |
| Reverse Polarity Protection | With |
| Discrete Input Number | 6 |
| Ambient Air Temperature For Operation | -20-40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 |
| Standards | EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-12, EN/IEC 61000-4-3, EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-5, EN/IEC 61000-4-6 level 3, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-11, EN/IEC 61000-4-4 level 3 |
| Environmental Characteristic | EMC directive conforming to EN/IEC 61000-6-2, EMC directive conforming to EN/IEC 61000-6-3, EMC directive conforming to EN/IEC 61000-6-4, EMC directive conforming to EN/IEC 61131-2 zone B, low voltage directive conforming to EN/IEC 61131-2 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Input Impedance | 350 kOhm for discrete input |
| Electrical Durability | AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to EN/IEC 60947-5-1, AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1, DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to EN/IEC 60947-5-1, DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1 |
| Weight | 0.2 kg |
