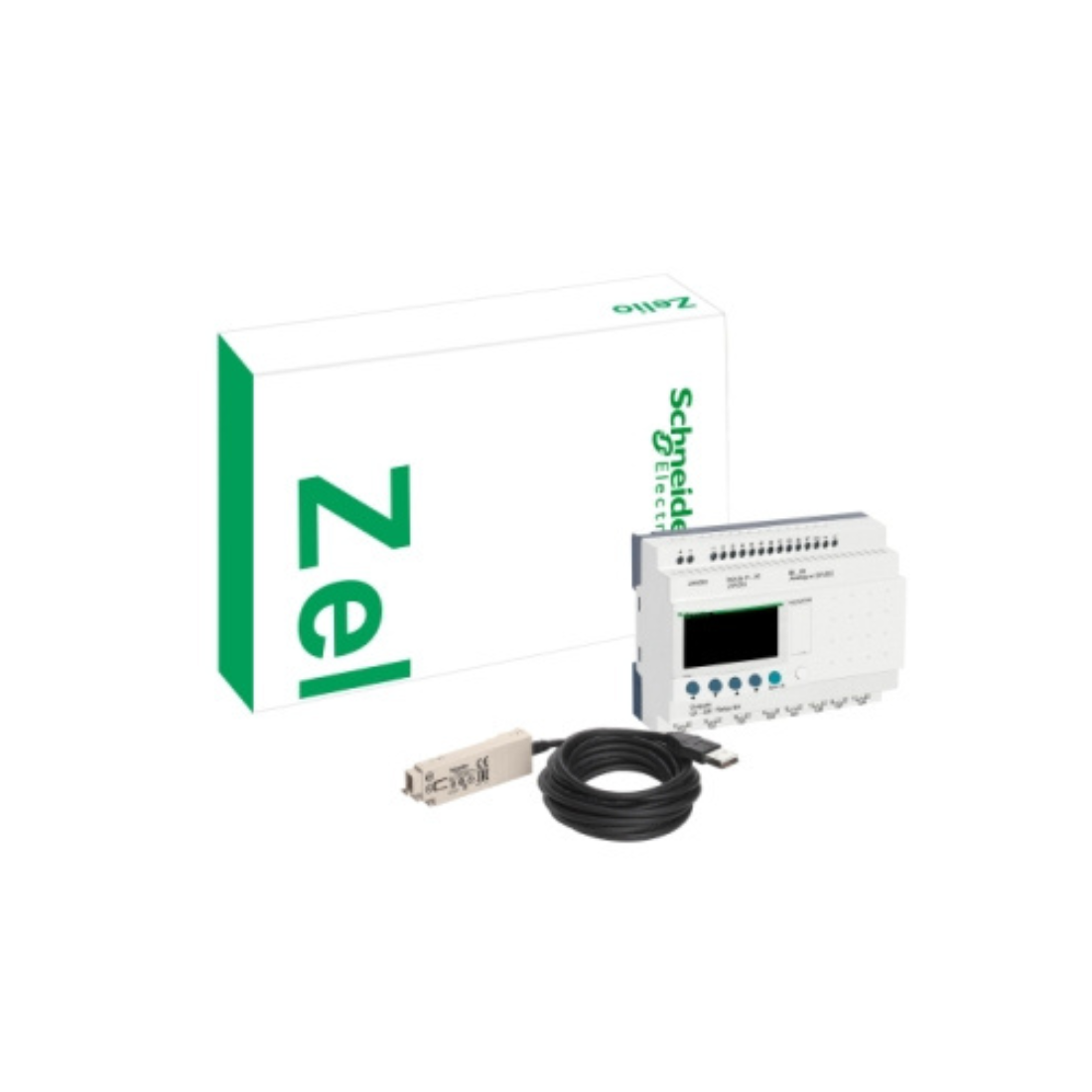

Schneider Electric Zelio Logic Compact Smart Relay Discovery Pack 20 I/O 24V DC SR2PACK2BD
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Compact Smart Relay
Description
Schneider Electric SR2PACK2BD Zelio Logic Compact Smart Relay is part of Zelio Logic SR2/SR3, an offering of simple automation systems with 10 to 40 I/O. This modular discovery package from Zelio Logic features 20 I/O, a local display, 120 with a ladder diagram, and 0 to 200 with FBD programming control scheme lines. It is a smart relay with a nominal supply voltage of 24V DC and a cycle time of 6ms to 90ms.
Schneider Electric SR2PACK2BD Zelio Logic Compact Smart Relay offers 12 discrete resistive inputs with a voltage of 24 V DC, 2 analog input ranges from 0 V to 10 V, 0 V to 24 V, and 8 relay outputs from 24 V to 250 V AC and 5 V to 30 V DC. It has protection classes IP20 and IP40. The main application area of ​​this module is industry and the construction/service sector. It is certified by C-Tick, GL, UL, CSA, and GOST. Complies with EN/IEC 60068-2-6 Fc and EN/IEC 61000-4-11 standards. Zelio Logic is easy to use and offers a real alternative solution based on hardwired logic or specific cards.
Features
- It has a nominal supply voltage of 24V DC and a cycle time of 6ms to 90ms.
- Features 20 I/O, a local display, 120 with a ladder diagram, and 0 to 200 with FBD programming control scheme lines.
- IP20 and IP40 Protection
| Brand | Schneider Electric |
| Item Name | Compact Smart Relay |
| Model | SR2PACK2BD |
| Rated Impulse Withstand Voltage | 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Rated Supply Voltage | 24V |
| Output Voltage Limits | 24...250 V AC (relay output), 5...30 V DC (relay output) |
| Connections - Terminals | Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid, screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end |
| IP Degree Of Protection | IP20 (terminal block) conforming to IEC 60529, IP40 (front panel) conforming to IEC 60529 |
| Mechanical Durability | 10000000 cycles for relay output |
| Range Of Product | Zelio Logic |
| Operating Altitude | 2000 m |
| Output Voltage Limits | 24...250 V AC (relay output), 5...30 V DC (relay output) |
| Overvoltage Category | III conforming to EN/IEC 60664-1 |
| Pollution Degree | 2 conforming to EN/IEC 61131-2 |
| Power Dissipation in W | 6 W without extension |
| Certifications | GOST, CSA, GL, UL, C-Tick |
| Relative Humidity | 95-95 % without condensation or dripping water |
| Range Of Product | Zelio Logic |
| Tightening Torque | 0.5 N.m |
| Supply Voltage Limits | 19.2-30 V |
| Contacts Type And Composition | NO for relay output |
| Supply Frequency | 50/60 Hz |
| Number Or Control Scheme Lines | 120-120 with ladder programming, 0-200 with FBD programming |
| Clock Drift | 12 min/year at 0-55 °C, 6 s/month at 25-25 °C |
| Immunity To Microbreaks | 1 ms |
| Discrete Input Current | 4 mA |
| Current State 1 Guaranteed | >= 1.2 mA (IB...IG used as discrete input circuit), >= 2.2 mA (I1...IA and IH...IR discrete input circuit) |
| Voltage State 1 Guaranteed | >= 15 V for I1...IA and IH...IR discrete input circuit, >= 15 V for IB...IG used as discrete input circuit |
| Maximum Supply Current | 100 mA (without extension) |
| Switching Capacity in mA | >= 10 mA at 12 V (relay output) |
| Maximum Altitude Transport | 3048 m |
| Cycle Time | 6-90 ms |
| Checks | Program memory on each power up |
| Disturbance Radiated/Conducted | Class B conforming to EN 55022-11 group 1 |
| Output Thermal Current | 8 A for all 8 outputs for relay output |
| Discrete Input Voltage | 24 V DC |
| Clock | Without |
| Local Display | With |
| Voltage State 0 Guaranteed | <= 5 V for I1...IA and IH...IR discrete input circuit, <= 5 V for IB...IG used as discrete input circuit |
| Current State 0 Guaranteed | <= 0.5 mA (IB...IG used as discrete input circuit) |
| Operating Rate in Hz | 0.1 Hz (at Ie) for relay output, 10 Hz (no load) for relay output |
| Discrete Input Number | 12 conforming to EN/IEC 61131-2 type 1 |
| Input compatibility | 3-wire proximity sensors PNP for discrete input |
| Discrete Input Type | Resistive |
| Temperature Probe Type | NTC 10k at 25 °C, NTC 1000k at 25 °C, KTY81 210/220/221/222/250, Pt 500 |
| Repeat Accuracy | +/- 2 % at 55 °C for analogue input circuit |
| Conversion Error | +/- 5 % at 25 °C for analogue input circuit, +/- 6.2 % at 55 °C for analogue input circuit |
| LSB Value | 39 mV for analogue input circuit |
| Reverse Polarity Protection | With |
| Maximum Permissible Voltage | 30 V for analogue input circuit |
| Analogue Input Range | 0...10 V, 0...24 V |
| Conversion Time | Smart relay cycle time for analogue input circuit |
| Operating Distance | 10 m between stations, with screened cable (sensor not isolated) for analogue input circuit |
| Input/Output Number | 20 |
| Counting Frequency | 1 kHz for discrete input |
| Analogue Input Resolution | 8 bits |
| Analogue Input Type | Common mode |
| Analogue Input Number | 2 |
| Input Impedance | 12 kOhm for IB...IG used as analogue input circuit, 12 kOhm for IB...IG used as discrete input circuit, 7.4 kOhm for I1...IA and IH...IR discrete input circuit |
| Kit Composition | SR2B201BD, cable PC SR2USB01 for connection to PC |
| Ambient Air Temperature For Operation | -20-40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 |
| Standards | EN/IEC 61000-4-6 level 3, EN/IEC 61000-4-3, EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-11, EN/IEC 61000-4-12, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-5, EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-4 level 3 |
| Environmental Characteristic | EMC directive conforming to EN/IEC 61000-6-2, EMC directive conforming to EN/IEC 61000-6-3, EMC directive conforming to EN/IEC 61000-6-4, EMC directive conforming to EN/IEC 61131-2 zone B, low voltage directive conforming to EN/IEC 61131-2 |
| Electrical Durability | AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1, AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to EN/IEC 60947-5-1, DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1, DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to EN/IEC 60947-5-1 |
| Weight | 0.7 kg |
