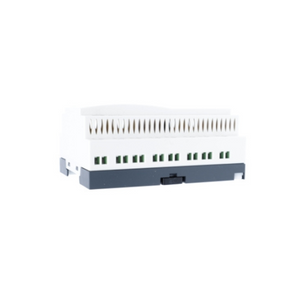

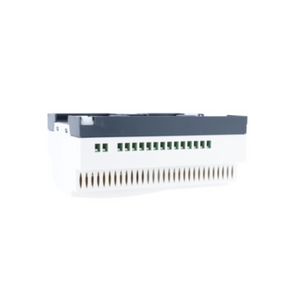

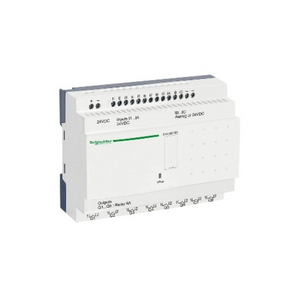

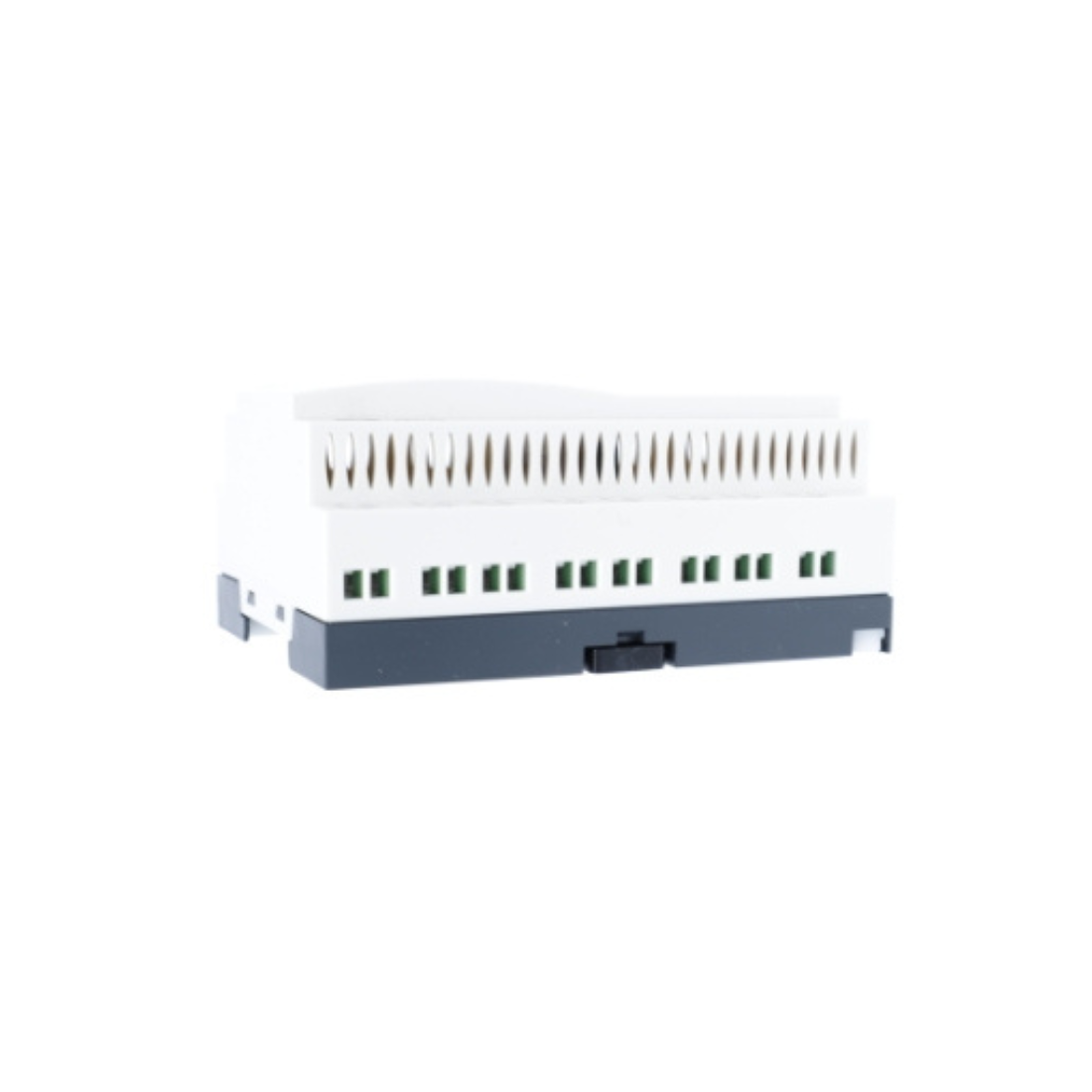

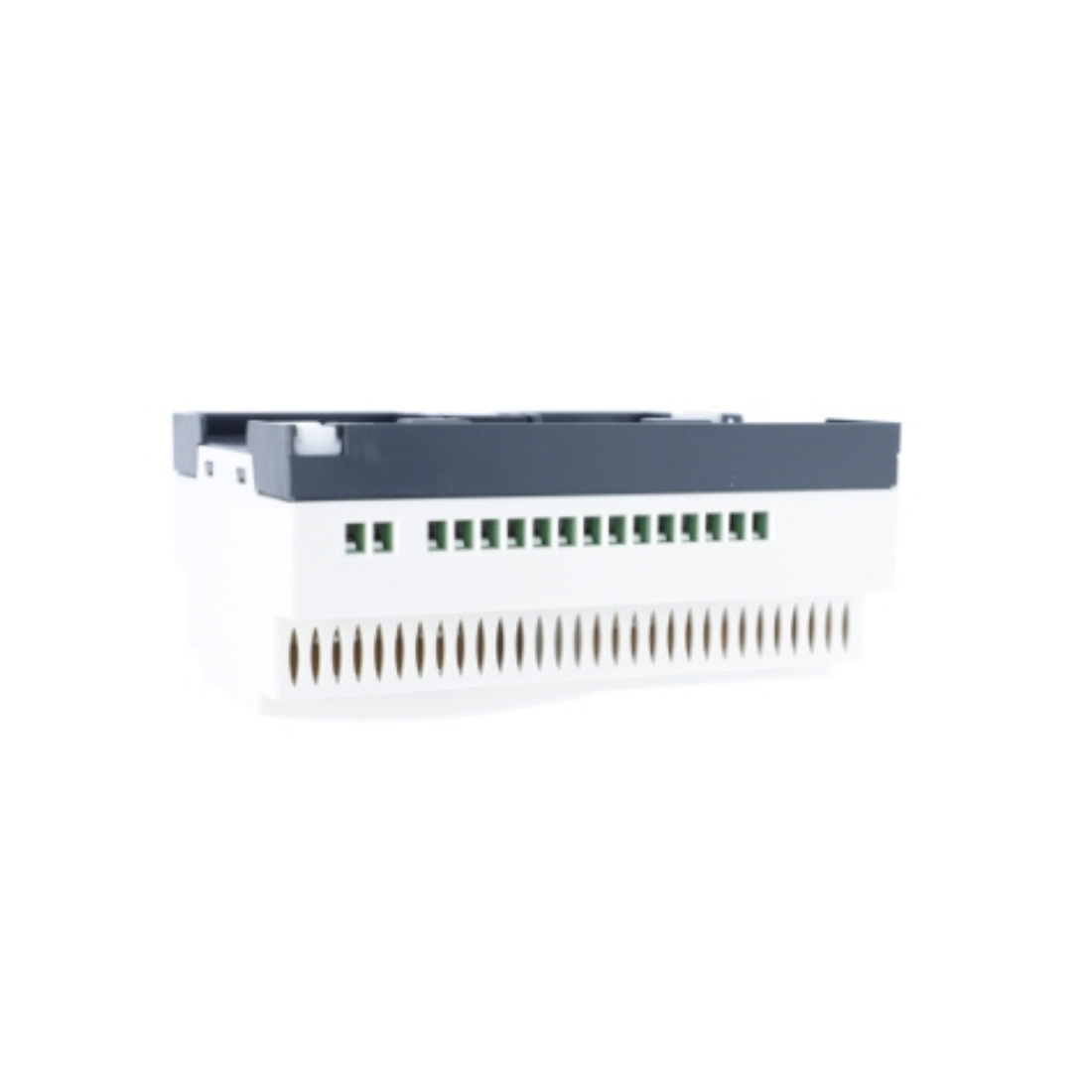

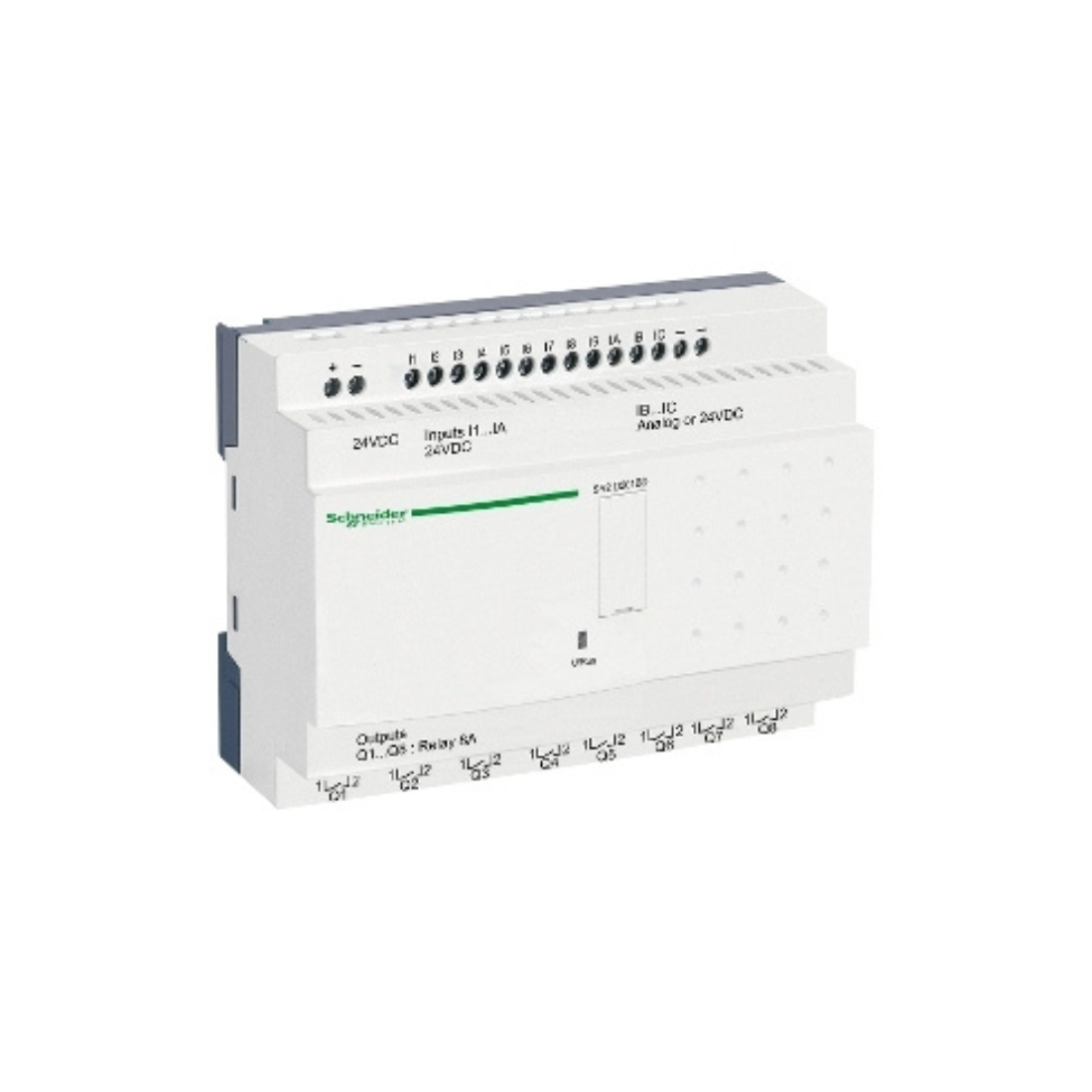

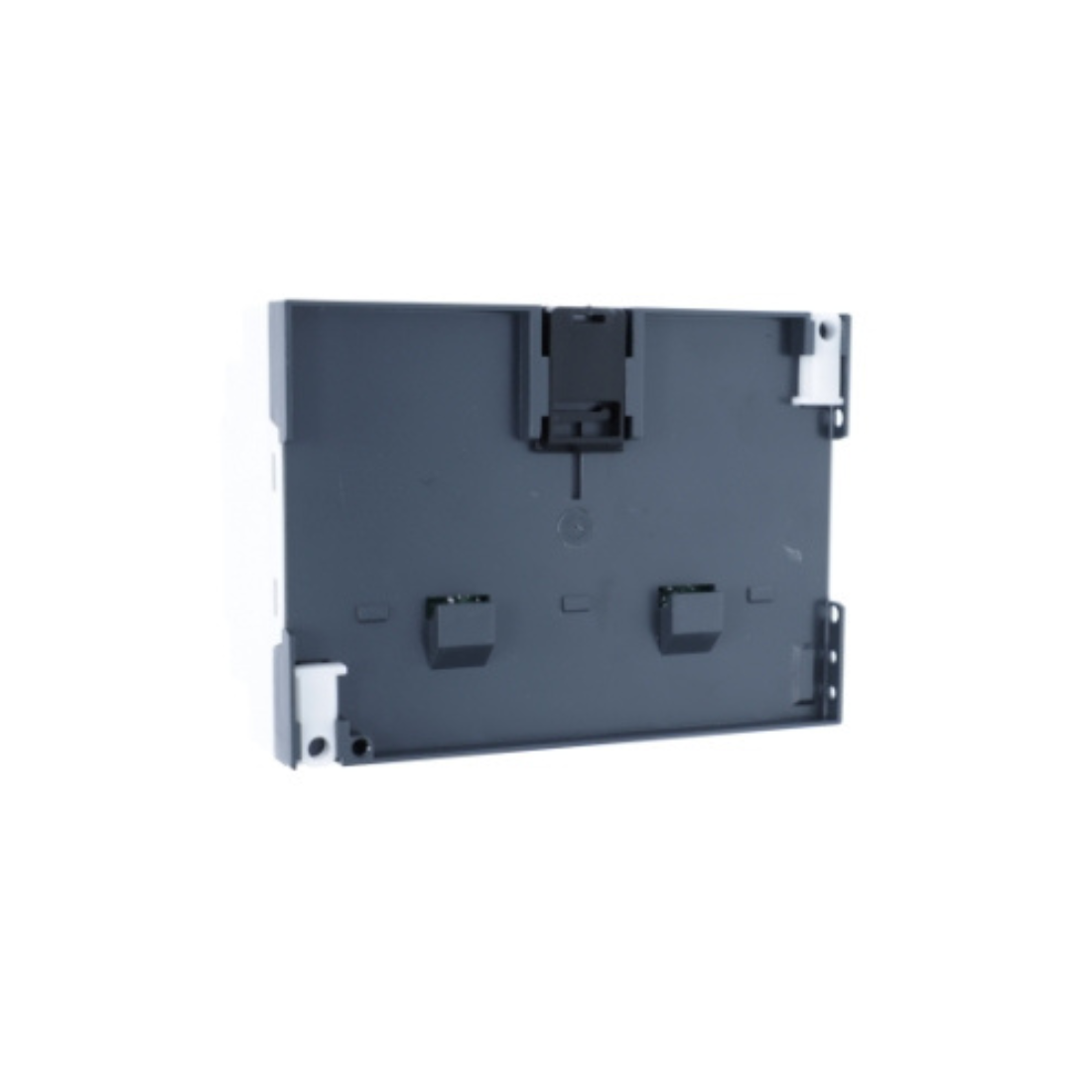

Schneider Electric Zelio Logic Compact Smart Relay 20 I/O 24V DC No Clock No Display SR2D201BD
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Compact Smart Relay
Description
Schneider Electric SR2D201BD Compact Smart Relay is part of the Zelio Logic range, a range of smart relays for simple automation systems with 10 to 40 I/O. The compact smart relay offers a real alternative to solutions based on hardwired logic or specific cards. Comes without a screen or clock. Checks program memory at each power-up and from 0 to 240 with ladder programming number or control scheme lines.
Schneider Electric SR2D201BD Zelio Logic Compact Smart Relay offers 8 normally open contact relay outputs and 12 discrete inputs. It has a nominal supply voltage of 24V DC, a maximum supply current of 100mA (without expansion), and a power consumption of 6W without expansion. It has a protection classes IP20 and IP40. Compact Smart Relaywith EN/IEC 61000-4-11, EN/IEC 61000-4-5, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-12, EN/IEC 61000-4-2 Level 3, EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-3, EN/IEC 61000-4-4 Level 3 and EN/IEC 61000-4-6 Level 3.
Zelio Logic is easy to select install and program and is suitable for all your applications. It offers you the flexibility to choose between 2 series, compact or modular, expandable, and 2 programming languages (FBD or LADDER). Zelio Logic is easy to use and represents a real alternative to solutions based on hardwired logic or specific cards.
Features
- Comes without a screen or clock.
- Easy to use and offers a real alternative to solutions based on hardwired logic or specific cards.
- It offers 8 normally open contact relay outputs and 12 discrete inputs
| Brand | Schneider Electric |
| Item Name | Compact Smart Relay |
| Model | SR2D201BD |
| Rated Impulse Withstand Voltage | 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1 |
| Rated Supply Voltage | 24 V DC |
| Ambient Air Temperature For Storage | -40-70 °C |
| Connections - Terminals | Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid, screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end |
| IP Degree Of Protection | IP20 (terminal block) conforming to IEC 60529, IP40 (front panel) conforming to IEC 60529 |
| Mechanical Durability | 10000000 cycles for relay output |
| Operating Altitude | 2000 m |
| Output Voltage Limits | 24...250 V AC (relay output), 5...30 V DC (relay output) |
| Overvoltage Category | III conforming to EN/IEC 60664-1 |
| Pollution Degree | 2 Conforming to EN/IEC 61131-2 |
| Power Dissipation in W | 6 W without extension |
| Tightening Torque | 0.5 N.m |
| Certifications | CSA, UL, C-Tick, GOST, GL |
| Range Of Product | Zelio Logic |
| Relative Humidity | 95-95 % without condensation or dripping water |
| Supply Voltage Limits | 19.2-30 V |
| Contacts Type And Composition | NO for relay output |
| Number Or Control Scheme Lines | 240-240 with ladder programming |
| Clock Drift | 12 min/year at 0-55 °C, 6 s/month at 25-25 °C |
| Immunity To Microbreaks | 1 ms |
| Discrete Input Current | 4 mA |
| Current State 1 Guaranteed | >= 1.2 mA (IB...IG used as discrete input circuit), >= 2.2 mA (I1...IA and IH...IR discrete input circuit) |
| Voltage State 1 Guaranteed | >= 15 V for I1...IA and IH...IR discrete input circuit, >= 15 V for IB...IG used as discrete input circuit |
| Maximum Supply Current | 100 mA (without extension) |
| Switching Capacity in mA | >= 10 mA at 12 V (relay output) |
| Maximum Altitude Transport | 3048 m |
| Cycle Time | 6-90 ms |
| Checks | Program memory on each power up |
| Disturbance Radiated/conducted | Class B conforming to EN 55022-11 group 1 |
| Output Thermal Current | 8 A for all 8 outputs for relay output |
| Discrete Input Voltage | 24 V DC |
| Backup Time | 10 years at 25 °C |
| Clock | With |
| Local Display | Without |
| Voltage State 0 Guaranteed | <= 5 V for I1...IA and IH...IR discrete input circuit, <= 5 V for IB...IG used as discrete input circuit |
| Current State 0 Guaranteed | <= 0.5 mA (IB...IG used as discrete input circuit), <= 0.75 mA (I1...IA and IH...IR discrete input circuit) |
| Operating Rate in Hz | 0.1 Hz (at Ie) for relay output, 10 Hz (no load) for relay output |
| Discrete Input Number | 12 conforming to EN/IEC 61131-2 type 1 |
| Input Compatibility | 3-wire proximity sensors PNP for discrete input |
| Discrete Input Type | Resistive |
| Analogue Input Resolution | 8 bits |
| Analogue Input Number | 2 |
| Analogue Input Type | Common Mode |
| Repeat Accuracy | +/- 2 % at 55 °C for analogue input circuit |
| Conversion Error | +/- 5 % at 25 °C for analogue input circuit, +/- 6.2 % at 55 °C for analogue input circuit |
| LSB Value | 39 mV for analogue input circuit |
| Reverse Polarity Protection | With |
| Maximum Permissible Voltage | 30 V for analogue input circuit |
| Analogue Input Range | 0...10 V, 0...24 V |
| Conversion Time | Smart relay cycle time for analogue input circuit |
| Operating Distance | 10 m between stations, with screened cable (sensor not isolated) for analogue input circuit |
| Counting Frequency | 1 kHz for discrete input |
| Ambient Air Temperature For Operation | -20-40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 |
| Standards | EN/IEC 61000-4-11, EN/IEC 61000-4-5, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-12, EN/IEC 61000-4-2 level 3, EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-3, EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-6 level 3 |
| Environmental Characteristic | EMC directive conforming to EN/IEC 61000-6-2, EMC directive conforming to EN/IEC 61000-6-3, EMC directive conforming to EN/IEC 61000-6-4, EMC directive conforming to EN/IEC 61131-2 zone B, low voltage directive conforming to EN/IEC 61131-2 |
| Input Impedance | 12 kOhm for IB...IG used as analogue input circuit, 12 kOhm for IB...IG used as discrete input circuit, 7.4 kOhm for I1...IA and IH...IR discrete input circuit |
| Electrical Durability | AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1, AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to EN/IEC 60947-5-1, DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1, DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to EN/IEC 60947-5-1 |
| Weight | 0.35 kg |
