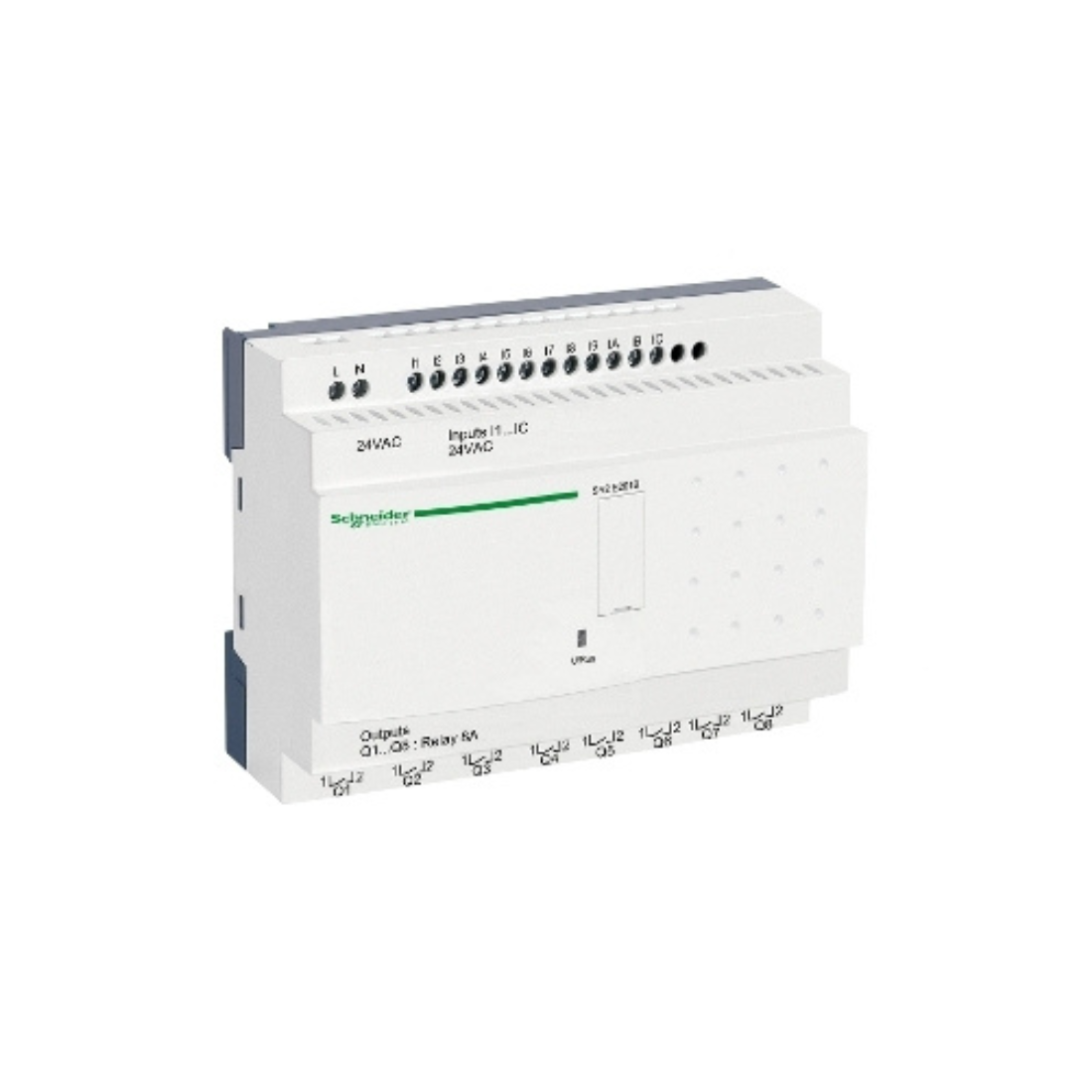

Schneider Electric Zelio Logic Compact Smart Relay 20 I/O 24V AC Clock No Display SR2E201B
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Compact Smart Relay
Description
Schneider Electric SR2E201B Zelio Logic Compact Smart Relay is part of Zelio Logic SR2/SR3, an offering of simple automation systems with 10 to 40 I/O. This compact smart relay from Zelio Logic features 20 I/Os, 0 to 240 with a ladder diagram, and 0 to 500 with FBD programming control lines. It is a module with a nominal supply voltage of 24 V AC and a cycle time of 6 ms to 90 ms.
Schneider Electric SR2E201B Zelio Logic Compact Smart Relay offers 12 discrete inputs with a voltage of 24 VAC and 4 relay outputs with a voltage range of 24 V to 250 VAC and 5 V to 30 VDC. It has protection classes IP20 and IP40. It weighs 0.35 kg. The main application area of ​​this module is industry and the construction/service sector. It is certified by C-Tick, GL, UL, CSA, and GOST. Complies with EN/IEC 60068-2-6 Fc and EN/IEC 61000-4-11 standards. Zelio Logic is easy to use and offers a real alternative solution based on hardwired logic or specific cards.
Features
- It is a module with a nominal supply voltage of 24 V AC and a cycle time of 6 ms to 90 ms.
- It has protection classes IP20 and IP40
- Offers 12 discrete inputs with a voltage of 24 VAC and 4 relay outputs with a voltage range of 24 V to 250 VAC and 5 V to 30 VDC.
| Brand | Schneider Electric |
| Item Name | Compact Smart Relay |
| Model | SR2E201B |
| Ambient Air Temperature For Storage | -40-70 °C |
| Connections - Terminals | Screw Terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid, screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end |
| IP Degree Of Protection | IP20 (terminal block) conforming to IEC 60529, IP40 (front panel) conforming to IEC 60529 |
| Mechanical Durability | 10000000 cycles for relay output |
| Tightening Torque | 0.5 N.m |
| Range Of Product | Zelio Logic |
| Supply Voltage Limits | 19.2-30 V |
| Supply Frequency | 50/60 Hz |
| Contacts Type And Composition | NO for relay output |
| Number Or Control Scheme Lines | 0-240 with ladder programming, 0-500 with FBD programming |
| Clock Drift | 12 min/year at 0-55 °C, 6 s/month at 25-25 °C |
| Immunity To Microbreaks | 10 ms repeated 20 times |
| Power Consumption in VA | 6 VA without extension |
| Discrete Input Current | 4.4 mA |
| Current State 1 Guaranteed | >= 2 mA (discrete input) |
| Voltage State 1 Guaranteed | >= 14 V for discrete input |
| Maximum Supply Current | 233 mA (without extension) |
| Switching Capacity in mA | >= 10 mA at 12 V (relay output) |
| Maximum Altitude Transport | 3048 m |
| Cycle Time | 6-90 ms |
| Checks | Program memory on each power up |
| Disturbance Radiated/conducted | Class B conforming to EN 55022-11 group 1 |
| Discrete Input Frequency | 47...53 Hz, 57...63 Hz |
| Output Thermal Current | 8 A for all 8 outputs for relay output |
| Discrete Input Voltage | 24 V AC |
| Backup Time | 10 years at 25 °C |
| Clock | With |
| Local Display | Without |
| Voltage State 0 Guaranteed | <= 5 V for discrete input |
| Current State 0 Guaranteed | <= 0.5 mA (discrete input) |
| Operating Rate in Hz | 0.1 Hz (at Ie) for relay output, 10 Hz (no load) for relay output |
| Isolation Voltage | 1780 V |
| Discrete Input Number | 12 |
| Analogue Input Number | 0 |
| Ambient Air Temperature For Operation | -20-40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 |
| Standards | EN/IEC 61000-4-12, EN/IEC 61000-4-11, EN/IEC 61000-4-6 level 3, EN/IEC 61000-4-3, EN/IEC 61000-4-5, EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-4 level 3, EN/IEC 60068-2-6 Fc |
| Environmental Characteristic | EMC directive conforming to EN/IEC 61000-6-2, EMC directive conforming to EN/IEC 61000-6-3, EMC directive conforming to EN/IEC 61000-6-4, EMC directive conforming to EN/IEC 61131-2 zone B, low voltage directive conforming to EN/IEC 61131-2 |
| Input Impedance | 4.6 kOhm for discrete input |
| Electrical Durability | AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1, AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to EN/IEC 60947-5-1, DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1, DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to EN/IEC 60947-5-1 |
| Weight | 0.35 kg |
