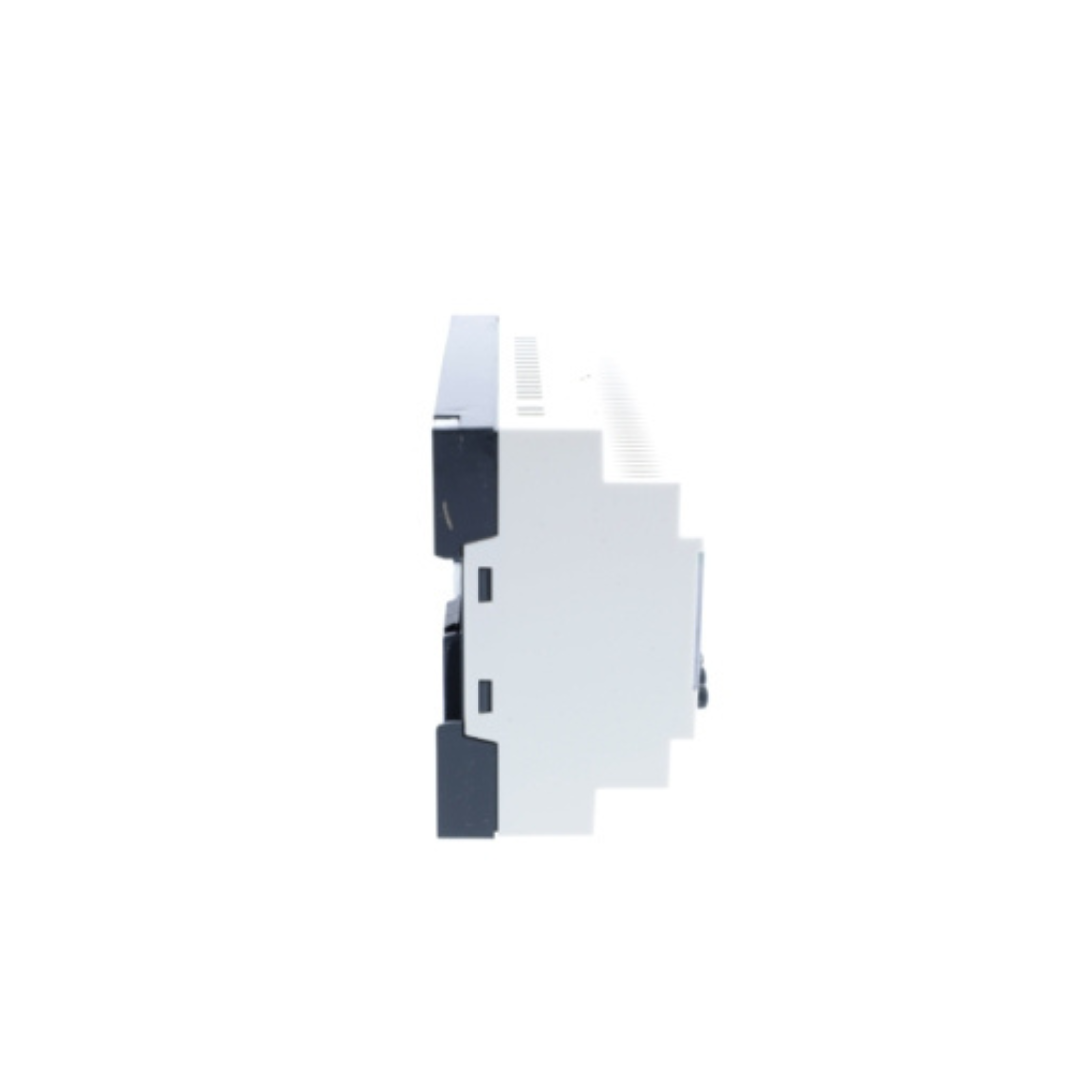

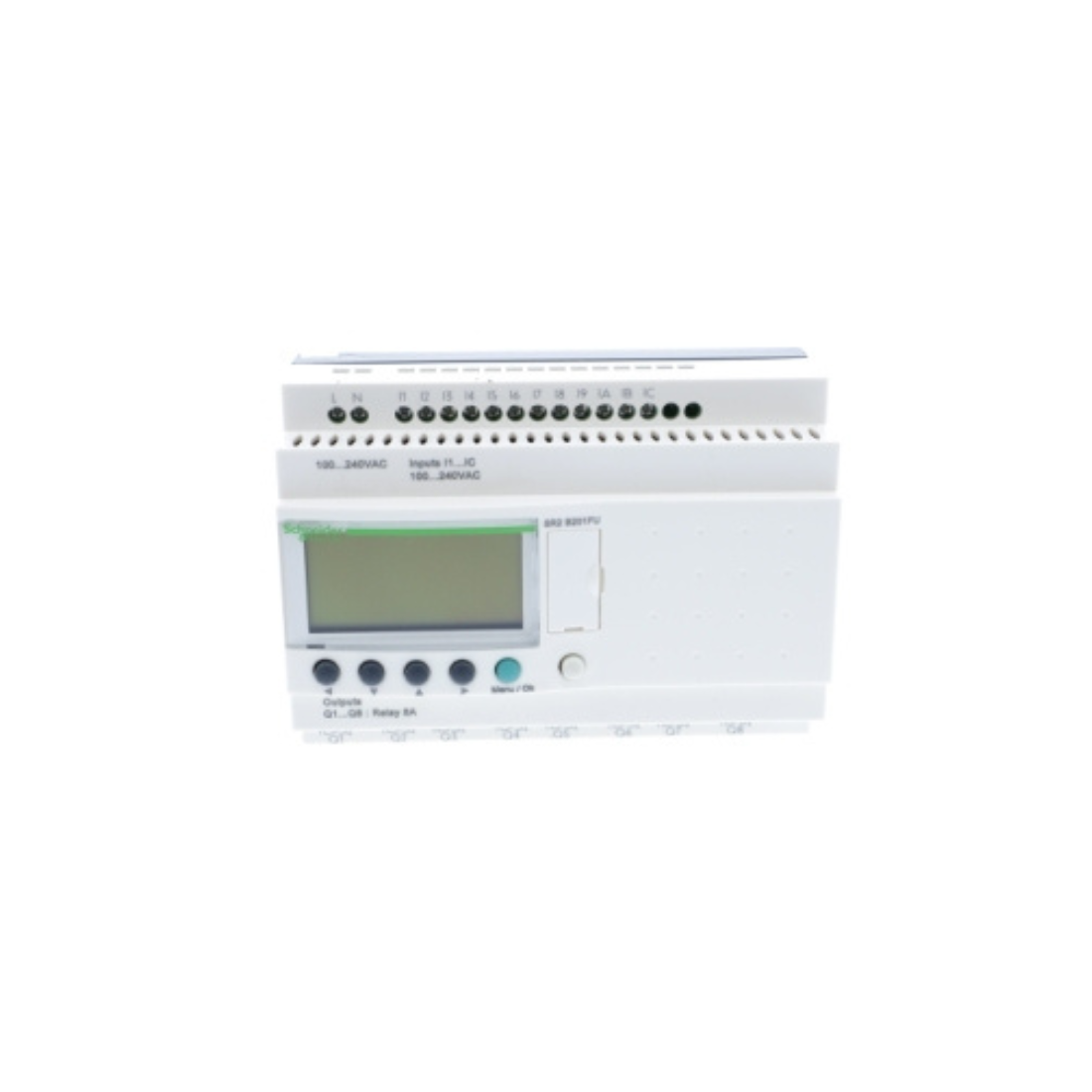

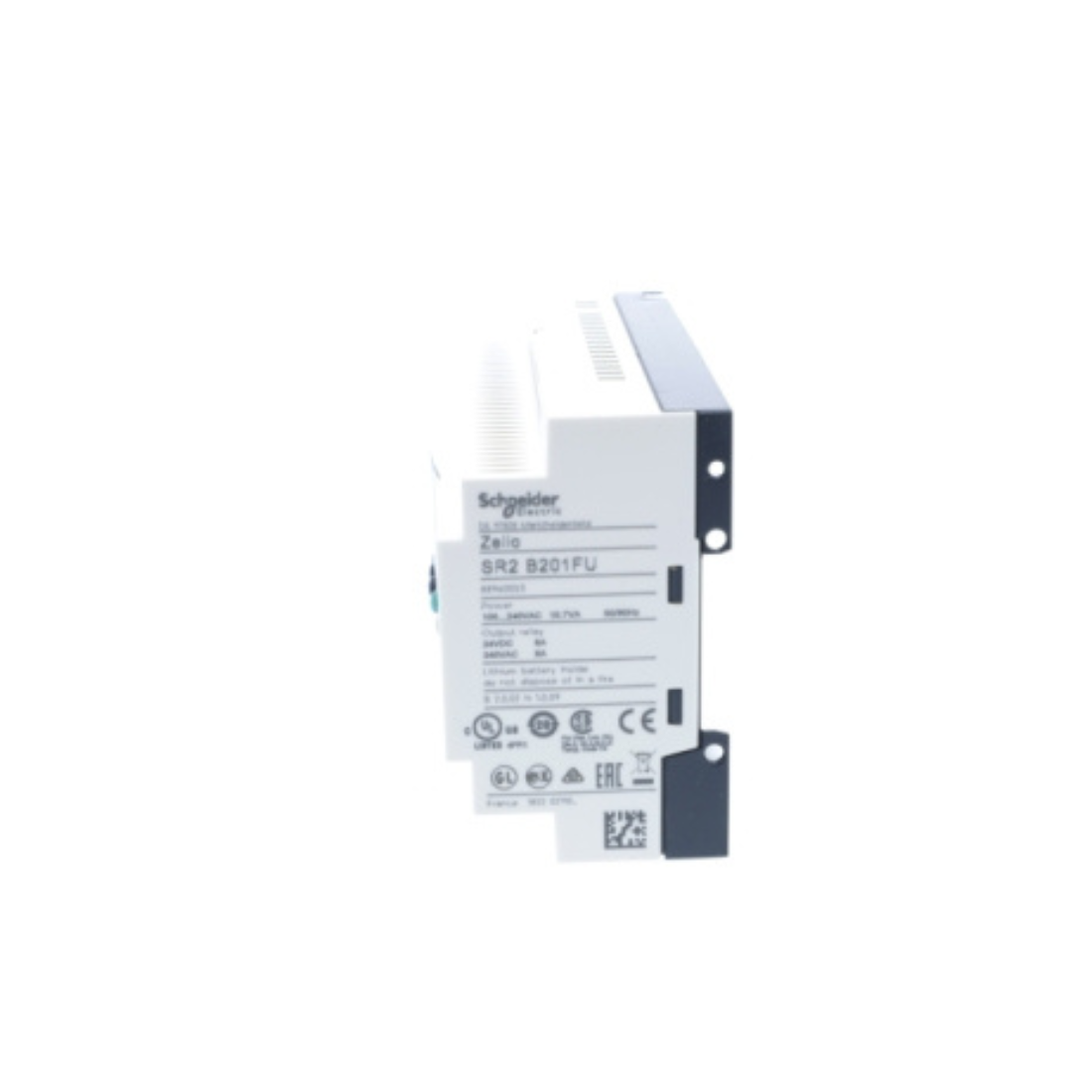

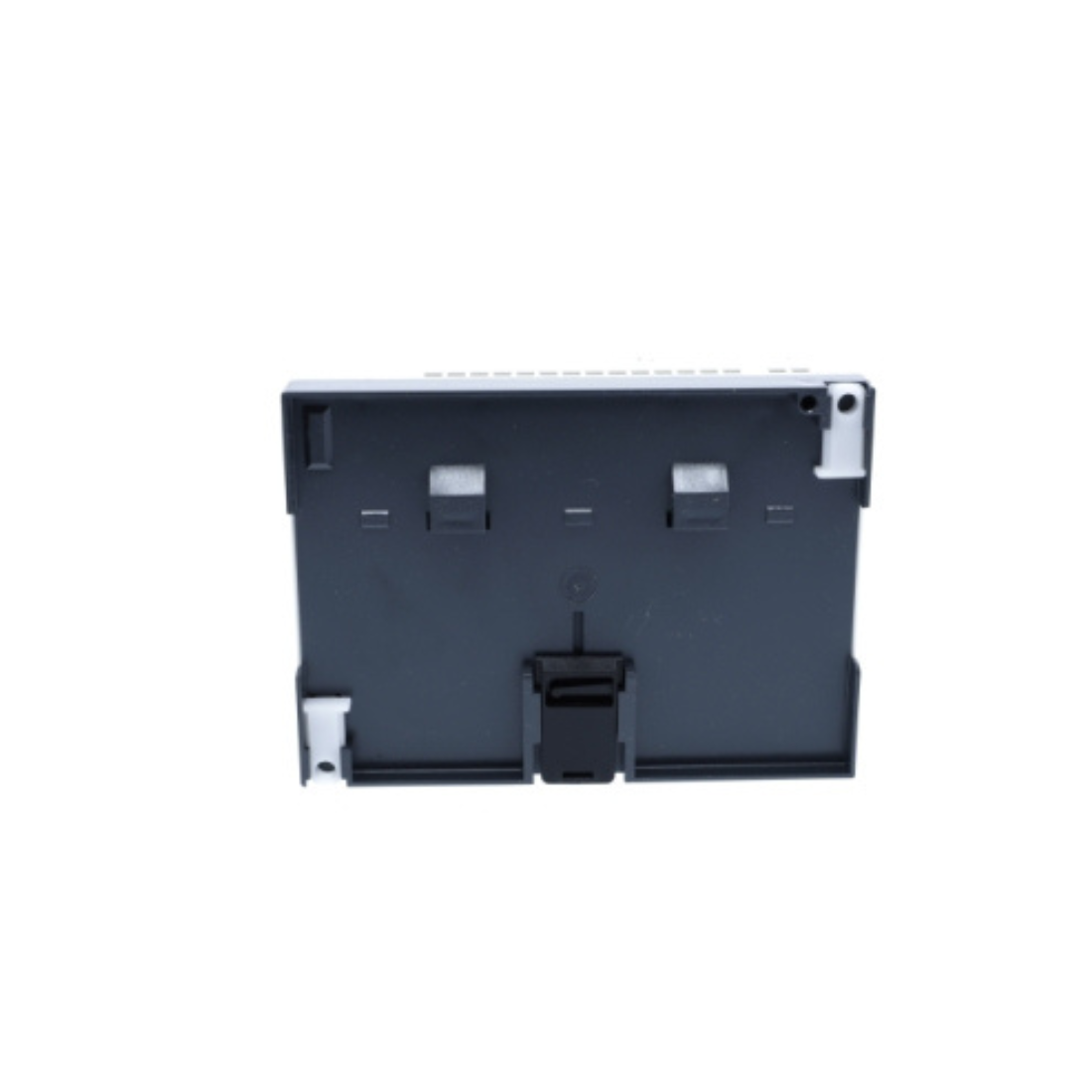

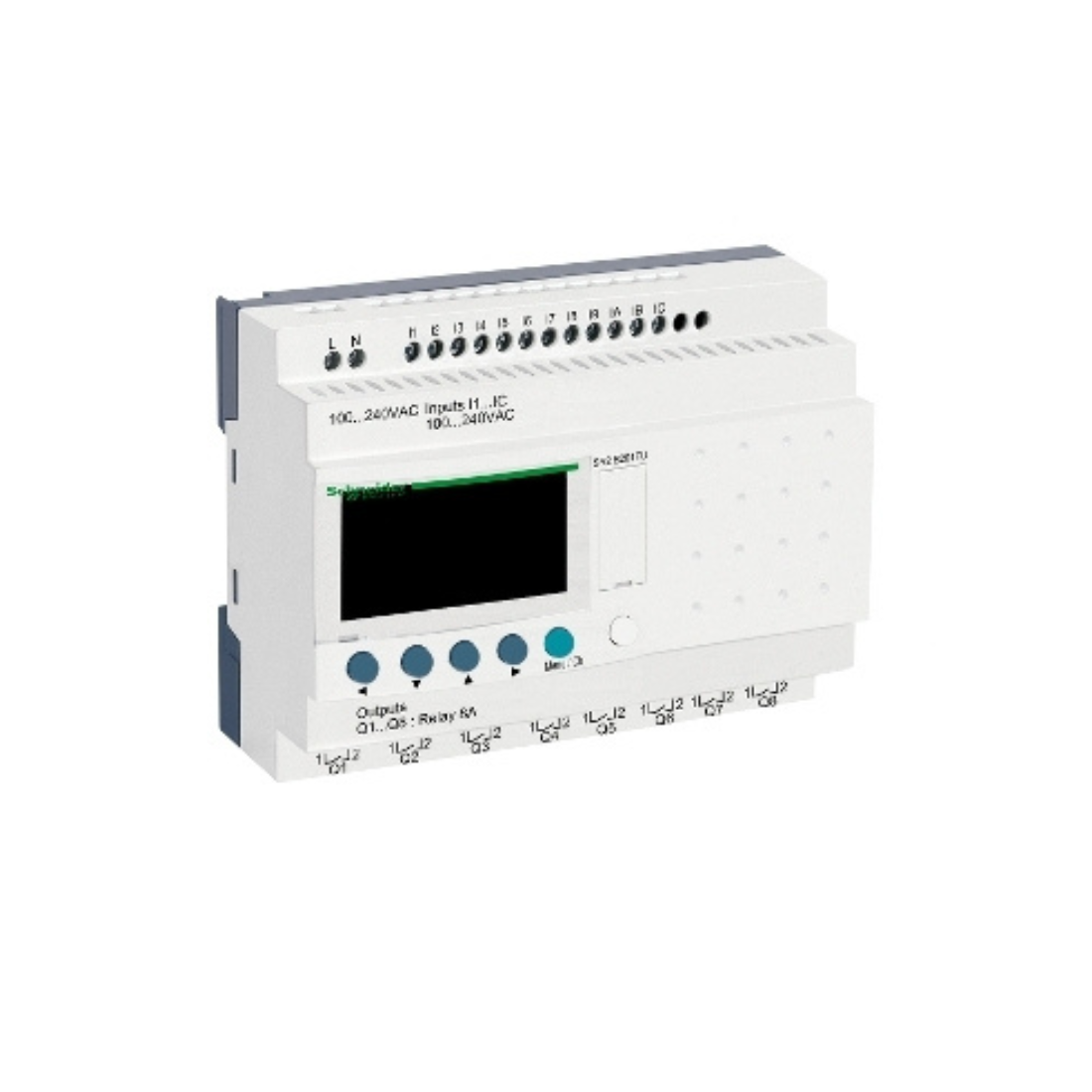

Schneider Electric Zelio Logic Compact Smart Relay 20 I/O 100-240V AC Clock Display SR2B201FU
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Compact Smart Relay
Description
Schneider Electric SR2B201FU Compact Smart Relay is part of the Zelio Logic range, a range of smart relays for simple automation systems with 10 to 40 I/O. The compact smart relay offers a real alternative to solutions based on hardwired logic or specific cards. It comes with a screen and a clock. Checks program memory at each power-up and from 0 to 240 with ladder programming number or control scheme lines.
Zelio Logic is easy to use and represents a real alternative to solutions based on hardwired logic or special cards. It offers 8 normally open contact relay outputs and 12 discrete inputs. It has a nominal supply voltage of 100V to 240V AC, a maximum supply current of 50mA at 240V (without expansion), 100mA at 100V (without expansion), and a power consumption of 11VA without expansion. It has a protection classes IP20 and IP40. It weighs 0.38 kg.
Schneider Electric SR2B201FU Zelio Logic Compact Smart Relay complies with EN/IEC 61000-4-6 Level 3, EN/IEC 61000-4-11, EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-5, EN/IEC 60068-2- 6 Fc, standards EN/IEC 61000-4-12, EN/IEC 61000-4-2 Level 3, EN/IEC 61000-4-3 and EN/IEC 61000-4-4 Level 3. Easy to select, install, and program, Zelio Logic is suitable for all your applications. It offers you the flexibility to choose between 2 series, compact or modular, expandable, and 2 programming languages ​​(FBD or LADDER).Â
Features
- It comes with a screen and a clock.
- Easy to use and offers a real alternative to solutions based on hardwired logic or specific cards.
- It offers 8 normally open contact relay outputs and 12 discrete inputs.Â
| Brand | Schneider Electric |
| Item Name | Compact Smart Relay |
| Model | SR2B201FU |
| Ambient Air Temperature For Storage | -40-70 °C |
| Connections - Terminals | Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid, screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end |
| IP Degree Of Protection | IP20 (terminal block) conforming to IEC 60529, IP40 (front panel) conforming to IEC 60529 |
| Mechanical Durability | 10000000 cycles for relay output |
| Supply Voltage Limits | 85-264 V |
| Tightening Torque | 0.5 N.m |
| Contacts Type And Composition | NO for relay output |
| Supply Frequency | 50/60 Hz |
| Number Or Control Scheme Lines | 0-240 with ladder programming, 0-500 with FBD programming |
| Clock Drift | 12 min/year at 0-55 °C, 6 s/month at 25-25 °C |
| Immunity To Microbreaks | 1 ms |
| Power consumption in VA | 11 VA without extension |
| Discrete Input Current | 0.6 mA |
| Current State 1 Guaranteed | >= 0.17 mA (discrete input) |
| Voltage State 1 Guaranteed | >= 79 V for discrete input |
| Maximum Supply Current | 100 mA at 100 V (without extension), 50 mA at 240 V (without extension) |
| Switching Capacity in mA | >= 10 mA at 12 V (relay output) |
| Maximum Altitude Transport | 3048 m |
| Cycle Time | 6-90 ms |
| Checks | Program memory on each power up |
| Disturbance Radiated/conducted | Class B conforming to EN 55022-11 group 1 |
| Discrete Input Frequency | 57...63 Hz, 47...53 Hz |
| Output Thermal Current | 8 A for all 8 outputs for relay output |
| Discrete Input Voltage | 100...240 V AC |
| Backup Time | 10 years at 25 °C |
| Clock | With |
| Local Display | With |
| Voltage State 0 Guaranteed | <= 40 V for discrete input |
| Current State 0 Guaranteed | <= 0.5 mA (discrete input) |
| Isolation Voltage | 1780 V |
| Operating Rate in Hz | 0.1 Hz (at Ie) for relay output, 10 Hz (no load) for relay output |
| Discrete Input Number | 12 |
| Analogue Input Number | 0 |
| Ambient Air Temperature For Operation | -20-40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 |
| Standards | EN/IEC 61000-4-6 level 3, EN/IEC 61000-4-11, EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-5, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-12, EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-3, EN/IEC 61000-4-4 level 3 |
| Environmental Characteristic | EMC directive conforming to EN/IEC 61000-6-2, EMC directive conforming to EN/IEC 61000-6-3, EMC directive conforming to EN/IEC 61000-6-4, EMC directive conforming to EN/IEC 61131-2 zone B, low voltage directive conforming to EN/IEC 61131-2 |
| Input Impedance | 350 kOhm for discrete input |
| Electrical Durability | AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1, AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to EN/IEC 60947-5-1, DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1, DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to EN/IEC 60947-5-1 |
| Weight | 0.38kg |
