Schneider Electric Zelio Logic Compact Smart Relay 12 I/O 100-240V AC Clock Display SR2B121FU
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Compact Smart Relay
Description

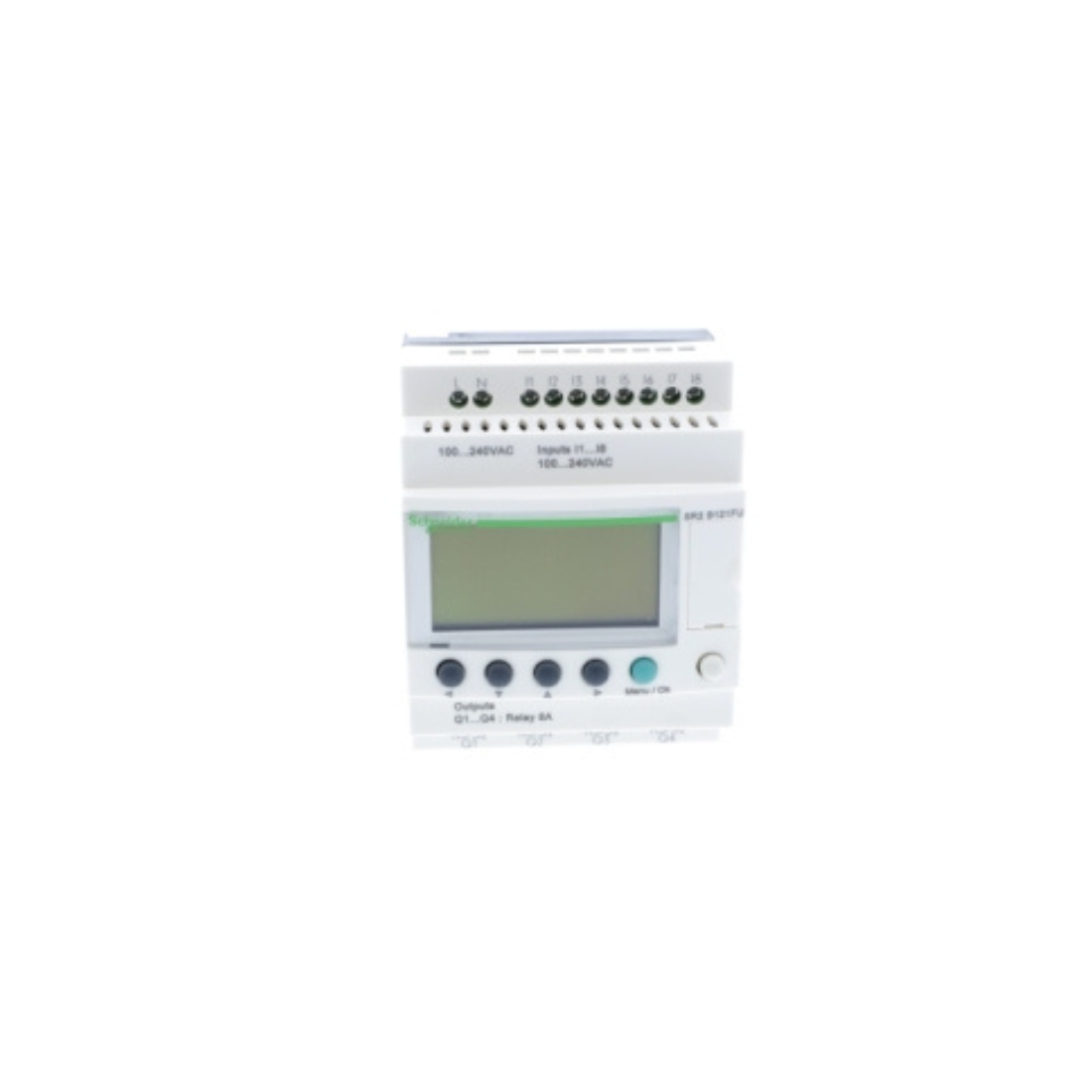

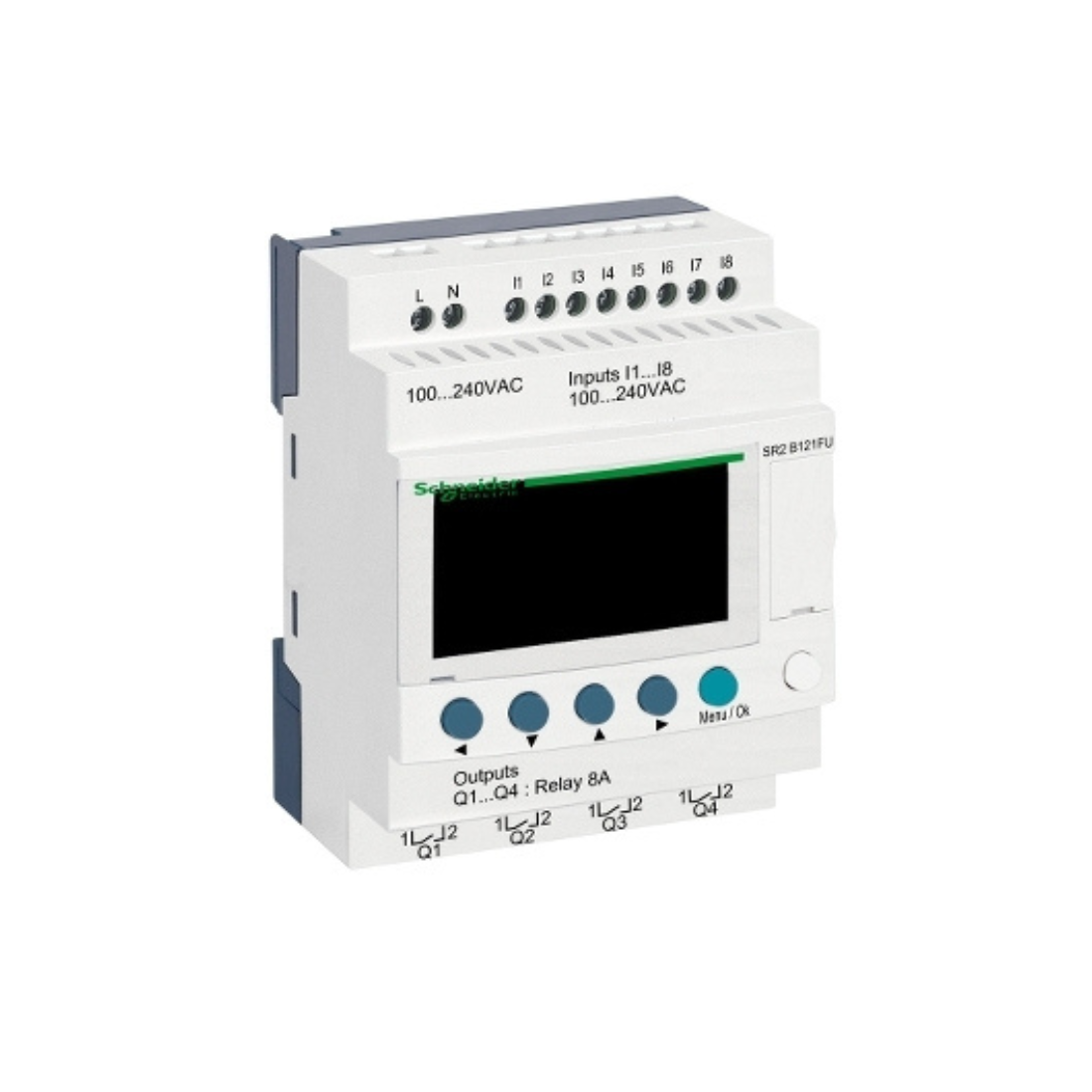

Schneider Electric SR2B121FU Zelio Logic Compact Smart Relay uses a supply voltage of 100V to 240VAC. It has 12 inputs/outputs with screw terminals, and has an integrated clock and LCD display. The compact design allows installation on a DIN rail. It also offers easy programming, viewing and troubleshooting, display, and navigation buttons. The simple ladder programming makes it also suitable for non-professionals.
Features
- It has 12 inputs/outputs with screw terminals and has an integrated clock and LCD display.
- Offers easy programming, viewing and troubleshooting, display, and navigation buttons.
- Uses a supply voltage of 100V to 240VAC.
| Brand | Schneider Electric |
| Item Name | Compact Smart Relay |
| Model | SR2B121FU |
| Ambient Air Temperature For Storage | -40-70 °C |
| Connections - Terminals | Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid, screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end |
| IP Degree Of Protection | IP20 (terminal block) conforming to IEC 60529, IP40 (front panel) conforming to IEC 60529 |
| Mechanical Durability | 10000000 cycles for relay output |
| Tightening Torque | 0.5 N.m |
| Range Of Product | Zelio Logic |
| Supply Voltage Limits | 85-264 V |
| Contacts Type And Composition | NO for relay output |
| Supply Frequency | 50/60 Hz |
| Number Or Control Scheme Lines | 0-240 with ladder programming, 0-500 with FBD programming |
| Clock Drift | 12 min/year at 0-55 °C, 6 s/month at 25-25 °C |
| Immunity To Microbreaks | 10 ms repeated 20 times |
| Discrete Input Current | 0.6 mA |
| Power Consumption in VA | 7 VA without extension |
| Current State 1 Guaranteed | >= 0.17 mA (discrete input) |
| Voltage State 1 Guaranteed | >= 79 V for discrete input |
| Maximum Supply Current | 30 mA at 240 V (without extension), 80 mA at 100 V (without extension) |
| Switching Capacity in mA | >= 10 mA at 12 V (relay output) |
| Maximum Altitude Transport | 3048 m |
| Cycle Time | 6-90 ms |
| Checks | Program memory on each power-up |
| Disturbance Radiated/conducted | Class B conforming to EN 55022-11 group 1 |
| Discrete Input Frequency | 47...53 Hz, 57...63 Hz |
| Output Thermal Current | 8 A for all 4 outputs for relay output |
| Discrete Input Voltage | 100...240 V AC |
| Backup Time | 10 years at 25 °C |
| Clock | With |
| Local Display | With |
| Voltage State 0 Guaranteed | <= 40 V for discrete input |
| Current State 0 Guaranteed | <= 0.5 mA (discrete input) |
| Operating Rate in Hz | 0.1 Hz (at Ie) for relay output, 10 Hz (no load) for relay output |
| Isolation Voltage | 1780 V |
| Discrete Input Number | 8 |
| Analogue Input Number | 0 |
| Ambient Air Temperature For Operation | -20-40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 |
| Standards | EN/IEC 61000-4-4 level 3, EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-5, EN/IEC 61000-4-11, EN/IEC 61000-4-12, EN/IEC 61000-4-3, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-6 level 3 |
| Environmental Characteristic | EMC directive conforming to EN/IEC 61000-6-2, EMC directive conforming to EN/IEC 61000-6-3, EMC directive conforming to EN/IEC 61000-6-4, EMC directive conforming to EN/IEC 61131-2 zone B, low voltage directive conforming to EN/IEC 61131-2 |
| Input Impedance | 350 kOhm for discrete input |
| Electrical Durability | AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1, AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to EN/IEC 60947-5-1, DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1, DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to EN/IEC 60947-5-1 |
| Weight | 0.25 kg |
