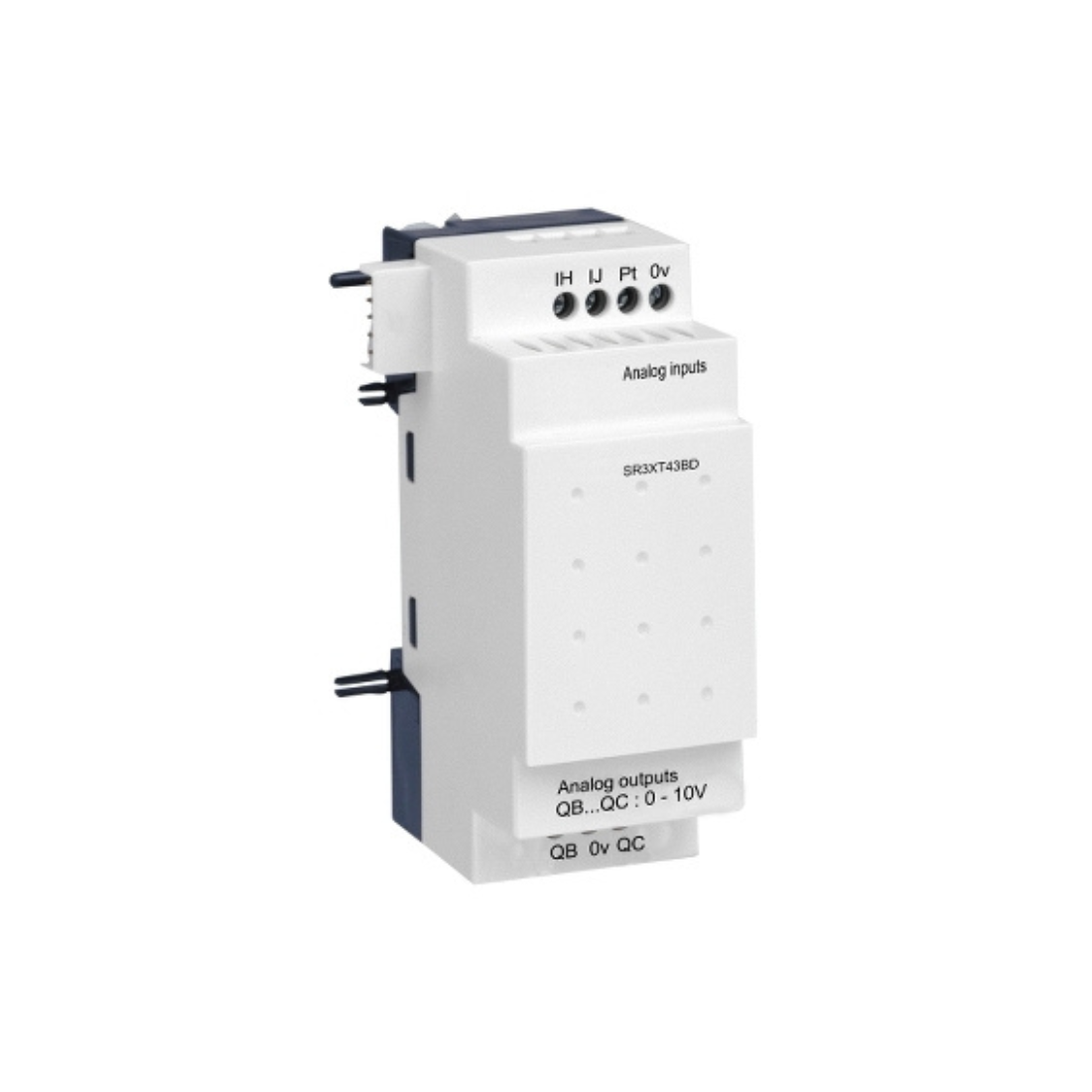

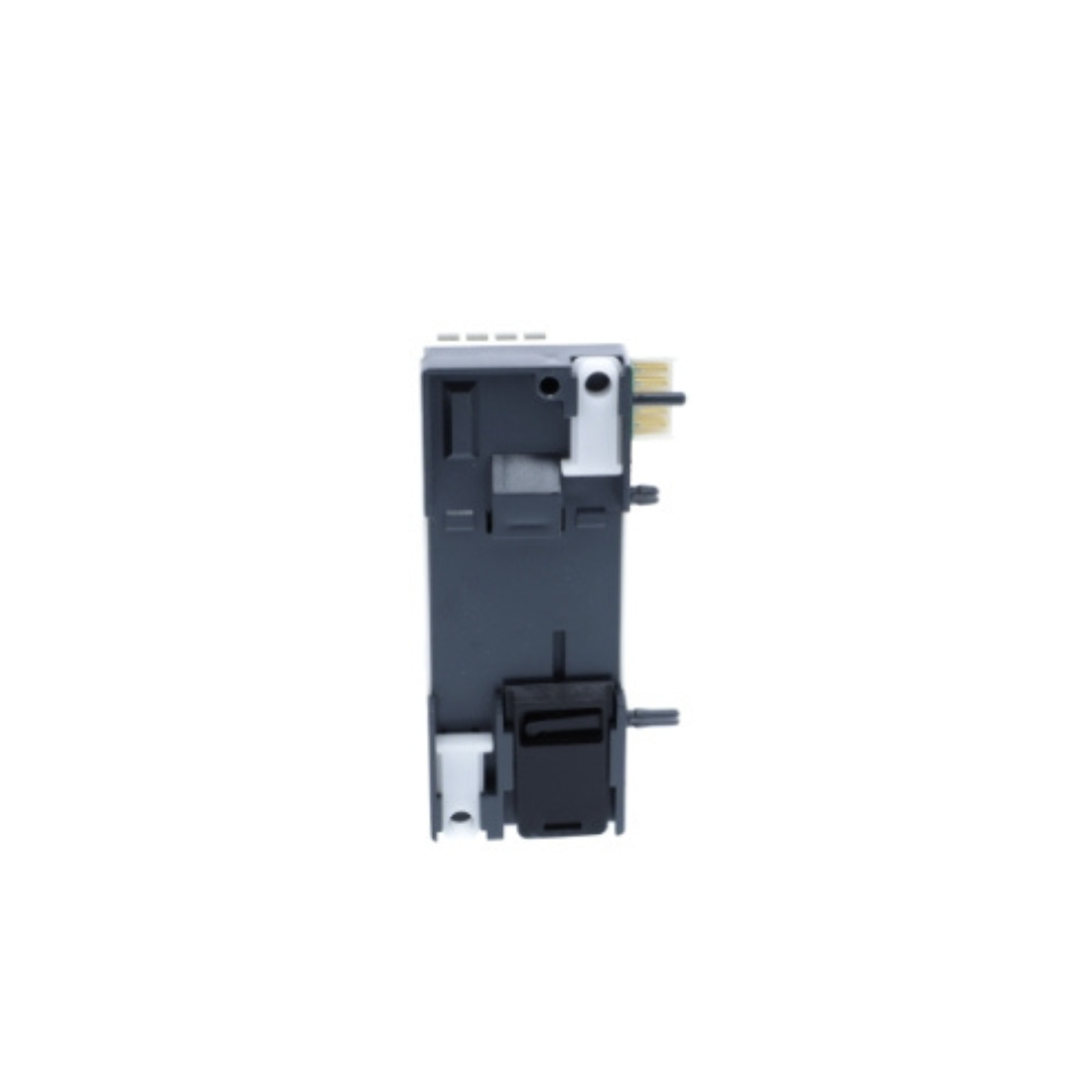

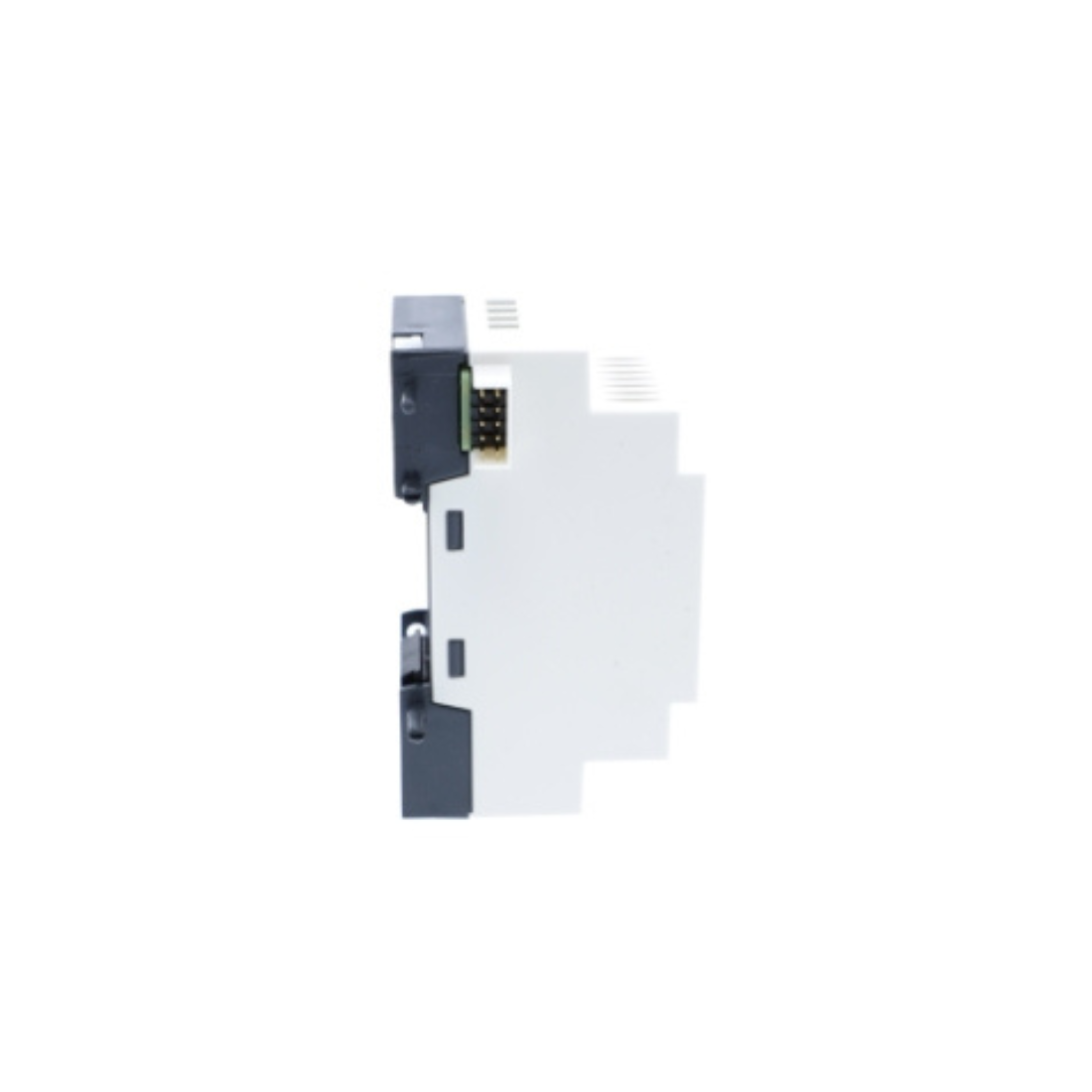

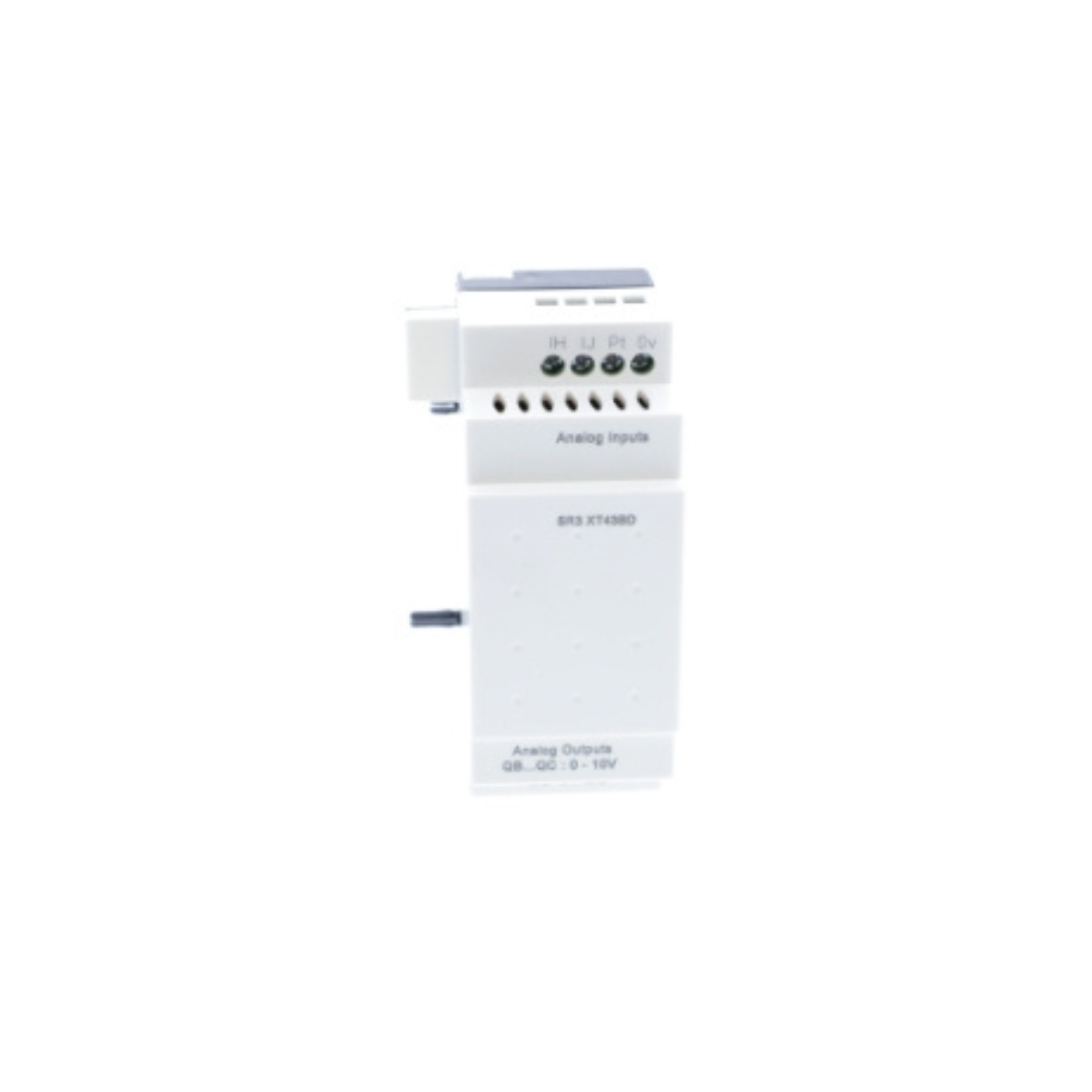

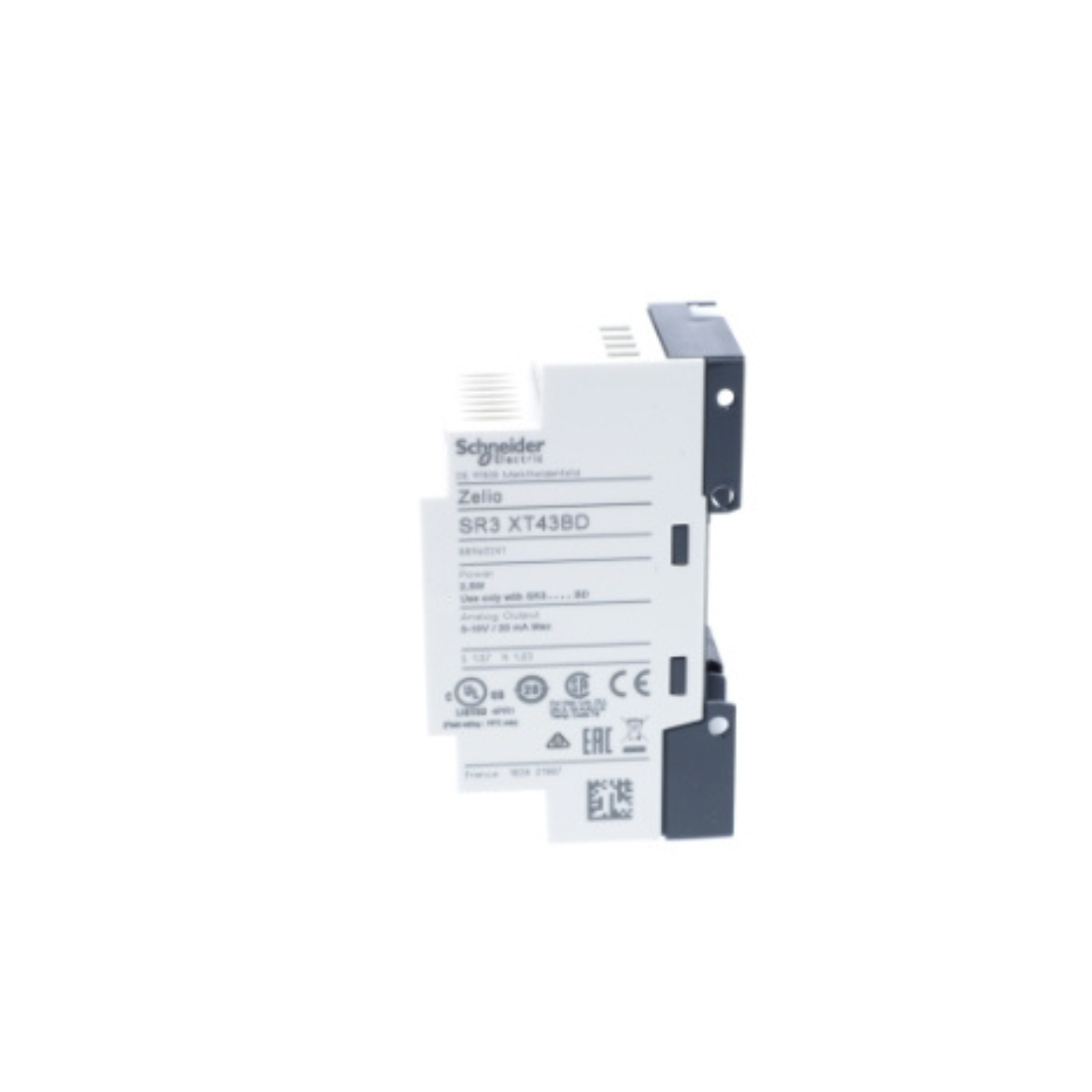

Schneider Electric Zelio Logic Analogue I/O Extension Module 4 I/O 24V DC for Zelio Logic SR3XT43BD
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Discrete I/O Extension Module
Description
Schneider Electric SR3XT43BD Analogue I/O Extension Module is part of the Zelio Logic range, a range of smart relays for simple automation systems with 10 to 40 I/O. The analog I/O expansion module provides 2 inputs/outputs. It is an expansion module with an analog output range of 0 to 10 V and a maximum load current of 10 mA for the analog output. It offers 10 bits in the input range and 10 bits in the output range. The temperature sensor is a 3-wire Pt 100 according to IEC 751.
Schneider Electric SR3XT43BD Analogue I/O Extension Module has a screw terminal for electrical connections. It has protection classes IP20 and IP40. It complies with EN/IEC 61000-4-12, EN/IEC 61000-4-5, EN/IEC 61000-4-3, EN/IEC 61000-4-4 Level 3, EN/IEC 61000-4-6 Standards Level 3, EN/IEC 61000-4-2 Level 3, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-11 and EN/IEC 60068-2-27 Ea.
Easy to select, install, and program, Zelio Logic is suitable for all applications. It offers the flexibility to choose between 2 series, compact or modular, expandable, and 2 programming languages ​​(FBD or LADDER). Zelio Logic is easy to use and offers a real alternative to solutions based on hardwired logic or specific cards.
Features
- Provides 2 inputs/outputs
- It is an expansion module with an analog output range of 0 to 10 V and a maximum load current of 10 mA for the analog output.
- It has a screw terminal for electrical connections
- IP20 and IP40 Protection class.
| Brand | Schneider Electric |
| Item Name | Analogue I/O Extension Module |
| Model | SR3XT43BD |
| Connections - Terminals | Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) semi-solid, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) solid, screw terminals, 2 x 0.25...2 x 1.5 mm² (AWG 23...AWG 16) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end |
| IP Degree Of Protection | IP20 (terminal block) conforming to IEC 60529, IP40 (front panel) conforming to IEC 60529 |
| Operating Altitude | 2000 m |
| Pollution Degree | 2 conforming to EN/IEC 61131-2 |
| Certifications | GOST, UL, C-Tick, CSA |
| Range Of Product | Zelio Logic |
| Relative Humidity | 95-95 % without condensation or dripping water |
| Supply Voltage Limits | 19.2-30 V |
| Short-circuit Protection | With analogue output |
| Tightening Torque | 0.5 N.m |
| Maximum Altitude Transport | 3048 m |
| Disturbance Radiated/Conducted | Class B conforming to EN 55022-11 group 1 |
| Temperature Probe Type | Pt 100, 3-wire conforming to IEC 751 |
| Analogue Input Resolution | 10 bits on the input range |
| Analogue Input Number | 2 |
| Analogue Input Type | Common mode |
| Repeat Accuracy | < +/- 0.3 °C, input range: - 25...125 °C at 25 °C for analogue input circuit, <= +/- 1 %, input range: 0...10 V at 25 °C for analogue input circuit, <= +/- 1 %, input range: 0...10 V at 55 °C for analogue output, <= +/- 1 %, input range: 0...20 mA at 25 °C for analogue input circuit |
| Conversion Error | +/- 1 % of the full scale value, input range: 0...10 V (25 °C) for analogue output, +/- 1 % of the full scale value, input range: 0...10 V (55 °C) for analogue output, +/- 1 %, input range: 0...10 V (25 °C) for analogue input circuit, +/- 1 %, input range: 0...10 V (55 °C) for analogue input circuit, +/- 1 %, input range: 0...20 mA (25 °C) for analogue input circuit, +/- 1 %, input range: 0...20 mA (55 °C) for analogue input circuit, +/- 1.5 °C, input range: - 25...125 °C (25 °C) for analogue input circuit, +/- 1.5 °C, input range: - 25...125 °C (55 °C) for analogue input circuit |
| LSB Value | 0.15 °C, - 25...125 °C for analogue input circuit, 20 µA, 0...20 mA for analogue input circuit, 9.8 mV, 0...10 V for analogue input circuit, 9.8 mV, 0...10 V for analogue output |
| Reverse Polarity Protection | Analogue input circuit: With |
| Maximum Permissible Voltage | 30 V for analogue input circuit |
| Analogue Input Range | 0...10 V, 0...20 mA, -25...125 °C |
| Conversion Time | Smart relay cycle time for analogue input circuit, smart relay cycle time for analogue output |
| Operating Distance | 10 m with screened cable for analogue input circuit, 10 m with screened cable for analogue output |
| Analogue Output Number | 2 |
| Analogue Output Resolution | 10 bits on the output range |
| Maximum Load Current | 10 mA for analogue output |
| Analogue Output Range | 0...10 V |
| Maximum Permanent Current | 30 mA for analogue input circuit |
| Ambient Air Temperature For Operation | -20-40 °C conforming to IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 |
| Standards | EN/IEC 61000-4-12, EN/IEC 61000-4-5, EN/IEC 61000-4-3, EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-6 level 3, EN/IEC 61000-4-2 level 3, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-11, EN/IEC 60068-2-27 Ea |
| Environmental Characteristic | EMC directive conforming to EN/IEC 61000-6-2, EMC directive conforming to EN/IEC 61000-6-3, EMC directive conforming to EN/IEC 61000-6-4, EMC directive conforming to EN/IEC 61131-2 zone B, low voltage directive conforming to EN/IEC 61131-2 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Input Impedance | 18 kOhm, input range: 0...10 V for analogue input circuit, 247 Ohm, input range: 0...20 mA for analogue input circuit |
| Load Type | Resistive load for analogue output |
| Weight | 0.11 kg |
