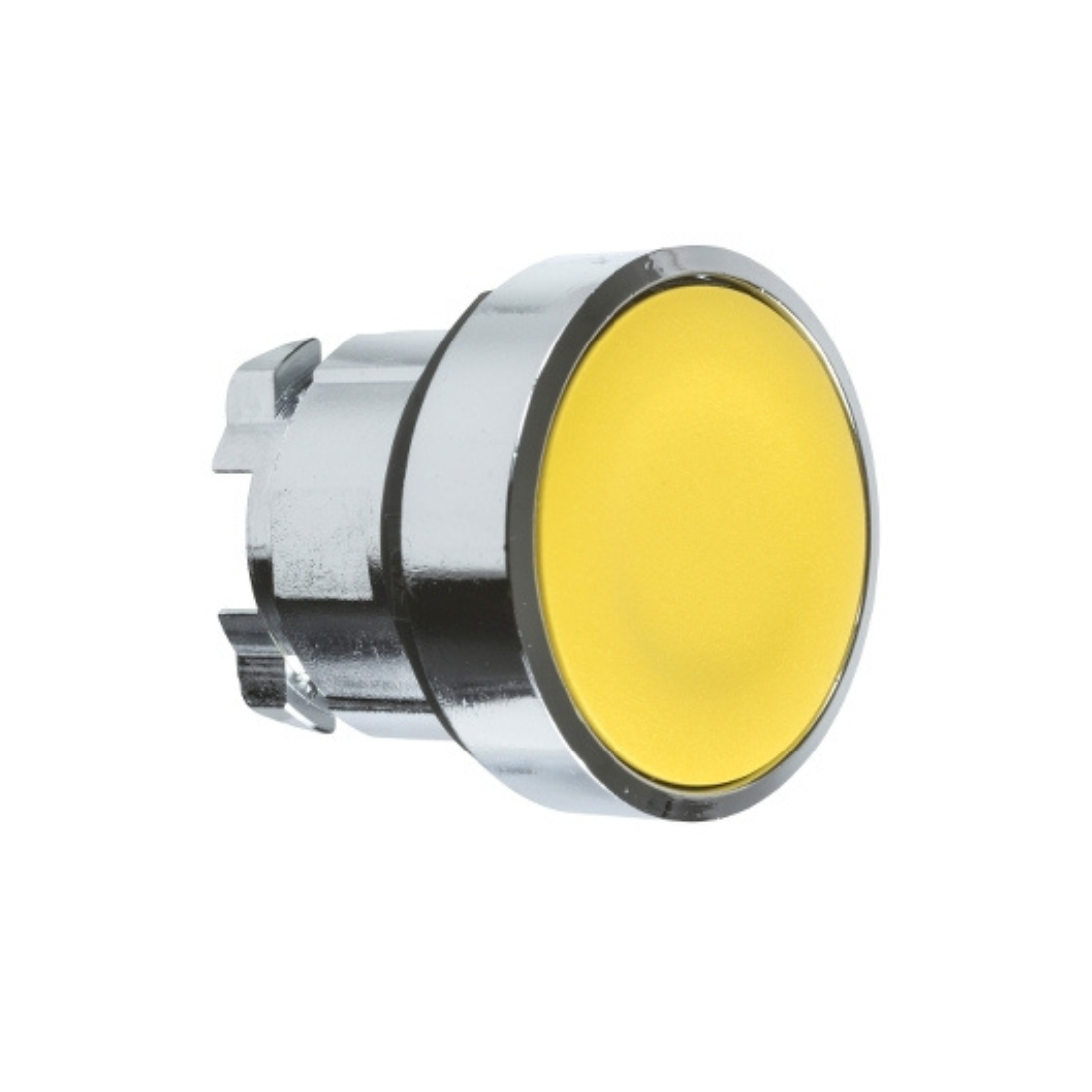

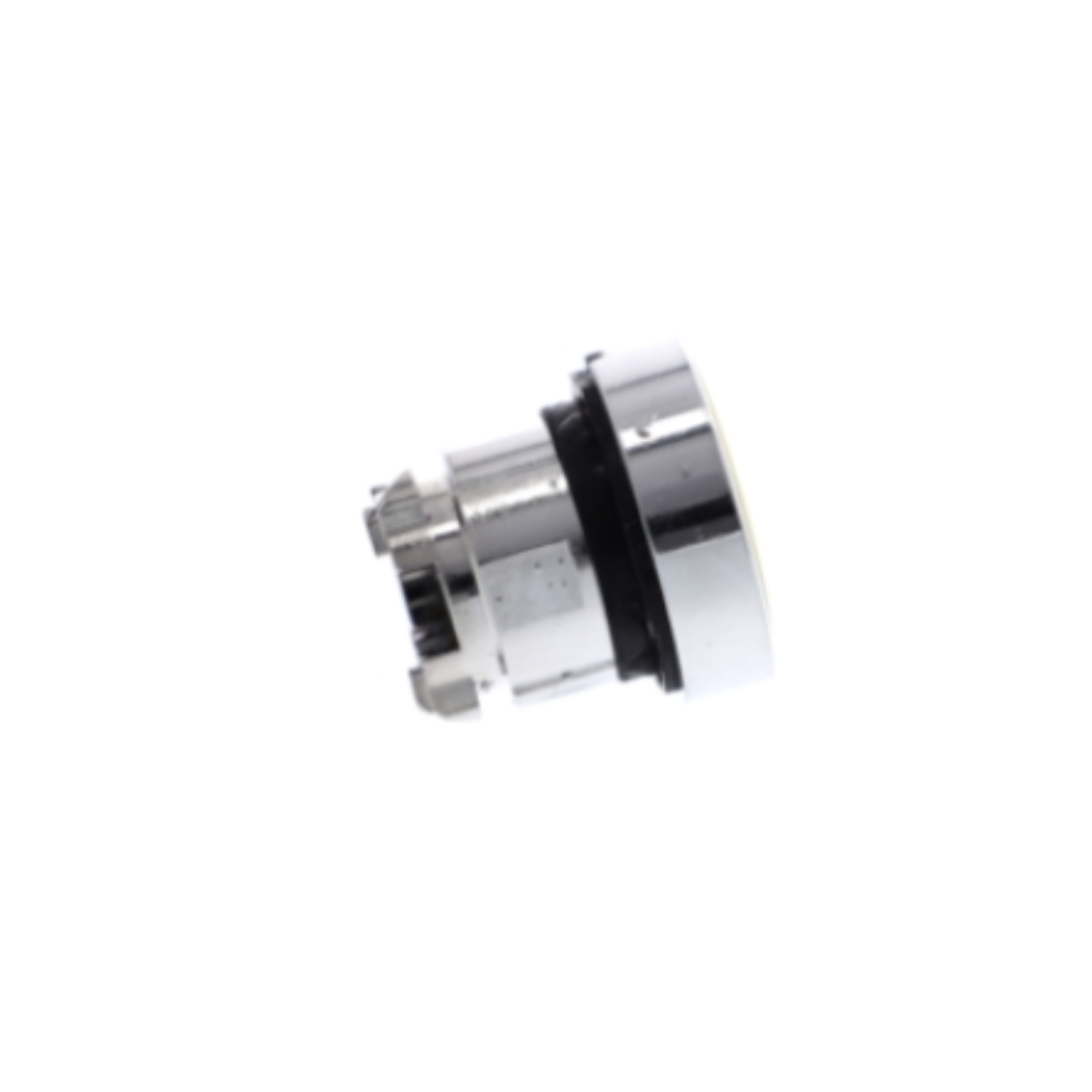

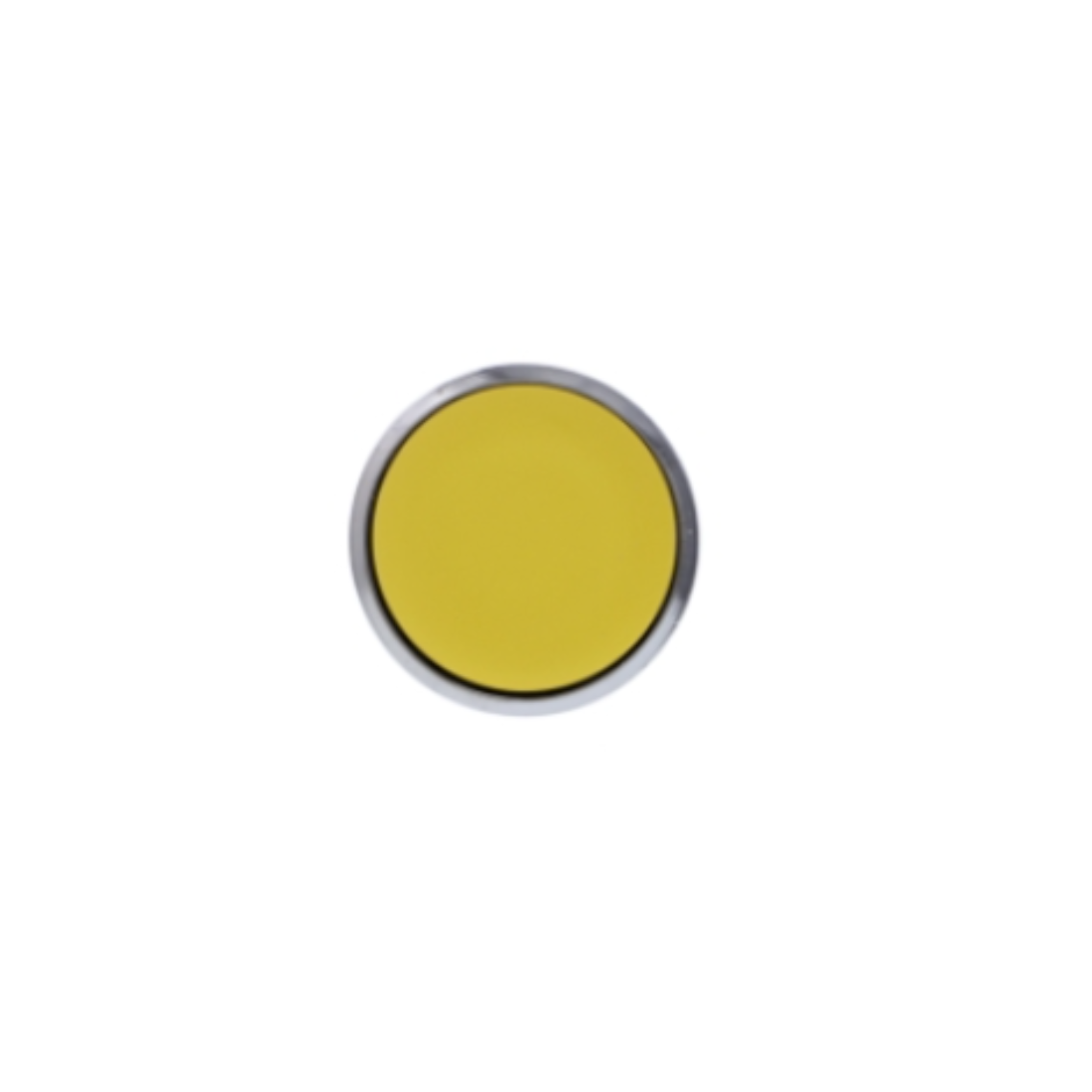

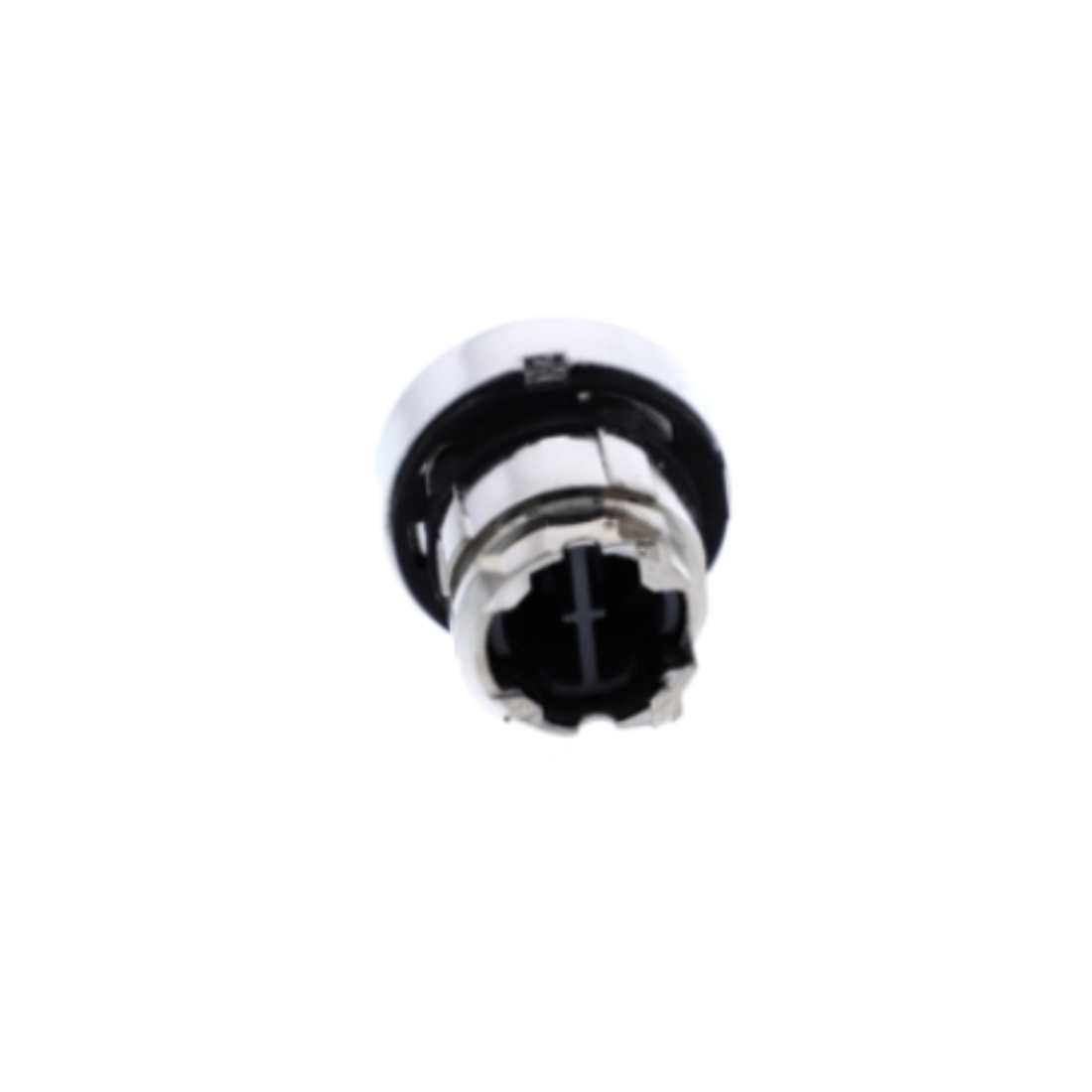

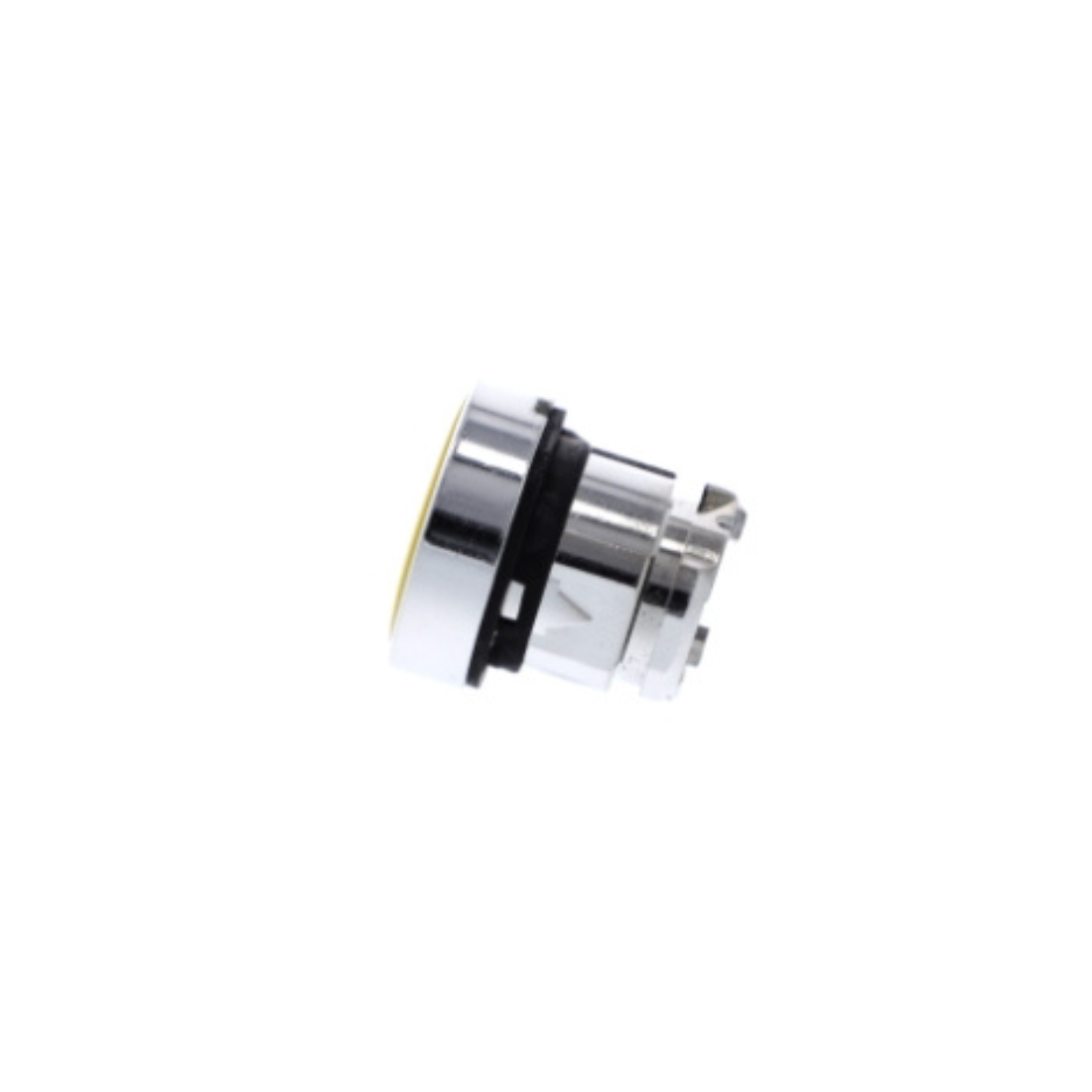

Schneider Electric Yellow Flush Illuminated Pushbutton Head Ø22 Spring Return Unmarked ZB4BA5
Schneider Electric Yellow Flush Illuminated Pushbutton Head Ø22 Spring Return Unmarked ZB4BA5
Schneider Electric Yellow Flush Illuminated Pushbutton Head Ø22 Spring Return Unmarked ZB4BA5
Schneider Electric Yellow Flush Illuminated Pushbutton Head Ø22 Spring Return Unmarked ZB4BA5
Schneider Electric Yellow Flush Illuminated Pushbutton Head Ø22 Spring Return Unmarked ZB4BA5
Schneider Electric Yellow Flush Illuminated Pushbutton Head Ø22 Spring Return Unmarked ZB4BA5
Schneider Electric Yellow Flush Illuminated Pushbutton Head Ø22 Spring Return Unmarked ZB4BA5
Schneider Electric Yellow Flush Illuminated Pushbutton Head Ø22 Spring Return Unmarked ZB4BA5
Schneider Electric Yellow Flush Illuminated Pushbutton Head Ø22 Spring Return Unmarked ZB4BA5
Schneider Electric Yellow Flush Illuminated Pushbutton Head Ø22 Spring Return Unmarked ZB4BA5
Schneider Electric Yellow Flush Illuminated Pushbutton Head Ø22 Spring Return Unmarked ZB4BA5

Schneider Electric Yellow Flush Illuminated Pushbutton Head Ø22 Spring Return Unmarked ZB4BA5

Regular price AED 22.05
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Illuminated Pushbutton Head
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric ZB4BA5 Yellow Flush Illuminated Pushbutton Head features a spring return mechanism. This button head provides an ergonomic interface to control the machines. Installation and replacement on compatible pushbutton units and complete contact blocks is simply snap-on. Thanks to IP66 / IP67 / IP69 / IP69K, it is shock, dust, water and vibration proof.

    Schneider Electric ZB4BA5 Yellow Flush Illuminated Pushbutton Head has a metal bezel that makes it ideal for applications that require high resistance to shocks and vibrations. It is designed to fit a standard 22mm cutout, ensuring compatibility when installed on existing machines. Its wide operating temperature range of -40°C to 70°C allows the product to be used in a variety of ways.

    Features
    • Spring return mechanism
    • Provides an ergonomic interface to control the machines.
    • Shock, dust, water and vibration proof
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Head For Illuminated Push-Button

    Model : ZB4BA5

    Bezel Material : Chromium plated metal

    CAD Overall Depth : 28 mm

    CAD Overall Height : 29 mm

    CAD Overall Width : 29 mm

    Cap/Operator Or Lens Colour : Yellow

    Compatibility Code : ZB4

    IK Degree Of Protection : IK06 conforming to IEC 50102

    IP Degree Of Protection : IP66 conforming to IEC 60529, IP67, IP69, IP69K

    Marking : Unmarked

    Mechanical Durability : 10000000 cycles

    Mounting Diameter : 22 mm

    Operator Profile : Yellow flush, unmarked

    Overvoltage Category : Class I conforming to IEC 60536

    Protective Treatment : TH

    Certifications : LROS (Lloyds register of shipping), CSA, DNV, UL listed, GL, BV

    Range Of Product : Harmony XB4

    Sale Per Indivisible Quantity : 1

    Shape of Signaling Unit Head : Round

    Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

    Type of Operator : Spring Return

    NEMA Degree Of Protection : NEMA 13, NEMA 4X

    Group Of Product : Flush push non illuminated

    Operator Additional Information : With plain lens

    Customizable : 1

    Head Type : Standard

    GCR BRIDGE : ZB4BACUST01

    Main Group : Illum Push-button

    Electrical Composition Code : C1 for <9 contacts using single blocks in front mounting, C2 for <9 contacts using single and double blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting

    Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

    Ambient Air Temperature For Operation : -40-70 °C

    Ambient Air Temperature For Storage : -40-70 °C

    Standards : UL 508, EN/IEC 60947-5-5, EN/IEC 60947-5-4, EN/IEC 60947-5-1, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-1, JIS C8201-1

    Compatibility : Universal LED

    Device Presentation : Basic element
    Weight : 0.26 kg
