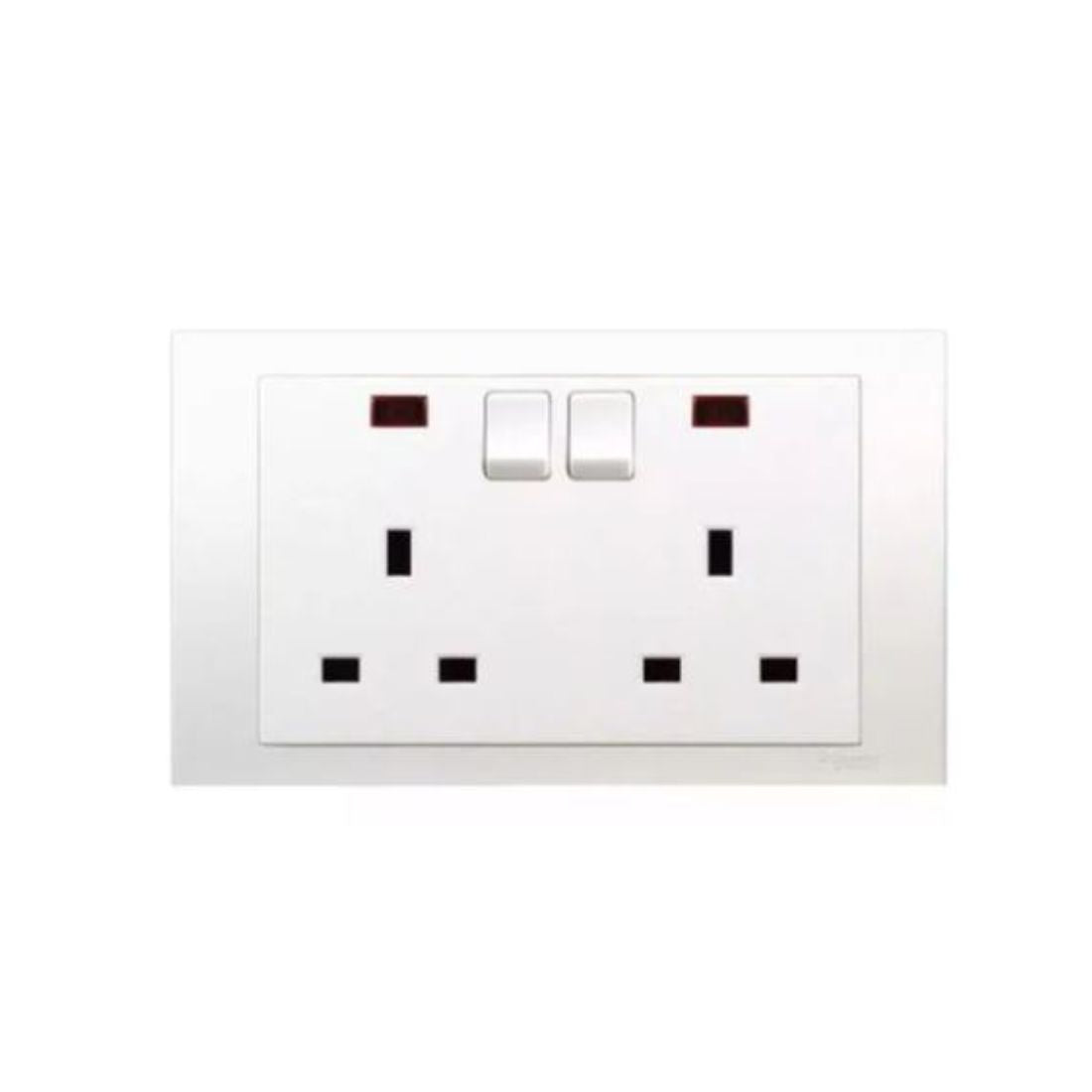

Schneider Electric Vivace Twin Gang Switched Socket with Neon 13A 250V KB25N - White
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switched Socket
Description
Schneider Electric KB25N Twin Gang Switched Socket With Neon typically refers to a double socket outlet with two individual plug points. The switch indicates that each socket has its own switch to control the power supply, and the neon refers to a small indicator light that illuminates when the switch is turned on. 250V AC, 13 Amperes (13A) it can handle up to the maximum voltage of 250 volts and 13 amperes of current. White is the color of the socket cover or frame. It has two individual sockets.
Schneider Electric KB25N Twin Gang Switched Socket With Neon is commonly used in households for connecting electrical devices like lamps, chargers, and other appliances.
Features
- Clean, geometrically balanced design
- Screwless Design
- Long cycle-life
- All sockets are inserted with shutter doors for safety
- Thin: 8mm slim
| Brand | Schneider Electric |
| Item Name | Switched Socket |
| Model | KB25N |
| Clamping Connection Capacity | 2 x 4 mm², 3 x 2.5 mm² |
| Rated Current Power Circuit | 13 A at 250 V AC, Resistive |
| Package1 Length*Width*Height | 13 A at 250 V AC, resistive |
| Ambient Air Temperature For Operation | -5-40 °C |
| Ambient Air Temperature For Storage | -5-60 °C |
| Color | White |
| Depth | 35mm |
| Contacts Material | Brass And Phosphor Bronze |
| Device Application | Power Supply |
| Device Mounting | Flush |
| Connections - Terminals | Pillar Terminal |
| Embedding Depth | 22.0 mm |
| Fixing Center | 120.6 mm |
| Fixing Mode | By Screws M3.5 |
| Height | 87mm |
| IP Degree Of Protection | IP20 |
| Mounting Support | Wall Mounted |
| Material | Polycarbonate: grid plate, polycarbonate: surround, polycarbonate: base |
| Number Of Gangs | 2 Gangs |
| Network Frequency | 50/60 Hz |
| Outlet Poles Configuration | 2P + E |
| Operating Altitude | <= 2000m |
| Pilot Light | Red Neon Indicator |
| Projecting Depth | 8 mm |
| Range | Vivace |
| Relative Humidity | 0-95 % |
| Terminal Identifier | N, Earth, L |
| Tightening Torque | 0.4 N.m |
| Switch Function | ON/OFF Switching |
| Standards | MS 589, SS 145, BS 1363 |
| Environmental Characteristic | Indoor Use |
| Width | 147mm |
| Weight | 175.0 g |
