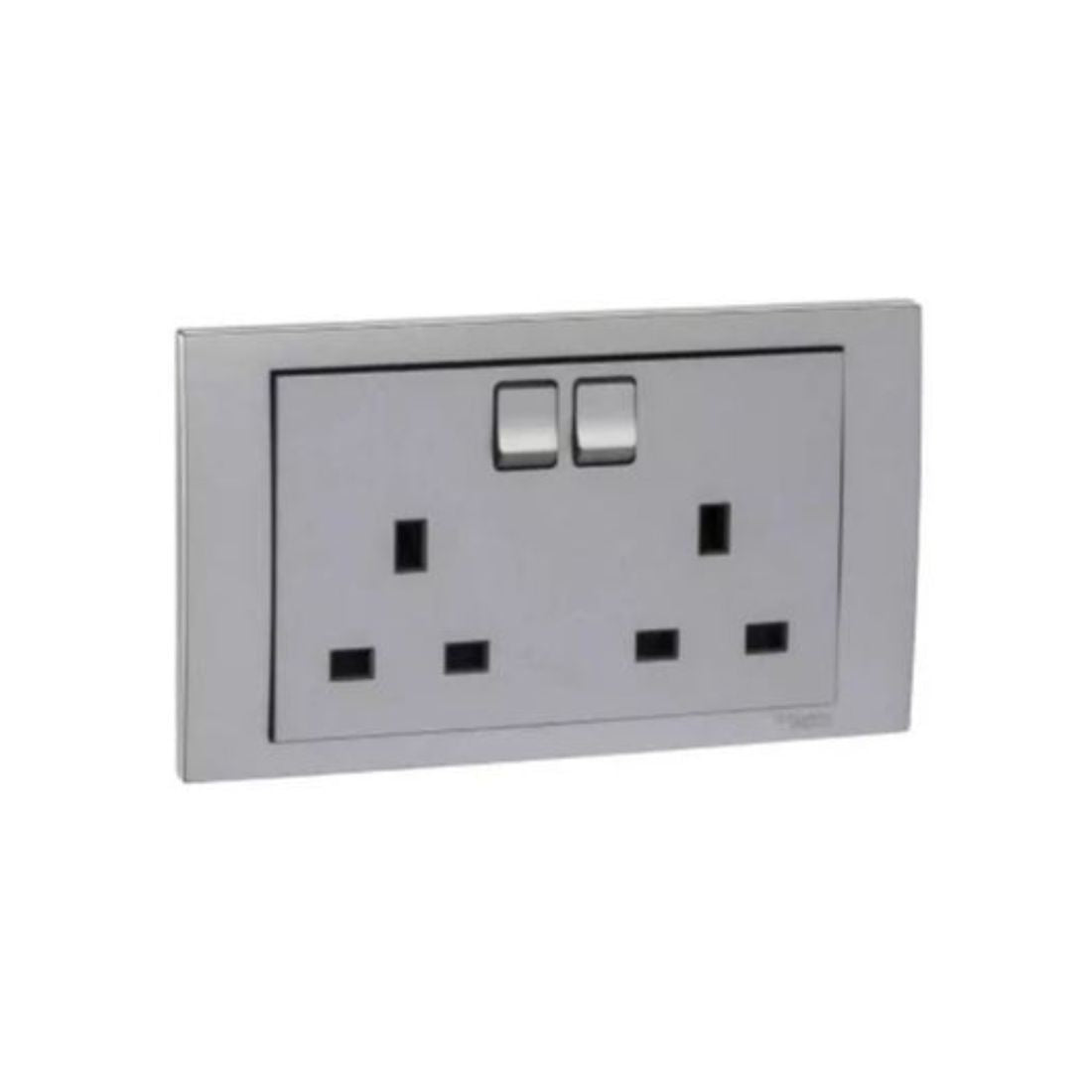

Schneider Electric Vivace Twin Gang Switched Socket 13A 250V KB25_AS - Aluminium Silver
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switched Socket
Description
Schneider Electric KB25_AS Twin Gang Switched Socket typically refers to a wall outlet that has two sets of plug holes, and each set can be individually switched on or off. It controls the power supply to each set of plugs independently. 13A and 250V, indicate the maximum current (in amperes) and voltage (in volts) that the socket is designed to handle. It can support devices that draw up to 13 amperes of current at a voltage of up to 250 volts. Aluminium Silver is the color or finish of the socket.
Features
- Clean, geometrically balanced design
- Screwless Design
- Long cycle-life
- All sockets are inserted with shutter doors for safety
- Thin: 8mm slim
Brand | Schneider Electric |
Item Name | Switched Socket |
Model | KB25_AS |
Rated Current | 13 A at 250 V AC, Resistive |
Package1 Length*Width*Height | 14.6 cm x 8.6 cm x 3.1 cm |
Clamping Connection Capacity | 2 x 4 mm², 3 x 2.5 mm² |
Ambient Air Temperature For Operation | -5-40 °C |
Ambient Air Temperature For Storage | -5-60 °C |
Color | White |
Depth | 35mm |
Contacts Material | Brass And Phosphor Bronze |
Device Application | Power Supply |
Device Mounting | Flush |
Fixing Mode | By Screw M3.5 |
Embedding Depth | 22mm |
Environmental Characteristic | Indoor Use |
Fixing Center | 120.6 mm |
Height | 87mm |
IP Degree Of Protection | IP20 |
Material | Polycarbonate: Grid Plate, Polycarbonate: Surround, Polycarbonate: Base |
Mounting Support | Wall Mounted |
network frequency 50/60 Hz | |
Number Of Gangs | 2 Gangs |
Operating Altitude | <= 2000m |
Outlet Poles Configuration | 2P + E |
Projecting Depth | 8mm |
Range | Vivace |
Width | 147mm |
Standards | SS 145, BS 1362-2, MS 589 |
Relative Humidity | 0-95 % |
Switch Application | On/Off Switching |
Terminal Identifier | N, L, Earth |
Tightening Torque | 0.4N.m |
Connections - Terminals | Pillar Terminals |
Weight | 148.0g |
