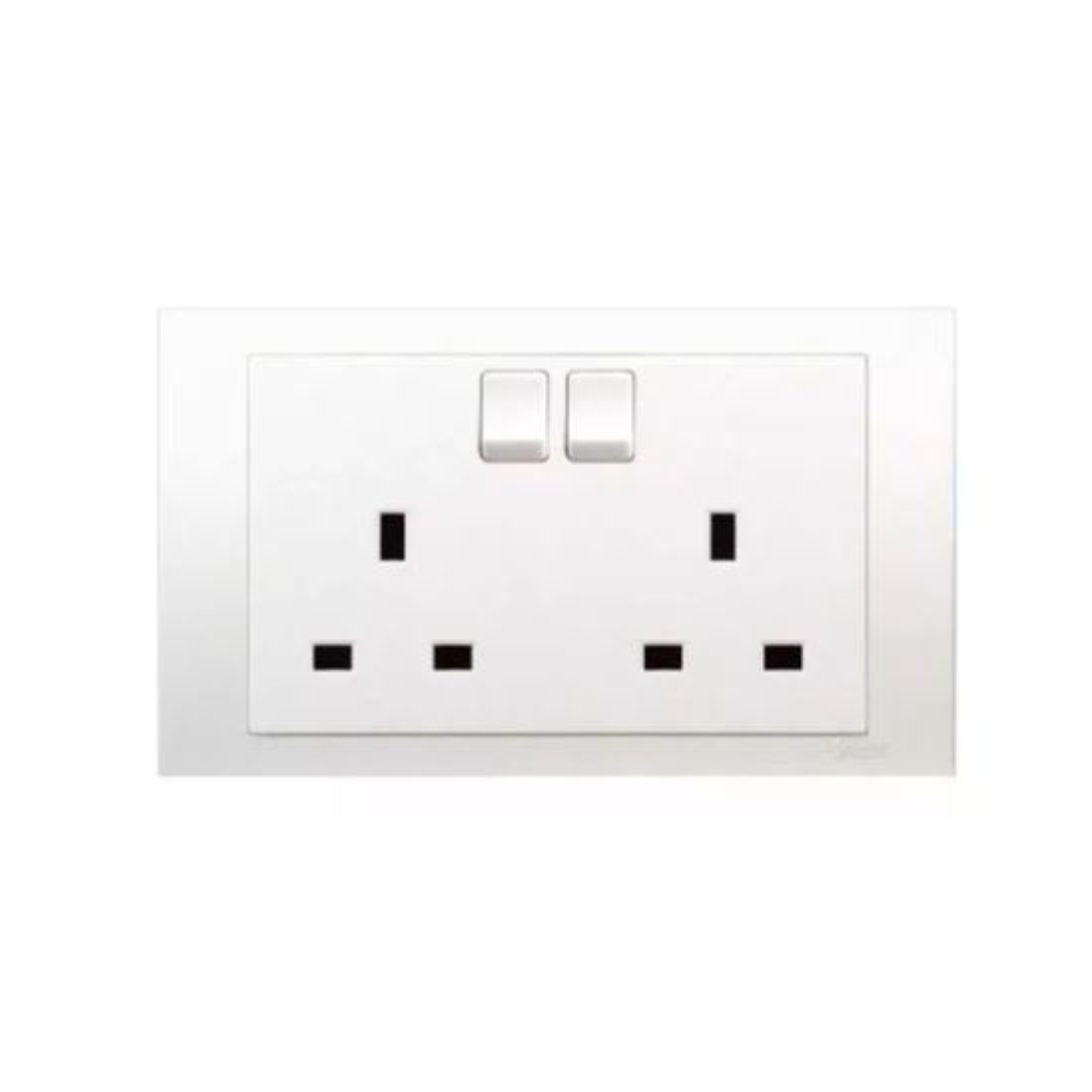

Schneider Electric Vivace Twin Gang Switched Socket 13A 250V KB25 - White
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switched Socket
Description
Schneider Electric KB25 Twin Gang Switched Socket is an electrical outlet that has two individual plug points or receptacles. Each of these receptacles can accept a standard plug, allowing two devices to be connected simultaneously. Each outlet has its own on/off switch, Which has the ability to control power to each device independently. The socket is designed to handle electrical devices that operate at voltages up to 250 volts.
13A is the maximum current that the socket is designed to handle safely. It can accommodate devices that draw up to 13 amperes of current. White is the color of the socket's faceplate or cover. It's a common color for electrical outlets and blends well with most wall surfaces.
Schneider Electric KB25 Twin Gang Switched Socket is commonly used in homes and offices for general-purpose electrical connections. It provides a convenient way to power multiple devices from a single outlet.
Features
- Clean, geometrically balanced design
- Screwless Design
- Long cycle-life,
- All sockets are inserted with shutter doors for safety
- Thin: 8mm slim
Brand | Schneider Electric |
Item Name | Switched Socket |
Model | KB25 |
Rated Current | 13 A at 250 V AC, Resistive |
Package1 Length*Width*Height | 1.000 cm x 1.000 cm x 1.000 cm |
Clamping Connection Capacity | 3 x 2.5 mm², 2 x 4 mm² |
Ambient Air Temperature For Operation | -5-40 °C |
Ambient Air Temperature For Storage | -5-60 °C |
Color | White |
Depth | 35mm |
Contacts Material | Brass And Phosphor Bronze |
Device Application | Power Supply |
Device Mounting | Flush |
Fixing Mode | By Screw M3.5 |
Embedding Depth | 22mm |
Environmental Characteristic | Indoor Use |
Fixing Center | 120.6 mm |
Height | 87mm |
IP Degree Of Protection | IP20 |
Material | Polycarbonate: Grid Plate, Polycarbonate: Surround, Polycarbonate: Base |
Mounting Support | Wall Mounted |
network frequency 50/60 Hz | |
Number Of Gangs | 2 Gangs |
Operating Altitude | <= 2000m |
Outlet Poles Configuration | 2P + E |
Projecting Depth | 8mm |
Range | Vivace |
Width | 147mm |
Standards | SS 145, MS 589, BS 1362-2 |
Relative Humidity | 0-95 % |
Switch Application | On/Off Switching |
Terminal Identifier | N, L, Earth |
Tightening Torque | 0.4N.m |
Connections - Terminals | Pillar Terminals |
Weight | 148.0 g |
