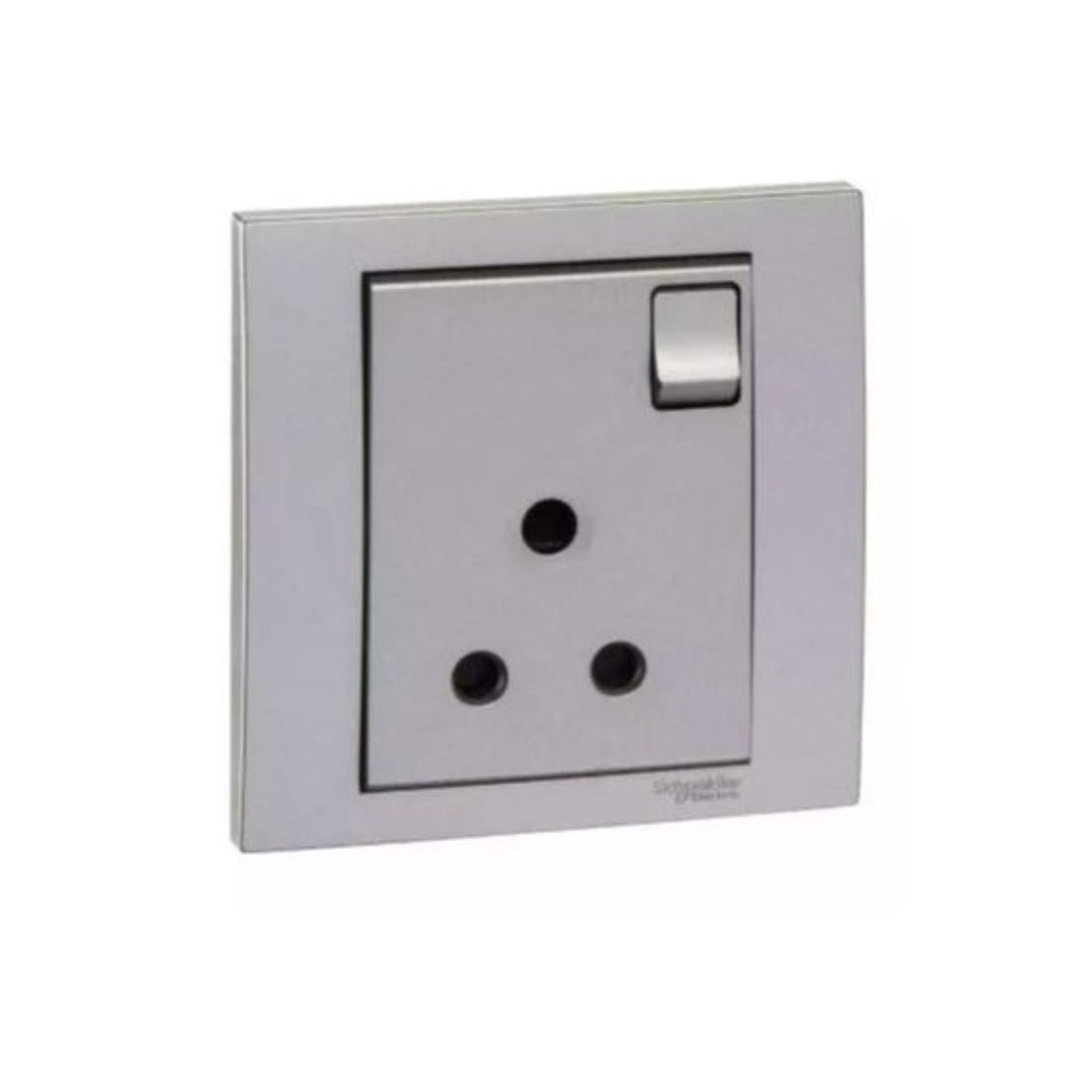

Schneider Electric KB15_5_AS Switched Socket 5A, 250V, 1 Gang - Aluminium Silver
Schneider Electric KB15_5_AS Switched Socket 5A, 250V, 1 Gang - Aluminium Silver

Schneider Electric Vivace Switched Socket 5A 250V 1 Gang KB15_5_AS - Aluminium Silver

Regular price AED 18.00
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Switched Socket
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric KB15_5_AS Switched Socket is a type of electrical outlet commonly used in homes and buildings. The switch controls the flow of electricity to the socket. 5A is the maximum current rating for the socket. 250V is the voltage rating for the socket. It's designed to handle a maximum voltage of 250 volts. There is only one socket outlet in this particular unit.

    Overall, Schneider Electric KB15_5_AS Switched Socket is a single electrical outlet with a built-in switch, designed to handle up to 5 amperes of current at a voltage of up to 250 volts. Its aluminum silver cover plate gives it a modern appearance. It can be installed in walls or electrical boxes to provide a power source for various devices and appliances.

    Features
    • Clean, geometrically balanced design
    • Screwless Design
    • Long cycle life, All sockets are inserted with shutter doors for safety
    • Thin: 8mm slim
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Switched Socket

    Model : KB15_5_AS

    Rated Current : 5 A at 250 V AC, Resistive, 5 A at 250 V AC, Inductive

    Color : Aluminium Silver

    Package1 Length*Width*Height : 8.6 cm x 8.6 cm x 2.7 cm

    Ambient Air Temperature For Operation : -5-40 °C

    Clamping Connection Capacity : <= 1.5 mm²

    Connections - Terminals : Pillar Terminal

    Embedding Depth : 35mm

    Device Application : Power Supply

    Device Mounting : Flush Mount

    Device Presentation : Complete Housing

    Contacts Material : Brass And Phosphor Bronze

    Fixing Mode : By Screws M3.5

    Environmental Characteristic : Indoor Use

    Fixing Center : 60.3mm

    Height : 86mm

    Material : Polycarbonate: Grid Plate, Polycarbonate: Surround, Polycarbonate: Base

    Mounting Support : Wall Mounted

    Network Frequency : 50Hz

    Number Of Gangs : 1 Gang

    Outlet Poles Configuration : 2P + E

    Range : Vivace

    Projecting Depth : 8mm

    Relative Humidity : 0-95 %

    Width : 86 mm

    Terminal Identifier : N, Earth, L

    Tightening Torque : 0.4 N.m

    Standards : BS 546

    Weight : 86.0g
