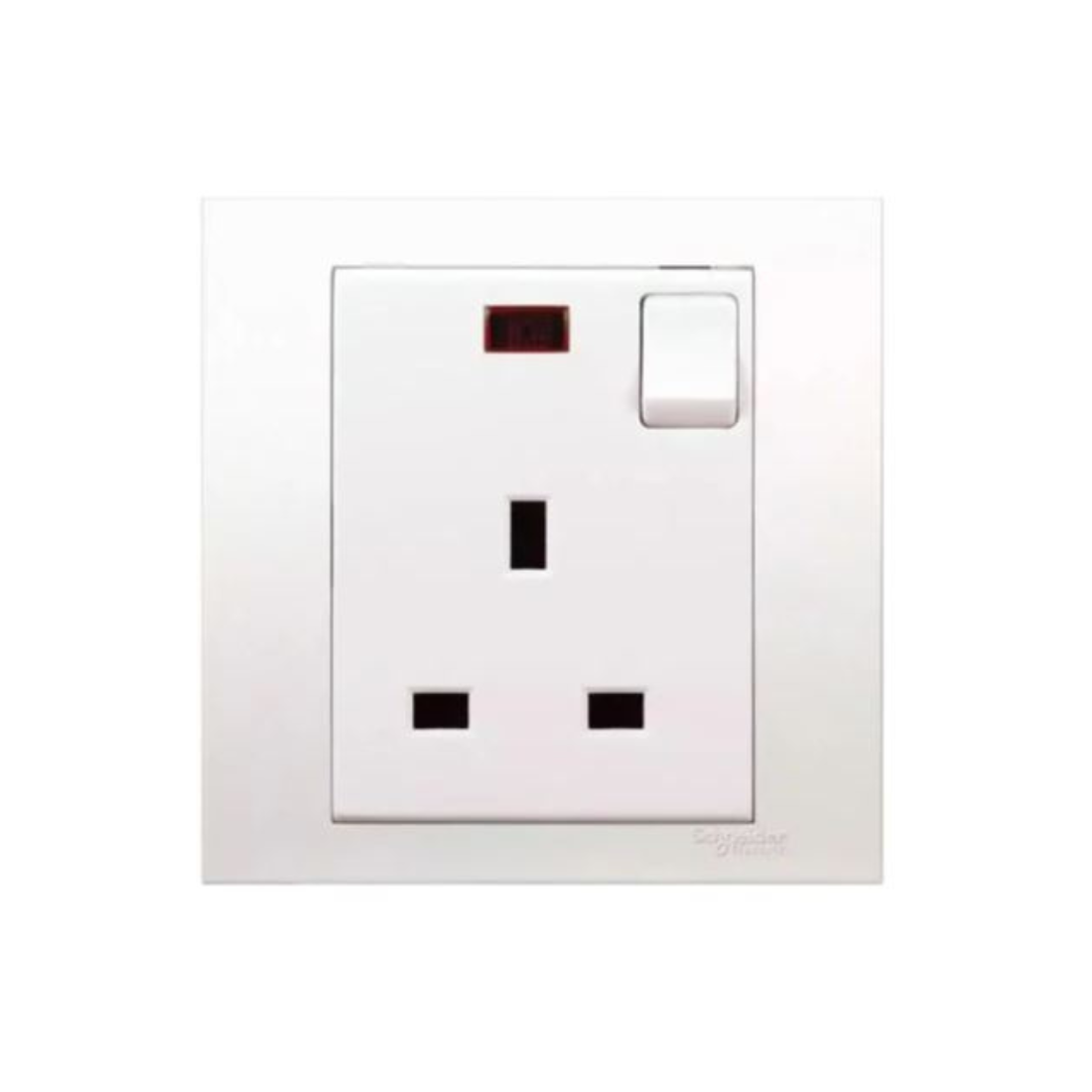

Schneider Electric Vivace Switched Socket 13A 250V 1 Gang Neon Indicator KB15N White in Dubai, UAE
Schneider Electric Vivace Switched Socket 13A 250V 1 Gang Neon Indicator KB15N White in Dubai, UAE

Schneider Electric Vivace Switched Socket 13A 250V 1 Gang Neon Indicator KB15N - White

Regular price AED 17.00
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Switched Socket
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric KB15N 1 Gang Switched Socket With Neon is a standard UK-style wall socket with one switch and one outlet, often used for powering devices. This type of socket is commonly used in households or offices for connecting electrical appliances and devices. 1 Gang is the number of outlets or receptacles on the socket.

    The socket has an on/off switch, to control the power supply to the connected device. The socket has a small indicator light (neon light) to show if it is currently supplying power. 13A is the maximum current (in amperes) that the socket can handle safely. 250V is the nominal voltage. White is the color of the socket cover or plate.

    In summary, Schneider Electric KB15N 1 Gang Switched Socket With Neon is a single-gang electrical socket with a switch, capable of handling a maximum current of 13 amperes at 250 volts. It also includes a neon indicator light, and it's white in color.

    Features
    • Clean, geometrically balanced design
    • Screwless Design
    • Long cycle-life
    • All sockets are inserted with shutter doors for safety
    • Thin: 8mm slim
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Switched Socket

    Model : KB15N

    Clamping Connection Capacity : 2 x 4 mm², 3 x 2.5 mm²

    Rated Current Power Circuit : 13 A at 250 V AC, Resistive

    Package1 Length*Width*Height : 1.000 mm x 1.000 mm x 1.000 mm

    Ambient Air Temperature For Operation : -5-40 °C

    Ambient Air Temperature For Storage : -5-60 °C

    Color : White

    Depth : 35mm

    Contacts Material : Brass And Phosphor Bronze

    Device Application : Power Supply

    Device Mounting : Flush

    Connections - Terminals : Pillar Terminal

    Embedding Depth : 22.0 mm

    Fixing Center : 60.3mm

    Fixing Mode : By Screws M3.5

    Height : 87mm

    IP Degree Of Protection : IP20

    Mounting Support : Wall Mounted

    Material : Polycarbonate: grid plate, polycarbonate: surround, polycarbonate: base

    Number Of Gangs : 1 Gang

    Network Frequency : 50/60 Hz

    Outlet Poles Configuration : 2P + E

    Operating Altitude : <= 2000m

    Pilot Light : Red Neon Indicator

    Projecting Depth : 8 mm

    Range : Vivace

    Relative Humidity : 0-95 %

    Terminal Identifier : N, Earth, L

    Tightening Torque : 0.4 N.m

    Switch Function : ON/OFF Switching

    Standards : BS 1363, SS 145, MS 589

    Environmental Characteristic : Indoor Use

    Width : 87mm

    Weight : 92.500 g
