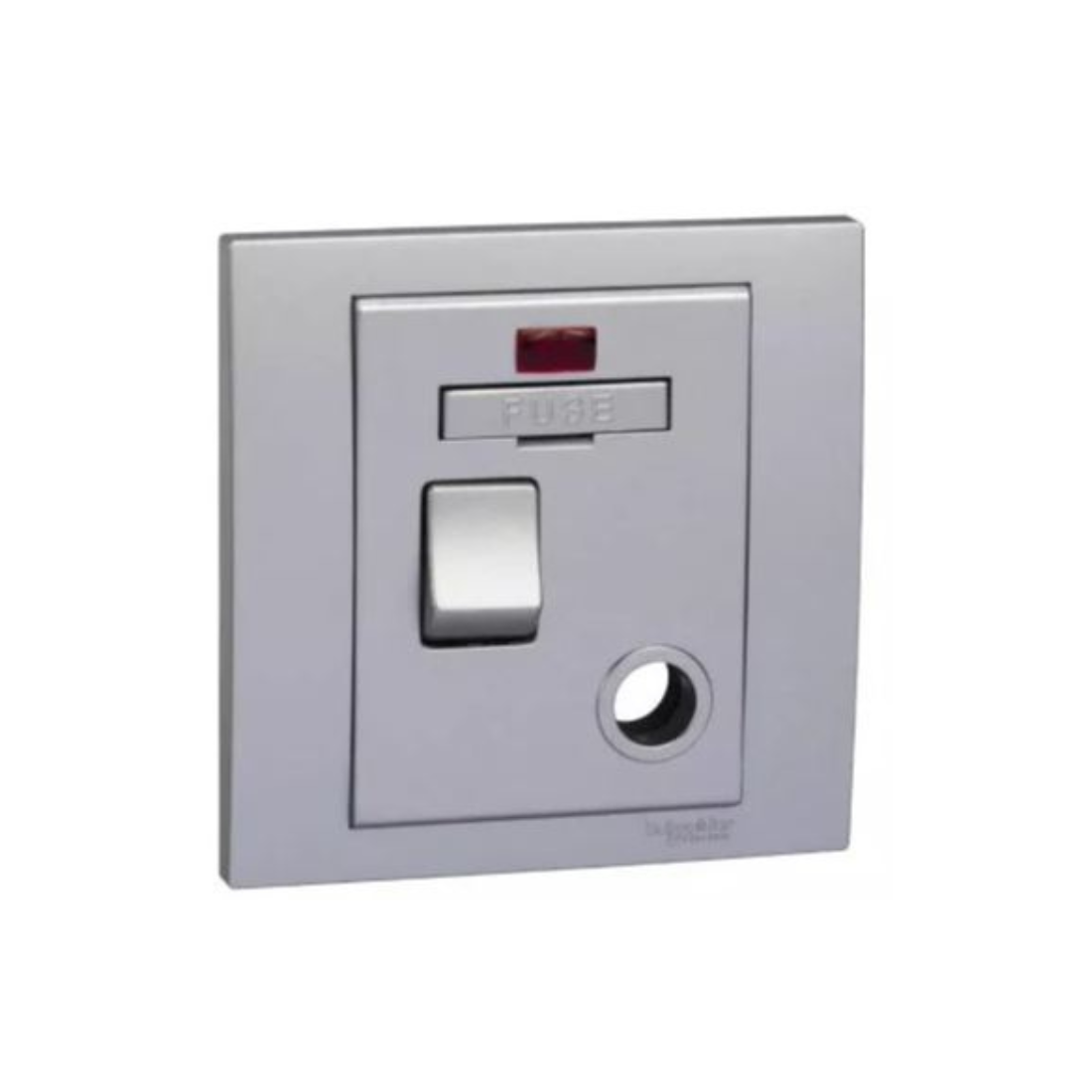

Schneider Electric Vivace Switched Fuse Mechanism 13A 250V KB31DNFSG_AS - Aluminium Silver
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Fused Connection
Description
Schneider Electric KB31DNFSG_AS Switched Fuse Mechanism typically combines a switch and a fuse in a single unit. It disconnects a circuit and protects it from overcurrent or short circuits. It is a device that combines a switch and a fuse.
13A is the current rating of the fuse. It means that the fuse will blow if the current exceeds 13 amperes. This is a common rating for household electrical circuits. 250V is the voltage rating of the fuse. It means the fuse is designed to work with electrical systems that have a voltage of up to 250 volts.
Features
- Clean, geometrically balanced design
- Screwless Design
- Long cycle life
- All sockets are inserted with shutter doors for safety
- Thin: 8mm slim
| Brand | Schneider Electric |
| Item Name | Switched Fused Connection |
| Model | KB31DNFSG_AS |
| Color | Aluminium Silver |
| Rated Current | 13 A At 250 V AC, Resistive |
| Package1 Length*Width*Height | 8.6 cm x 3.5 cm x 8.6 cm |
| Ambient Air Temperature For Operation | -5-40 °C |
| Ambient Air Temperature For Storage | -5-60 °C |
| Clamping Connection Capacity | 2 x 4 mm² input, 3 x 2.5 mm² input, 1 x 1.5 mm² output, 1 x 2.5 mm² output |
| Contacts Material | Brass And Phosphor Bronze |
| Device Application | Power Supply |
| Device Mounting | Surface, Flush |
| Depth | 35mm |
| Height | 86mm |
| Embedding Depth | 28 mm |
| Range | Vivace |
| Material | Polycarbonate: grid plate, polycarbonate: surround, polycarbonate: base |
| Operating Altitude | 0...2000 m |
| Number of Gangs | 1 Gang |
| Projecting Depth | 8 mm |
| Mounting Support | Wall Mounted |
| Network Frequency | 50/60 Hz |
| Fixing Center | 60.3 mm |
| Fixing Mode | By Screws M3.5 |
| Relative Humidity | 0-95 % |
| Switch Application | On/Off Switching |
| Terminal Identifier | N out, L out, N in, Earth |
| Tightening Torque | 0.4 N.m |
| Standards | BS 1363-4 |
| Connections - Terminals | Pillar Terminals |
| Width | 86mm |
| Environmental Characteristic | Indoor Use |
| Weight | 120g |
