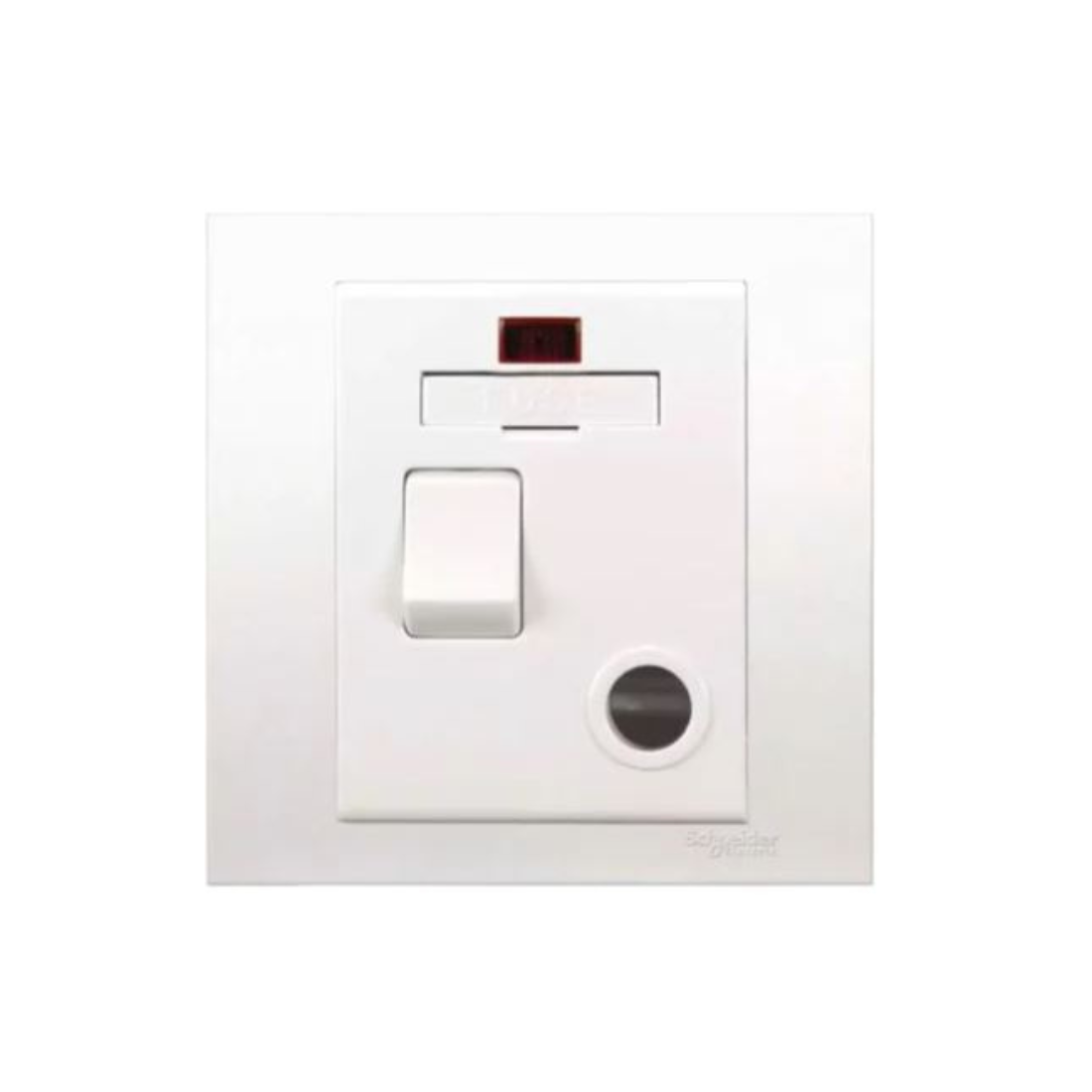

Schneider Electric Vivace Switched Fuse Mechanism 13A 250V KB31DNFSG - White
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Fused Connection
Description
Schneider Electric KB31DNFSG Switched Fuse Mechanism is an electrical device that combines the functions of a fuse and a switch. It is used to protect an electrical circuit from overcurrent, and it can be manually switched on or off. 13A is the maximum current that the fuse can handle before it blows to protect against overcurrent.
250V is the maximum voltage that the fuse is rated for. It means the fuse can handle a voltage of up to 250 volts. White is the color of the device, which is typically used for visual identification and aesthetics.
Schneider Electric KB31DNFSG Switched Fuse Mechanism is commonly used in electrical systems to provide a convenient way to disconnect power and protect against overcurrent. It's often found in household wiring, particularly in places where appliances are plugged in.
Features
- Clean, geometrically balanced design
- Screwless Design
- Long cycle life
- All sockets are inserted with shutter doors for safety
- Thin: 8mm slim
| Brand | Schneider Electric |
| Item Name | Switched Fused Mechanism |
| Model | KB31DNFSG |
| Color | White |
| Rated Current | 13 A At 250 V AC, Resistive |
| Package1 Length*Width*Height | 8.6 cm x 3.5 cm x 8.6 cm |
| Ambient Air Temperature For Operation | -5-40 °C |
| Ambient Air Temperature For Storage | 0-60 °C |
| Clamping Connection Capacity | 2 x 4 mm² input, 3 x 2.5 mm² input, 1 x 1.5 mm² output, 1 x 2.5 mm² output |
| Contacts Material | Brass And Phosphor Bronze |
| Device Application | Power Supply |
| Device Mounting | Surface, Flush |
| Depth | 35mm |
| Height | 87mm |
| Range | Vivace |
| Material | Polycarbonate: grid plate, polycarbonate: surround, polycarbonate: base |
| Operating Altitude | 0...2000 m |
| Number of Gangs | 1 Gang |
| Projecting Depth | 8 mm |
| Mounting Support | Wall Mounted |
| Network Frequency | 50Hz |
| Pilot Light | Red Neon Indicator |
| Fixing Center | 60.3 mm |
| Fixing Mode | By Screws M3.5 |
| Relative Humidity | 0-95 % |
| Switch Application | On/Off Switching |
| Terminal Identifier | L in, L out, N in, N out, Earth |
| Tightening Torque | 0.4 N.m |
| Standards | BS 1363-4 |
| Connections - Terminals | Pillar Terminals |
| Width | 87mm |
| Environmental Characteristic | Indoor Use |
| Weight | 103.000g |
