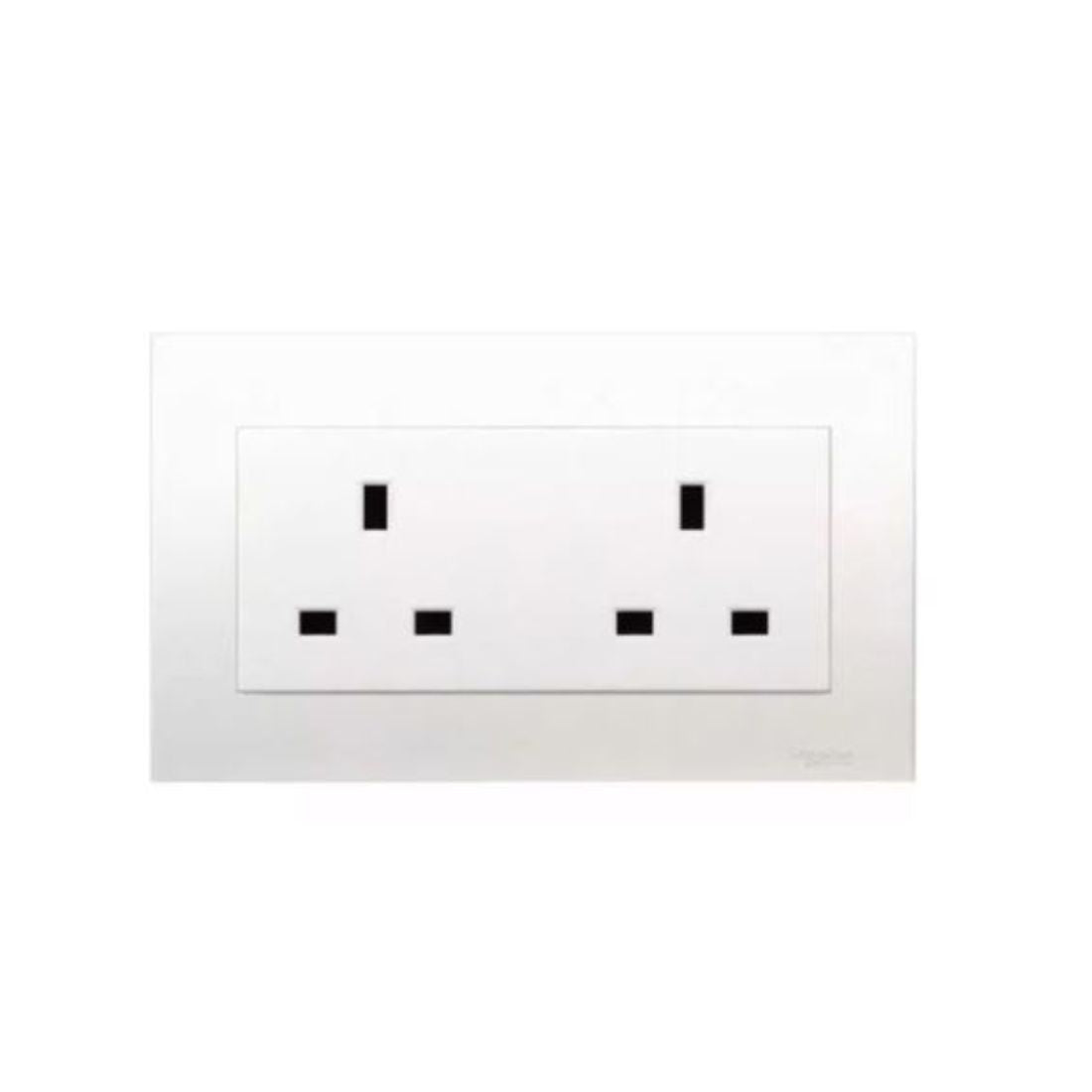

Schneider Electric Vivace Socket 13A 250V 2 Gangs KBT426 - White
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Socket
Description
Schneider Electric KBT426 Twin Gang Socket is an electrical wall outlet that has two separate receptacles for plugging in devices. Each receptacle is capable of delivering up to 13 amperes (A) of current at a voltage of 250 volts (V). This type of socket is commonly used in households and commercial buildings to power various electrical appliances and devices.
Features
- Clean, geometrically balanced design
- Screwless Design
- Long cycle life, All sockets are inserted with shutter doors for safety
- Thin: 8mm slim
| Brand | Schneider Electric |
| Item Name | Socket-Outlet |
| Model | KBT426 |
| Color | White |
| Rated Current | 13 A at 250 V AC, Resistive |
| Package1 Length*Width*Height | 1.000 cm x 1.000 cm x 1.000 cm |
| Ambient Air Temperature For Operation | -5-40 °C |
| Ambient Air Temperature For Storage | -5-60 °C |
| Clamping Connection Capacity | 1 x 2.5...3 x 2.5 mm² For Rigid Or Stranded Cable(s) |
| Connections - Terminals | Screw Terminal |
| Embedding Depth | 20 mm |
| Device Application | Power Supply |
| Device Mounting | Flush Mount |
| Depth | 28 mm |
| Contacts Material | Brass And Phosphor Bronze |
| Fixing Mode | By Screws |
| Environmental Characteristic | Indoor Use |
| Fixing Center | 120.6mm |
| Height | 86mm |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Surround, Polycarbonate: Base |
| Integrated Connection | Type 2 socket-outlet 220...250 V AC, maximum load current: 13 A |
| IP Degree of Protection | IP20 |
| Mounting Support | Wall Mounted |
| Network Frequency | 50/60Hz |
| Number Of Gangs | 2 Gang |
| Outlet Poles Configuration | 2 x 2P + E with shutters |
| Number of Terminals | 3 |
| Operating Altitude | 0...2000 m |
| Range | Vivace |
| Outlet Standard | British |
| Outlet Standard Description | Flat Pin |
| Projecting Depth | 8mm |
| Relative Humidity | 0-95 % |
| Width | 86 mm |
| Terminal Identifier | N, Earth, L |
| Tightening Torque | 0.4 N.m |
| Surface Finish | Glossy |
| Surface Treatment | Untreated |
| Standards | BS 1363-2, SS 145, MS 589 |
| Weight | 124.830 g |
