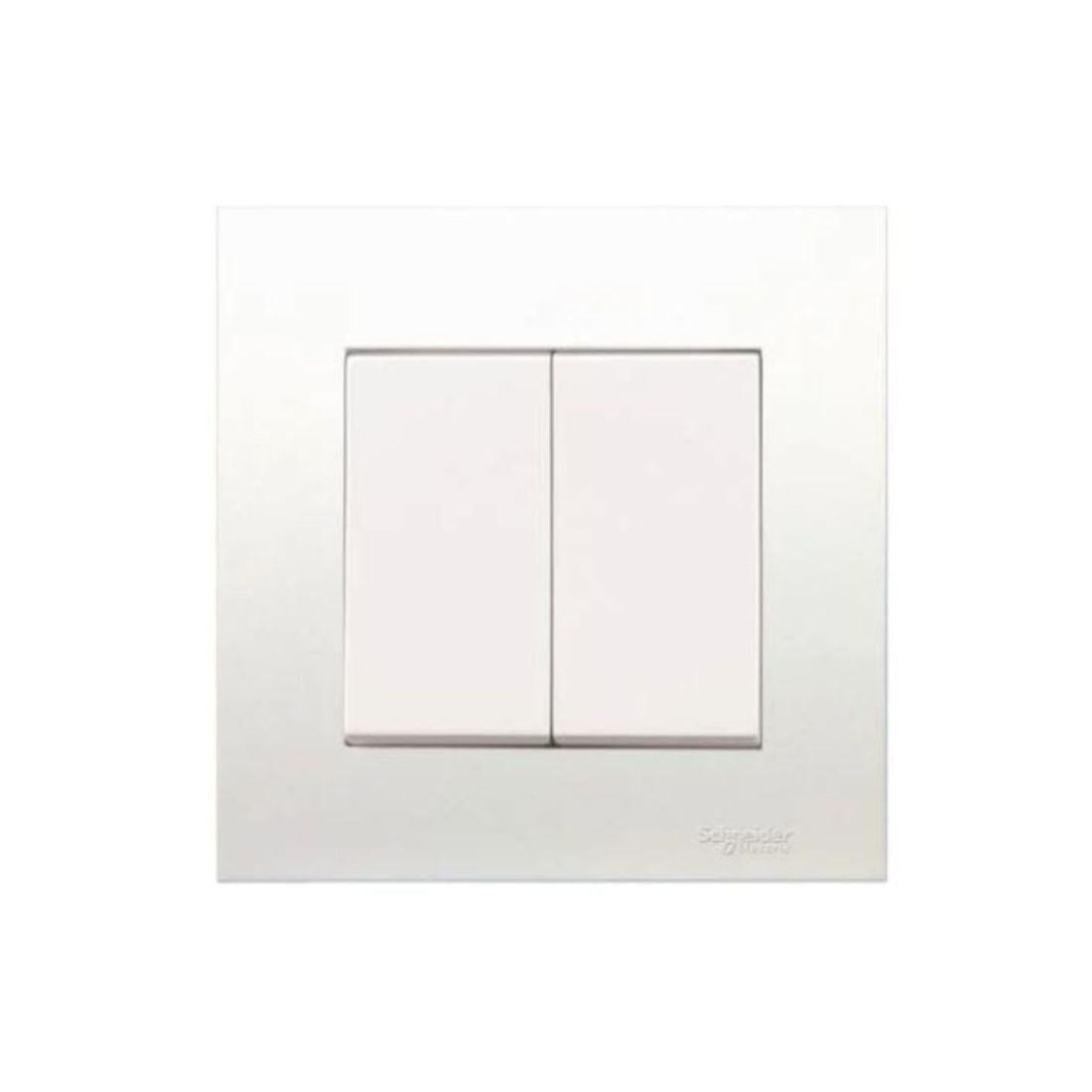

Schneider Electric Vivace KB32BP Bell Press Switch 10A 250V 2 Gang - White
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switches
Description
Schneider Electric KB32BP Bell Press Switch is an electrical switch designed for controlling lighting or other electrical devices. It is a type of switch that is commonly used in homes or buildings to control lighting. A bell press switch typically has a push-button mechanism for turning on and off the connected device.
10A is the maximum current the switch can handle safely. This means it can handle devices or circuits with a maximum load of 10A. 250V is the maximum voltage the switch is designed to handle. 2G is a double-gang switch. This means it has two separate switches in a single unit, to control two different devices or circuits independently.
In summary, the Schneider Electric KB32BP Bell Press Switch is a white-colored switch designed for a 10 Ampere, 250 Volt electrical system, and it has two separate switches in a single unit. This type of switch is commonly used in homes and buildings for controlling lighting and other electrical devices.
Features
- Unique full flat frameless design with a clear edge
- Made with superior quality material that meets building specifications for low combustion wall outlets with flame-resistant
| Brand | Schneider Electric |
| Item Name | Bell Press Switch |
| Model | KB32BP |
| Color | White |
| Rated Current | 10 A at 250 V AC, Inductive |
| Clamping Connection Capacity | <= 1.5 mm² |
| Embedding Depth | 35mm |
| Device Application | Control |
| Device Mounting | Flush |
| Device Presentation | Complete Mechanism |
| Height | 86mm |
| Contacts Material | Brass And Phosphor Bronze |
| Fixing Center | 60.3mm |
| Fixing Mode By Screw | M3.5 |
| Environmental Characteristic | Indoor Use |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Surround, Nylon: Base |
| Mounting Support Wall Mounted | |
| Projecting Depth | 8mm |
| Network Frequency | 50 Hz |
| Number Of Gangs | 2 Gangs |
| Range | Vivace |
| Relative Humidity | 0-95 % |
| Switch Function | 1-Way |
| Width | 86 mm |
| Terminal Identifier | COM, L2 |
| Ambient Air Temperature For Operation | -5-40 °C |
| Standards | MS IEC 60669-1, IEC 60669-1, SS 227 |
| Connections - Terminals | Pillar Terminal |
| Tightening Torque | 0.4 N.m |
