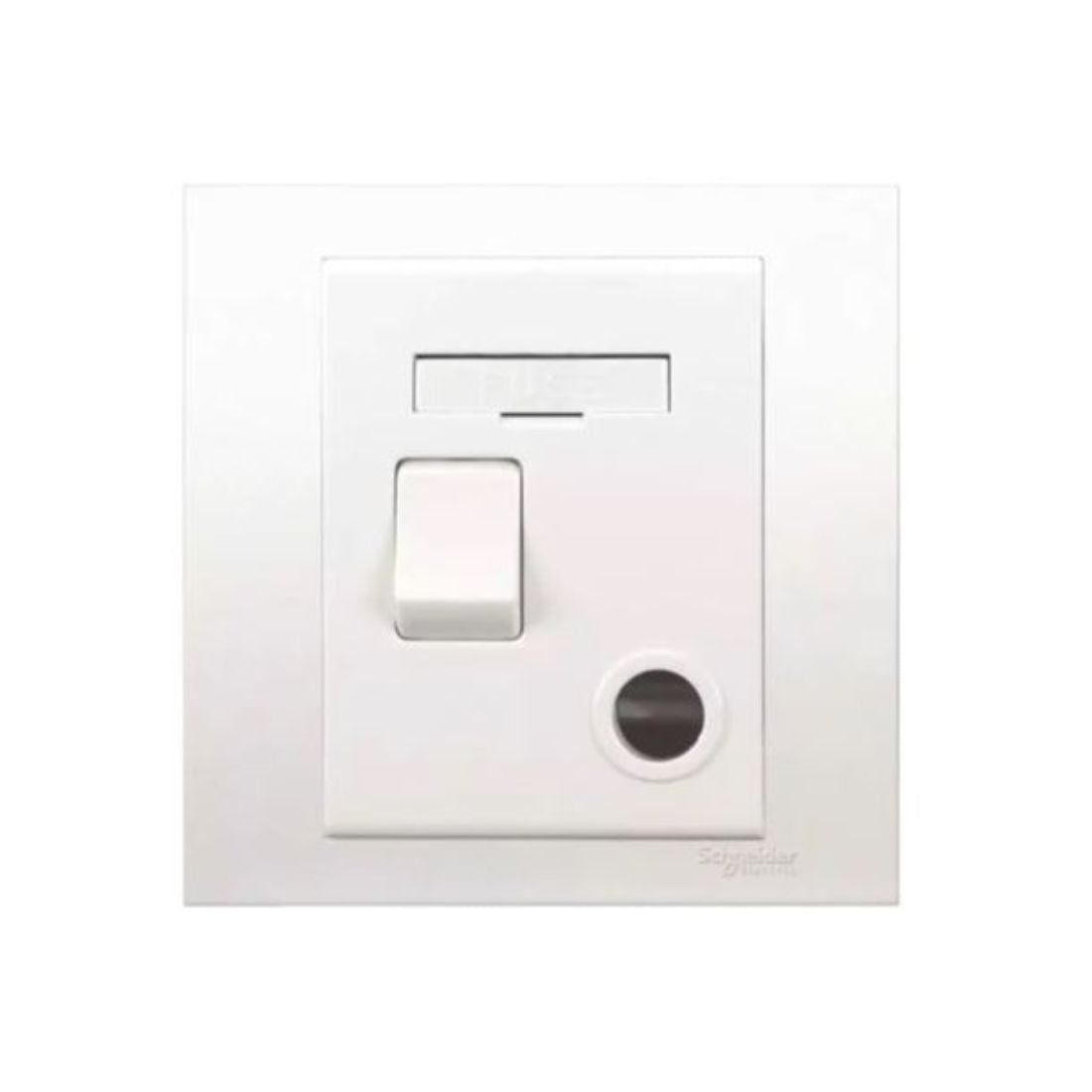

Schneider Electric Vivace KB31DFSG Switched Fuse Mechanism 13A 250V - White
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Fused Connection
Description
Schneider Electric KB31DFSG Switched Fuse Mechanism is an electrical component used in circuits to protect against overcurrent or short-circuit conditions. 13A is the maximum current that the fuse can handle before it blows. 250V is the maximum voltage that the fuse can handle. White is the color of the housing or cover of the fuse mechanism.
Overall, the Schneider Electric KB31DFSG Switched Fuse Mechanism is a device designed to protect an electrical circuit from overcurrent conditions. It's rated for a maximum of 13 amperes and can handle voltages up to 250 volts.
Features
- Clean, geometrically balanced design
- Screwless Design
- Long cycle life
- All sockets are inserted with shutter doors for safety
- Thin: 8mm slim
| Brand | Schneider Electric |
| Item Name | Switched Fused Connection |
| Model | KB31DFSG |
| Color | White |
| Rated Current | 13 A At 250 V AC, Resistive |
| Package1 Length*Width*Height | 1.000 mm x 1.000 mm x 1.000 mm |
| Ambient Air Temperature For Operation | -5-40 °C |
| Ambient Air Temperature For Storage | -5-60 °C |
| Clamping Connection Capacity | 2 x 4 mm² input, 3 x 2.5 mm² input, 1 x 1.5 mm² output, 1 x 2.5 mm² output |
| Contacts Material | Brass And Phosphor Bronze |
| Device Application | Power Supply |
| Device Mounting | Surface, Flush |
| Depth | 35mm |
| Height | 86mm |
| Embedding Depth | 28 mm |
| Range | Vivace |
| Material | Polycarbonate: grid plate, polycarbonate: surround, polycarbonate: base |
| Operating Altitude | 0...2000 m |
| Number of Gangs | 1 Gang |
| Projecting Depth | 8 mm |
| Mounting Support | Wall Mounted |
| Network Frequency | 50/60 Hz |
| Fixing Center | 60.3 mm |
| Fixing Mode | By Screws M3.5 |
| Relative Humidity | 0-95 % |
| Switch Application | On/Off Switching |
| Terminal Identifier | N out, L out, N in, Earth |
| Tightening Torque | 0.4 N.m |
| Standards | BS 1363-4 |
| Connections - Terminals | Pillar Terminals |
| Width | 88mm |
| Environmental Characteristic | Indoor Use |
| Weight | 94.990g |
