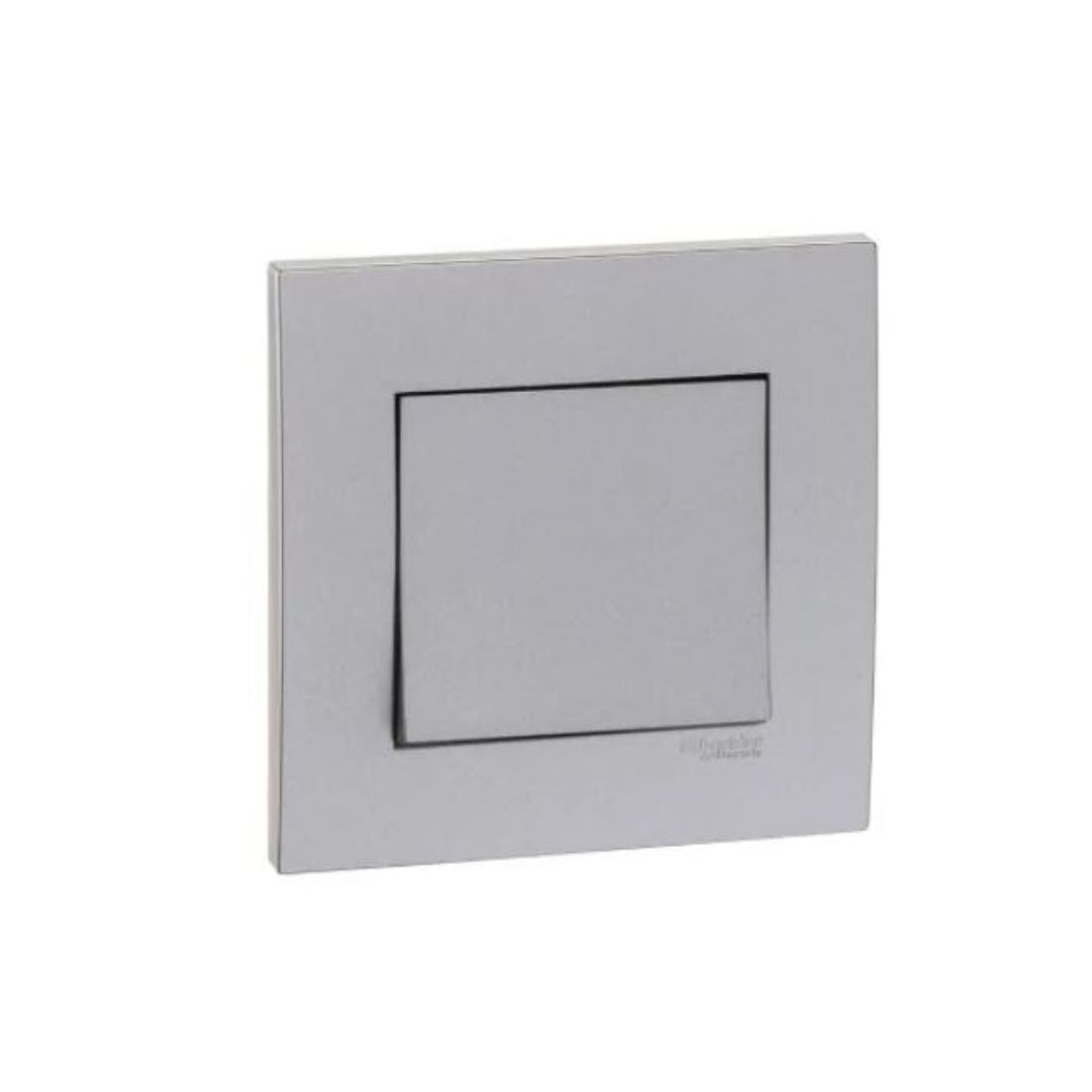

Schneider Electric Vivace Intermediate Switch 10AX 250V KB31IA_AS - Aluminium Silver
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switches
Description
Schneider Electric KB31IA_AS Intermediate Switch is a type of electrical switch used in a multi-way lighting circuit. Intermediate switches are used in between two-way switches to create a three-way or four-way switching arrangement. It controls the lights from multiple locations within a room or area.
10AX is the amperage rating of the switch. This rating indicates that the switch can handle a current of up to 10A, which is suitable for most lighting applications. 250V is the voltage rating of the switch. It can handle a voltage of up to 250 Volts (V).
In summary, Schneider Electric KB31IA_AS Intermediate Switch is an electrical switch designed for use in multi-way lighting circuits, with a current rating of 10A and a voltage rating of 250V. It has an Aluminium Silver-colored finish. This type of switch is commonly used in homes and buildings to control lights from multiple locations.
Features
- Ideally suited for new construction and refurbishment projects
- Clean, geometrically balanced design
- High fatigue resistance capacity
- Wall-mounted
| Brand | Schneider Electric |
| Item Name | Intermediate Switch |
| Model | KB31IA_AS |
| Color | Aluminium Silver |
| Rated Current | 10 AX at 250 V AC, Inductive, 10 AX at 250 V AC, Fluorescent, 10 AX at 250 V AC, Resistive |
| Clamping Connection Capacity | <= 2.5 mm² For Rigid Or Stranded Cable(s) |
| Depth | 37mm |
| Device Application | Control |
| Device Mounting | Flush |
| Height | 86mm |
| Device Presentation | Complete Mechanism |
| Embedding Depth | 25mm |
| IP Degree Of Protection | IP20 |
| Fixing Center | 60.3mm |
| Fixing Mode | By Screw M3.5 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Surround, Nylon: Base |
| Number Of Gangs | 1 Gang |
| Mounting Support | Wall Mounted |
| Network Frequency | 50/60 Hz |
| Network Type | AC |
| Number Of Rocker | 1 |
| Number Of Terminals | 4 |
| Operating Altitude | 0...2000 m |
| Range | Vivace |
| Relative Humidity | 0-95 % |
| Surface Finish | Matt |
| Surface Treatment | Painted |
| Switch Application | On/Off Switching |
| Switch Function | Intermediate |
| Terminal Identifier | L2, L1 |
| Wire Stripping Length | 12mm |
| Technology Type | Electromechanical |
| Ambient Air Temperature For Operation | -5-40 °C |
| Environmental Characteristic | Indoor Use |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | MS IEC 60669-1, SS 227, IEC 60669-1 |
| Tightening Torque | 0.4 N.m |
