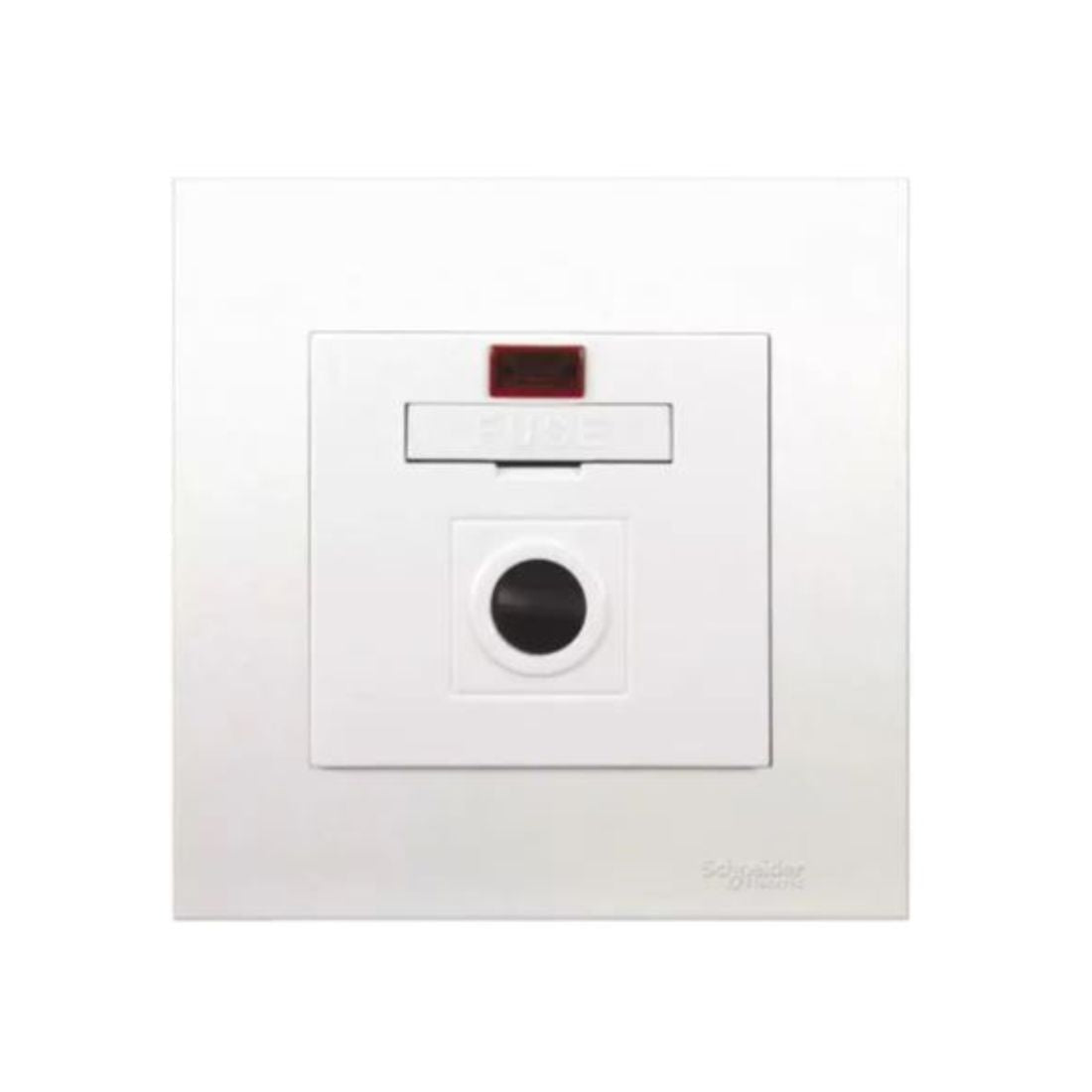

Schneider Electric Vivace Fuse Connection Unit 13A 250V KB30NFSG - White
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Fused Connection
Description
Schneider Electric KB30NFSG Fuse Connection Unit is a type of electrical accessory commonly used in the UK. It is a wall-mounted device that provides a means of connecting and isolating electrical appliances or equipment.
The FCU typically contains a fuse, which helps protect the connected appliance from overcurrent. It is designed to handle a maximum current of 13 amperes at a voltage of up to 250 volts. The white color is likely for aesthetic purposes, making it compatible with a wide range of interior designs.
Schneider Electric KB30NFSG Fuse Connection Unit is commonly used for appliances that require a fixed connection, such as ovens, washing machines, or heaters. They provide a convenient way to isolate power to these appliances for maintenance or safety purposes.
Features
- Clean, geometrically balanced design
- Screwless Design
- Long cycle life
- All sockets are inserted with shutter doors for safety
- Thin: 8mm slim
| Brand | Schneider Electric |
| Item Name | Fuse Connection Unit |
| Model | KB30NFSG |
| Color | White |
| Rated Current | 13 A At 250 V AC, Resistive |
| Package1 Length*Width*Height | 1.000 cm x 1.000 cm x 1.000 cm |
| Ambient Air Temperature For Operation | -5-40 °C |
| Ambient Air Temperature For Storage | 0-60 °C |
| Clamping Connection Capacity | 2 x 4 mm² input, 3 x 2.5 mm² input, 1 x 1.5 mm² output, 1 x 2.5 mm² output |
| Contacts Material | Brass And Phosphor Bronze |
| Device Application | Power Supply |
| Device Mounting | Surface |
| Depth | 35mm |
| Height | 87mm |
| Embedding Depth | 35mm |
| Pilot Light | Red Neon Indicator |
| Range | Vivace |
| Material | Polycarbonate: grid plate, polycarbonate: surround, polycarbonate: base |
| Operating Altitude | 0...2000 m |
| Projecting Depth | 8 mm |
| Mounting Support | Wall Mounted |
| Network Frequency | 50 Hz |
| Fixing Center | 60.3 mm |
| Fixing Mode | By Screws M3.5 |
| Relative Humidity | 0-95 % |
| Terminal Identifier | N out, L out, N in, Earth |
| Tightening Torque | 0.4 N.m |
| Standards | BS 1363-4 |
| Connections - Terminals | Pillar Terminals |
| Width | 87mm |
| Environmental Characteristic | Indoor Use |
| Weight | 89.440 g |
