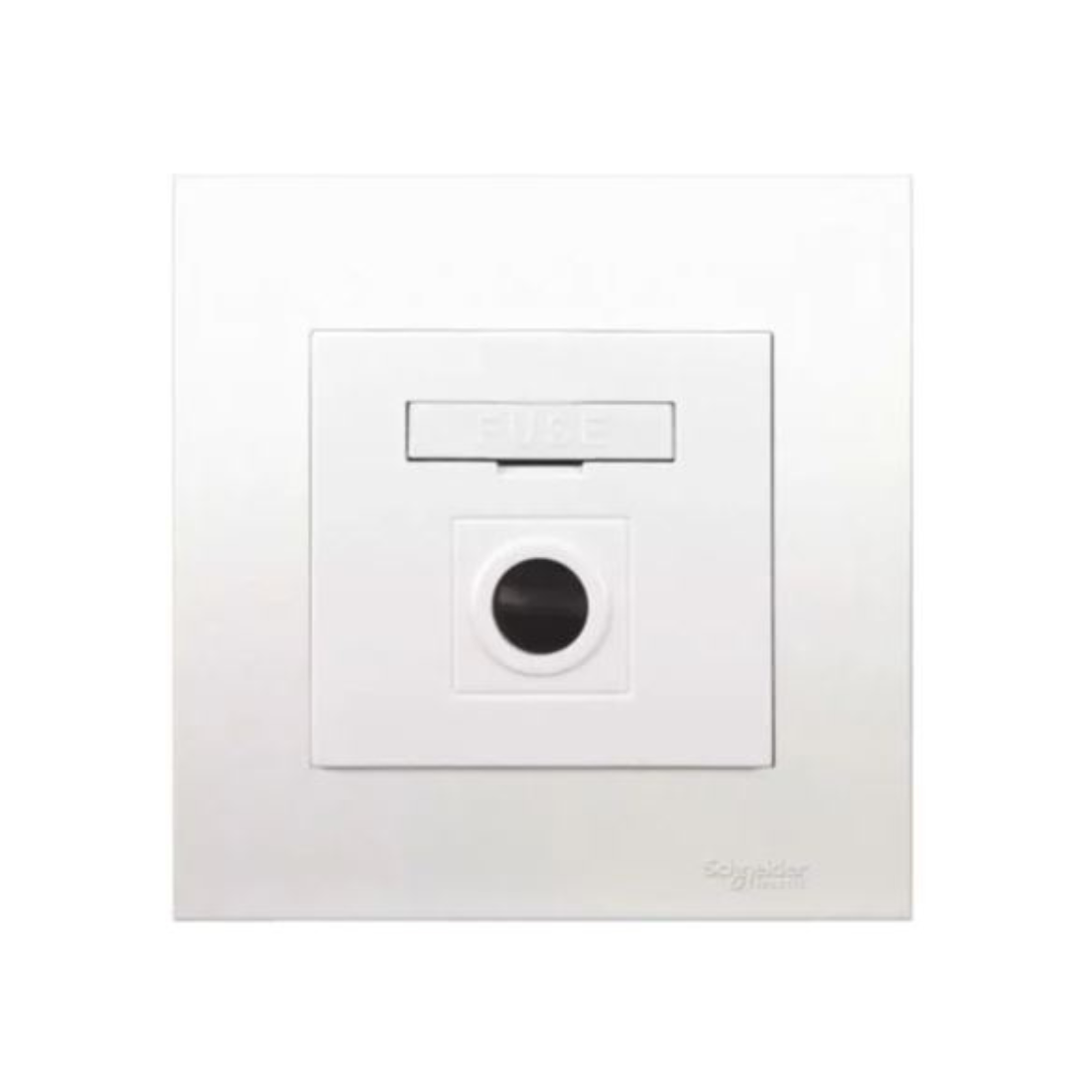

Schneider Electric Vivace Fuse Connection Unit 13A 250V KB30FSG - White
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Fused Connection
Description
Schneider Electric KB30FSG Fuse Connection Unit is an electrical device used to connect an electrical appliance or equipment to the electrical supply while also providing a means to isolate the power if needed. The unit typically includes a fuse, which is a safety device designed to protect the circuit from overcurrent situations. It is rated to handle a maximum current of 13 amperes.
FCU is designed to operate at a maximum voltage of 250 volts. White is the color of the unit, which is often chosen based on aesthetic preferences or to match the decor of the surrounding area.
Features
- Clean, geometrically balanced design
- Screwless Design
- Long cycle life
- All sockets are inserted with shutter doors for safety
- Thin: 8mm slim
| Brand | Schneider Electric |
| Item Name | Fuse Connection Unit |
| Model | KB30FSG |
| Color | White |
| Rated Current | 13 A At 250 V AC, Resistive |
| Package1 Length*Width*Height | 14.6 cm x 3.5 cm x 8.6 cm |
| Ambient Air Temperature For Operation | -5-40 °C |
| Ambient Air Temperature For Storage | 0-60 °C |
| Clamping Connection Capacity | 2 x 4 mm² input, 3 x 2.5 mm² input, 1 x 1.5 mm² output, 1 x 2.5 mm² output |
| Contacts Material | Brass And Phosphor Bronze |
| Device Application | Power Supply |
| Device Mounting | Surface |
| Depth | 35mm |
| Height | 87mm |
| Embedding Depth | 35mm |
| Range | Vivace |
| Material | Polycarbonate: grid plate, polycarbonate: surround, polycarbonate: base |
| Operating Altitude | 0...2000 m |
| Projecting Depth | 8 mm |
| Mounting Support | Wall Mounted |
| Network Frequency | 50 Hz |
| Fixing Center | 60.3 mm |
| Fixing Mode | By Screws M3.5 |
| Relative Humidity | 0-95 % |
| Terminal Identifier | N out, L out, N in, Earth |
| Tightening Torque | 0.4 N.m |
| Standards | BS 1363-4 |
| Connections - Terminals | Pillar Terminals |
| Width | 87mm |
| Environmental Characteristic | Indoor Use |
| Weight | 116.9g |
