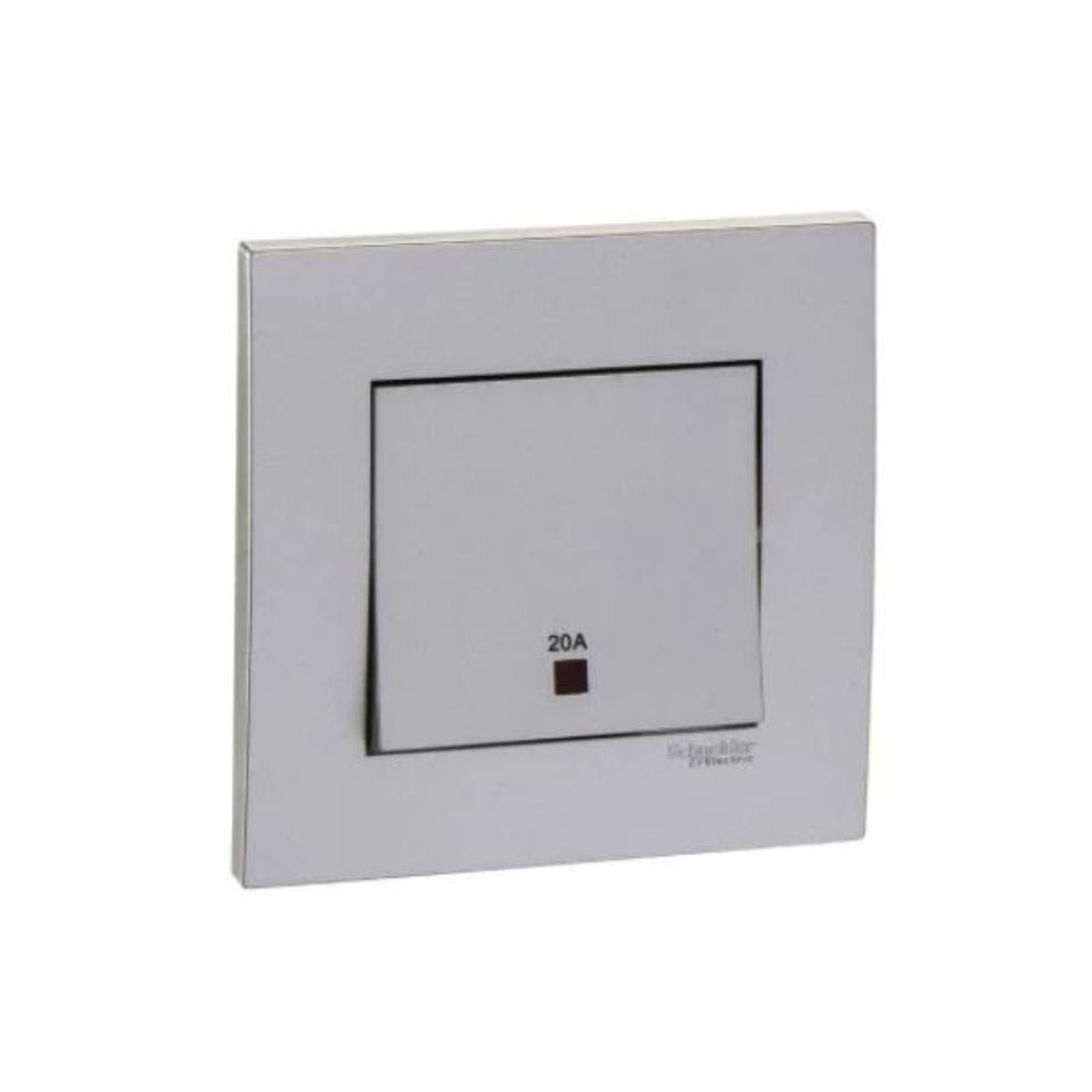

Schneider Electric Vivace Double Pole Switch with Neon and Earth 20A 250V 1 Gang KB31D20NE_AS - Aluminium Silver

Name: Schneider Electric Vivace Double Pole Switch with Neon and Earth 20A 250V 1 Gang KB31D20NE_AS - Aluminium Silver
Brand: Schneider Electric
Price: 35.0 AED
Availability: InStock

AED 35.00

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals Switches, Sockets and Accessories

Type:Double Pole Switch

Description

Schneider Electric KB31D20NE_AS Double Pole Switch With Neon And Earth is a specific type of electrical switch commonly used in households or commercial settings. The switch has two sets of contacts, which allows it to control two separate circuits. It has a small indicator light that is typically used to show if the switch is in the ON or OFF position.

The switch has a connection to the grounding wire. This is a safety feature that helps to prevent electrical shocks. 20A and 250V are the current and voltage ratings of the switch. It can handle a maximum current of 20 amperes and a maximum voltage of 250 volts. 1G is a single-gang switch, meaning it fits into a standard-sized electrical box and has one set of switches.

So, Schneider Electric KB31D20NE_AS Double Pole Switch With Neon And Earth is designed for a 20 ampere, 250-volt electrical system. It has two sets of contacts, a neon indicator light, and provisions for grounding. It's designed to fit into a single-gang electrical box and is finished in aluminum silver.

Features

Ideally suited for new construction and refurbishment projects
Thin: 8mm slim at the thickest point
Clean, geometrically balanced design
High fatigue resistance capacity
Available in White and Aluminum Silver

Specifications

Brand : Schneider Electric

Item Name : Double Pole Switch

Model : KB31D20NE_AS

Rated Current : 20 A at 250 V AC, Inductive, 20 A at 250 V AC, Resistive

Color : Aluminium Silver

Actuator : Rocker

Clamping Connection Capacity : <= 4 mm² For Rigid Or Stranded Cable(s)

Device Mounting : Flush

Device Application : Control Switch

Contacts Material : Brass & Phosphor Bronze

Switch Function : Double 1-Way With Earth

Height : 86mm

Embedding Depth : 20mm

Fixing Center : 60.3mm

Fixing Mode : By Screw M3.5

Material : Polycarbonate: Grid Plate, Polycarbonate: Surround, Nylon: Base

Mounting Support : Wall Mounted

Network Frequency : 50Hz

Number Of Gangs : 1 Gang

Number Of Rocker : 1

Number Of Terminals : 6

Operating Altitude : 0...2000 m

Pilot Light : Neon Indicator Lamp

Projecting Depth : 8mm

Range : Vivace

Width : 86mm

Surface Finish : Matt

Surface Treatment : Painted

Switch Application : On/Off Switching

Switch Function Double : 1-Way

Terminal Identifier : L1, L2, N1, N2

Technology Type : Electromechanical

Wire Stripping Length : 12 mm

Ambient Air Temperature For Operation : -5-40 °C

Standards : IEC 60669-1, SS 227, MS IEC 60669-1

Environmental Characteristic : Indoor Use

Connections - Terminals : Screw Terminal

Tightening Torque : 0.4 N.m
