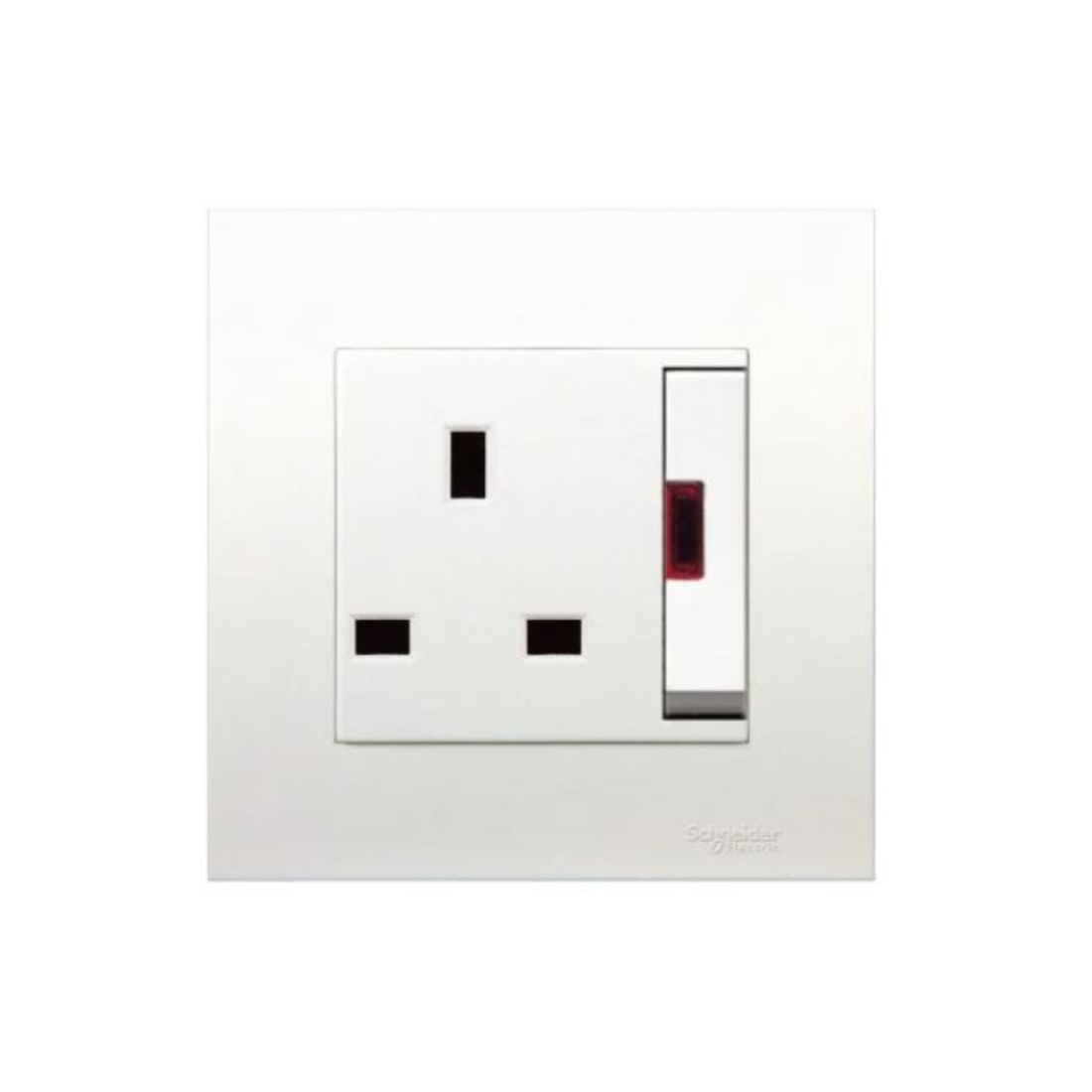

Schneider Electric Vivace Double Pole Large Dolly Switched Socket with Neon 13A 250V 1 Gang KB15LDN
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switched Socket
Description
Schneider Electric KB15LDN 1 Gang Double Pole Large Dolly Switched Socket With Neon is a switch that pushes or toggles to turn on or off. The switch itself is physically bigger or more prominent.Ā Double PoleĀ means that both the live and neutral wires are interrupted when the switch is turned off. This provides an extra level of safety and is often used for high-power appliances.
1 GangĀ isĀ the number of outlets in the socket.Ā It is a double gang switch,Ā which means there are two outlets in the same unit.Ā There is an indicator light that shows whether the socket is live or not. This can be helpful in indicating if there's power flowing through the socket even if nothing is plugged in. 30A, 250VĀ isĀ the maximum current and voltage that the socket is rated for. It is rated for a maximum of 30 amperes at 250 volts.
So, Schneider Electric KB15LDN 1 Gang Double Pole Large Dolly Switched Socket With NeonĀ is a switch that controls both live and neutral wires. It also has a neon indicator light, and it's rated for a maximum of 30 amps at 250 volts. This type of socket might be used for high-power appliances like ovens, washing machines, or other heavy-duty equipment.
Features
- Switched Socket with neonĀ indicator light
- Powering various electrical devices and appliances.
- 3-pin plug
Ā
| Brand | Schneider Electric |
| Item Name | Switched Socket |
| Model | KB15LDN |
| Rated Current | 13 A at 250 V AC, No Inductive Load |
| Color | White |
| Depth | 35mm |
| Device Application | Power Supply |
| Device Mounting | Flush |
| Embedding Depth | 35mm |
| Fixing Center | 60.3mm |
| Fixing Mode | By Screw M3.5 |
| Height | 86mm |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Surround, Polycarbonate: Base |
| Mounting Support | Wall Mounted |
| Network Frequency | 50/60Hz |
| Number Of Gangs | 1 Gang |
| Outlet Poles Configuration | 2P + E |
| Pilot Light | Red Neon Indicator |
| Range | Vivace |
| Relative Humidity | 0-95 % |
| Switch Application | On/Off Switching |
| Terminal Identifier | N, L, Earth |
| Width | 86 mm |
| Ambient Air Temperature For Operation | -0-40 Ā°C |
| Standards | SS 145, BS 1362-2, MS 589 |
| Environmental Characteristic | Indoor Use |
| Connections - Terminals | Pillar Terminal |
| Tightening Torque | 0.4 N.m |
