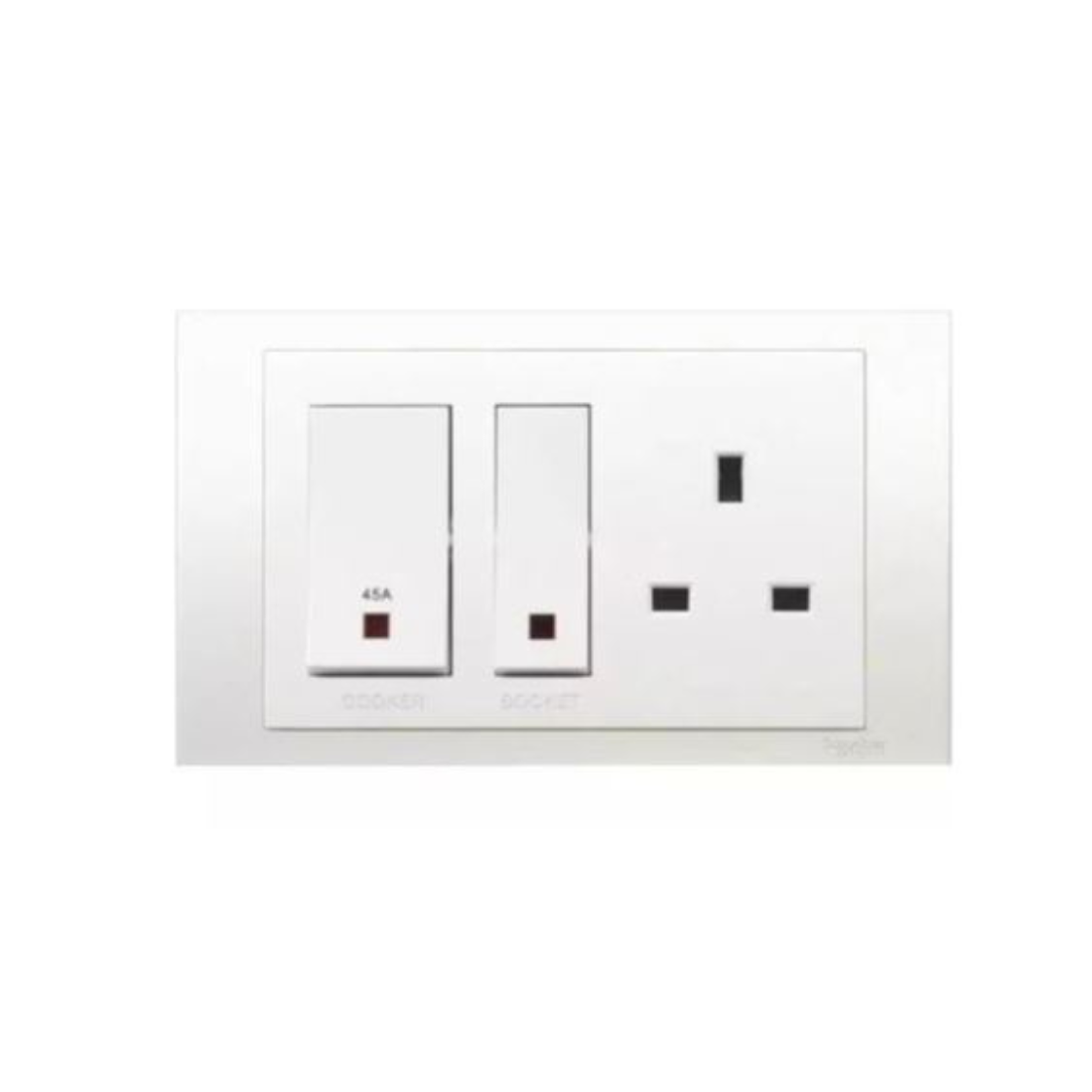

Schneider Electric Vivace Cooker Control Unit 45A 250V KBT15D45N - White
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Cooker Control Unit
Description
Schneider Electric KBT15D45N Cooker Control Unit is an electrical device used to control the power supply to an electric cooker. 45A is the amperage or current rating of the unit. It can handle a maximum current of 45 amperes. This is a common rating for cooker control units as they are designed to handle the high power requirements of electric cookers.
250V is the voltage rating of the unit. It can handle a maximum voltage of 250 volts. This is typical for household electrical systems. White is the color of the unit.
Features
- Clean, geometrically balanced design
- Screwless Design
- Long cycle life
- All sockets are inserted with shutter doors for safety
- Thin: 8mm slim
| Brand | Schneider Electric |
| Item Name | Cooker Control Unit |
| Model | KBT15D45N |
| Color | White |
| Rated Current | 45 A at 250 V AC, Resistive, 45 A at 250 V AC, iInductive |
| Package1 Length*Width*Height | 14.700 mm x 8.700 mm x 4.000 mm |
| Ambient Air Temperature For Operation | -5-40 °C |
| Ambient Air Temperature For Storage | -5-60 °C |
| Clamping Connection Capacity | <= 16 mm² |
| Depth | 47mm |
| Device Application | Power Supply |
| Device Mounting | Flush |
| Embedding Depth | 28.0 mm |
| Fixing Mode | Screwless M3.5 |
| Fixing Center | 120.6 mm |
| Height | 86mm |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: grid plate, polycarbonate: surround, polycarbonate: base |
| Mounting Support | Wall Mounted |
| Network Frequency | 50/60 Hz |
| operating Altitude | <= 2000 m |
| Outlet Poles Configuration | 2P + E |
| Range | Vivace |
| Projecting Depth | 8 mm |
| Number of Gangs | 1 Gang |
| Relative Humidity | 0-95 % |
| Switch Application | Cooker And Socket |
| Terminal Identifier | Earth, L, N |
| Tightening Torque | 0.4 N.m |
| Width | 146 mm |
| Standards | BS 4177 |
| Pilot Light | Red Neon Indicator |
| Connections - Terminals | Pillar Terminals |
| Environmental Characteristic | Indoor Use |
| Weight | 165.280 g |
