Schneider Electric Vivace Connection Unit 25A 250V KB31TB_AS Aluminium Silver in Dubai, UAE
Schneider Electric Vivace Connection Unit 25A 250V KB31TB_AS Aluminium Silver in Dubai, UAE

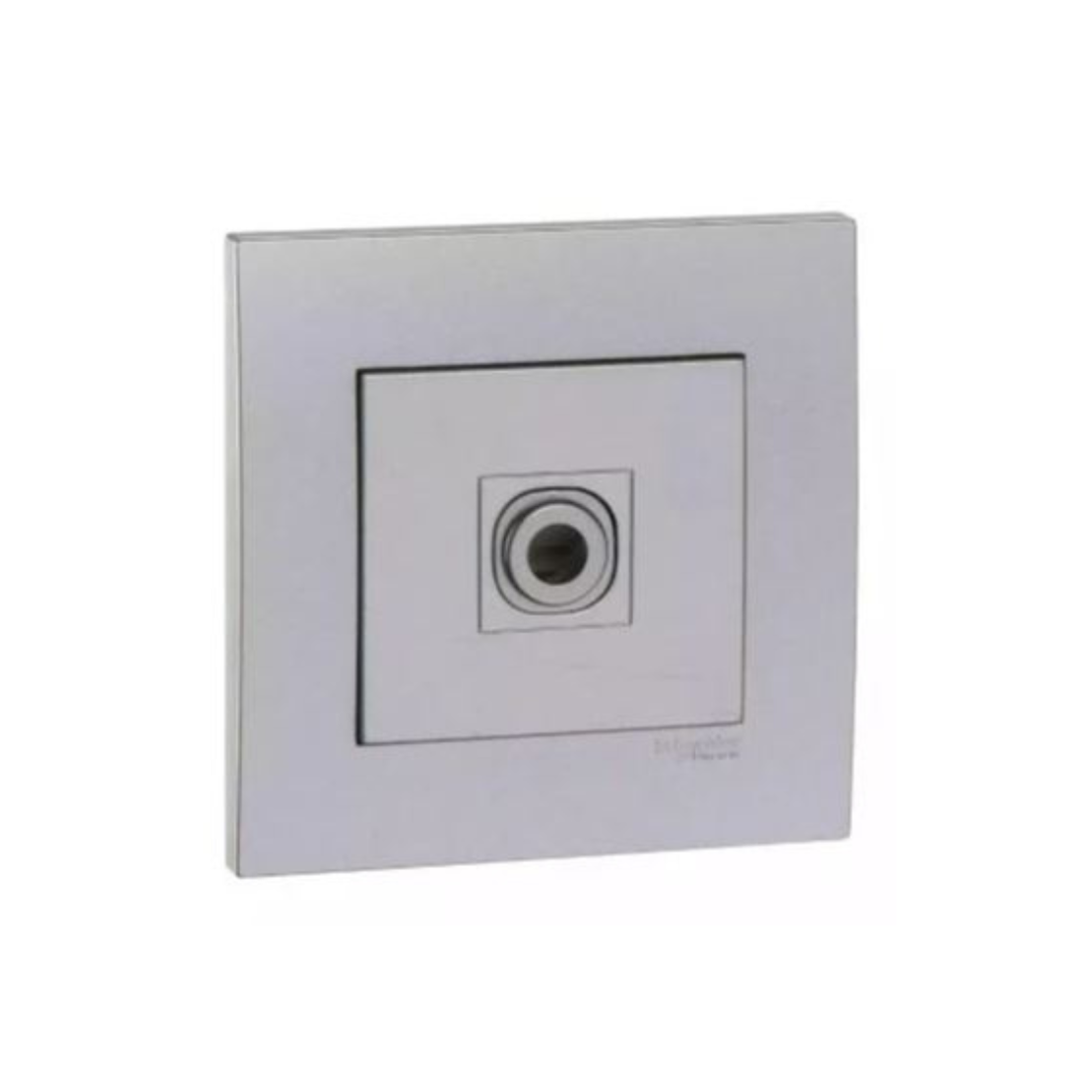

Schneider Electric Vivace Connection Unit 25A 250V KB31TB_AS - Aluminium Silver

Regular price AED 24.00
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Fuse Connection Unit
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric KB31TB_AS Connection Unit typically refers to a device that provides a means of connecting electrical wires or cables together. 25A is the amperage rating of the connection unit. It is rated for a maximum of 25 amperes of current. 250V is the voltage rating of the connection unit. It's designed to handle a maximum of 250 volts. Aluminium Silver is the color or finish of the unit.

    Features
    • Clean, geometrically balanced design
    • Screwless Design
    • Long cycle-life
    • All sockets are inserted with shutter doors for safety
    • Thin: 8mm slim
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Connection Unit

    Model : KB31TB_AS

    Color : Aluminium Silver

    Rated Current : 25 A at 250 V AC, Resistive

    Package1 Length*Width*Height : 8.6 cm x 3.7 cm x 8.6 cm

    Ambient Air Temperature For Operation : -5-40 °C

    Ambient Air Temperature For Storage : 0-60 °C

    Clamping Connection Capacity : 4 mm², 2.5 mm²

    Contacts Material : Brass And Phosphor Bronze

    Depth : 35mm

    Device Application : Power Supply

    Device Mounting : Flush

    Embedding Depth : 30 mm

    Height : 87mm

    Fixing Center : 60.3 mm

    Fixing Mode : By Screw M3.5

    IP Degree Of Protection : IP20

    Mounting Support : Wall Mounted

    Range : Vivace

    Material : Polycarbonate: grid plate, polycarbonate: surround, polycarbonate: base

    Network Frequency : 50 Hz

    Operating Altitude : 0...2000 m

    Projecting Depth : 8 mm

    Number of Gangs : 1 Gang

    Relative Humidity : 0-95 %

    Width : 87mm

    Standards : BS 5733

    Tightening Torque : 0.4 N.m

    Terminal Identifier : L1, L2, N1, N2, E

    connections - Terminals : Pillar Terminals

    Environmental Characteristic : Indoor Use

    Weight : 106.1 g
