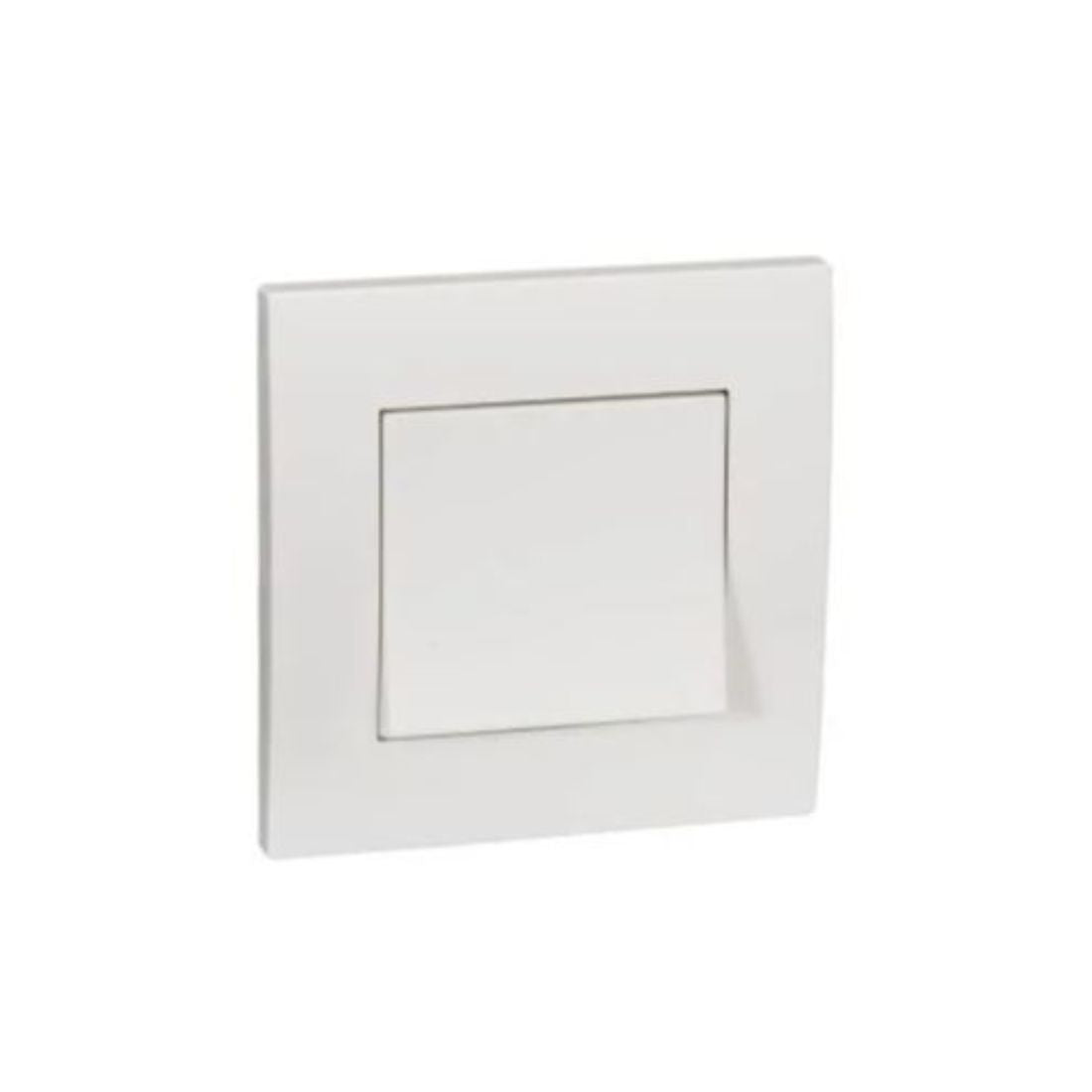

Schneider Electric Vivace Bell Press Switch without Marking, 10A, 250V 1 Gang KB31BP_WE - White
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switches
Description
Schneider Electric KB31BP_WE Bell Press Switch Without Marking is a type of switch commonly used in electrical installations. It is designed to be used with a bell or chime system. These switches are often used for doorbells. The switch doesn't have any specific symbols or labels on it to indicate its function.
10A, 250V is the electrical rating of the switch. It's rated to handle a maximum current of 10 Amperes and a maximum voltage of 250 Volts. 1G is the number of gangs or openings on the switch plate. A 1G switch typically has one opening for a switch or outlet.
Features
- Unique full flat frameless design with a clear edge
- Made with superior quality material
- Clean, geometrically balanced design
| Brand | Schneider Electric |
| Item Name | Bell Press Switch |
| Model | KB31BP_WE |
| Color | White |
| Actuator | Push-Button |
| Rated Current | 10 A at 250 V AC, Inductive, 10 A at 250 V AC, Resistive |
| Clamping Connection Capacity | <= 1.5 mm² For Rigid Or Stranded Cable(s) |
| Depth | 37mm |
| Device Application | Control Switch |
| Device Mounting | Flush |
| Embedding Depth | 25mm |
| Height | 86mm |
| Contacts Material | Brass And Phosphor Bronze |
| Fixing Center | 60.3mm |
| Fixing Mode By Screw | M3.5 |
| Environmental Characteristic | Indoor Use |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Surround, Nylon: Base |
| Marking Without | Marking |
| Mounting Support | Wall Mounted |
| Projecting Depth | 8mm |
| Network Frequency | 50/60 Hz |
| Number Of Gangs | 1 Gang |
| Number of Rocker | 1 |
| Number of Terminals | 2 |
| Operating Altitude | 0...2000 m |
| Range | Vivace |
| Relative Humidity | 0-95 % |
| Surface Finish | Glossy |
| Surface Treatment | Untreated |
| Switch Application | Bell Switch |
| Switch Function | Press Switch |
| Width | 86 mm |
| Terminal Identifier | COM, L2, L1 |
| Wire Stripping Length | 12mm |
| Ambient Air Temperature For Operation | -5-40 °C |
| Standards | IEC 60669-1, SS 227, MS IEC 60669-1 |
| Connections - Terminals | Screw Terminal |
| Tightening Torque | 0.4 N.m |
