Schneider Electric Vivace 4 Gang 2 Way Switch 10AX 250V KB34_AS 4 Aluminium Silver in Dubai, UAE
Schneider Electric Vivace 4 Gang 2 Way Switch 10AX 250V KB34_AS 4 Aluminium Silver in Dubai, UAE

Schneider Electric Vivace 4 Gang 2 Way Switch 10AX 250V KB34_AS 4 - Aluminium Silver

Regular price AED 45.00
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Switches
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

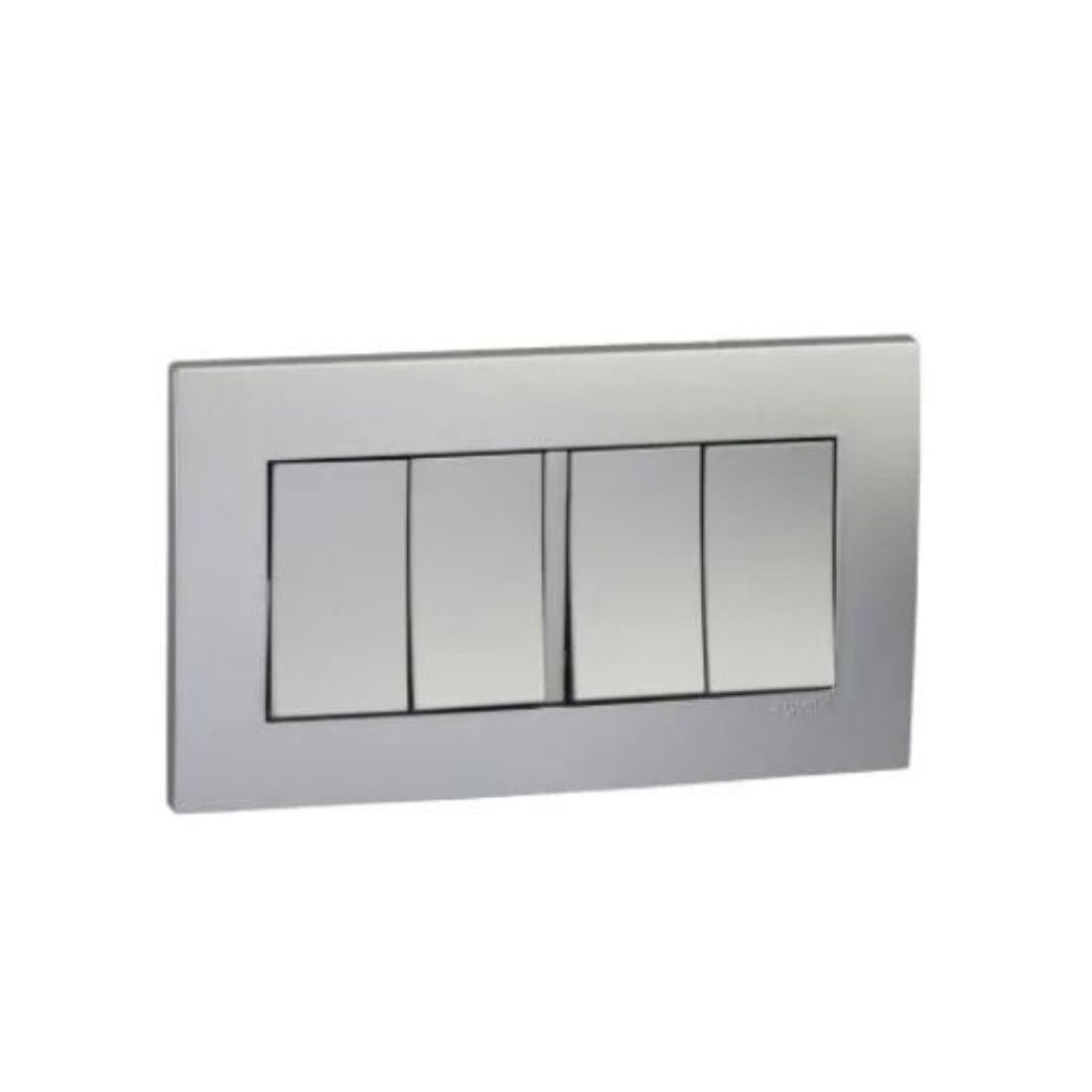

    Schneider Electric KB34_AS 4 Gang 2 Way Switch is a type of switch commonly used in homes or businesses to control lighting or other electrical devices. There are four individual switches on the same plate. Each switch can control a different electrical load independently.

    The switch can be used to control a single light or electrical device from two different locations. 10AX, 250V is the maximum electrical load and voltage the switch is designed to handle. It can handle up to 10 amps of current. 250V means it's rated for a maximum of 250 volts. Aluminium Silver is the color of the switch plate.

    Features
    • Ideally suited for new construction and refurbishment projects
    • Clean, geometrically balanced design
    • High fatigue resistance capacity
    • Thin: 8mm slim at the thickest point
    • Wall-mounted
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : 2-Way Switch

    Model : KB34_AS

    Color : Aluminium Silver

    Rated Current : 16 AX at 250 V AC, Fluorescent

    Clamping Connection Capacity : <= 2.5 mm²

    Embedding Depth : 35mm

    Device Application : Control

    Device Mounting : Flush

    Height : 86mm

    Device Presentation : Complete Mechanism

    IP Degree Of Protection : IP20

    Fixing Center : 120.6mm

    Fixing Mode : By Screw M3.5

    Material : Polycarbonate: Grid Plate, Polycarbonate: Surround, Nylon: Base

    Number Of Gangs : 4 Gangs

    Mounting Support : Wall Mounted

    Network Frequency : 50/60 Hz

    Projecting Depth : 8 mm

    Range : Vivace

    Relative Humidity : 0-95 %

    Switch Function : 2-way

    Terminal Identifier : COM, L2, L1

    Ambient Air Temperature For Operation : -5-40 °C

    Environmental Characteristic : Indoor Use

    Width : 146 mm

    Connections - Terminals : Pillar Terminal

    Standards : IEC 60669-1, MS IEC 60669-1, SS 227

    Tightening Torque : 0.4 N.m
