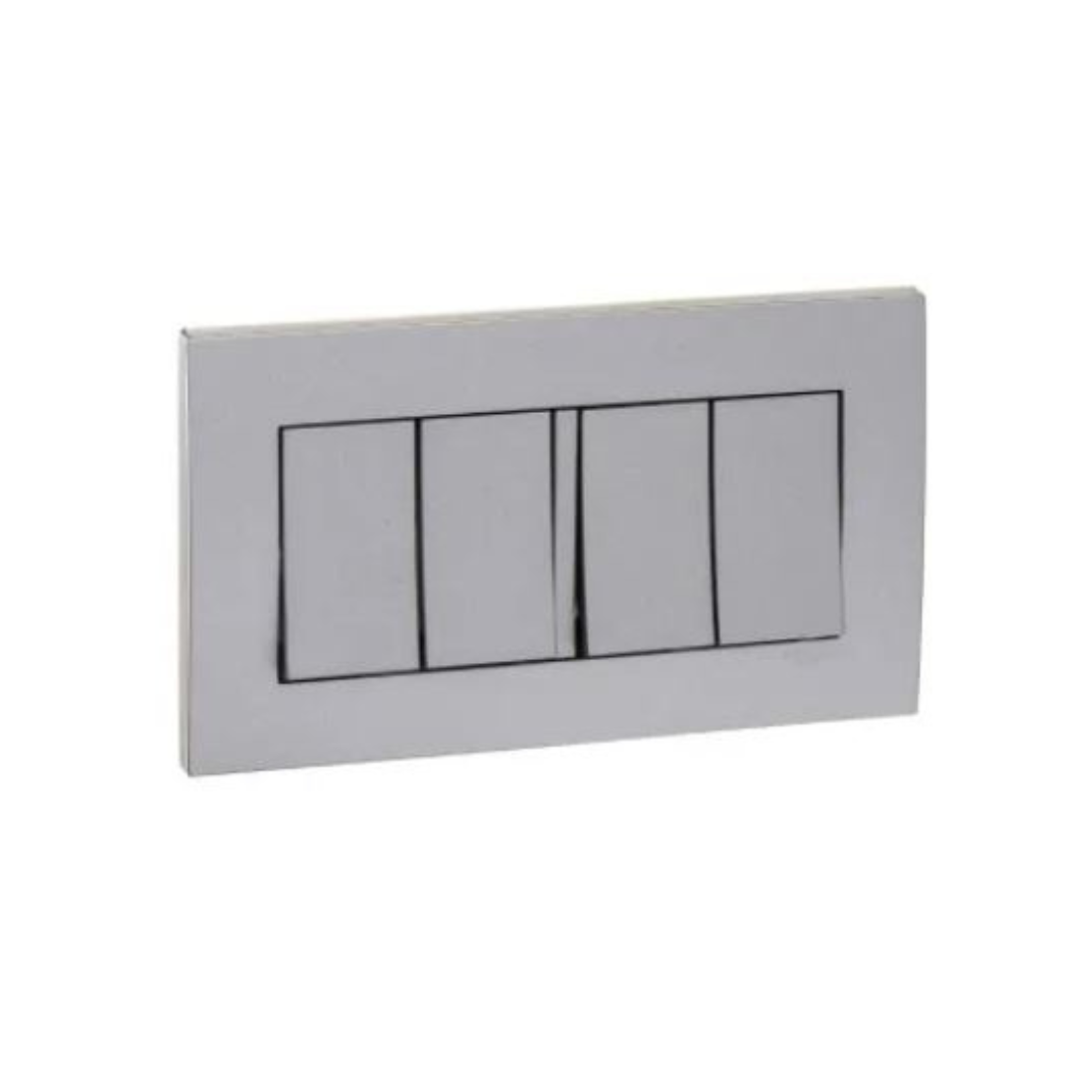

Schneider Electric Vivace 4 Gang 1 Way Switch 16AX 250V KB34_1_AS - Aluminium Silver
Schneider Electric Vivace 4 Gang 1 Way Switch 16AX 250V KB34_1_AS - Aluminium Silver

Schneider Electric Vivace 4 Gang 1 Way Switch 16AX 250V KB34_1_AS - Aluminium Silver

Regular price AED 39.00
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals Switches, Sockets and Accessories
Type:Switches
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric KB34_1_AS 4 Gang 1 Way Switch is a specific type of switch commonly used in electrical installations. The switch has four individual switch buttons. Each button can control a separate circuit or device. Each switch can control a single circuit. 16AX is the current rating or the maximum current the switch is designed to handle. 250V is the maximum voltage the switch is designed to handle.

    Schneider Electric KB34_1_AS 4 Gang 1 Way Switch is commonly used in households or commercial settings to control lighting or other electrical devices.

    Features
    • Ideally suited for new construction and refurbishment projects
    • Clean, geometrically balanced design
    • High fatigue resistance capacity
    • Thin: 8mm slim at the thickest point
    • Wall-mounted



Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : 1-Way Switch

    Model : KB34_1_AS

    Color : Aluminium Silver

    Rated Current : 16 AX at 250 V AC, Fluorescent

    Clamping Connection Capacity : <= 2.5 mm² For Rigid Or Stranded Cable(s)

    Depth : 37mm

    Device Application : Control

    Device Mounting : Flush

    Height : 86mm

    Embedding Depth : 25mm

    IP Degree Of Protection : IP20

    Fixing Center : 120.6mm

    Fixing Mode : By Screw M3.5

    Material : Polycarbonate: Grid Plate, Polycarbonate: Surround, Nylon: Base

    Number Of Gangs : 4 Gangs

    Mounting Support : Wall Mounted

    Network Frequency : 50/60 Hz

    Projecting Depth : 8mm

    Range : Vivace

    Relative Humidity : 0-95 %

    Switch Function : 2-way

    Surface Finish : Matt

    Surface Treatment : Painted

    Switch Application : On/Off Switching

    Wire Stripping Length : 12mm

    Technology Type : Electromechanical

    Terminal Identifier : COM, L2, L1

    Ambient Air Temperature For Operation : -5-40 °C

    Environmental Characteristic : Indoor Use

    Width : 146 mm

    Connections - Terminals : Pillar Terminal

    Standards : IEC 60669-1, SS 227, MS IEC 60669-1

    Tightening Torque : 0.4 N.m
