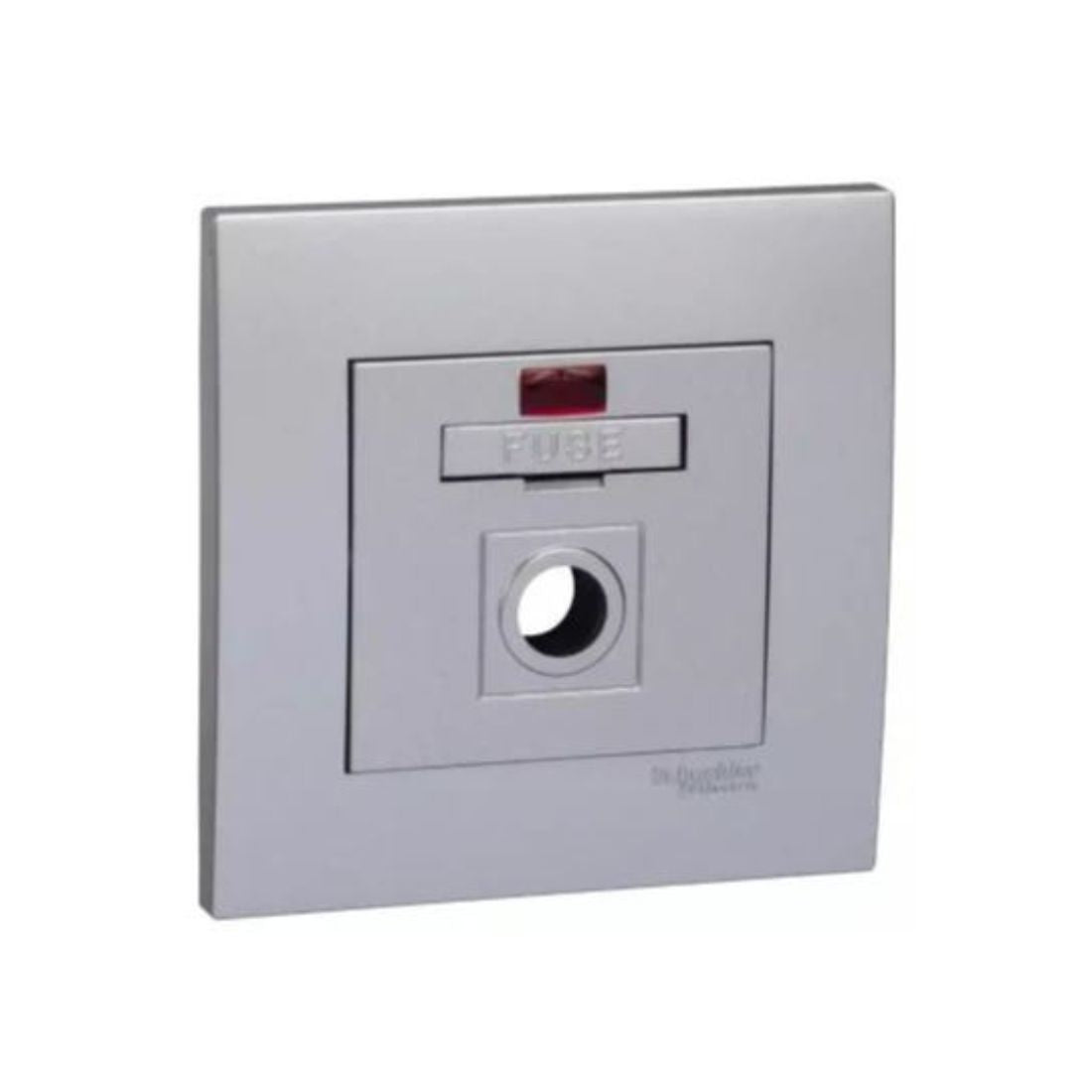

Schneider Electric Vivace 13A 250V Fused Connection with Neon KB30NFSG_AS - Aluminium silver
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Fused Connection
Description
Schneider Electric KB30NFSG_AS Fused Connection With Neon is an electrical outlet or socket commonly used in households or industrial settings. The outlet includes a fuse. A fuse is a protective device that breaks an electrical circuit when the current exceeds a certain level. It's a safety feature to prevent overloading and potential fires.
There is a small indicator light built into the socket. This light typically indicates whether the socket is live and receiving power. 13A, and 250V are the electrical ratings of the outlet. It is designed to handle a maximum current of 13 amperes and a voltage of up to 250 volts. Schneider Electric KB30NFSG_AS Fused Connection With Neon is commonly used for various appliances in homes and businesses.
Features
- Clean, geometrically balanced design
- Screwless Design
- Long cycle life
- All sockets are inserted with shutter doors for safety
- Thin: 8mm slim
Brand | Schneider Electric |
Item Name | Fused Connection |
Model | KB30NFSG_AS |
Color | Aluminium Silver |
Rated Current | 13 A At 250 V AC, Resistive |
Package1 Length*Width*Height | 8.6 cm x 3.5 cm x 8.6 cm |
Ambient Air Temperature For Operation | -5-40 °C |
Clamping Connection Capacity | 2 x 4 mm² input, 3 x 2.5 mm² input, 1 x 1.5 mm² output, 1 x 2.5 mm² output |
Contacts Material | Brass And Phosphor Bronze |
Device Application | Power Supply |
Device Mounting | Surface |
Depth | 35mm |
Height | 87mm |
Embedding Depth | 28 mm |
Pilot Light | Neon Indicator |
Range | Vivace |
Material | Polycarbonate: grid plate, polycarbonate: surround, polycarbonate: base |
Operating Altitude | 0...2000 m |
Number of Gangs | 1 Gang |
Projecting Depth | 8 mm |
Mounting Support | Wall Mounted |
Network Frequency | 50 Hz |
Fixing Center | 60.3 mm |
Fixing Mode | By Screws M3.5 |
Relative Humidity | 0-95 % |
Terminal Identifier | N out, L out, N in, Earth |
Tightening Torque | 0.4 N.m |
Standards | BS 1363-4 |
Connections - Terminals | Pillar Terminals |
Width | 86mm |
Environmental Characteristic | Indoor Use |
Weight | 113.4g |
