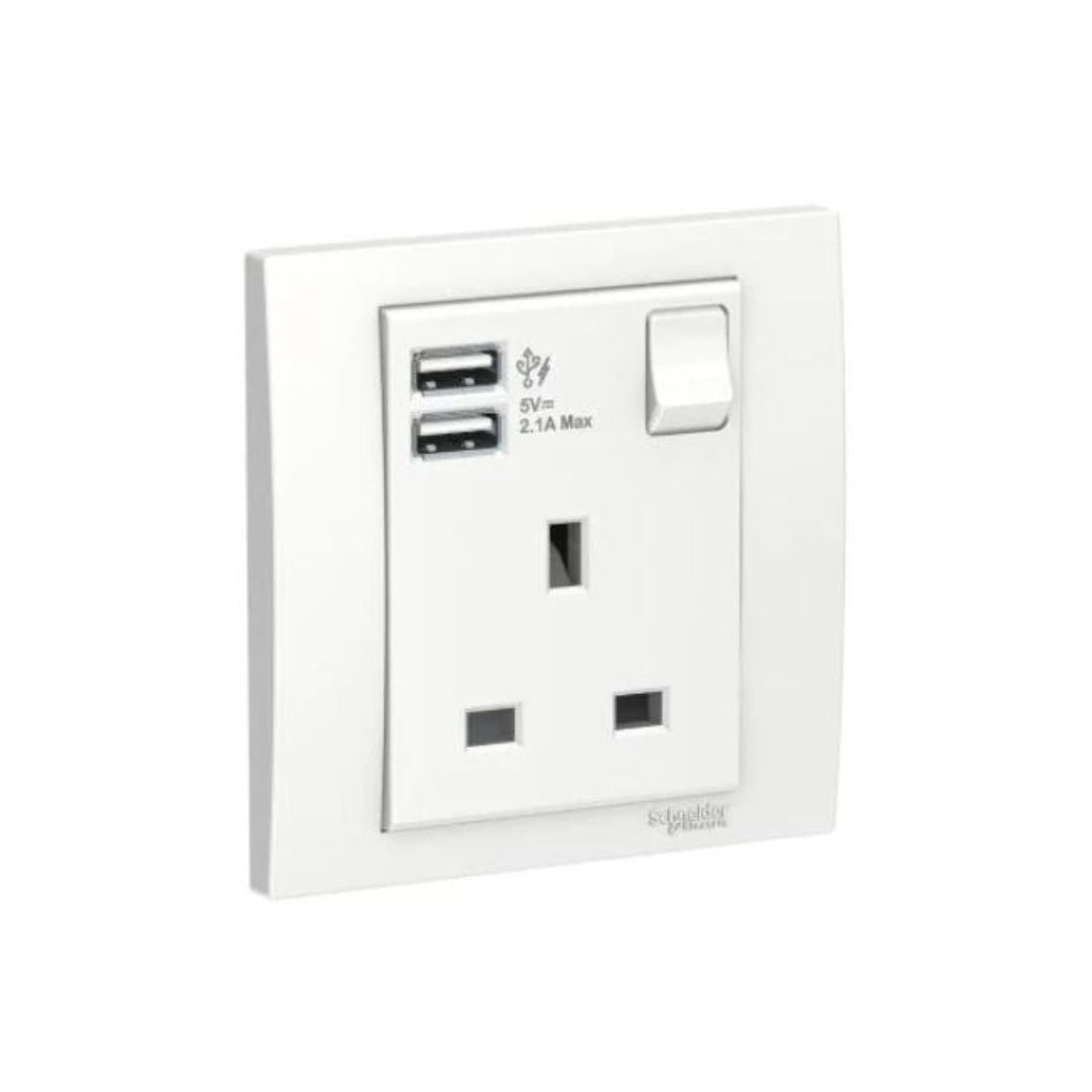

Schneider Electric Vivace 13A 1 Gang Switched Socket with 2.1A USB KB15USB_WE_G12 - White
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : USB With Switched Socket
Description
Schneider Electric KB15USB_WE_G12 13A, 1Gang, Switched Socket With 2.1A USB is commonly used in homes or offices and provides both traditional power outlets and USB ports for charging devices. 13A is the amperage rating of the socket. It means the socket is designed to handle up to 13 amperes of current. This is a standard rating for power outlets in many countries.
1 Gang is the socket that has a single outlet for a plug. A gang in electrical terminology refers to a set of switches or outlets in a single unit. The socket has an on/off switch, to control the flow of electricity to the outlet. This is useful for turning off power to the connected device without unplugging it. The socket also includes USB ports with a total charging capacity of 2.1 amperes. This is generally suitable for charging smartphones, tablets, and other small electronic devices.
In summary, Schneider Electric KB15USB_WE_G12 13A, 1Gang, Switched Socket With 2.1A USB is an electrical outlet with one plug socket, a 13 amp rating, an on/off switch, and two USB ports capable of providing a total of 2.1 amperes of charging power. It comes in a white color.
Features
- Provide both USB charging capabilities and traditional power outlets.
- Its connection terminals are screw terminals.
- Ideally suited for new construction and refurbishment projects
- Unique Full Flat Design
Brand | Schneider Electric |
Item Name | Switched Socket With USB |
Model | KB15USB_WE_G12 |
Clamping Connection Capacity | 1 x 4 mm² For Solid Cable(s), 2 x 4 mm² For Stranded Cable(s), 1 x 2.5 mm², 2 x 2.5 mm² |
Rated Current Power Circuit | 13 A 220...250 V, AC, 50/60 Hz |
Color | White |
Connector Type USB | Type A |
Depth | 41.9mm |
Device Mounting | Flush 47mm |
Electrical Connection | 3 Screw Terminal |
Embedding Depth | 30.6mm |
Fixing Center | 60.3mm |
Fixing Mode | By Screws M3.5 x 25mm |
Input Power | 16W |
Height | 87mm |
IP Degree Of Protection | IP20 |
Integrated Connection Type | 2 USB port 5 V DC, Maximum Load Current: 2.1 A |
Mounting Support | Mounting Box Conforming To BS 4662 |
Material | Polycarbonate: Grid Plate, Polycarbonate: Cover, Polycarbonate: Surround, Polycarbonate: Dolly, Nylon + GF: Shutter, Brass: Contact Plate, Steel: Spring, Nickel Steel: Terminal Screw |
Number Of Gangs | 1 Gang |
Number Of Power Socket Outlets | 1 x 2P + E With Shutters, British |
Operating Altitude | <= 2000m |
Power Consumption | 0.075W |
Range | Vivace |
Protection Type | USB port: over temperature protection with PWM IC circuit, USB port: over-voltage protection against surges with PWM IC circuit, USB port: overcurrent between output phases and earth (on power up only) with PWM IC circuit |
Relative Humidity | 0-95 % |
Socket Number | 1 |
Surface Finish | Glossy |
Screwdriver Shape | Phillips |
Surface Finish | Glossy |
Surface Treatment | Painted |
Switch Function | ON/OFF Power-Socket Outlet |
Wire Stripping Length | 10-12 mm |
Ambient Air Temperature For Operation | 0-40 °C |
Ambient Air Temperature For Storage | -5-60 °C |
Standards | IEC 60950-1, BS 1363-2 |
Environmental Characteristic | Alcohol, Liquid Soap |
Width | 86mm |
Net Weight | 0.1 kg |
