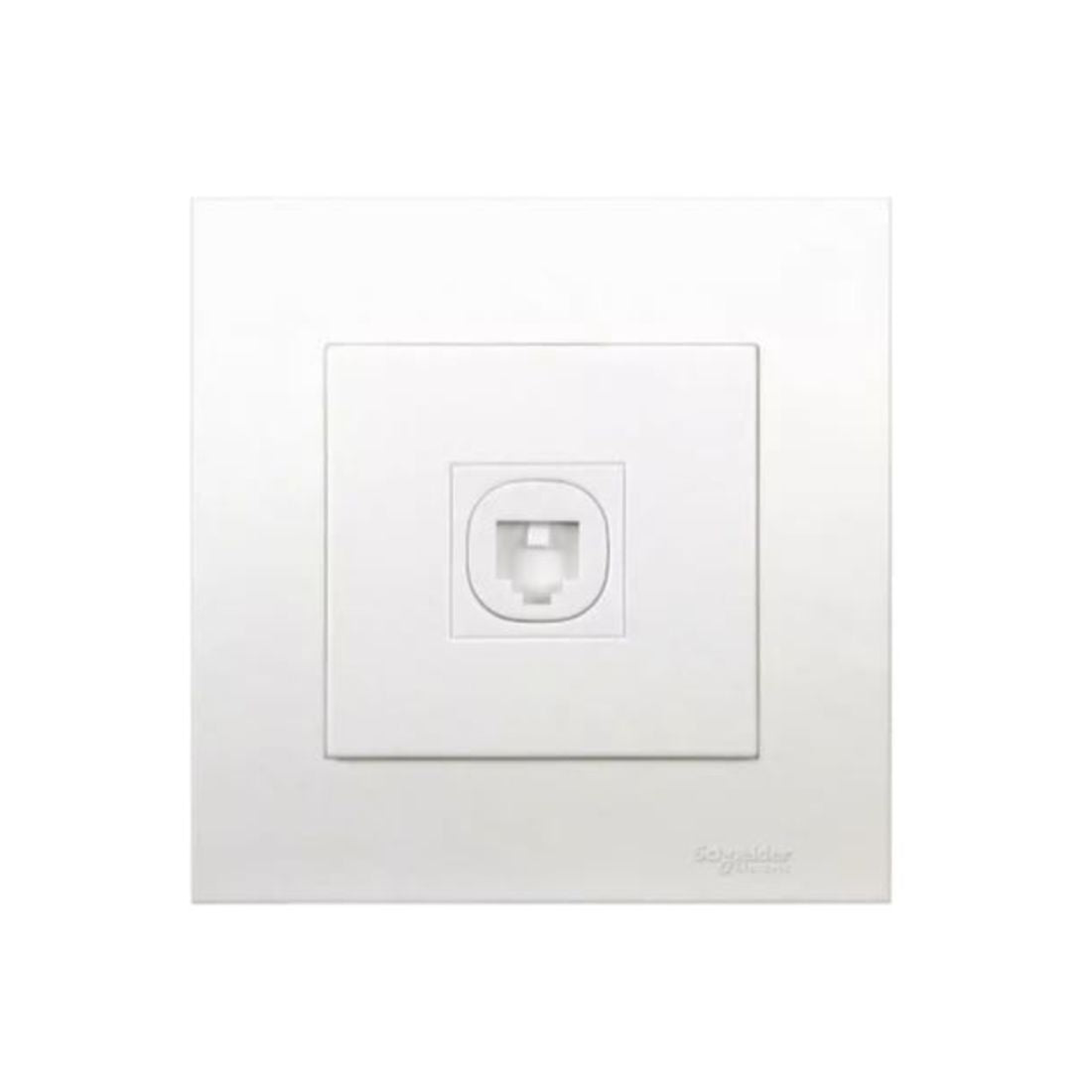

Schneider Electric Vivace 1 Gang Telephone Outlet with Shutter KB31TS

AED 10.50

(Price Includes VAT)

Delivery truck icon

Order Now & Get it by 2 days

Shop logo

Sold by: Marketplace

Free delivery inside Dubai on all orders with no order limit. Pay in 4 interest-free installments for Dubai orders using Tabby.
Cash on delivery payment method icon
Cash on Delivery
7 Days Returnable icon
7 Days Returnable
15+ Years Of Trust icon
15+ Years Of Trust
15+ Branches icon
15+ Branches
Quantity

Brand : Schneider Electric

Type : Telephone & Data Socket

Collections

Description

Schneider Electric KB31TS 1 Gang Telephone Outlet With Shutter is a type of electrical fixture used for connecting telephone lines. The term gang is the number of ports or connections available on the outlet, which means there is a single telephone port. It has a protective cover mechanism built into the outlet.

It's designed to prevent dust, dirt, or foreign objects from entering the port when it's not in use. When a telephone plug is inserted into the outlet, the shutter opens automatically to allow the connection. When the plug is removed, the shutter closes, providing a level of protection for the port.

Schneider Electric KB31TS 1 Gang Telephone Outlet With Shutter is commonly used in residential and commercial buildings to provide a clean and safe connection point for telephone lines. It helps maintain the integrity of the connection and prolong the lifespan of the outlet.

Features
  • Clean, geometrically balanced design
  • Screwless Design
  • Long cycle life
  • All sockets are inserted with shutter doors for safety
  • Thin: 8mm slim
Specifications
Brand Schneider Electric
Item Name Telephone Socket
Model KB31TS
Color White
Rated Current 10 AX at 250 V AC 50 Hz
Package1 Length*Width*Height 1.000 mm x 1.000 mm x 1.000 mm
Connector Type M-110 Keystone RJ45 Connector
Device Mounting Flush
Embedding Depth 28mm
Number Of Gangs 1 Gang
Height 87mm
Material Polycarbonate: Grid Plate, Polycarbonate: Surround, Polycarbonate: Base
Mounting Support Wall Mounted
Ambient Air Temperature For Operation -5-40 °C
Ambient Air Temperature For Storage -5-40 °C
Relative Humidity 0-95 %
Operating Altitude 0...2000 m
Projecting Depth 8 mm
Range Vivace
Fixing Center 60.3mm
Fixing Mode By 2 Screws
Surface Finish Untreated
Surface Treatment Untreated
Telephone Socket Type RJ11 (4 contacts), RJ11 (4 contacts)
Type of Cable 2 Pairs
Standards IEC 60670-1
Environmental Characteristic Indoor
Tightening Torque 0.4 N.m
Width 87mm
Weight 52.700 g
