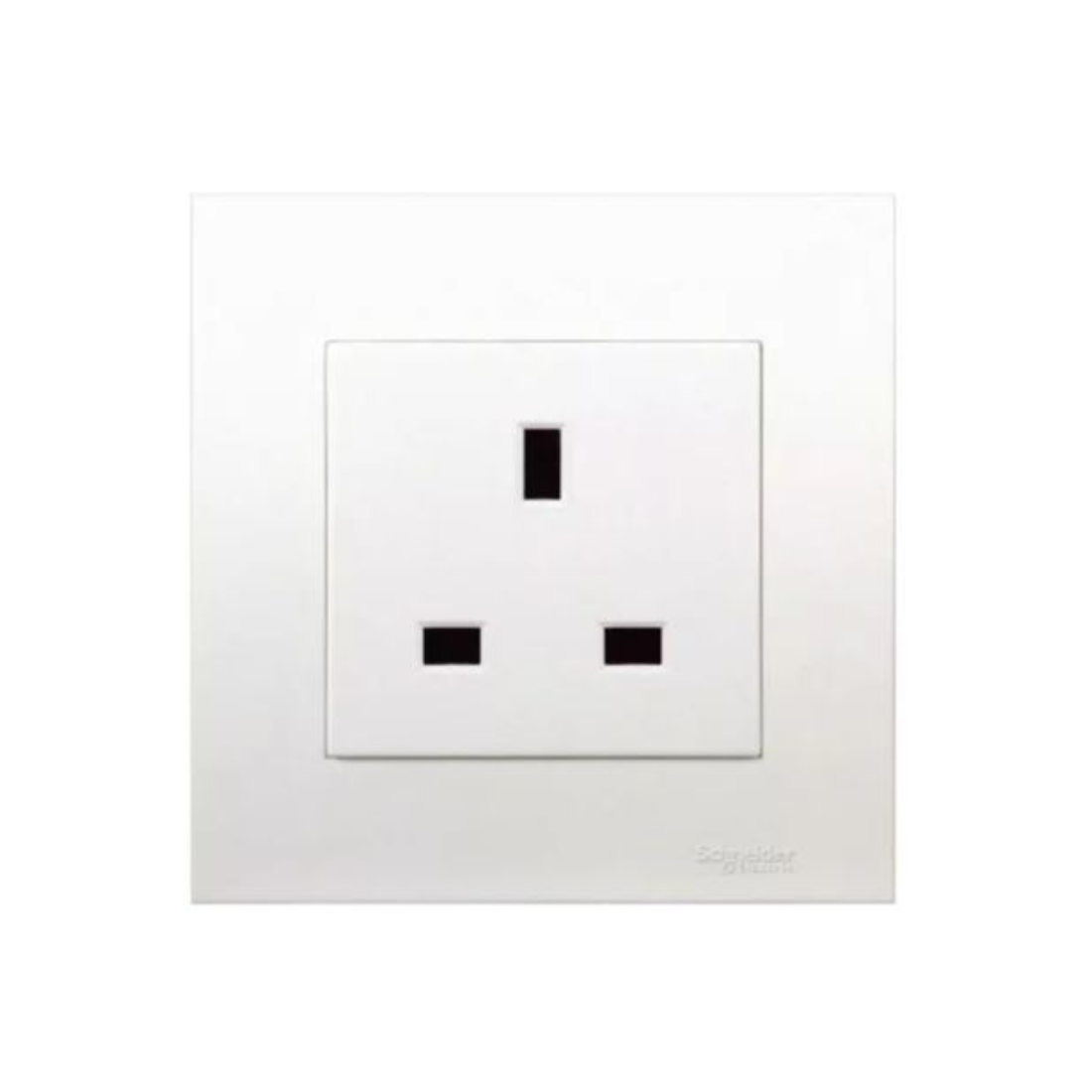

Schneider Electric Vivace 1 Gang Socket 13A 250V KB426 - White
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Socket
Description
Schneider Electric KB426 1 Gang Socket is a standard type of socket commonly used in households or commercial buildings. 1 gang is the number of outlets on the socket. It has a single outlet. 13A is the maximum current the socket can handle. 250V is the maximum voltage the socket is designed to handle. White is the color of the socket cover or plate.
Schneider Electric KB426 1 Gang Socket is suitable for general household use, including plugging in appliances like computers, lamps, or chargers.
Features
- Clean, geometrically balanced design
- Screwless Design
- Long cycle-life,
- All sockets are inserted with shutter doors for safety
- Thin: 8mm slim
| Brand | Schneider Electric |
| Item Name | Socket |
| Model | KB426 |
| Color | White |
| Package1 Length*Width*Height | 1.000 cm x 1.000 cm x 1.000 cm |
| Ambient Air Temperature For Operation | -5-40 °C |
| Ambient Air Temperature For Storage | -5-60 °C |
| Clamping Connection Capacity | 1 x 2.5...3 x 2.5 mm² for rigid or stranded cable(s) |
| Connections - Terminals | Pillar Terminal |
| Embedding Depth | 20mm |
| Device Application | Power Supply |
| Device Mounting | Flush |
| Device Presentation | Complete Mechanism |
| Contacts Material | Brass And Phosphor Bronze |
| Fixing Mode | By Screws |
| Environmental Characteristic | Indoor Use |
| Fixing Center | 60.3mm |
| Height | 86mm |
| Integrated Connection Type | 1 Socket-outlet 220...250 V AC, maximum load current: 13 A |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Surround, Polycarbonate: Base |
| Mounting Support | Wall Mounted |
| Network Frequency | 50/60 Hz |
| Number Of Gangs | 1 Gang |
| Network Type | AC |
| Number of Terminals | 3 |
| Operating Altitude | 0...2000 m |
| Outlet Poles Configuration | 2P + E With Sutter |
| Range | Vivace |
| Projecting Depth | 8mm |
| Relative Humidity | 0-95 % |
| Width | 86 mm |
| Terminal Identifier | N, Earth, L |
| Tightening Torque | 0.4 N.m |
| Socket Number | 1 |
| Standards | BS 1363-2, MS 589, SS 145 |
| Outlet Standard Deviation | British |
| Environmental Characteristic | Indoor Use |
| Weight | 77.780 g |
