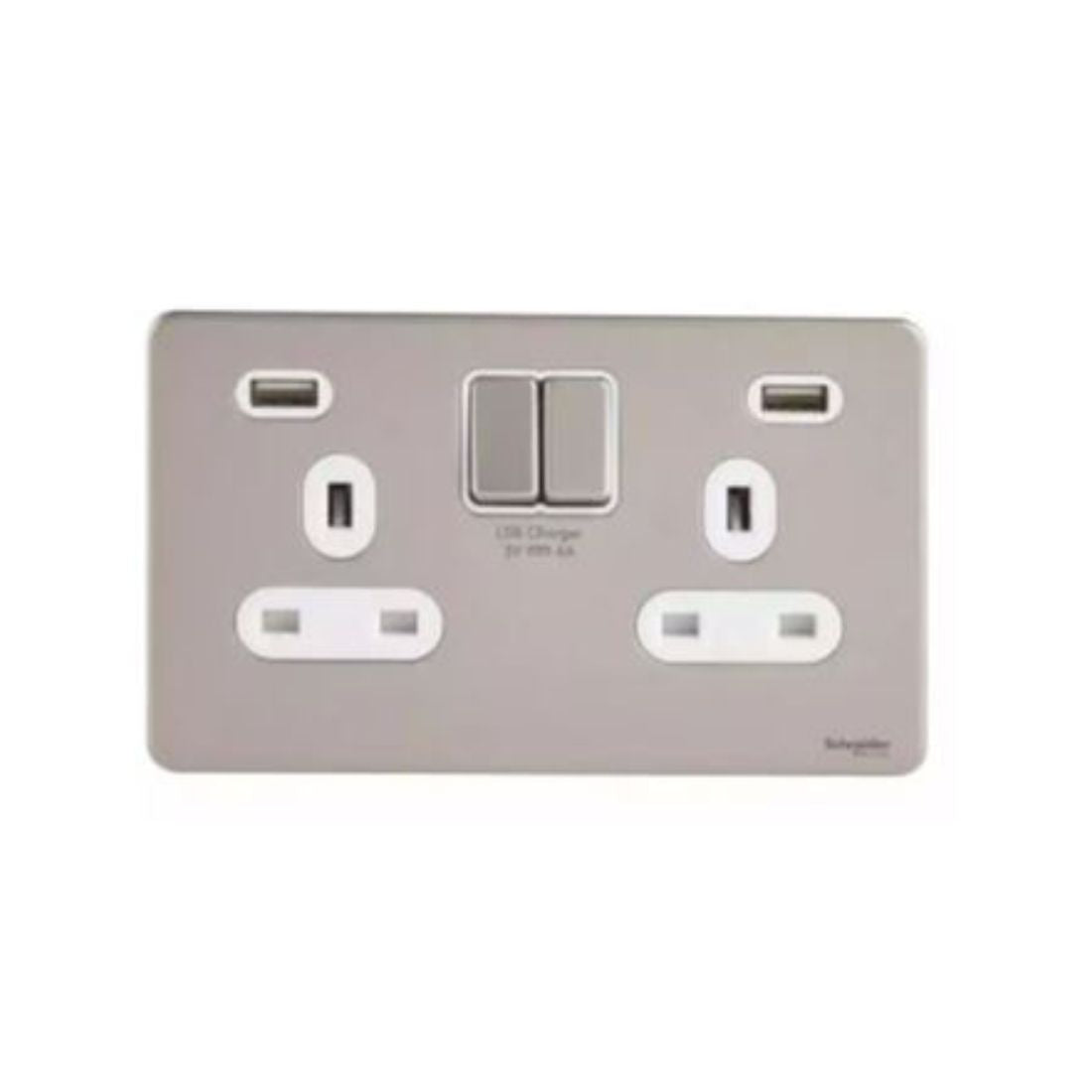

Schneider Electric Ultimate Switched Socket 2 USB Charger 2 Gang 13A GGBGU3424DWPN - Pearl Nickel, White
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : USB With Switched Socket
Description
Schneider Electric GGBGU3424DWPN Switched Socket 2 USB Charger is designed to plug in standard electrical devices, as well as charge USB-powered devices without needing an additional adapter. The socket has an on/off switch, to control the power supply to the devices plugged into it. This can be useful for saving energy or for safety reasons.
There are two dedicated ports for charging devices that use USB cables. These are typically used for charging smartphones, tablets, and other gadgets that can be powered via USB. 2G means there are two sets of switches or sockets in one unit. 13A is the amperage rating of the socket. It means that the socket is designed to handle devices with a maximum load of 13 amperes. Pearl Nickel, White is the color of the socket.
Overall, the Schneider Electric GGBGU3424DWPN Switched Socket 2 USB Charger is a convenient addition to any household or office space, as it allows to charge USB-powered devices without needing an additional adapter. It also provides the option to control the power to the connected devices using the switch.
Features
- The easy-clip screwless front plate for simple removal and replacement
- Curved, matching metal rocker retracts to its original position after depression
- Full 16AX rating for Fluorescent and inductive loads
Brand | Schneider Electric |
Item Name | Switched Socket With USB |
Model | GGBGU3424DWPN |
Rated Current | 13 A at 220...240 V AC 50/60 Hz |
Color | Front Plate: Stainless Steel, Interior: Black |
Package1 Length*Width*Height | 15.4 cm x 9.7 cm x 4 cm |
Actuator | Rocker |
Clamping Connection Capacity | 2 x 6 mm² for solid cable(s), 3 x 4 mm² for solid cable(s), 5 x 2.5 mm² for solid cable(s), 3 x 4 mm² for stranded cable(s), 5 x 2.5 mm² for stranded cable(s) |
Depth | 30.5mm |
Device Mounting | Flush, Surface |
Device Application | USB Charger |
Directives | 2014/35/EU - Low Voltage Directive, 2014/30/EU - electromagnetic compatibility, 2019/1782/EC - ecodesign |
Earth Circuit | Standard Earth |
Fixing Mode | 2 screw: M3.5 26 mm diameter: 3.5 mm, 2 screw: M3.5 32 mm diameter: 3.5 mm |
Height | 87.5 mm |
Material | Stainless Steel |
IP Degree Of Protection | IP20 |
Integrated Connection Type | 2 USB Port 5 V AC/DC, Maximum Load Current: 2.1 A |
Number Of Gangs | 2 Gangs |
Pilot Light | Silver Without LED |
Range | Ultimate |
Socket Additional Information | Earthed |
Switch Function | 2-Pole |
Surface Finish | Metallic |
Width | 147.5 mm |
Standards | BS 1363-2 |
Weight | 359.6g |
Connections - Terminals | Screw Terminals |
