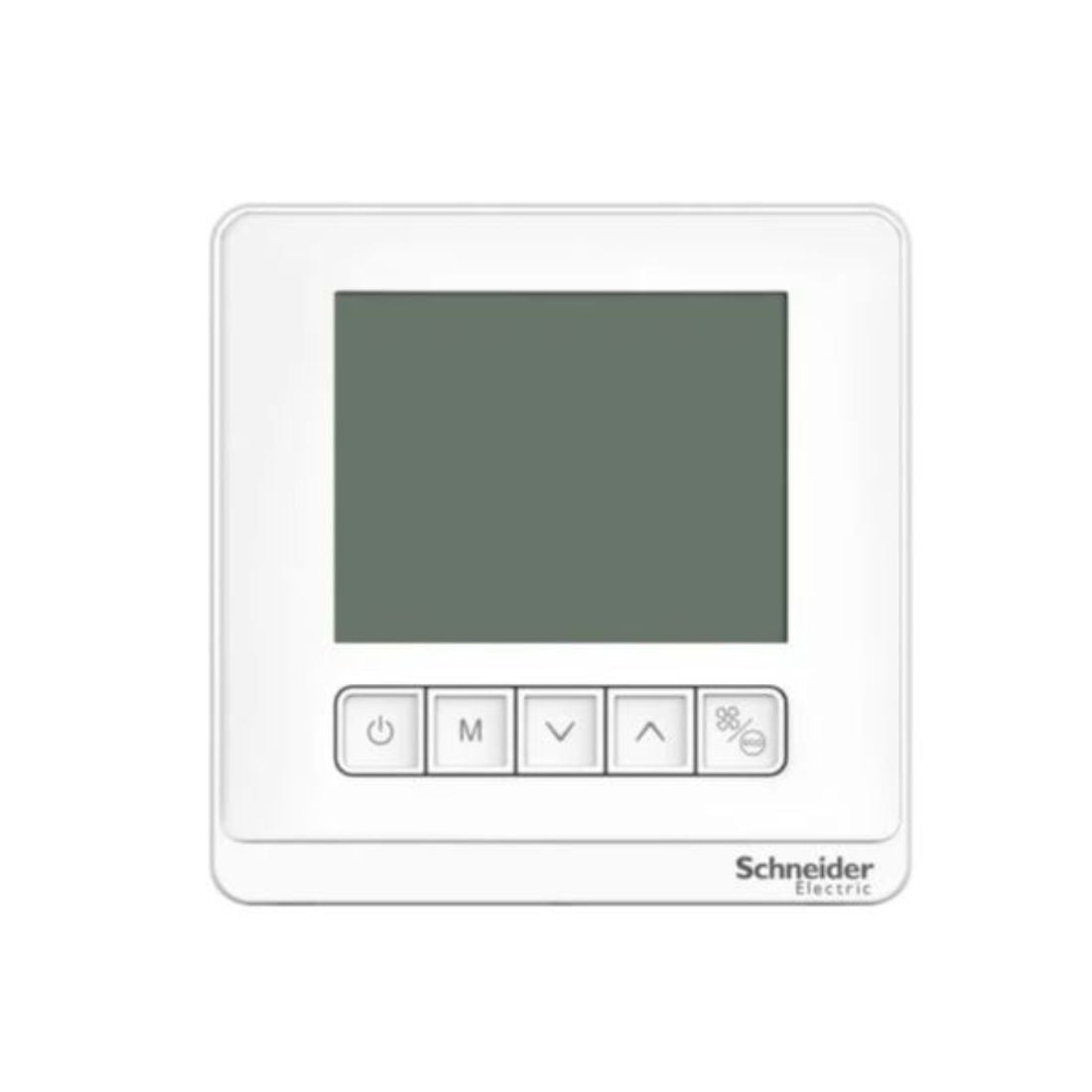

Schneider Electric Thermostat SpaceLogic Fan Coil Proportional Standalone LCD 5 Button 2P 3 Fan 24V TC903-3A2P-24 - White
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Sold by: Marketplace
Brand : Schneider Electric
Type : Thermostat
Description
Schneider Electric TC903-3A2P-24 Thermostat is a device used to regulate and control the temperature of a system, typically in a heating or cooling system within a building. This thermostat appears to be standalone, meaning it operates independently and does not require a central system to function. It has an LCD display with five buttons for user interaction.
It is designed for controlling a fan coil system that operates proportionally. This means it likely modulates the fan speed based on the desired temperature, providing a more precise control of the environment. 2P refers to a two-pipe system, which is common in HVAC systems. This indicates that the thermostat is designed to work with a fan coil system that either heats or cools but not both simultaneously.
Schneider Electric TC903-3A2P-24 Thermostat can control three different fan speeds. The thermostat operates on a 24-volt power supply. White is the color of the thermostat.
Features
- Control the temperature of a system
- Fan Coil Proportional control system
- Standalone
- It has an LCD display with five buttons
- Capable of controlling three different fan speeds
| Brand | Schneider Electric |
| Item Name | Thermostat |
| Model | TC903-3A2P-24 |
| Color | White |
| Rated Supply Voltage | 24 V AC 50/60 Hz |
| Ambient Air Temperature For Operation | 0-50 °C |
| Connections - Terminals | Screw Terminal (back) - 2 cable(s) 1.5-1.5 mm², Screw Terminal (back) - 1 cable(s) 2.5-2.5 mm² |
| Control Type | Mechanical, for thermostat, pulse width modulation, for actuator, 3 speed control relay, for fan |
| Device Application | Fan |
| Depth | 40 mm |
| Display Type | Backlit LCD Screen |
| Function Available | Setpoint adjustment, fan control, mode selection, economiser, disable functions, alarm, low temperature protection |
| Information Displayed Ambient Room Temperature | 0 to 50 °C, time, day, temperature alarm, communication status ok, current program |
| IP Degree of Protection | IP20 |
| Height | 86mm |
| Market Segment | Small Buildings, Hotel, Healthcare, residential |
| Max Power Consumption | 1 W |
| Measurement Accuracy | Temperature +/- 1 °C |
| Network Frequency | 50 Hz, 60 Hz |
| Output Voltage | 240 V AC 5 A for relay, 240 V AC 2 A for load |
| Pollution Degree | 2 |
| Certifications | CE |
| Relative Humidity | 5-95 % |
| Sensor Type | 100 kOhm NTC thermistor |
| Temperature Setting Range | 5-35 °C |
| Specific Application | 2-Pipe System |
| Width | 86 mm |
| Range | SpaceLogic |
| Standards | EN/IEC 60730-1, EN/IEC 60730-2-9 |
