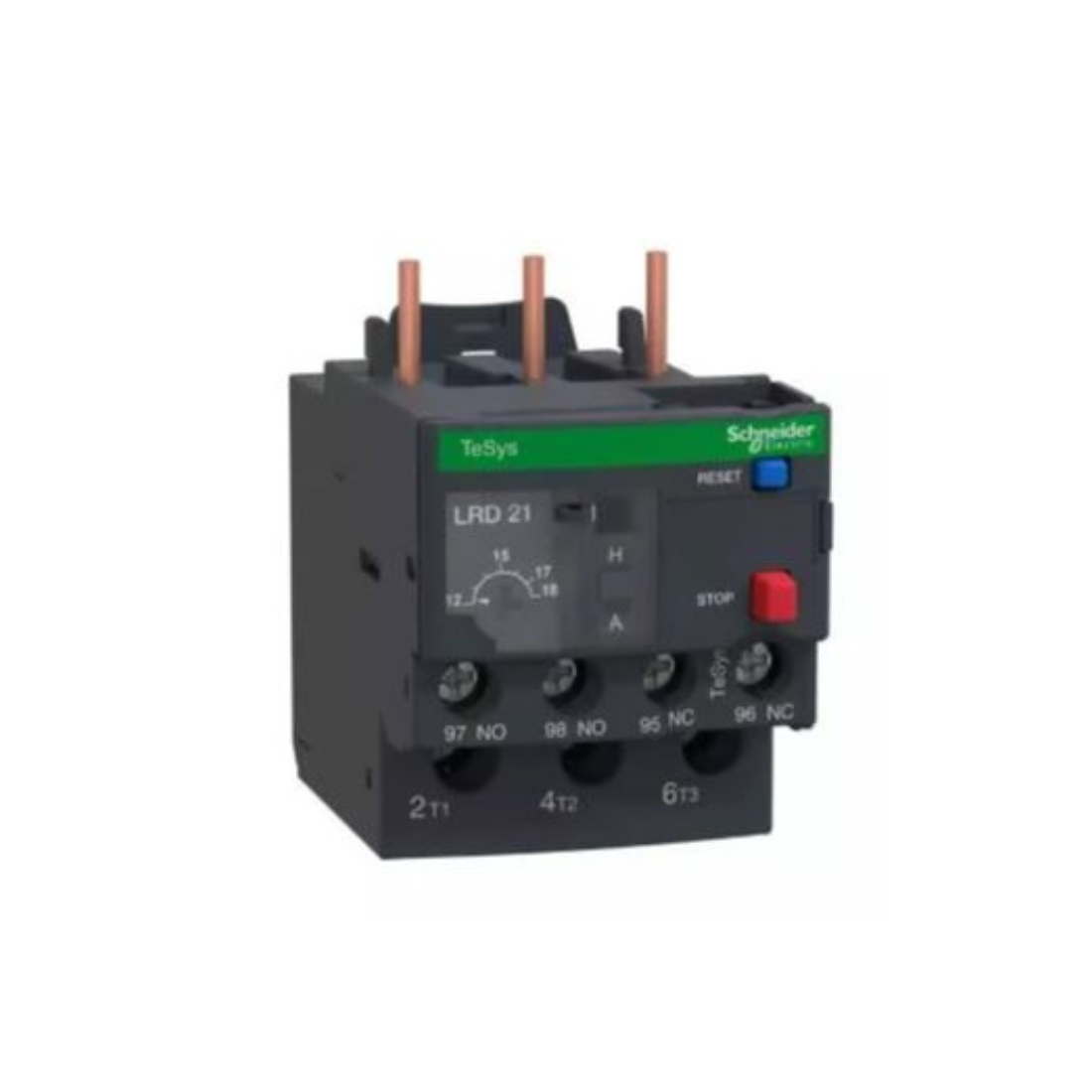

Schneider Electric Thermal Overload Relay TeSys LRD 12-18A Class 10A LRD21

Name: Schneider Electric Thermal Overload Relay TeSys LRD 12-18A Class 10A LRD21
Brand: Schneider Electric
Price: 69.0 AED
Availability: InStock

AED 69.00

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Thermal Overload Relays

Description

Schneider Electric LRD21 TeSys LRD Thermal Overload Relay is a protective device used in electrical circuits to protect motors and other equipment from overloading. It works by monitoring the current flowing through a circuit, and if it exceeds a certain threshold for a specified amount of time, it trips and opens the circuit, thereby preventing damage to the equipment.

12-18A is the range of currents that this particular thermal overload relay is designed to protect against. It means that it is suitable for circuits where the current can vary between 12 to 18 amperes. Class 10A is the tripping time characteristic of the overload relay. In the context of thermal overload relays, different classes have different trip times for a given level of overcurrent. In this case, Class 10A typically means that the relay will trip in 10 seconds when the current exceeds the specified threshold.

Features

12..18A Th Overload Relay
Protect motors from overloads and phase failures
Easier to install and operate with multi-standard screws

Specifications

Brand : Schneider Electric

Item Name : Thermal Overload Relays

Model : LRD10

Package1 Length*Width*Height : 8.8 cm x 7.8 cm x 5.0 cm

Country of Manufacturing : France

Conventional Free Air Thermal Current : 5 A for signalling circuit

Rated Operational Voltage : 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1

Rated Insulation Voltage : power circuit: 600 V conforming to CSA, power circuit: 600 V conforming to UL, power circuit: 690 V conforming to IEC 60947-4-1

Rated Impulse Withstand Voltage : 6 kV

Ambient Air Temperature For Operation : -20-60 °C without derating conforming to IEC 60947-4-1

Ambient Air Temperature For Storage : -60-70 °C

Associated Fuse Rating : 4 A gG for signalling circuit, 4 A BS for signalling circuit

Auxiliary Contact Composition : 1 NO + 1 NC

Climatic Withstand : Conforming to IACS E10

Compatibility Code : LRD

Connections - Terminals : Control Circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid, power circuit: screw clamp terminals 1 cable(s) 1.5-10 mm² flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 1-4 mm² flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 1-6 mm² solid

Control Type : Red Push-button: stop, blue push-button: reset

Depth : 70 mm

Dielectric Strength : 1.89 kV at 50 Hz conforming to IEC 60947-1

Flame Retardance : V1 conforming to UL 94

Height : 66 mm

IP Degree Of Protection : IP20 Conforming to IEC 60529

Mechanical Robustness : Vibrations: 6 Gn conforming to IEC 60068-2-6, shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7

Mounting Support : Plate, with specific accessories, rail, with specific accessories, under contactor

Network Frequency : 0...400 Hz

Network Type : DC, AC

Permissible Current : 1.5 A at 240 V AC-15 for signalling circuit, 0.1 A at 250 V DC-13 for signalling circuit

Phase Failure Sensitivity Tripping Current : 130 % of Ir on two phase, the last one at 0

Certifications : IEC, UL, CSA, CCC, EAC, BV, RINA, DNV-GL, LROS (Lloyds register of shipping), ATEX INERIS, UKCA

Compatibility : LC1D32, LC1D18, LC1D25, LC1D38

Range : TeSys, TeSys Deca

Rated Operational Voltage Limits : 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1

Relay Application : Motor Protection

Standards : EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5, EN 50495

Tightening Torque : control circuit: 1.7 N.m - on screw clamp terminals, power circuit: 2.5 N.m - on screw clamp terminals

Width : 45 mm

Temperature Compensation : -20-60 °C

Thermal Overload Class : Class 10A conforming to IEC 60947-4-1

Thermal Protection Adjustment Range : 12-18 A

Tripping Threshold : 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1

Compatibility : LC1D32, LC1D18, LC1D25, LC1D38

Mechanical Robustness : Vibrations: 6 Gn conforming to IEC 60068-2-6, shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7

Weight : 147.0 g
