Schneider Electric TeSys Vario Emergency Stop Switch Disconnector 32A Back of Enclosure VCCF1
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Emergency Stop Switch Disconnector
Description

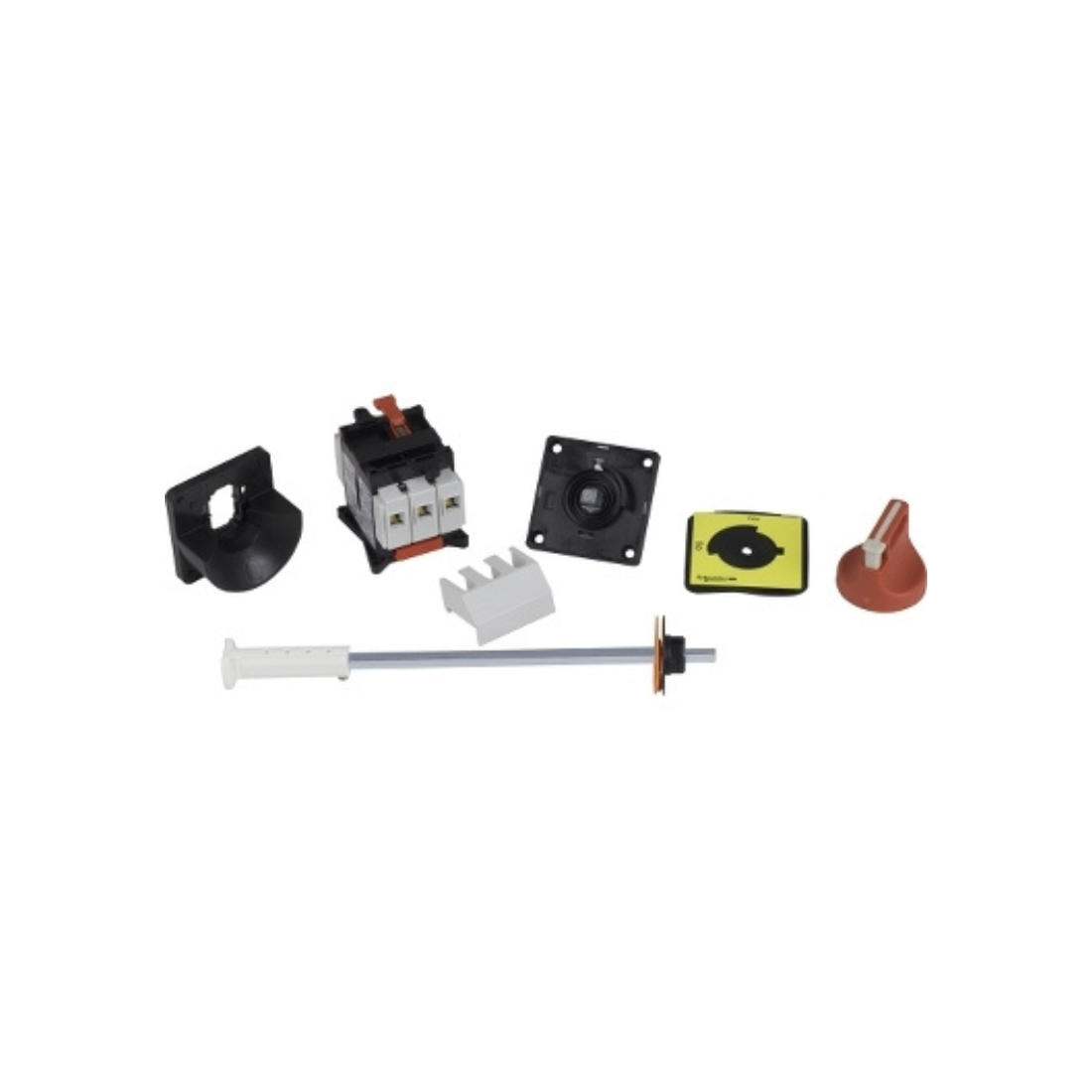

Schneider Electric VCCF1 TeSys Vario Emergency Stop Switch Disconnector, 3-pole, 32 A/690 V, for motor switching applications up to 11 kW at 400 V AC-23. A complete unit consisting of a V1 switch housing, a VZ17 extension shaft, a KZ32 door lock plate, a red handle with yellow faceplate 60x60mm KCF1PZ.
Schneider Electric VCCF1 TeSys Vario Emergency Stop Switch Disconnector is designed to be used as a main and emergency disconnect switch. Lockable handle for 3 padlocks (must be ordered separately). Handle with 4 screws to fix to the door, ensuring IP65 for assembly. The possible distance between the rear of the housing and the door is 300-330 mm. Certified to multiple standards (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Features
- Designed for emergency and main stop switch disconnect use.Â
- Handle with padlock, for 3 padlocks.
- The possible distance between the rear of the housing and the door is 300-330 mm
| Brand | Schneider Electric |
| Item Name | Emergency Stop Switch Disconnector |
| Model | VCCF1 |
| Conventional Free Air Thermal Current | 32 A |
| Conventional Enclosed Thermal Current | 25 A |
| Rated Impulse Withstand Voltage | 8 kV |
| Breaking Capacity | 250 A at 400 V (AC-21A), 250 A at 400 V (AC-22A), 250 A at 400 V (AC-23A) |
| Compatibility Code | Main switch disconnector |
| Connections - Terminals | Power circuit: screw clamp terminals25-25 mm² - solid, power circuit: screw clamp terminals16-16 mm² - flexible - with cable end |
| Control Type | Rotary handle |
| Height | 74 mm |
| Fire Resistance | 960 °C conforming to IEC 60695-2-1 |
| Fixing Mode | By 4 screws for handle, by clips for switch, by screws for switch |
| Mechanical Durability | 30000 cycles |
| IP Degree Of Protection | IP20 conforming to IEC 60529, IP65 |
| Marking | 0 - 1 |
| Mounting Support | Handle: door, switch: symmetrical rail, switch: plate |
| Network Type | AC, DC |
| Poles Description | 3P |
| Protective Treatment | TC |
| Rated Operational Voltage Limits | 690 V AC 50/60 Hz |
| Suitability For Isolation | Yes |
| Tightening Torque | Power circuit: 2.1-2.1 N.m - on screw clamp terminals |
| Certifications | CSA, UL, GL, CCC, UKCA |
| Range | TeSys |
| Width | 60 mm |
| Rated Short-time Withstand Current | 384 A at 400 V duration: 1 s |
| Contacts Type And Composition | 3 NO |
| Rotary Handle Padlocking | 1 to 3 padlocks 4-8 mm |
| Handle Front Plate Colour | Yellow |
| Handle Colour | Red |
| Performance Level | High performance |
| Making Capacity | 320 A at 400 V AC-21A, 320 A at 400 V AC-22A, 320 A at 400 V AC-23A |
| Rotary Handle Mounting Style | Extended |
| Intermittent Duty Class | 30 |
| Standards | IEC 60947-3 |
| Rated Operational Current | 21.8 A AC-23 Ue: 400 V |
| Mechanical Robustness Vibrations | 10...150 Hz (1 gn) |
| Conforming to IEC 60068-2-6, shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 | |
| Device Composition | Handle, shaft extension, switch |
| Base Dimension | 60 x 60 mm |
| Electrical Durability | 100000 cycles AC-21, 30000 cycles DC-1...5 |
| Ambient Air Temperature For Operation | -20-50 °C |
| Weight | 0.527 kg |
