Schneider Electric TeSys Vario Emergency Stop Switch Disconnector 25A Back of Enclosure VCCF0

Name: Schneider Electric TeSys Vario Emergency Stop Switch Disconnector 25A Back of Enclosure VCCF0
Brand: Schneider Electric
Price: 117.6 AED
Availability: InStock

AED 117.60

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Emergency Stop Switch Disconnector

Description

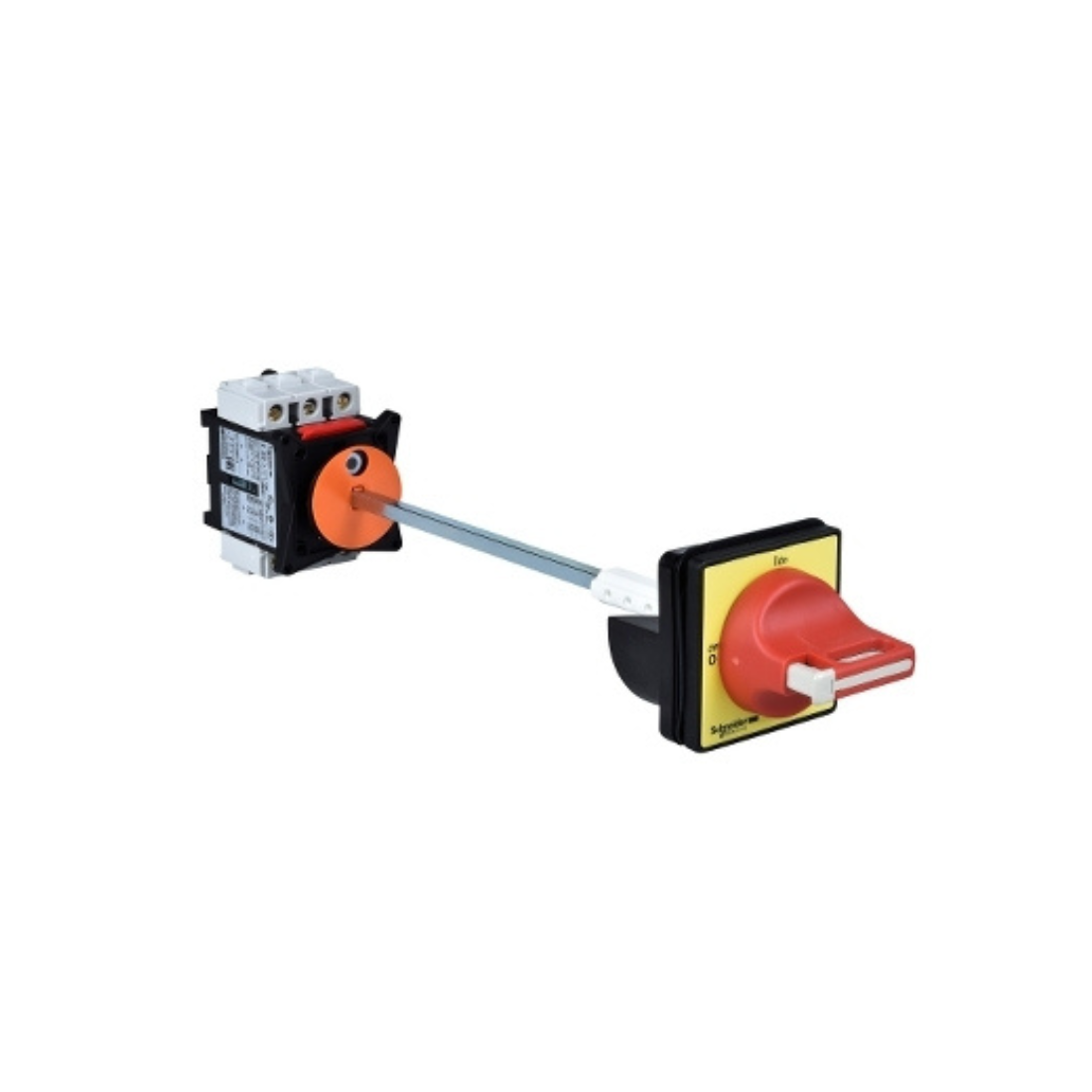

Schneider Electric VCCF0 TeSys Vario Emergency Stop Switch Disconnector, 3-pole, 25 A/690 V, for motor switching applications up to 7.5 kW at 400 V AC-23. A complete unit composed of a V0 switch housing, a VZ17 extension shaft, a KZ32 door lock plate, and a red handle with a yellow faceplate 60x60mm KCF1PZ.

Schneider Electric VCCF0 TeSys Vario Emergency Stop Switch Disconnector is designed to be used as a main and emergency disconnect switch. Lockable handle for 3 padlocks (must be ordered separately). Handle with 4 screws to fix to the door, ensuring IP65 for assembly. The possible distance between the rear of the housing and the door is 300-330 mm. Certified to multiple standards (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Features

Designed for emergency and main stop switch disconnect use.
Handle with 3 padlocks.
The possible distance between the rear of the housing and the door is 300-330 mm

Specifications

Brand : Schneider Electric

Item Name : Emergency Stop Switch Disconnector

Model : VCCF0

Conventional Free Air Thermal Current : 25 A

Conventional Enclosed Thermal Current : 30 A

Rated Impulse Withstand Voltage : 8 kV

Breaking Capacity : 200 A at 400 V (AC-21A), 200 A at 400 V (AC-22A), 200 A at 400 V (AC-23A)

Compatibility Code : Main switch disconnector

Connections - Terminals : Power circuit: screw clamp terminals10-10 mm² - solid, power circuit: screw clamp terminals6-6 mm² - flexible - with cable end

Control Type : Rotary handle

Height : 74 mm

Fire Resistance : 960 °C conforming to IEC 60695-2-1

Fixing Mode : By 4 screws for handle, by clips for switch, by screws for switch

Mechanical Durability : 100000 cycles

IP Degree Of Protection : IP20 conforming to IEC 60529, IP65

Marking : 0 - 1

Mounting Support : Handle: door, switch: symmetrical rail, switch: plate

Network Type : AC, DC

Poles Description : 3P

Protective Treatment : TC

Rated Operational Voltage Limits : 690 V AC 50/60 Hz

Suitability For Isolation : Yes

Tightening Torque : Power circuit: 2.1-2.1 N.m - on screw clamp terminals

Certifications : CSA, UL, GL, CCC, UKCA

Range : TeSys

Width : 60 mm

Rated Short-time Withstand Current : 300 A at 400 V duration: 1 s

Contacts Type And Composition : 3 NO

Rotary Handle Padlocking : 1 to 3 padlocks 4-8 mm

Handle Front Plate Colour : Yellow

Handle Colour : Red

Performance Level : High performance

Making Capacity : 250 A at 400 V AC-21A, 250 A at 400 V AC-22A, 250 A at 400 V AC-23A

Rotary Handle Mounting Style : Extended

Intermittent Duty Class : 30

Standards : IEC 60947-3

Rated Operational Current : 29 A AC-23 Ue: 400 V

Mechanical Robustness : Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6, shocks 11 ms (30 Gn) conforming to IEC 60068-2-27

Device Composition : Handle, shaft extension, switch

Base Dimension : 60 x 60 mm

Electrical Durability : 100000 cycles AC-21, 30000 cycles DC-1...5

Ambient Air Temperature For Operation : -20-50 °C

Weight : 0.527 kg
